BY91 Series Active Power Filter
Product information

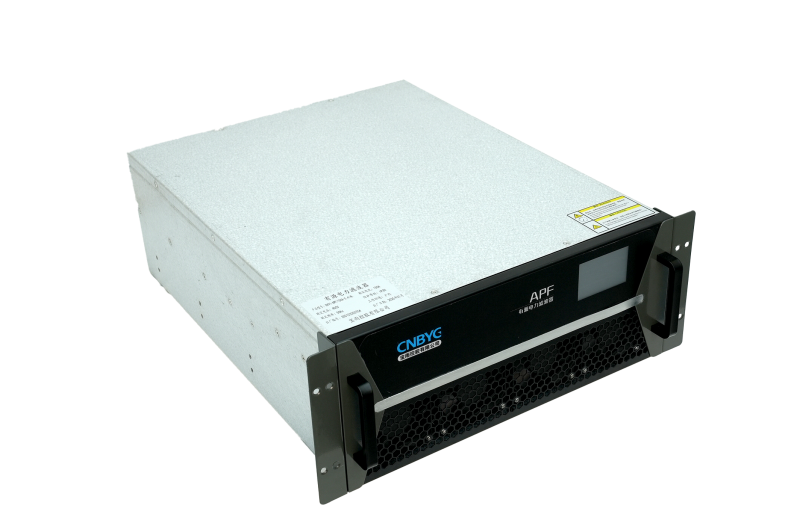

BY91-APF
ACTIVE POWER FILTER
Product details
The BY91-APF active power filter can effectively monitor harmonics and extract harmonic currents from them. The device emits inverse harmonic currents through GBT, completely suppressing harmonics at the device connection point, and avoiding greater losses caused by harmonics flowing into circuit breakers or transformers. At the same time, the device can also manage reactive power and three-phase imbalance phenomena, truly achieving intelligent integrated power quality management.BYAPF can effectively filter out 2-50 harmonics.
Improve the quality of power supply,improve the reliability of equipmentoperation,and reduce economic lossescaused byeauipment mallunclions
Reduce the resonance probabilityof compensation capacitors andimprove electricity safety, Meet thereguirements ofnational standards
Reduce line heating,reduce insulationaging, and improve electrical safetyand reliability
Reduce electromagnetic interferencecaused by harmonics and ensure thenormal operation of the communicationsystem
Product details
MODEL MEANING
SIGNIFICANCE OF HARMONIC CONTROL

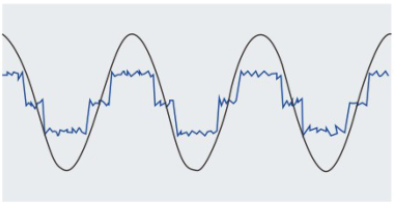

Nonlinear loads generate high-orderharmonic currents, leading to distortionand distortion of current waveforms

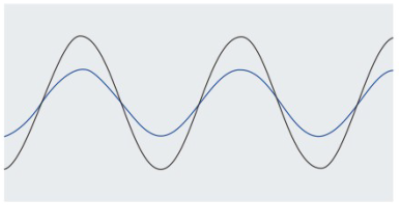

APF emits harmonic currents of equalmagnitude and opposite phase that canceleach other out

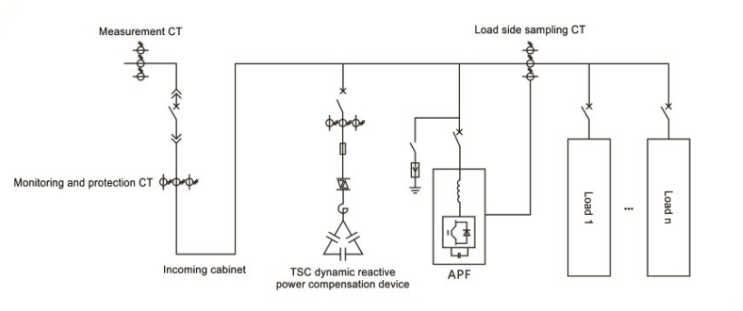

APF CENTRALIZED COMPENSATION
CAPACITY SELECTION OUERY TABLE
Product model name |
CJ19-25 |
CJ19-32 |
CJ19-43 |
CJ19-63 |
CJ19-95 |
|
Electrical life(10000 cycles) |
10 |
10 |
10 |
10 |
10 |
|
Rated current le(380V) A |
17 |
23 |
29 |
43 |
63 |
|
Controllable capacitor capacity (kvar) |
220V |
6 |
9 |
10 |
15 |
22 |
380V |
12 |
18 |
20 |
30 |
40 |
|
Rated insulation voltage (V) |
500 |
500 |
500 |
500 |
500 |
|
Surge suppression capability |
20le |
20le |
20le |
20le |
20le |
|
Action conditions |
Actuation:(85%~110%Us;Release:(20%~75%)Us |
|||||
Coil power (VA)start/hold |
70/8 |
110/11 |
110/11 |
200/20 |
200/20 |
|
|
Auxiliary contact control capacity |
AC-15 360VA;DC-3 33W |
|||||
Weight (kg) |
0.44 |
0.63 |
0.64 |
1.4 |
1.5 |
|
GENERAL PARAMETERS
GENERAL PARAMETER TABLE FOR W/N/H/B/T TYPE PRODUCTS
PRODUCT SPECIFICATIONS
Note:1.W-typeis specifically designed for 660V to 850V power grids;The N-type can be suitable for various installation situations: centralized installation of N-typeindoor cabinets, B-type wall mounted installation, etc., with small and flexible volume.
2. The T-type outdoor type has a protection level of up to lP65 and can be directly installed invarious harsh working environments, providing users with more choices.
3. The order of size listing is: long x deep x High.

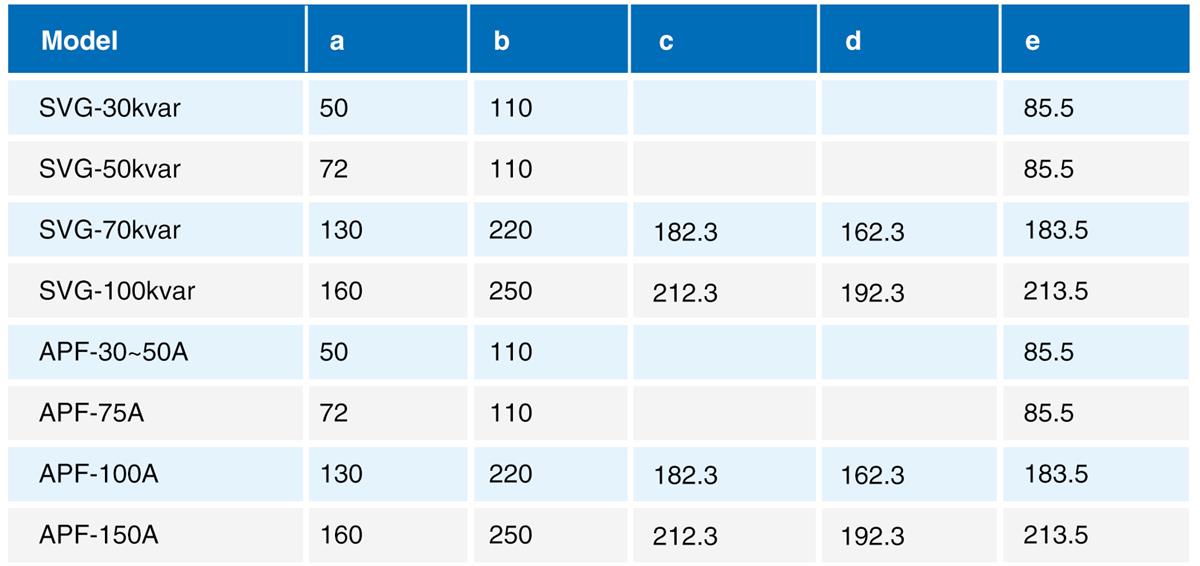

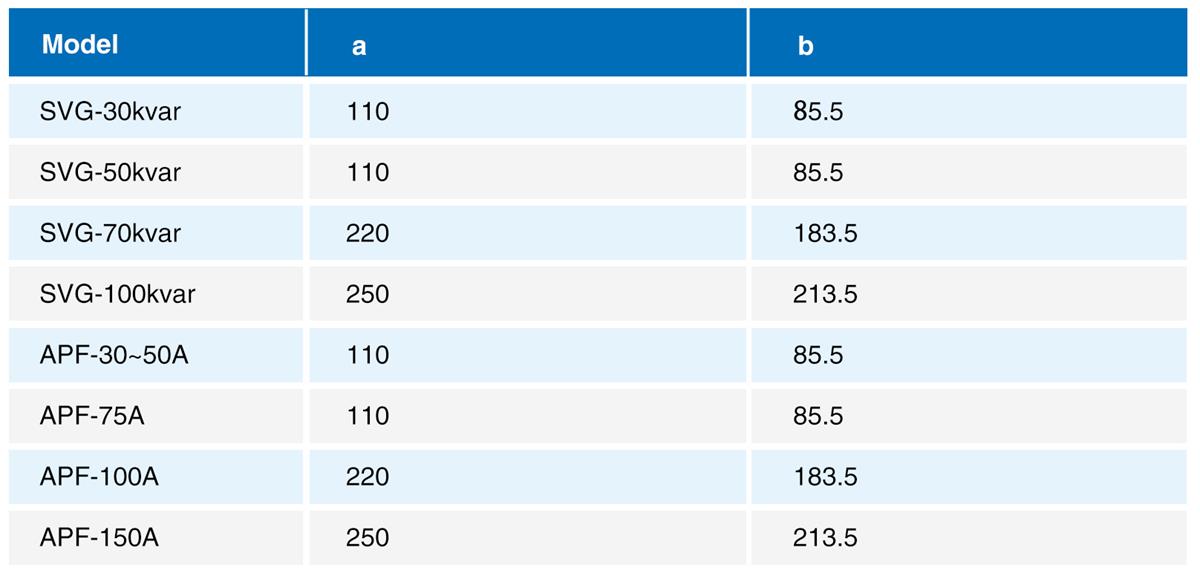

MODULE SIZE
TYPE N
TYPE-W(600V-800V DEDICATED)
TYPE-B
TYPE-T
OUTDOOR-CABINET
