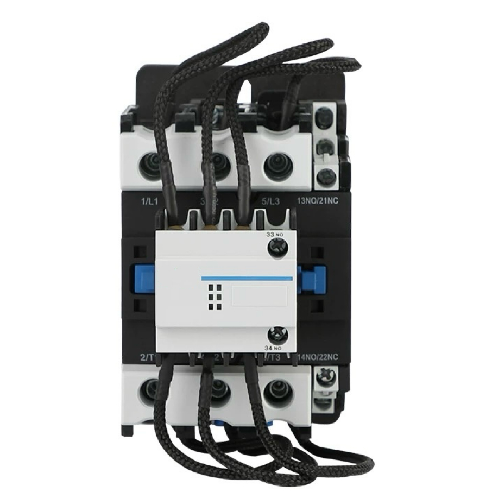

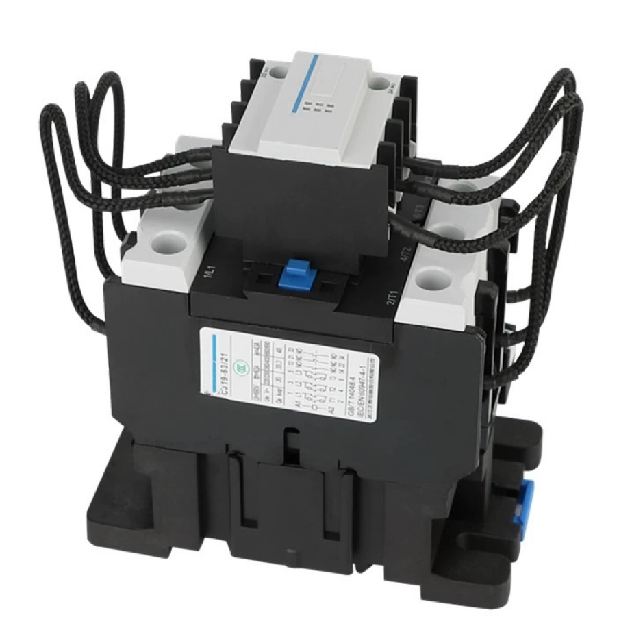

High quality CJ19-32 switching capacitor contactor
Main technical parameters
| Product model name | CJ19-32 | |
| Electrical life(10000 cycles) | 10 | |
| Rated current le (380V)A | 23 | |
| Controllable capacitor capacity(kvar) | 220V | 6 |
| 380V | 12 | |
| Rated insulation voltage (V) | 500 | |
| Surge suppression capability | 20le | |
| Action conditions | Actuation:(85%~110%Us;Release:(20%-75%)Us | |
| Coil power (VA) start/hold | 110/11 | |
| Auxiliary contact control capacity | AC-15 360VA;DC-3 33W | |
| Weight (kg) | 0.44 | |
Environment and installation conditions
- Ambient temperature:
- Operating temperature range is -5℃ to +40℃.
- The average temperature over 24 hours must not exceed +35°C.
- Altitude:
- The installation altitude must not exceed 2000 meters.
- Atmospheric conditions:
- At a maximum temperature of +40°C, the relative humidity of the air must not exceed 50%.
- Higher humidity can be tolerated at lower temperatures, for example 90% relative humidity at 20°C.
- Special measures should be taken to deal with occasional condensation caused by temperature changes.
- Installation conditions:
- The mounting surface must not be tilted more than +5° or -5° from the vertical.
- Shock and Vibration:
- The product should be installed in an environment without significant shock, impact and vibration to ensure its normal operation and service life.Â
Structural features
The contactor adopts a direct-acting double-breakpoint structure, and the contact system is divided into two layers. The upper layer contains three pairs of current-limiting contactors and a current-limiting resistor, forming a surge suppression device. When the contactor is closed, the current-limiting contactor is first connected within a few milliseconds, and then the main working contactor is connected. At this time, the permanent magnet in the current-limiting contactor is released under the action of the spring, disconnecting the current-limiting resistor and allowing the capacitor to work normally. For more information, refer to the internal circuit connection diagram of the contactor .
Appearance and installation dimensions
| Model | Amax | Bmax | Cmax | Dmax | E | F | Note |
| CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 | In addition to screw installation, the contactor can also be installed on a 35mm mounting rail. |
Switching capacitor contactors using silver alloy contacts have many advantages, including excellent wear resistance, which extends the service life of the contactor; excellent conductivity, which ensures low contact resistance and improves the efficiency of power transmission; strong corrosion resistance, adapting to harsh environments and reducing failure rates; and thermal stability under high temperature conditions, ensuring safe and reliable operation.
