CJ19-25 220V Alternating Current Contactor AC Contactor for Switching Capacitors Main Circuit Rating Voltage 220V

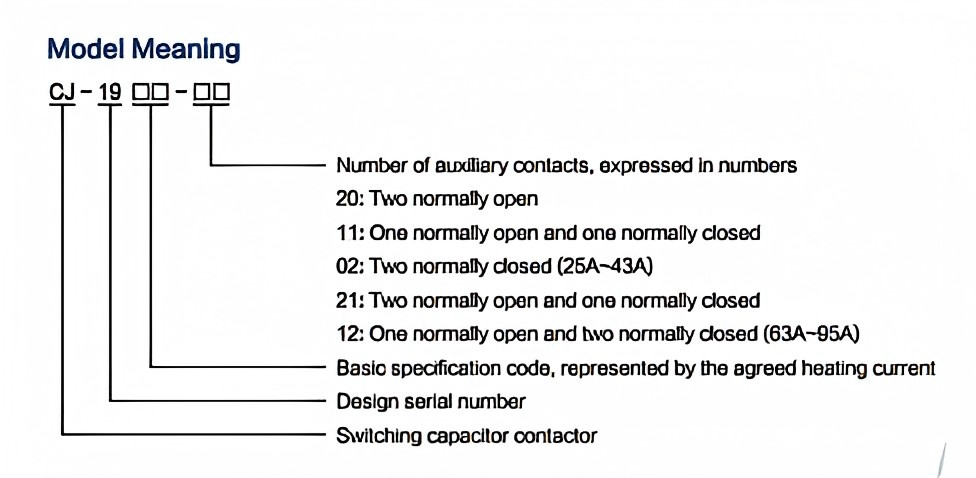

Overview of CJ19-25 Alternating Current Contactor

Precision Capacitor Control & Surge Suppression
The BY CJ19-25 Alternating Current Contactor delivers specialized switching for low-voltage shunt capacitors in 50/60 Hz AC systems up to 380V. Engineered for reactive power compensation, its dual-breakpoint structure integrates current-limiting resistors and pre-charging contacts to suppress inrush currents (up to 20× rated current) during capacitor engagement. This minimizes voltage transients and protects capacitors from surge damage—critical for maintaining stable Power Quality and Voltage Quality. The contactor’s latching circuit ensures reliable operation across 85%–110% control voltage fluctuations, while auxiliary contacts (2 NO) support system monitoring. Ideal for Power Distribution Systems, it supports dynamic reactive compensation by enabling rapid, ripple-free capacitor bank switching.

Harmonic Mitigation & Grid Stability
In energy distribution systems plagued by Harmonics Problems, the CJ19-25 Switching Capacitor Contactor acts as a frontline defense. By reducing harmonic distortion during capacitor switching, it prevents resonance and voltage instability—key contributors to equipment failure. Its magnetic quenching system suppresses arc-generated transients, aligning with IEEE Power Quality and Harmonics standards. Integrated into Compensation in Power Systems, this contactor enhances Energy Power Factor (up to 12.5 kVar at 380V) and supports Active Power Engineering goals. For facilities requiring Home Power Factor correction or industrial Factor Correction, it pairs seamlessly with BAOYU’s Power Factor Correction Manufacturers-certified controllers to achieve >0.95 PF.

Cost-Effective Integration & Durability

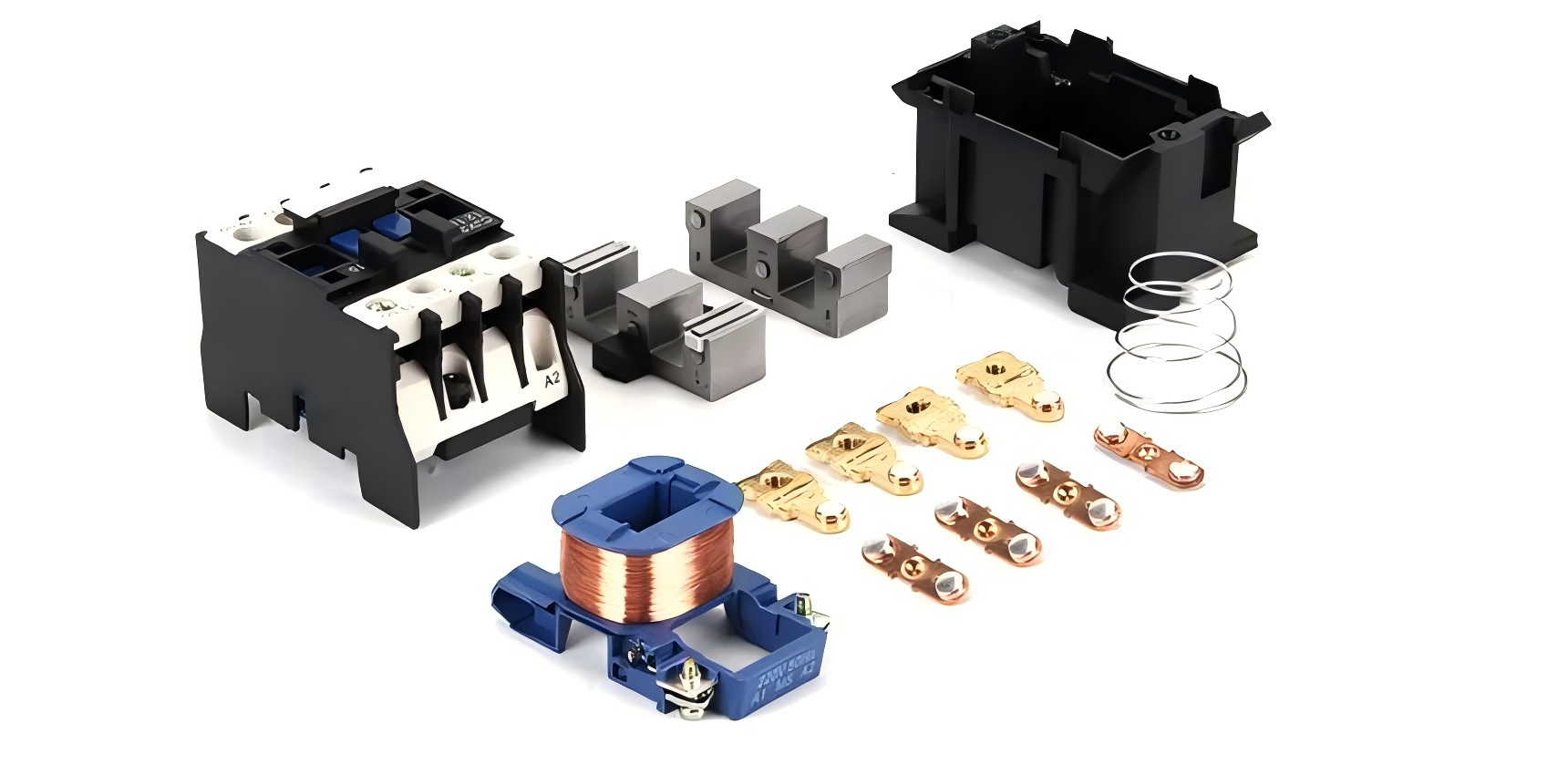

Designed for Low Voltage Starter panels, the CJ19-25 combines 35 mm rail/screw mounting, insulated terminals, and coil voltage markings for error-proof installation—slashing deployment costs by 30% versus conventional 3 Phase Contactor setups. With a robust 500V insulation rating and 100,000+ mechanical cycles, its Contactor Components (e.g., AgSnO₂ contacts) resist welding and erosion. Optimized Contactor Economizer circuitry cuts holding-coil consumption by 86% (9.5 VA vs. 70 VA startup), reducing AC Contactor Cost long-term. At a competitive Contactor for AC Unit Cost, it outperforms electromechanical alternatives in Dynamic Reactive Compensation applications.

Schematic Diagram of CJ19-25 Alternating Current Contactor

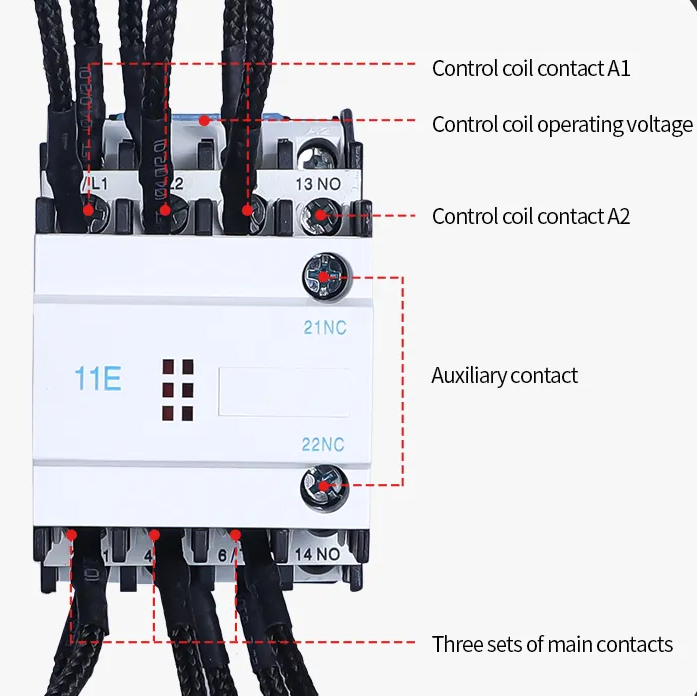

CJ19-25 has a compact structure and the main circuit consists of a resistor switch. This main circuit is easy to connect and is widely used to control small capacitors. The contact system of this contactor adopts a three-phase main circuit, which consists of eight contact blocks arranged up and down. Each main circuit has a pre-activated contact block. There are only two switching resistors, and the capacitor bank adopts a triangle configuration. When the resistor circuit is switched, each capacitor circuit is connected to the resistor. The contactor is equipped with two auxiliary contact blocks, which can be configured as 2 normally open (NO), 2 normally closed (NC) or 1 normally open and 1 normally closed according to the user's preference.

      Operating Conditions of CJ19-25 Alternating Current Contactor

Altitude requirement (altitude: no more than 2000 meters)
The applicable altitude of the equipment does not exceed 2000 meters, which is set according to the physical characteristics of atmospheric pressure and altitude. In an environment below 2000 meters above sea level, the air density and air pressure can ensure the stability of the equipment's insulation breakdown voltage, avoiding the problem of reduced insulation strength due to thin air caused by increased altitude. For example, in plateau areas (such as mountainous areas with an altitude of 1500-2000 meters), the equipment can still maintain a safe distance between internal electrical components at the rated insulation voltage to ensure that no surface discharge occurs, which is suitable for most industrial scenarios in plains and low-altitude hilly areas.

Ambient temperature (ambient temperature: -25°C to +40°C)
The equipment can operate stably in an ambient temperature range of -25°C to +40°C, covering most natural climate scenarios from temperate to frigid zones. In low-temperature environments (-25°C), the cold-resistant insulation materials and metal components used inside the equipment can resist the risk of freezing and cracking, ensuring the stability of the electrical performance of control circuit components (such as capacitors, resistors, etc.); in high-temperature environments (+40°C), the heat dissipation structure of the equipment casing and the internal thermal overload protection design can prevent components from failing due to excessive temperature rise. For example, whether in outdoor scenes in the north in winter or in high-temperature workshops in the south in summer, the equipment can still maintain the reliability of mechanical movement and electrical performance.

Humidity conditions (humidity 90% when temperature ≤50℃)
When the ambient temperature is ≤50℃, the relative humidity is allowed to reach 90%. This parameter combines the coupling effect of temperature and humidity. In high humidity environments (such as hot and humid coastal areas or humid basements), the moisture-proof coating and sealing design inside the equipment can prevent water vapor condensation from corroding circuit boards and contacts. The moisture-proof performance of the insulating material ensures that the insulation resistance value is not lower than the safety threshold at 90% humidity. It should be noted that when the temperature exceeds 50℃, the humidity needs to be reduced accordingly to avoid accelerated aging of the insulating medium in high temperature and high humidity environments.

Rated insulation voltage (Rated insulation voltage: 500V)
The rated insulation voltage of the equipment is 500V, which defines the highest safe voltage level that the equipment can withstand during normal operation. The 500V insulation design can meet the insulation requirements of most low-voltage power distribution systems (such as 380V three-phase circuits), ensuring that no breakdown occurs between live parts or between live parts and grounded parts under rated voltage fluctuations and transient overvoltage conditions. Its insulation structure has passed the power frequency withstand voltage test (such as 1 minute 1500V withstand voltage test) and meets the insulation level requirements for low-voltage equipment in international electrical standards such as IEC 60664.

Control circuit operating voltage (Control circuit operating voltage: 85% to 110% of rated voltage)
The operating voltage range of the control circuit is 85% to 110% of the rated voltage, and the wide voltage adaptability can cope with fluctuations in the grid voltage. For example, when the rated voltage is AC 220V, the control circuit can operate normally in the voltage range of 187V to 242V, avoiding control failures caused by grid voltage drops (such as when starting large motors) or voltage offsets. The voltage stabilization module and undervoltage protection mechanism inside the circuit ensure that the pull-in and release characteristics of the control coil remain stable when the voltage fluctuates, ensuring the reliability of the mechanical action.

The Main Function of the CJ19-25 Alternating Current Contactor

1. Advanced surge current suppression technology
The CJ19-25 220V AC contactor integrates an advanced double-break structure, pre-charge contacts and current-limiting resistors to suppress capacitor surge currents up to 20 times the rated current (≤20Ie). During operation, the pre-charge contacts close first to allow the resistor to absorb the initial surge; a few milliseconds later, the main contacts close to enable smooth power-on of the capacitor. This technology is essential to protect capacitors from damage when they are frequently switched in reactive compensation systems, ensuring extended capacitor service life and reduced maintenance costs. It is ideal for power quality management, preventing equipment tripping caused by voltage sags and uncontrolled surges.

2. Enhanced power quality optimization
Designed for three-phase contactor applications, the CJ19-25 optimizes power quality by precisely controlling low-voltage shunt capacitors in reactive power compensation systems28. It supports capacitor banks up to 6 kvar (6 kvar at 220V, 12.5 kvar at 380V), correcting power factor imbalance and minimizing line losses25. By reducing inductive reactive loads, it stabilizes grid voltage, improves energy efficiency, and complies with international standards such as IEC/EN 60947-4-1. It is essential for industrial facilities seeking to reduce electricity bills and avoid penalties for low power factor.

3. Three-phase load balance and stability
As a dedicated three-phase contactor, the CJ19-25 ensures balanced phase loads by synchronizing capacitor switching on three lines89. Its AC-6b rated duty category (for capacitor switching) ensures reliable performance in systems up to 690V, mitigating voltage fluctuations and neutral current issues caused by unbalanced loads2. This stability is critical for sensitive equipment such as CNC machines or data centers, where voltage asymmetry can cause failures. The contactor’s ≥100,000 cycles electrical life further ensures long-term reliability in harsh environments.

4. Compact and reliable design, saving space
The CJ19-25 features a dual-break direct-acting mechanism and modular construction, providing high reliability in a compact space14. Its insulation-covered terminals prevent accidental contact, while 35 mm DIN rail or screw mounting options simplify installation in crowded switchboards27. It is equipped with two auxiliary normally open contacts for control signals, allowing seamless integration into automatic power management systems. It is designed to meet IP20 protection standards for enclosures suitable for dusty or wet industrial locations.

5. Improve energy efficiency and reduce losses
The CJ19-25 uses low-power coil technology (70VA start/9.5VA hold) and optimized contact material29 to minimize operating losses. By reducing contact resistance and coil energy consumption, the contactor can reduce standby power consumption by more than 85% compared to traditional contactors. This is in line with global initiatives for energy-efficient grid infrastructure and can directly reduce carbon footprint. In addition, its reactive power compensation function reduces transmission losses, thereby improving overall system efficiency - which is critical for sustainable manufacturing and commercial buildings.

6. Harmonic Mitigation Synergy
The CJ19-25 is primarily used as a capacitor switching device, but it can also complement harmonic filtering systems by ensuring stable capacitor switching in harmonic-rich environments. Its resistive surge suppression prevents resonance problems that can amplify harmonics, protecting capacitors from overcurrent damage. For sites where THD (total harmonic distortion) is an issue, it can be used in conjunction with detuned reactors or active harmonic filters to maintain grid purity. This synergy is critical for facilities with non-linear loads such as frequency converters or LED lighting, as harmonic currents can degrade power quality and equipment performance.

Installation Size Drawin of CJ19-25 Alternating Current Contactor

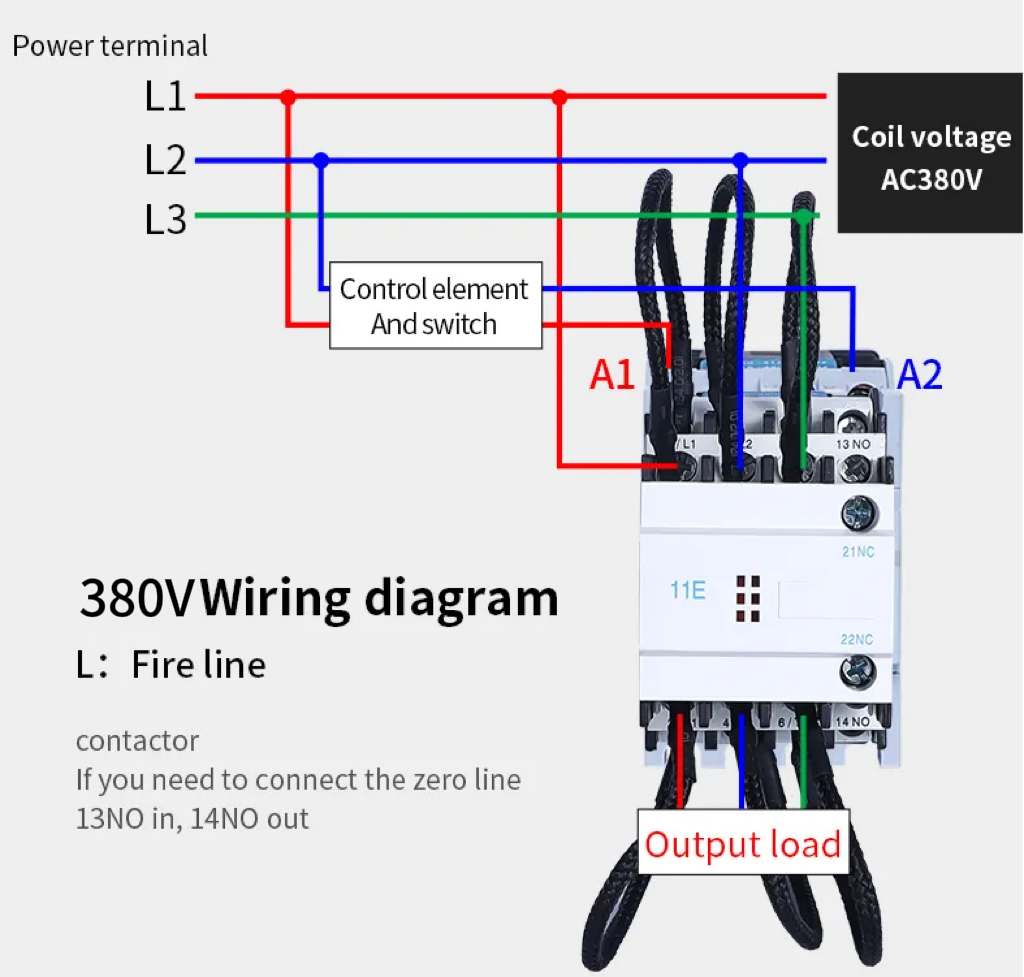

Product Wiring Display of CJ19-25 Alternating Current Contactor
