BYKXG/S/480-50/P7 Series Anti-harmonic Intelligent Smart Capacitor 3-phase Reactive Power Compensation 480V

Model Meaning

Main Specification of BYKXG/S/480-50/P7 Series Anti-harmonic Intelligent Smart Capacitor

Overview of BYKXG/S/480-50/P7 Series Anti-harmonic Intelligent Smart Capacitor

BaoYu Holdings Co., Ltd’s BYKXG/S/480-50/P7 Series Anti-harmonic Intelligent Smart Capacitor is a premium 3 Phase Power Capacitor designed to resolve Harmonics Problems and optimize Reactive Power Compensation in industrial and commercial systems. Combining Capacitors In Series technology with Anti-Harmonic filtering (featuring a 2 Capacitor design), this LV Capacitor stabilizes voltage (Capacitor To Increase Voltage), improves power factor, and protects Capacitor Electric Circuits from harmonic distortions up to 50th order. Ideal for 3 Phase Electric grids (480V), its smart monitoring ensures real-time Capacitor Operation tracking, including Capacity Of The Capacitor, while addressing Function Of Capacitor In AC systems for energy efficiency. As a trusted Capacitor Maker, BaoYu delivers robust, IEEE 519-compliant solutions for renewable energy integration, industrial plants, and facilities needing reliable Harmonic Filter Capacitor performance. Elevate grid reliability and reduce costs with this advanced Power Capacitor solution.

Working Principle of BYKXG/S/480-50/P7 Series Anti-harmonic Intelligent Smart Capacitor

Intelligent components
All electronic components in intelligent components adopt wide temperature and industrial grade, whichcan adapt to harsh environments with large temperature changes and severe electromagnetic interference and can work reliably for a long time without interruption.

Zero crossing switching synchronous switch technology based on mechanical contacts

The company has summarized the characteristics and drawbacks of mechanical contactors, contactless thyristors, and composite switches, and combined years of development and practical operation experience.independently developed a new generation that uses micro electronic software and hardware technology to effectively control the contacts of mechanical electro magnetic relays; lmplement synchronous switching technology for zero crossing and switching low-voltage power capacitors based on mechanical contacts,When the AC voltage at both ends of the contact is zero, it closes, and when the contact is closed, it openswhen the AC current at both ends is zero. Avoid the impact of inrush current generated during capacitorinput on system voltage. Reduce equipment losses and improve the service life of capacitors.
Dry series reactor
The dry series reactor in the product uses high magnetic flux imported materials, which is lightweight, small in size, low in power consumption, low in temperature rise, and low in noise. it is internally equipped with a thermal relay that monitors its temperature and sends a signal when the set temperature is exceeded.Micro current sampling transformer.The current sampling of the capacitor adopts a micro transformer with permalloy core, which has good in earity, high freauency characteristics, and small difference, ensuring the accuracy and stability of currentand current type protection.
Quick circuit breaker
The fast circuit breaker adopts a molded case circuit breaker, which opens within 100ms at 10 times therated current. lt is used for current fast switching main protection to avoid tripping the upper switch, andalso serves as the power connection terminal and power main switch.

 Main Product Function

Harmonic suppression function: Effectively suppress high-order harmonics and inrush currents, andreject harmonics from entering the capacitor device. lt can eliminate the impact of high-orderharmonics on capacitors, protect circuits and capacitors from overload, prevent capacitor overheatingaging of insulation media, decline in self-healing performance, and reduce service life.

Synchronous switching function: in conjunction with a dedicated controller, it has fast response time.can achieve dynamic tracking, and can accurately switch when the current and voltage are zero, with little impact from harmonics.

Split phase compensation function: Split phase compensation type product, each phase capacitor canbe switched separately, improving the accuracy of reactive power compensation and providing goodcompensation for three-phase reactive power imbalance.

Measurement function: distribution voltage, current, reactive power, power factor measurement, Ciohase and transformation ratio automatic measurement, correction; Measurement of three-phasecurrent and internal temperature of each capacitor.

Protection function: circuit current quick switching and overcurrent protection; Capacitor overvoltageand undervoltage protection; Capacitor over temperature, phase failure, and three-phase imbalanceorotection. When the temperature of the capacitor exceeds 65 degrees, the entire capacitor will beshut down for protection, improving its service life and ensuring the safe operation of the system.

Signal function: the switching status, over/under compensation status, and over/under voltage statussignals of capacitors; Protection action type and self diagnosis fault type siqnal.

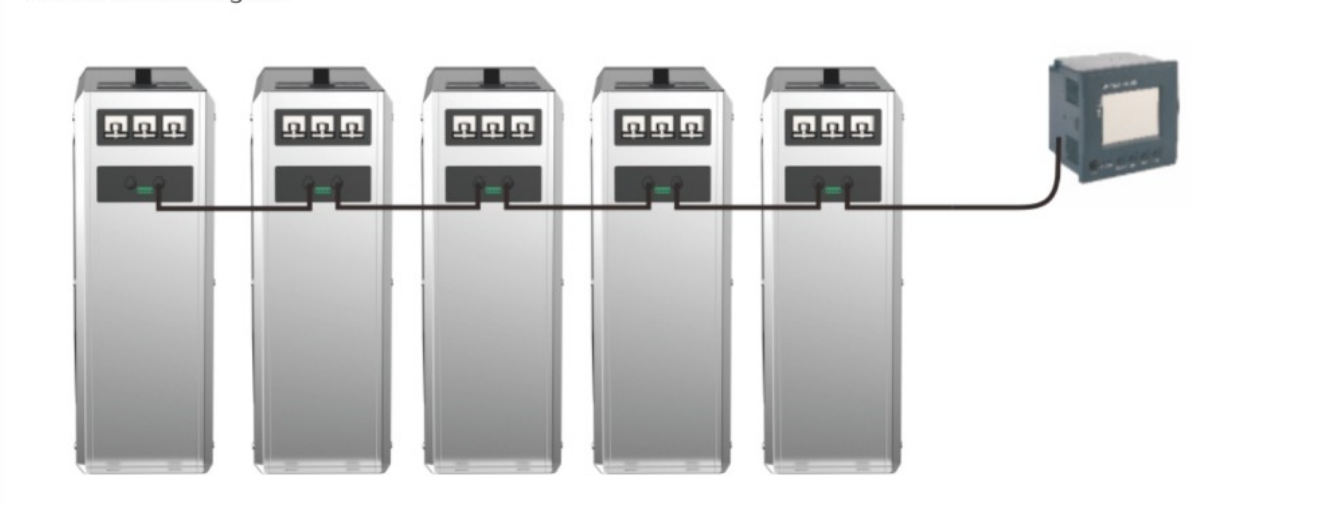

Communication function: RS-485 communication connection is used between the capacitor and the controller, which facilitates the uploading of a large amount of sampling data and the exchange of information with external monitoring terminals, forming the system's work.

Intelligent network control: it can automatically detect and track changes in system reactive power, and automatically switch capacitor banks, Capacitors with the same capacily are switched according to the principle of cycling, while capacitors with diferent capacities are switched according to the principle of adaptation. Capacitors are first in, first out, and first out, first in; Capacitors with low operating temperature shall be put into operation first, while those with high temperature shall be put out first.The compensation working condition is constant, and the capacitor is switched on and off periodically to avoid long-term operation of a single capacitor.
