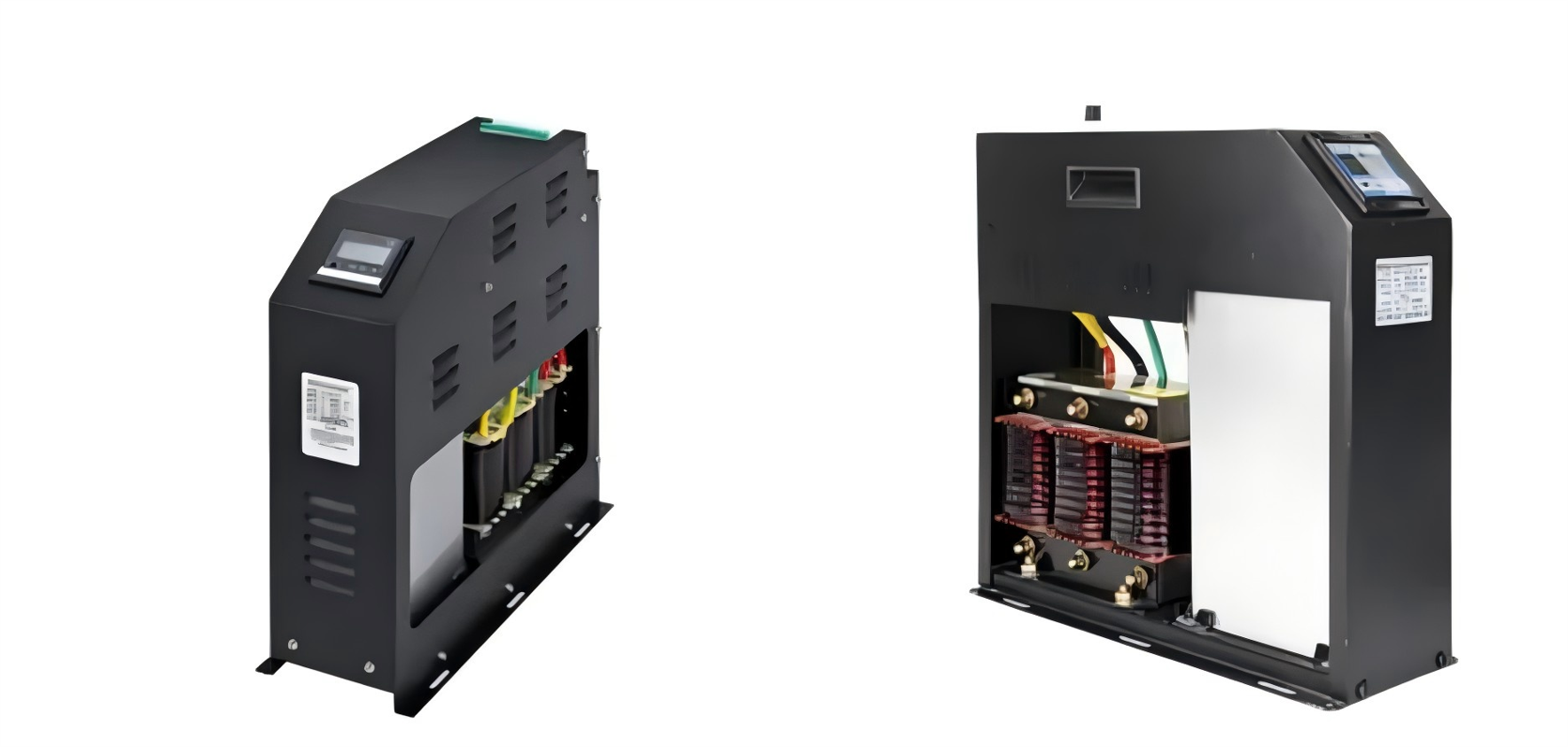

BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor High Quality 3 Capacitors 480V

Model Meaning

Main Specification of BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor

Product Introduction of BYKXG/S/480 - 40/P7 Series Anti-harmonic Intelligent Capacitor

Introducing the BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor, engineered to optimize power quality in three-phase power systems. This advanced capacitor cabinet solution integrates 3 capacitors with a capacitor working voltage of 480V, designed for robust performance in electric power distribution and capacitor industrial applications. Ideal for HVAC capacitor systems, it dynamically corrects 3 phase voltage imbalances, mitigates power quality harmonics, and reduces AC current capacitor distortions. Featuring integrated capacitors and harmonic filter capacitor technology, it addresses low capacitor efficiency and hy capacitor demands while supporting dynamic capacitor adjustments. Suitable for 15 capacitor configurations, this harmonic capacitor ensures reliable three-phase power stability, enhances circuit protection, and delivers superior harmonic suppression for industrial and commercial energy systems.

Main Features of BYKXG/S/480 - 40/P7 Series Anti-harmonic Intelligent  Capacitor

• Adopting high-quality industrial low-voltage filtering power capacitors with high safety;
• Synchronous switch technology is adopted, with advanced technology and stable and reliable performance,
• Adopting a closed-loop circuit, the magnetic circuit is not saturated, there is no energy consumption, anathere is no electromagnetic radiation；
• Adopting special technologies and processes, it can effectively suppress high-order harmonics and inrush currents, and has a significant effect on suppressing harmonics of 3-13 or more;
• Modular structure, flexible combination, convenient expansion, simple installation, and easy maintenance,Inteligent network, 485 communication interface can be connected to the backend computer for com-prehensive power distribution management;
• Adopting decentralized control mode, with 2 million faultless switching, high reliability;The interface is displayed in Chinese, with simple operation and easy maintenance, which is conduciveto on-site fault finding;

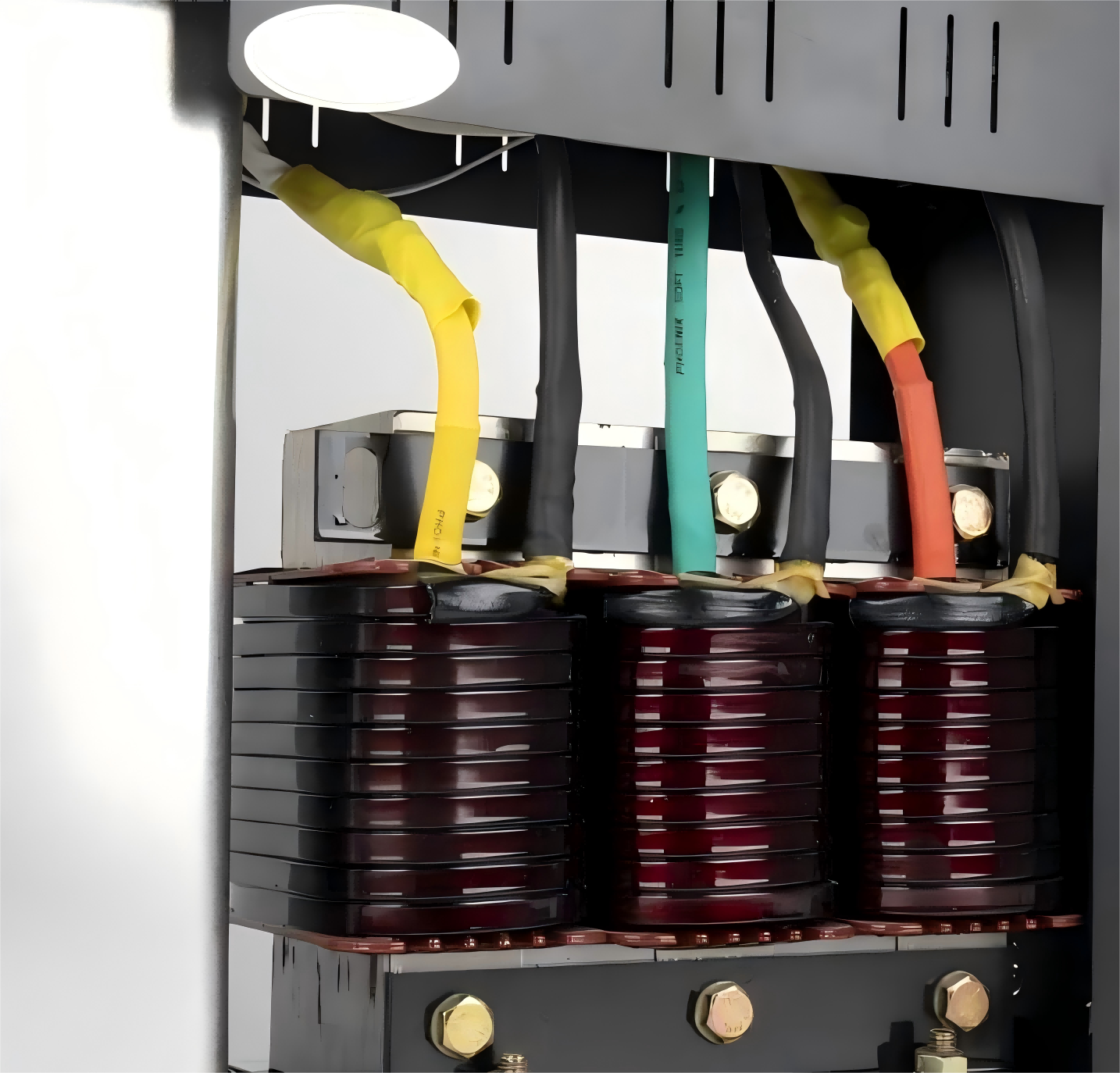

• Add SH explosion-proof device and temperature control device inside to improve the reliability of operationin severe harmonic situations;
• The energy-saving effect is siqnificant, effectively improving power factor, reducing power consumption.and improving power quality.

BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor: Key Component Operational Principles

Advanced Harmonic Suppression Module
The capacitor integrates a multi-stage harmonic filtering system that dynamically detects and neutralizes harmonics (e.g., 3rd, 5th, 7th order) in real-time using adaptive frequency tracking. This is achieved through a combination of tuned LC circuits and active power electronics, which inject counter-harmonic currents to eliminate grid distortion.

Intelligent Reactive Power Compensation
Equipped with a self-optimizing control unit, the capacitor autonomously adjusts reactive power output based on real-time load fluctuations. It employs PWM (Pulse Width Modulation) technology and a DSP (Digital Signal Processor) to calculate optimal compensation levels, ensuring power factor correction (PFC) and voltage stabilization.

Multi-Layered Protection Mechanism
The device features overvoltage, overcurrent, and thermal protection systems. A fail-safe relay disconnects the capacitor during fault conditions, while a built-in temperature sensor triggers cooling protocols to prevent overheating. Additionally, its arc-resistant design ensures safety in high-energy environments.

IoT-Enabled Monitoring and Diagnostics
Integrated with IoT communication modules (e.g., RS485, Modbus), the capacitor enables remote monitoring of parameters like voltage imbalance, harmonic distortion, and capacitor health. Predictive maintenance alerts are generated via cloud-based analytics, reducing downtime.

Product Wiring Method

Size Informations
