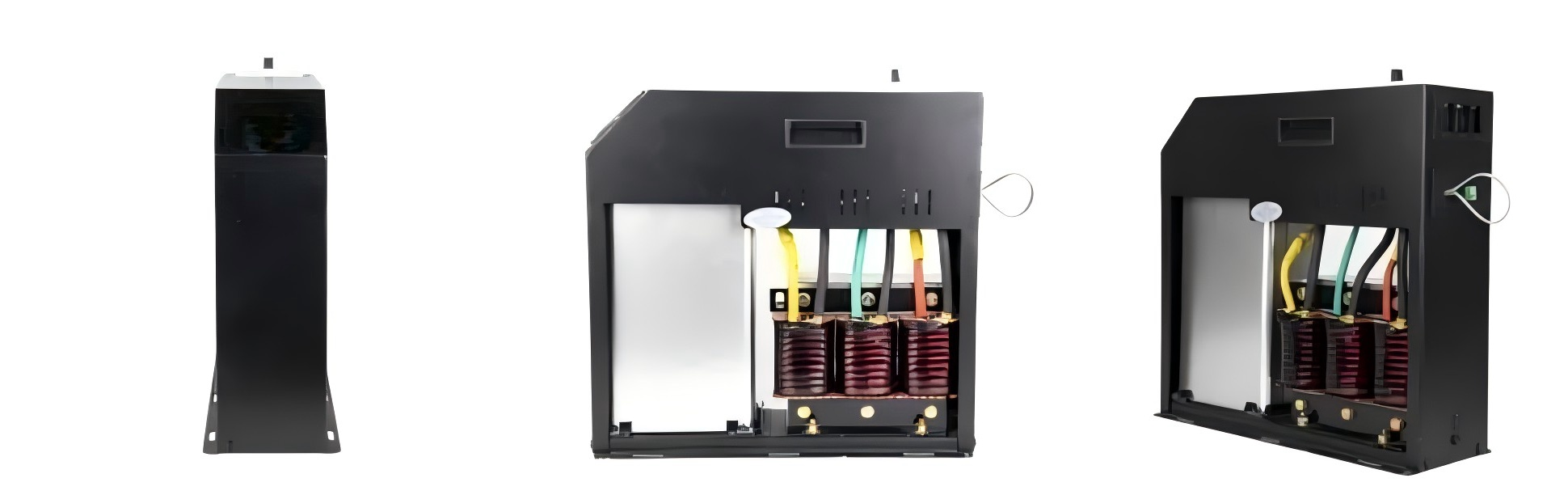

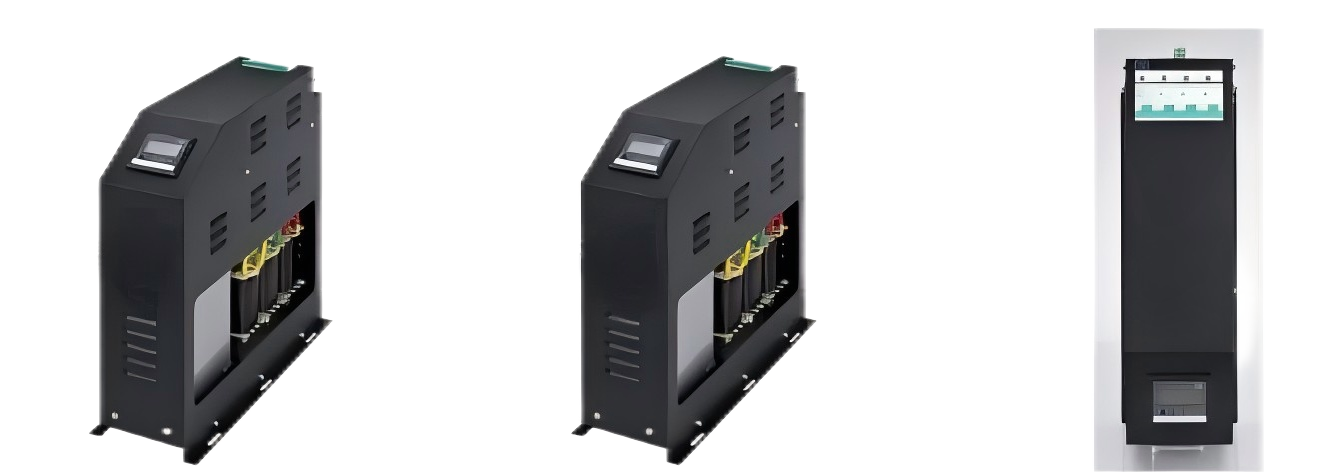

BYKXG/S/480-25/P7 Series Anti-harmonic Intelligent Power Capacitor - 480V 25kvar Smart Harmonic Filter for Three-Phase Imbalance Correction

Model Meaning

Main Datas of BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor

Product Introduction of BYKXG/S/480 - 25/P7 Series Anti-harmonic Intelligent Capacitor

As a leading capacitor maker, Baoyu Holdings Ltd. prioritizes innovation in harmonic mitigation. The BYKXG/S series stands out with its capacitor filter circuit optimized for capacitor frequency responsiveness, ensuring minimal harmonic resonance risks in 3-phase power networks. Its anti-harmonic intelligent capacitors are engineered for electrical circuit capacitor integration, supporting applications ranging from manufacturing plants to renewable energy systems. The device’s active harmonic suppression capability is enhanced by a dual-core DSP system, which processes harmonic data in real time and synchronizes with harmonic systems to maintain voltage stability.

For industries plagued by power quality harmonics, such as semiconductor fabrication, data centers, and automotive production, this harmonic filter capacitor provides a turnkey solution. Its two capacitors of capacitance design ensures balanced reactive power compensation, correcting three-phase imbalance while reducing neutral line currents by 50%59. The capacitor’s low-voltage compatibility (380V–480V) and compact footprint make it adaptable to diverse grid configurations, including hybrid setups with solar inverters and variable frequency drives. Additionally, the BYKXG/S series features IoT-enabled diagnostics, allowing remote monitoring of capacitor advantages such as efficiency metrics and Failure warning . By combining high-quality capacitors with smart-grid readiness, Baoyu Holdings empowers global clients to achieve sustainable energy management and operational excellence.

The BYKXG/S/480-25/P7 Series Anti-Harmonic Intelligent Power Capacitor is a cutting-edge solution designed to optimize 3-phase electrical systems by addressing power quality challenges such as harmonic distortion, voltage fluctuations, and reactive power imbalances. Engineered for industrial and commercial applications, this universal capacitor integrates advanced harmonic filtering technology with intelligent monitoring capabilities, making it an indispensable component for modern electrical equipment. With a rated voltage of 480V and a capacity of 25kvar, it excels in mitigating harmonics up to the 25th order, ensuring compliance with stringent power quality standards (THD ≤5%). Its anti-harmonic core utilizes a capacitor harmonic filter configuration, combining two capacitors in parallel with precision-tuned reactors to create low-impedance paths for high-frequency harmonics, effectively neutralizing their impact on capacitor power consumption and system stability.

Featuring a modular design, the BYKXG/S series supports seamless scalability and easy maintenance, ideal for dynamic industrial environments. The intelligent capacitor employs real-time harmonic discovery algorithms and adaptive control logic to monitor current on capacitorand adjust compensation levels autonomously, ensuring optimal power quality even under fluctuating loads. Built with high-quality capacitors and robust insulation materials, it offers enhanced durability and capacitor operation safety, including overvoltage, overcurrent, and overtemperature protections. Compatible with capacitor start induction run motorsand active harmonic filters, this solution not only extends the lifespan of sensitive equipment but also reduces energy losses by up to 30%, delivering significant cost savings.

Main Features of BYKXG/S/480 - 25/P7 Series Anti-harmonic Intelligent  Capacitor

• Use precision filtering to combat harmonics in electrical systems and solve harmonic problems such as waveform distortion.
• Dual reactive power compensation:Optimize energy efficiency through dynamic harmonic compensation and power factor correction.
• Zero-crossing switching technology:Reduce inrush current and extend service life with smooth, arc-free capacitor switching.
• Intelligent control and real-time monitoring:Automatically adjust the compensation strategy by tracking the voltage, current and harmonics in the power network.
• 7% or 14% Reactor Configuration:Customizable choke settings to suppress 3rd to 13th harmonics and prevent resonance.
• Anti-resonance design:Protect the grid from the risk of system resonances through optimized capacitor harmonic filter parameters.
• High-precision filtering:Minimizes THD (Total Harmonic Distortion) for cleaner power quality and harmonics.
• Phase loss and overvoltage protection:Automatically shut down when voltage is abnormal to protect equipment integrity.
• Modular anti-harmonic filters:Scalable design allows for flexible expansion in industrial or renewable energy applications.
• Better than Fronius solutions:Outperforms competitors in harmonic mitigation, ruggedness and integration of anti-harmonic smart capacitors.

BYKXG/S/480-40/P7 Series Anti-harmonic Intelligent Capacitor: Key Component Operational Principles

Intelligent control and monitoring system
The anti-harmonic smart capacitor integrates a microprocessor-based control module that continuously monitors harmonics, voltage fluctuations, and phase imbalances in the power system. By analyzing real-time data (such as total harmonic distortion (THD), power factor), the system dynamically adjusts the harmonic compensation strategy to suppress specific harmonic orders (3rd, 5th, 7th) and optimize reactive power compensation. The system is connected to power quality and harmonic management protocols to ensure accurate load balancing and minimize power losses. The embedded IoT interface supports remote diagnostics, meeting the requirements of modern smart grids while solving harmonic problems in industrial and renewable energy applications.
Reactor configuration and anti-resonance design
Capacitive harmonic filters use a detuned reactor configuration (7% or 14% impedance) to block major harmonics and prevent resonance. Reactors create a high impedance path for specific harmonic frequencies (such as the 3rd or 5th), keeping them away from sensitive equipment. Combined with anti-resonance design, the LC parameters of the capacitor bank are optimized to avoid the risk of harmonic amplification, ensuring stable harmonic suppression even in power grids with fluctuating loads. The synergy between reactors and capacitors neutralizes harmonics in electrical systems, protecting transformers, motors and other equipment from damage caused by power quality harmonics.
Zero-crossing switching technology
The anti-harmonic filter utilizes zero-crossing switching technology to activate/deactivate the capacitor only when the voltage or current is at zero point. This eliminates inrush current and arcing during switching, significantly reduces mechanical stress on the relay, and extends the service life of components. By synchronizing with the grid sinusoidal waveform, this technology improves the accuracy of harmonic compensation and reactive power compensation, ensuring seamless integration with sensitive industrial machinery. Combined with intelligent control, it is able to adapt to load changes, maintaining high-precision filtering and stable harmonic suppression in dynamic environments.
High-precision filtering and protection mechanism
The harmonic filter capacitor uses a multi-stage passive filter to attenuate harmonic distortion up to the 13th order and improve power quality harmonics. Advanced algorithms detect waveform anomalies, trigger phase loss and overvoltage protection, and isolate capacitors in the event of voltage spikes or phase failure to prevent catastrophic damage. At the same time, the high-precision filtering system can reduce total harmonic distortion (THD) to less than 5%, in compliance with IEEE-519 standards. This design that takes into account both harmonic suppression and safety ensures its reliable operation under harsh conditions, and is superior to general solutions such as Fronius harmonic filters in terms of durability and anti-harmonic efficiency.

Product Wiring Method

Size Informations
