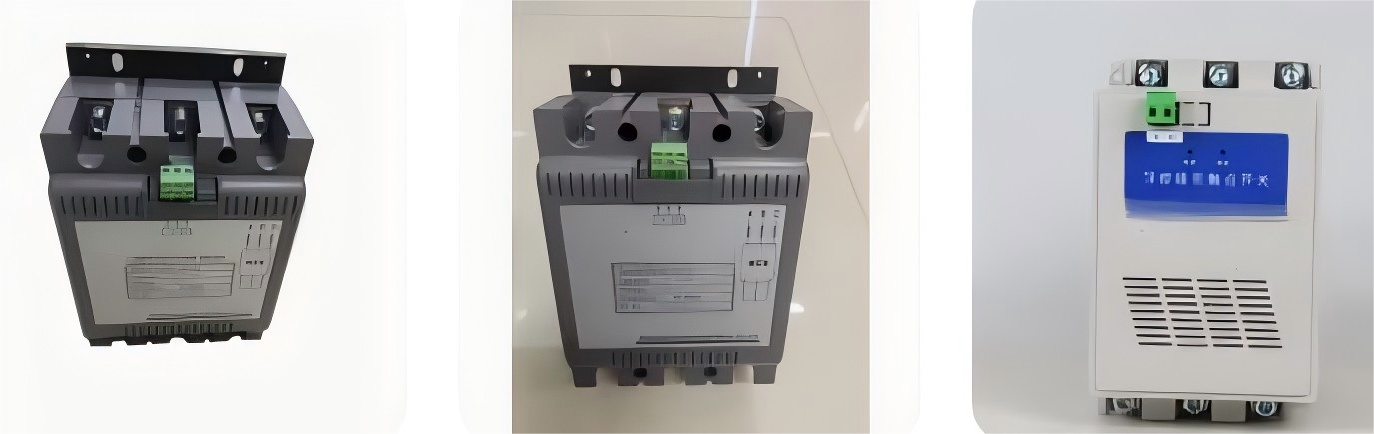

BYKCS Series Thyristor Switch Thyristors Dynamic Thyristors Switches for Control Smart Capacitor 600V

Model meaning

Main Specification of BYKCS Series Thyristor Switch

 Overview of BYKCS Series Thyristor Switch

Main Functions of BYKCS Series Thyristor Switch

1. Ultra-fast reactive power compensation and power factor correction
The BYKCS series achieves sub-cycle reactive power compensation (response time less than 20ms) by dynamically switching smart capacitor banks through zero-crossing triggered thyristors. This intelligent thyristor switching technology eliminates traditional contactor delays and injects precise capacitive reactive power to neutralize the inductive reactive power generated by the motor/drive. By maintaining a power factor close to unity (above 0.98), it avoids utility fines and reduces distribution losses by 15-30% 17. Real-time reactive power analysis adapts to load fluctuations, ensuring grid-compliant power factor correction (PFC) while minimizing kWh demand charges. Ideal for plants with rapidly changing loads, such as stamping machines or conveyor systems.

2. Advanced harmonic immunity and grid stability filtering
Designed for harsh electrical environments, these thyristor switches for capacitors feature embedded harmonic mitigation technology for reliable operation at 15% THD without risk of resonance. The low inductance design and snubber circuit absorb high frequency transients (such as 5th/7th/11th harmonics generated by frequency converters), reducing THD to less than 5% as specified . Unlike conventional capacitor switches, BYKCS prevents harmonic amplification during capacitor bank connection, acting as a passive harmonic filter while providing reactive power support. This is critical for protecting sensitive equipment in data centers and semiconductor factories.

3. Solid-state circuit protection and fail-safe operation
Integrated multi-layer circuit protection ensures resilience in grid anomalies. Overvoltage lockout (up to 1.8 times rated voltage), overcurrent tripping, and phase loss detection automatically isolate faulty capacitor stages within 2 milliseconds. A thermal derating algorithm prevents thyristors from overheating during sustained overloads, while arc-free switching via zero-crossing control extends capacitor life by 3 times (compared to electromechanical contactors). UL-certified arc-flash safety meets NFPA 70E requirements, reducing maintenance costs and downtime for critical infrastructure.

4. Real-time energy analysis and power quality monitoring
Embedded power quality monitoring captures 128+ parameters including reactive power demand, voltage unbalance, THD trends, and flicker severity (Pst/Plt). Energy analytics data streams transmitted via Modbus RTU/TCP can be integrated with SCADA/BMS for predictive maintenance. Users can visualize power factor deviation and harmonic spectrum through a cloud dashboard to enable proactive unbalanced load compensation and identify energy wasting patterns. This is critical for commercial building energy management in compliance .

5. Rugged industrial design and maintenance-free operation
BYKCS features industrial-grade crimp-type thyristors and an IP54-rated housing to withstand temperatures from -40°C to +85°C and 97% humidity. Solid-state reliability ensures >99.9% uptime with zero mechanical wear, unlike failure-prone contactors1. Transient-free switching technology eliminates inrush current (>30 kA mitigation), while conformal-coated PCBs protect against dust/corrosion. Achieve over 100,000 switching operations without maintenance – reducing TCO by 40% in steel mills or mining sites.

6. Seamless hybrid system integration and hierarchical control
BYKCS is designed for hybrid reactive compensation architectures and coordinates with SVG/STATCOM via a hierarchical control protocol. Thyristor switch modules are responsible for coarse compensation (e.g. 25kVAR steps), while downstream devices are responsible for fine tuning reactive power 35. Supports IEC 61850 communication for smart grid interoperability and dynamic adjustment of voltage sags/swells during grid faults. Supports scalable solutions from 50kVAR standalone units to 10MVAR full plant systems.

Working Principle of BYKCS Series Thyristor Switch

Intelligent reactive power compensation through solid-state thyristor switches：BYKCS series 600V thyristor switch as the core actuator of intelligent capacitor bank, can realize dynamic reactive power compensation of industrial power system. It uses reverse parallel thyristor pair (SCR) to realize bidirectional current control. When the connected capacitor needs to be engaged for power factor correction, the zero-crossing detection circuit of the system will precisely synchronize the thyristor triggering at the zero point of the voltage waveform. This transient-free switch eliminates inrush current (>30 kA suppression) and prevents voltage spikes during capacitor bank control, which prolongs the service life of capacitors by 3 times compared with electromechanical contactors.

Real-time grid analysis and adaptive control logic
Embedded power quality monitoring sensors continuously track grid parameters:
• Reactive power demand (lagging/leading reactive power)
• Harmonic distortion (THD up to 50th order)
• Voltage unbalance (%) and flicker severity (Pst)
The intelligent control algorithm processes this data at a rate of 512 samples per cycle and calculates the best compensation strategy. If the inductive load (such as a motor) causes a low power factor (0.75), the system will command the thyristors to switch, injecting precise capacitive reactive power (VAR) with a response time of less than 20 milliseconds, thus offsetting the reactive power imbalance and maintaining a power factor (PF) >0.98.

Harmonic immunity and multi-layer protection architecture
During operation, the harmonic suppression design of BYKCS prevents the risk of resonance:
1. Snubber circuits suppress high frequency transients (di/dt <50 A/μs)
2. Low inductance busbar minimizes impedance at 5th/7th harmonic frequencies
3. Adaptive filtering prevents harmonic amplification during capacitor switching
At the same time, integrated circuit protection devices ensure system safety:
• Overvoltage lockout (1.8× V _rated threshold)
• Overcurrent trip (150% _In, 500 ms)
• Thermal derating at 85°C ambient temperature
• Phase loss detection of power grid faults

Wiring Instructions forBYKCS Series Thyristor Switch

The BYKCS series thyristor switch adopts standardized industrial design, with a concise and efficient wiring method to ensure safety and stability. The main power terminals (L1/L2/L3) should be connected to the three-phase power supply (450V AC) and the neutral line (N), and be reliably connected to the system grounding grid through the grounding terminal (PE) to eliminate electrical interference and leakage risks.The control signal interface (IN+/IN-) supports 0 - 10V analog signals or PWM pulse inputs. It should be connected to the external controller with shielded twisted-pair wires, and ensure that the opto-isolation circuit effectively blocks the common-mode voltage to prevent voltage fluctuations from impacting the control end.When wiring the trigger circuit, the drive signal wire should be connected to the trigger signal port (TRIG), and the phase and amplitude of the external trigger source should be synchronously matched to ensure the precise conduction of the thyristor module.For the protection circuit, an overvoltage protection module (OVP) and an overcurrent protection sensor (OCP) need to be externally connected to monitor the line status in real time and automatically cut off abnormal currents.When installing the heat dissipation device, heat dissipation space should be reserved. The power supply of the heat dissipation fan should be connected to an independent circuit (12/24V DC), and ensure that the air duct is interlocked with the temperature sensor to maintain the operating temperature below 85°C.After wiring is completed, an insulation tester should be used to verify the electrical isolation performance to avoid equipment failures caused by wiring errors.

Product-related size information
