BYKCS Series Thyristor Switch Three-phase Thyristor Switches Dynamic Thyristor Switches Capacitor Quick-throw Switches 690V

Model meaning

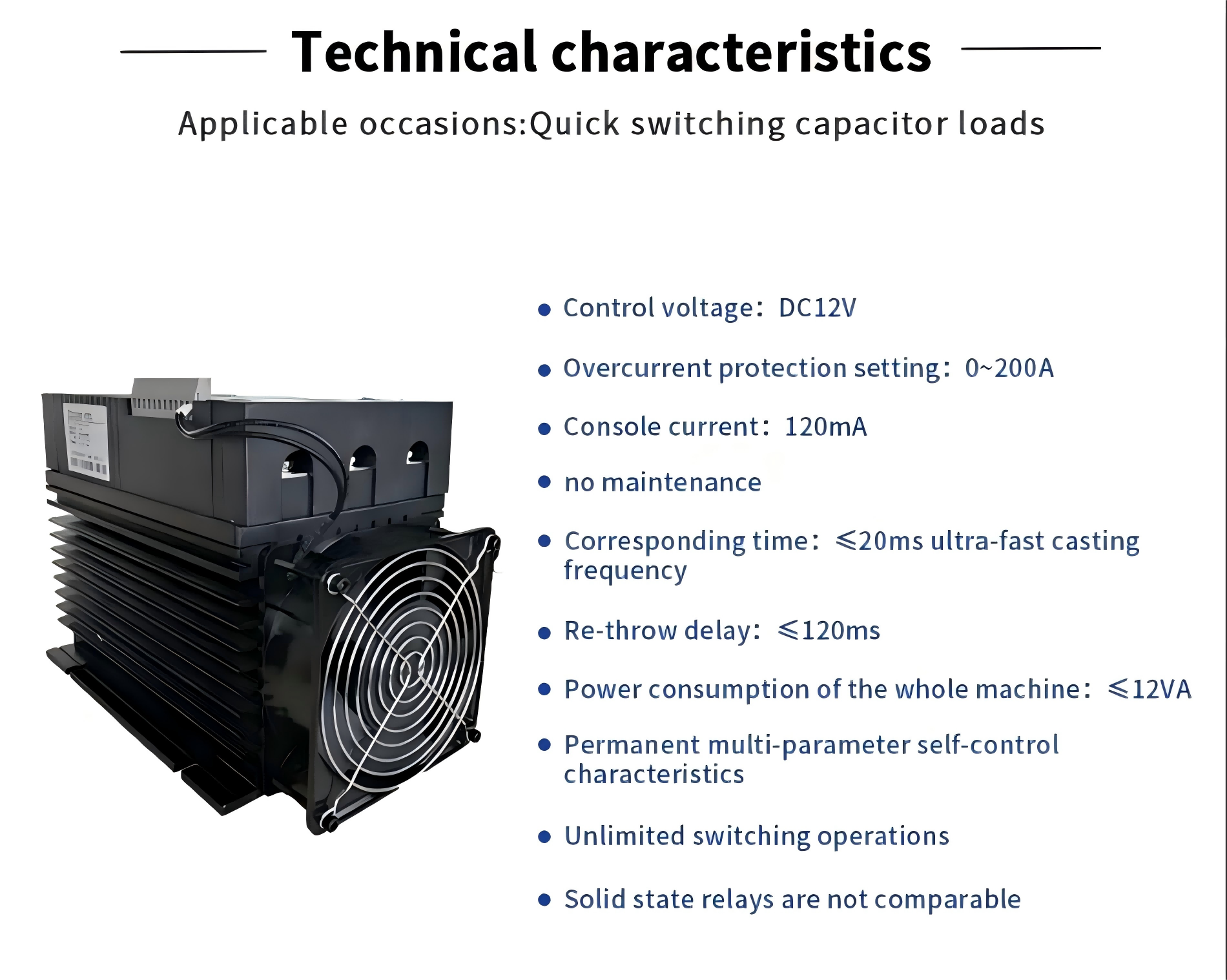

Main Specification of BYKCS Series Thyristor Switch

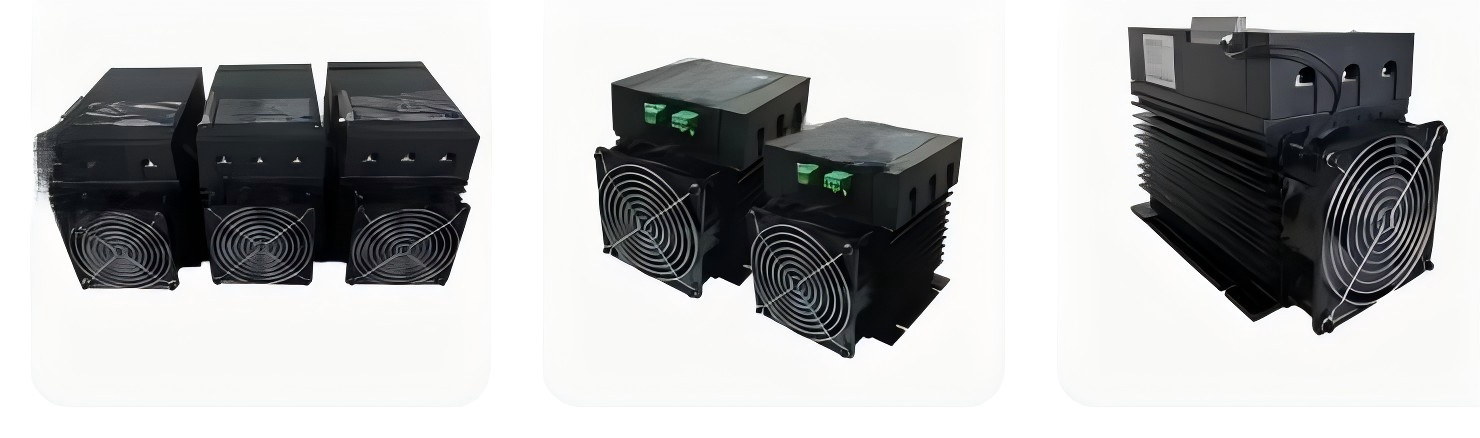

 Overview of BYKCS Series Thyristor Switch

Main Advantages of BYKCS Series Thyristor Switch

1.Ultra-fast and precise reactive power control: The BYKCS series provides dynamic thyristor switching with sub-cycle response, which can accurately perform instantaneous reactive power compensation when needed. This intelligent capacitor control eliminates traditional contactor delays, ensures constant power factor correction (close to 1 PF), and avoids power company fines. It can dynamically adjust to fluctuating loads, optimize unbalanced load compensation, and maximize energy savings by minimizing wasted reactive power in the distribution network, thereby significantly improving overall power system efficiency.

2. Superior harmonic handling and enhanced system protection: Designed for harsh environments, these capacitor thyristor switches offer strong immunity to harmonic distortion, which is common in modern electrical systems. They ensure reliable capacitor switching even in the presence of high background harmonics, preventing premature capacitor failure and preventing resonance issues. This inherent harmonic immunity contributes to a broader harmonic mitigation strategy, protecting sensitive equipment and enhancing overall circuit protection while maintaining stable voltage regulation and power quality.

3. Maximize Power Factor Correction Efficiency and Save Costs: BYKCS's intelligent thyristor switching technology enables optimal power factor correction (PFC) performance. By enabling the switched capacitor bank to respond instantly to load changes, the technology maintains a continuously high power factor, thereby reducing the utility's reactive power demand charges and lowering overall energy costs. This precise reactive compensation technology minimizes distribution losses, increases system capacity, and provides a quick return on investment by improving electrical efficiency and avoiding power factor penalties.

4. Advanced capacitor protection and enhanced system safety: Integrated circuit protection protects both the thyristor switch module and the connected power capacitors. Comprehensive protection measures include overcurrent protection, overvoltage protection, overtemperature protection, and phase loss detection. This intelligent capacitor control system prevents dangerous conditions such as capacitor surge current during fast switching cycles, significantly extends capacitor service life, ensures safe operation, and provides reliable electrical fault protection for the power system.

5. Intelligent Monitoring and Seamless Power Quality Integration: BYKCS series contributes to smart grid readiness and advanced energy management. Its design supports seamless integration with power quality analyzers, energy monitoring systems and capacitor bank controllers. This enables real-time power quality monitoring, detailed energy analysis and remote switch control. Get actionable insights into harmonic content, voltage fluctuations, power factor trends and overall system performance, enabling proactive maintenance and optimized reactive power management.

6. Unmatched reliability and maintenance-free solid-state operation: BYKCS uses industrial-grade thyristors and advanced control circuitry to ensure solid-state reliability and true maintenance-free operation, unlike failure-prone mechanical contactors. Its transient-free switching (through zero-crossing detection) eliminates arcing, contact welding, and inrush current, ensuring millions of switching operations. This rugged thyristor switch provides superior operating life and system uptime in critical applications, reducing total cost of ownership and providing reliable power quality improvements year after year.

Working Steps of BYKCS Series Thyristor Switch

1. Real-time power quality monitoring and analysis
The BYKCS series starts operation by continuously monitoring grid parameters using embedded energy analytics sensors. It detects reactive power fluctuations, voltage imbalances, and harmonic distortion (e.g., 3rd, 5th, 7th harmonics) with sub-cycle accuracy. By analyzing power factor deviations and harmonic spectrum in real time, the system can identify the need for compensation of lagging/leading reactive power. This data-driven approach enables proactive power quality management, preventing equipment damage and utility company fines due to low power factor or harmonic pollution.

2. Intelligent compensation strategy and thyristor triggering
The system calculates the optimal compensation parameters using an adaptive control algorithm. For capacitive reactive power compensation, it dynamically determines the precise switching sequence of the thyristor-controlled capacitor bank based on the load. The intelligent thyristor switching module uses zero-crossing detection technology to synchronize the firing pulse with the voltage waveform, ensuring transient-free switching and eliminating inrush current. This phase-accurate control minimizes switching losses and extends the life of the capacitors while maintaining the target power factor (close to 1.0).

3. Precision capacitor bank engagement and dynamic response
Upon command, the thyristor switches perform solid-state switching of the smart capacitor bank within 20 milliseconds. Each thyristor pair (in an anti-parallel configuration) enables bidirectional current flow, allowing for fast reactive power injection/absorption. During capacitor switching, the system suppresses harmonic amplification and avoids voltage spikes or resonances through a harmonic immunity design. This dynamic reactive power compensation corrects voltage instability and load imbalance, improving system efficiency in the presence of fluctuating industrial demand.

4. Multi-stage coordination and hierarchical control
For large-scale deployment, BYKCS coordinates with hybrid systems (e.g., TSC + SVG) through hierarchical control. The thyristor switch modules are responsible for coarse reactive power regulation (e.g., ±5 Mvar steps), while downstream devices are responsible for fine reactive power regulation (VAR). This hierarchical strategy mitigates negative sequence currents when grid voltage is unbalanced. Circuit protection features such as overvoltage/overcurrent lockout and thermal derating are integrated to protect capacitors and thyristors during faults.

5. Harmonic mitigation and system-wide protection
In addition to reactive power (VAR) control, BYKCS suppresses harmonic distortion (THD) <5%. Its low inductance design and snubber circuits minimize di/dt stress on the thyristors, while the harmonic suppression filter blocks high-frequency transients. The system automatically isolates the faulty capacitor stage and triggers the circuit protection protocol to prevent cascading failures. This dual functionality of harmonic filter and protection device ensures compliance.

6. Performance verification and closed-loop optimization
After compensation, the system verifies the effectiveness of compensation through power quality analysis, comparing the indicators before and after compensation: power factor, total harmonic distortion (THD), and voltage regulation. The system records the data for energy management reports, highlighting the energy savings achieved by reducing reactive power demand. Machine learning algorithms optimize future switching strategies, achieve predictive unbalanced load compensation, and reduce total cost of ownership.

Wiring Instructions forBYKCS Series Thyristor Switch

The BYKCS series thyristor switch adopts standardized industrial design, with a concise and efficient wiring method to ensure safety and stability. The main power terminals (L1/L2/L3) should be connected to the three-phase power supply (450V AC) and the neutral line (N), and be reliably connected to the system grounding grid through the grounding terminal (PE) to eliminate electrical interference and leakage risks.The control signal interface (IN+/IN-) supports 0 - 10V analog signals or PWM pulse inputs. It should be connected to the external controller with shielded twisted-pair wires, and ensure that the opto-isolation circuit effectively blocks the common-mode voltage to prevent voltage fluctuations from impacting the control end.When wiring the trigger circuit, the drive signal wire should be connected to the trigger signal port (TRIG), and the phase and amplitude of the external trigger source should be synchronously matched to ensure the precise conduction of the thyristor module.For the protection circuit, an overvoltage protection module (OVP) and an overcurrent protection sensor (OCP) need to be externally connected to monitor the line status in real time and automatically cut off abnormal currents.When installing the heat dissipation device, heat dissipation space should be reserved. The power supply of the heat dissipation fan should be connected to an independent circuit (12/24V DC), and ensure that the air duct is interlocked with the temperature sensor to maintain the operating temperature below 85°C.After wiring is completed, an insulation tester should be used to verify the electrical isolation performance to avoid equipment failures caused by wiring errors.
