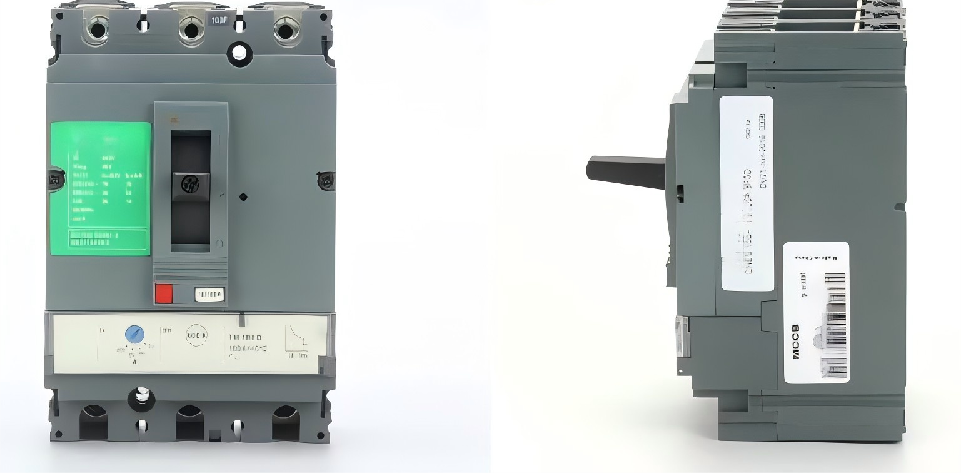

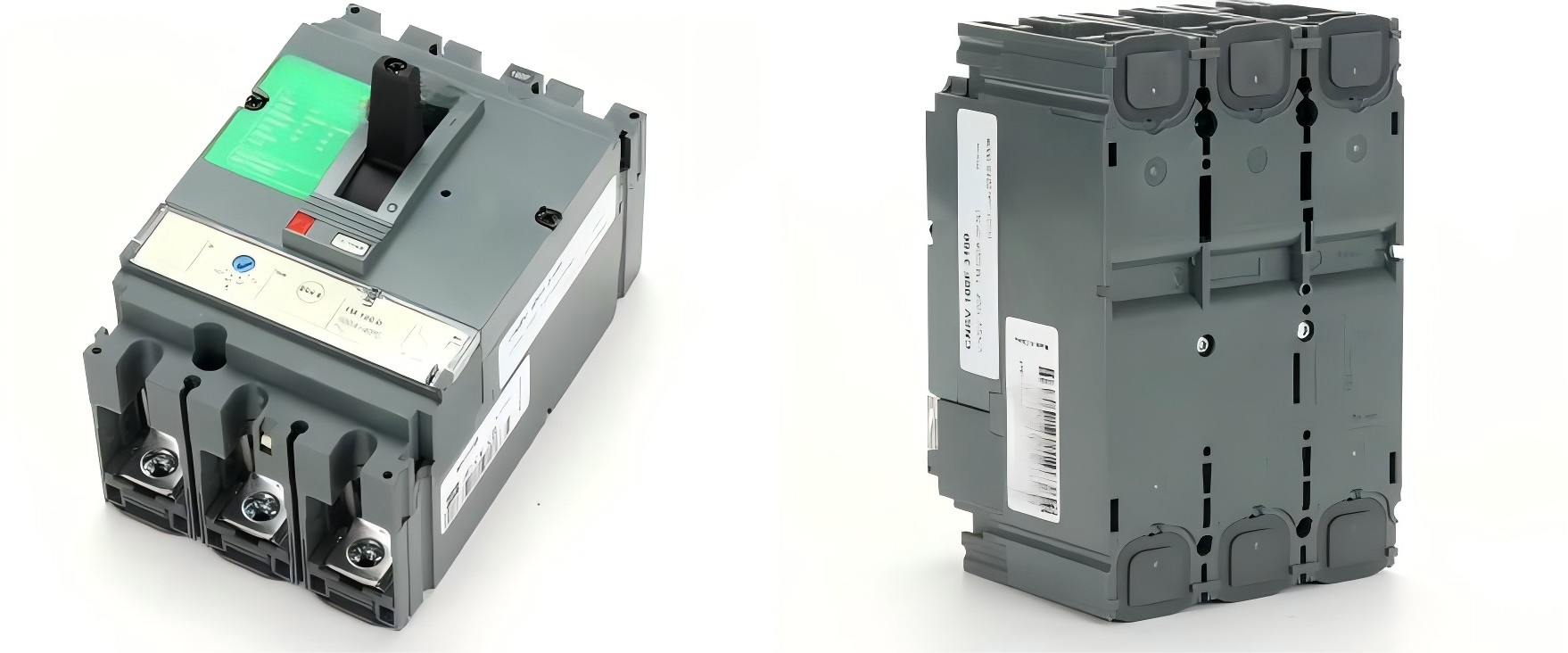

BYCM1L-125L Series Molded Case Circuit Breaker Electric Breaker 3Pole 100A MCCB 450V Electric Breaker 450V Residual Current Circuit Breaker

Main Technical Specifications of BYM5EL Series Residual Current Circuit Breaker

Product Overview of  BYM5EL Series Residual Current Circuit Breaker

Advanced Protection for Diverse Electrical Systems
The BYCM1L - 125L Series 100A MCCB is a high - performance circuit breaker designed for robust circuit protection in low voltage systems. As a crucial component of power system devices, it combines multiple protection functions. With thermal - magnetic trip technology, it effectively guards against over - current and short - circuit faults, while the residual current protection feature quickly responds to ground faults. This three - phase electric breaker is ideal for industrial, commercial, and three - phase power residential applications, ensuring the safety of electrical systems and enhancing electric power quality by preventing disruptions caused by electrical issues.

Smart and Reliable Technical Design
This molded case circuit breaker stands out as a smart circuit breaker with its advanced technical design. Equipped with MOSFET - based overcurrent and overvoltage protection circuits, it offers precise and reliable performance. The breaker's ability to handle rated current under various conditions, along with its over - temperature protection circuit, guarantees stable operation. Its compact yet durable design makes it suitable for different voltage systems, and it can be easily integrated into existing electrical setups, whether in power station grids or local energy storage systems like flow battery energy storage and solar power energy storage.

Versatile Applications and Easy Installation
The BYCM1L - 125L Series MCCB caters to a wide range of applications. In industrial settings, it protects heavy - duty machinery, while in commercial buildings, it ensures a stable power supply for various devices. For residential use, it safeguards household appliances and residents from electrical hazards. Its user - friendly design simplifies electrical breaker installation, and it adheres to safety standards. As a main power circuit breaker, it plays a vital role in maintaining the reliability of electrical systems, making it a preferred choice for those seeking effective circuit protection solutions in low voltage electrical systems.

Functions of BYM5EL Series Residual Current Circuit Breaker

Circuit overvoltage protection
BYCM1L - 125L Series Molded Case Circuit Breakers (MCCB) provide powerful circuit overvoltage protection. When the circuit voltage exceeds the safety threshold, it quickly detects the abnormal situation. The circuit breaker uses advanced sensing technology to quickly trip and cut off the power supply to prevent electrical equipment from being damaged by overvoltage. This function is essential to maintain the stability of the electrical system and improve the overall power quality, which can effectively protect the circuit and connected equipment.

Effective overload protection
Designed to handle overload conditions, this 3-pole 100A molded case circuit breaker monitors the current flowing through the circuit in real time. Once an overload occurs, such as too many electrical devices connected and generating excessive current, the circuit breaker's internal thermal magnetic mechanism is activated. It gradually heats up and trips after a specific delay based on the degree of overload, disconnecting the circuit, providing reliable protection against overheating and potential fire hazards caused by continuous overload.

Fast short circuit protection
When a short circuit occurs, it may cause a sudden inrush of large current, posing a serious threat to the electrical system. BYCM1L - 125L Series Molded Case Circuit Breakers (MCCBs) respond instantly. Their high-speed tripping mechanism is triggered by abnormal short-circuit currents, quickly isolating the faulty part of the circuit. This fast action minimizes damage to the electrical infrastructure and ensures the safety of personnel working around the circuit, giving full play to its important role in circuit protection.

Residual current detection and protection
As an efficient residual current circuit breaker, it is able to detect even the slightest leakage current in the electrical system. When an abnormal residual current is detected, which usually indicates a fault or potential risk of electric shock, the circuit breaker will trip immediately. This feature not only protects electrical equipment from insulation faults, but also provides vital safety for personnel, prevents electric shock accidents, and enhances the overall safety of electrical installations.

 Versatile and adaptable design
BYCM1L - 125L Series Molded Case Circuit Breaker (MCCB) features a versatile design suitable for a wide range of applications. Its 3-pole configuration and 450V rated voltage make it suitable for a wide range of three-phase electrical systems, from industrial plants with complex power requirements to commercial buildings and residential electrical systems. Its flexible design ensures seamless integration into different circuits, providing consistent and reliable circuit protection in different environments.

 Long-lasting performance
This molded case circuit breaker is made of high-quality materials and has long-lasting performance. It can withstand harsh working conditions, including heat, humidity and mechanical vibration. The rugged construction ensures that the circuit breaker can maintain its protection function for a long time, thereby reducing the frequency of replacement and maintenance. This durability not only saves costs, but also contributes to the stable operation of the electrical system, thereby improving the overall power supply reliability and power quality.

Working Principle of BYM5EL Series Residual Current Circuit Breaker

The BYCM1L - 125L Series Molded Case Circuit Breakers (MCCBs) are designed to provide comprehensive circuit protection using an advanced dual-mechanism principle. Its core component is a thermal-magnetic trip unit, which is the primary protection against overcurrent and short circuits. The thermal element consists of a bimetallic strip that can handle sustained overcurrent conditions. When the current exceeds the rated value (100A in this series), the bimetallic strip heats up and bends, triggering the trip mechanism to open the circuit. This process prevents the circuit from overheating, which is a common cause of electrical fires and equipment damage. At the same time, the magnetic element provides instantaneous short-circuit protection. It uses an electromagnet to generate a strong magnetic field when a sudden current surge, which is common in short-circuit events, occurs. This magnetic field quickly pulls the trip bar, instantly opening the circuit and preventing catastrophic damage to the electrical system. The combination of these two components ensures that the MCCB can effectively handle long-term overcurrent and sudden short circuits. As a variant of the residual current circuit breaker (RCCB), the BYCM1L - 125L series is also equipped with a residual current device (RCD). The device continuously monitors the imbalance between the live and neutral currents. If a ground fault occurs and current leaks to ground, the RCD detects the imbalance and triggers the circuit breaker to trip. This feature is essential to protect personnel from electric shock and prevent stray currents from damaging equipment. The MCCB's intelligent design further enhances circuit protection by incorporating a fast closing mechanism. This ensures that the contacts open and close quickly, minimizing arcing during switching operations. Arcing can generate excessive heat and damage the contacts, shortening the life of the circuit breaker. By minimizing arcing, the BYCM1L - 125L Series can maintain its performance over the long term, ensuring reliable circuit protection. In addition to its primary protection functions, the BYCM1L - 125L Series also helps improve overall power quality. By protecting against overcurrent and short-circuit events, it reduces voltage fluctuations and electrical noise in the power system. This helps maintain a stable power supply, which is essential for the proper operation of sensitive electronic equipment.

Products Size Informations
