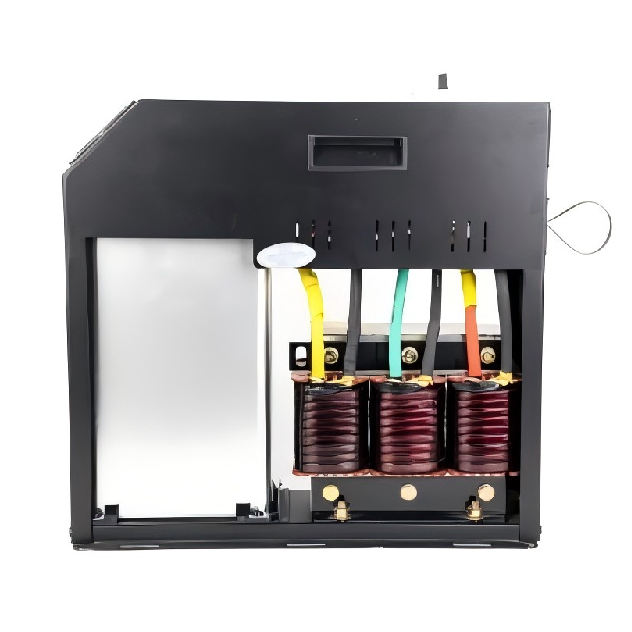

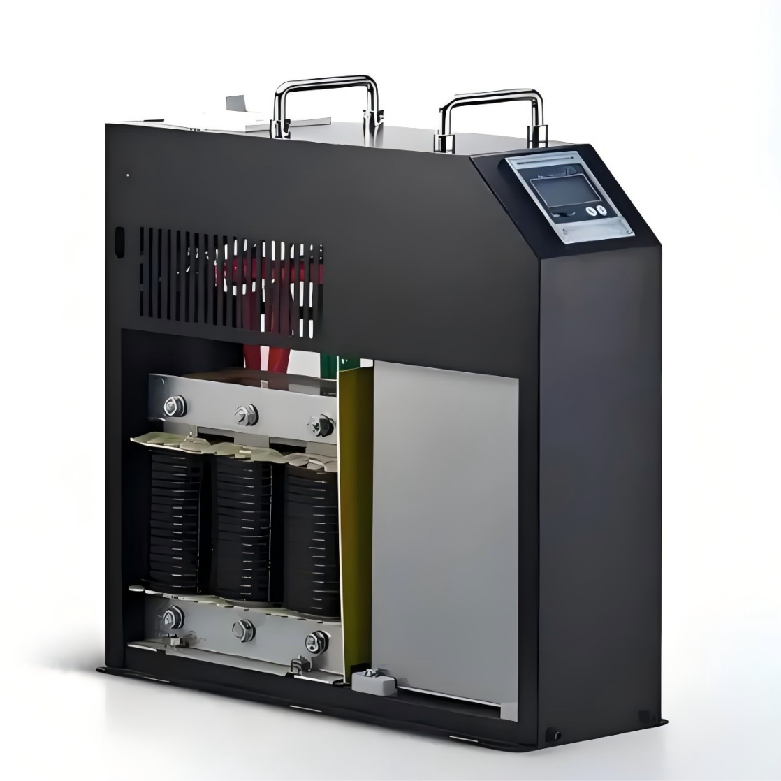

BY96-SPC Three phase imbalance correction device

The BY96-SPC three-phase imbalance correction device can effectively control three-phase imbalance phenomena, save a large amount of transformer capacity for users, and save power grid construction costs and user electricity costs, lt is also possible to simulate the current characteristics of reactors or capacitors by emiting inductive or capacitive currents, suppress voltage fluctuations and compensate for reactive power. lt also has the ability to filter 2-13 harmonic currents.

product details

Product Introduction

BY96-SPC three-phase unbalance correction device is a revolutionary solution designed to effectively control the three-phase unbalance phenomenon, ultimately saving users a large amount of transformer capacity. This innovative device not only solves the problem of power imbalance, but also plays a vital role in reducing grid construction costs and user electricity bills. The BY96-SPC device emits inductive or capacitive current to simulate the current characteristics of a reactor or capacitor, which can effectively suppress voltage fluctuations and compensate for reactive power, thereby improving overall power efficiency.

One of the main features of the BY96-SPC device is its ability to filter out 2-13th harmonic current, ensuring stable and reliable power supply for users. This feature is particularly valuable in industrial and commercial environments where sensitive equipment and machinery are susceptible to the adverse effects of harmonic currents. By mitigating these harmonics, the device not only safeguards the performance of the electrical system but also extends the service life of connected equipment, resulting in long-term cost savings for users.

BY96-SPC equipment provides a sustainable solution for optimizing power usage and reducing energy waste. By solving the three-phase imbalance and compensating reactive power, the device helps to utilize power resources more efficiently, ultimately reducing energy consumption and lowering users' electricity bills. This is consistent with the growing emphasis on sustainable energy practices and the need for innovative technologies that improve energy efficiency across industries.

BY96-SPC devices also demonstrate a commitment to advancement and innovation in power management technology. Capable of simulating the characteristics of reactors and capacitors, it demonstrates a forward-looking approach to power quality issues, providing users with a versatile and comprehensive solution for managing their electrical systems. This adaptability makes the device ideally suited for a variety of applications, from industrial facilities to commercial buildings, where precise power management is critical for operational efficiency.

The BY96-SPC three-phase unbalance correction device demonstrates the transformative potential of advanced power management solutions. By effectively resolving three-phase imbalance, compensating reactive power and filtering out harmonic currents, the device not only improves power efficiency but also contributes to cost savings and sustainable energy practices. As industries and businesses continue to prioritize energy optimization and reliability, BY96-SPC equipment becomes a valuable asset in achieving these goals, paving the way for a more resilient and efficient power infrastructure.

SPC Capacity Quick Reference Table

Transformer capacity(kVA)	Three-phase current imbalance(%)	Secondary side rated current (A)	Need to compensate for unbalanced current(A)	Configuration capacity(kvar)
80	30	115	35	30
100	30	144	44	30
125	30	180	55	50
160	30	230	70	50
200	30	288	87	70
250	30	360	99	70
315	30	454	138	100
400	30	577	175	130
500	30	721	218	150
630	30	909	275	200

Product specifications

No.	Product name	Model specifications	Capacity	Type-N size
1	APF	BY91-APF/30A-0.4/4L-N	30A	450×580×110
		BY91-APF/50A-0.4/4L-N	50A	450×580×110
		BY91-APF/75A-0.4/4L-N	75A	450×580×110
		BY91-APF/100A-0.4/4L-N	100A	450×580×220
		BY91-APF/150A-0.4/4L-N	150A	450×580×250
2	SVG	BY92-SVG/30kvar-0.4/4L-N	30kvar	450×580×110
		BY92-SVG/50kvar-0.4/4L-N	50kvar	450×580×110
		BY92-SVG/70kvar-0.4/4L-N	70kvar	450×580×220
		BY92-SVG/100kvar-0.4/4L-N	100kvar	450×580×250
3	SPC	BY96-SPC/30kvar-0.4/4L-N	30kvar	450×580×110
		BY96-SPC/50kvar-0.4/4L-N	50kvar	450×580×110
		BY96-SPC/70kvar-0.4/4L-N	70kvar	450×580×220
		BY96-SPC/100kvar-0.4/4L-N	100kvar	450×580×250

Module size

BY96-SPC Three phase imbalance correction devicezcy

Model	a	b	c	d	e
SVG-30kvar	50	110			85.5
SVG-50kvar	72	110			85.5
SVG-70kvar	130	220	182.3	162.3	183.5
SVG-100kvar	160	250	212.3	192.3	213.5
APF-30~50A	50	110			85.5
APF-75A	72	110			85.5
APF-100A	130	220	182.3	162.3	183.5
APF-150A	160	250	212.3	192.3	213.5
