BY96-SPC/140kvar-0.8/3L-W Series High Voltage Three-Phase Unbalance Correction Device 140kvar Harmonic Correction Device
Model Meaning
Main Technical Parameters of BY96-SPC/140kvar-0.8/3L-W Series Three-Phase Unbalance Correction Device
| Model | BY96-SPC/140kvar-0.8/3L-W | |
| System parameter | Rated line voltage | AC380+20% |
| Electrical wiring | Three phase three wire/three phase four wire | |
| Take electric wires | C-phase line/DC bus (customizable) | |
| Grid frequency | 50Hz/60Hz | |
| Circuit topology | Three phase three-level | |
| Full response time | Compensated reactive power:<5ms; Full compensation: <15ms-1~1 adjustable | |
| Reactive power compensation | -1~1 adjustable | |
| Correcion rate of three-phase imbalance | 100% | |
| Harmonic filtering rate | >97% | |
| Overall efficiency | >97.5% | |
| Switching frequency | 50kHz | |
| Cooling method | Intelligent air cooling/forced air cooling/T-type natural air | |
| Noise | <60dB@1m/<50dB@1m(T-shaped) | |
| Installation method | Module, rack, cabinet, wall mounted, box mounted | |
| Exterior | Colour | Aluminum zinc coated board, white, black, gold primary colors, etc. (customizable) |
| Communication interface | RS-232,RS485 bus (optional Ethernet, WLAN, USB2.0) | |
| Communication protocl | Modbus protocol | |
| Fault alarm | Have | |
| Background monitoring | Optional GPRS remote monitoring; Optional Bluetooth and NFC installed in the module | |
| On site display | 7-inch Chinese color touch screen (optional) | |
| Display current, voltage, three-phase power, power factor, harmonic content, etc | ||
| Environmental requirements | Ambient temperature | -20℃~+50℃ |
| Relative humidity | Not exceed 90% RH without condensation | |
| Installation altitude | Not exceed 2000m rated capacity, greater than 2000m reduced capacity operation | |

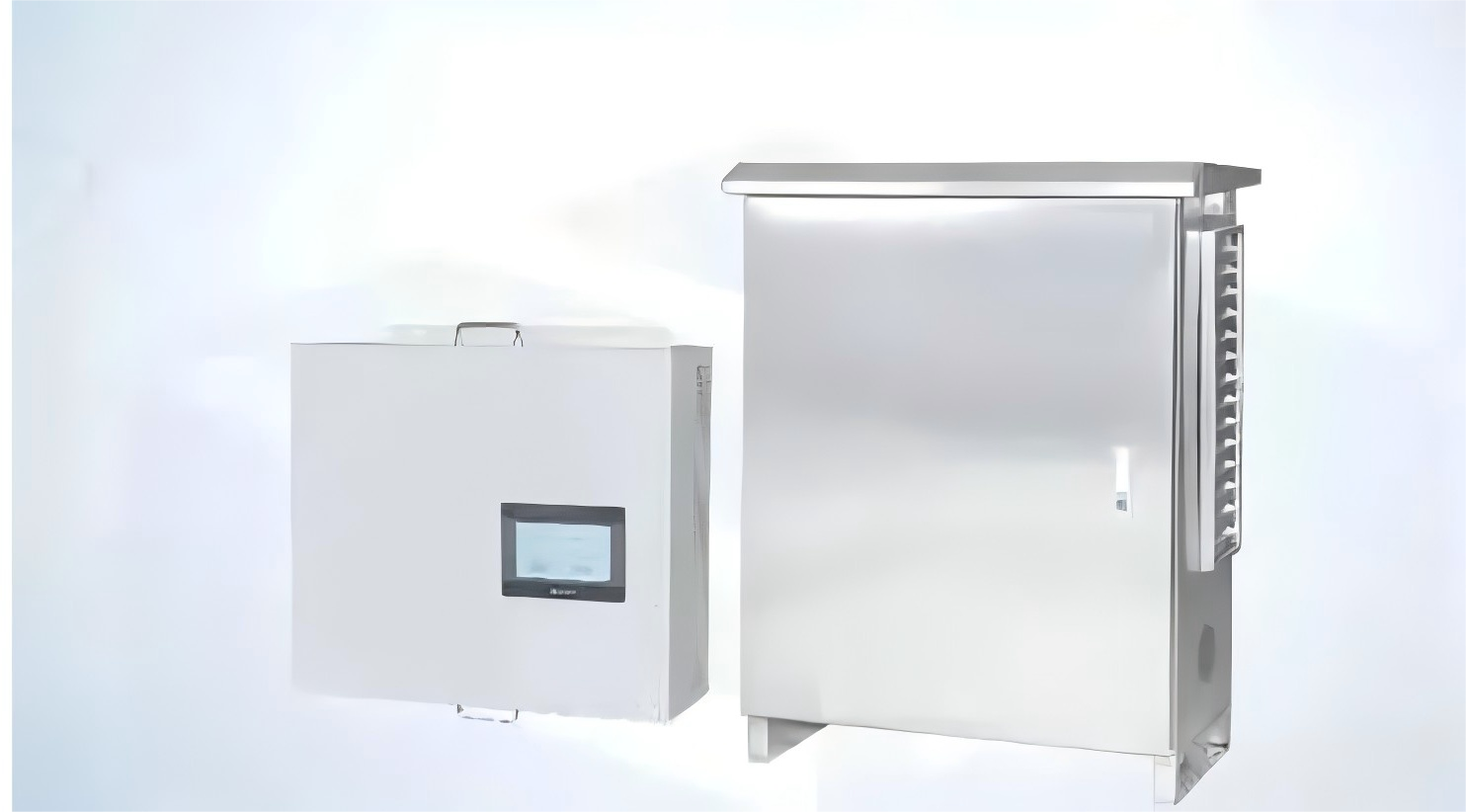

Product Introduction of BY96-SPC/140kvar-0.8/3L-W
As a leading Voltage Imbalance Supplier and 3 Phase Voltage Imbalance Factory, BaoYu Holdings Ltd. proudly introduces the BY96-SPC/140kvar-0.8/3L-W Series—an advanced Three-Phase Unbalance Correction Device designed to optimize Power Distribution systems. This High Voltage Equipment (0.4kV) delivers 30kvar capacity, offering robust solutions for Three Phase Imbalance Correction, Harmonic Compensation, and Reactive Power management. Engineered for High Voltage applications, it effectively resolves 3 Phase Voltage Imbalance issues while suppressing Power Quality Harmonics, ensuring stable Three Phase Power Distribution in industrial and commercial settings.The BY96-SPC three-phase imbalance correction device can effectively control three-phase imbalancephenomena, save a large amount of transformer capacity for users, and save power grid constructioncosts and user electricity costs. lt is also possible to simulate the current characteristics of reactors orcapacitors by emiting inductive or capacitive currents, suppress voltage fluctuations and compensate forreactive power.lt also has the ability to filter 2-13 harmonic currents.Our China Anti Harmonic Filter technology integrates Active Power Three Phase control to neutralize disruptive harmonics (Anti Harmonic), enhancing Electric Capacity efficiency and protecting Low Voltage Electrical systems. The SPC (Static Power Conditioner) core enables real-time monitoring and dynamic correction of Three-Phase Imbalance, aligning with global standards for High Voltage Capacity performance. Ideal for 3 Phase Electric grids, this device supports Harmonic Filter Adalah (harmonic filtering solutions) and Three Phase Power stability, making it a critical asset for factories, data centers, and renewable energy plants.Choose BaoYu—a trusted China Anti Harmonic innovator—for precision-engineered Three-Phase Imbalance Correcting Devices & Systems that prioritize reliability, energy savings, and compliance. Elevate your Power Quality Harmonics management and 3 Phase Power Voltage control with our cutting-edge solutions.
Introduction to the Working Principle of BY96-SPC/140kvar-0.8/3L-W

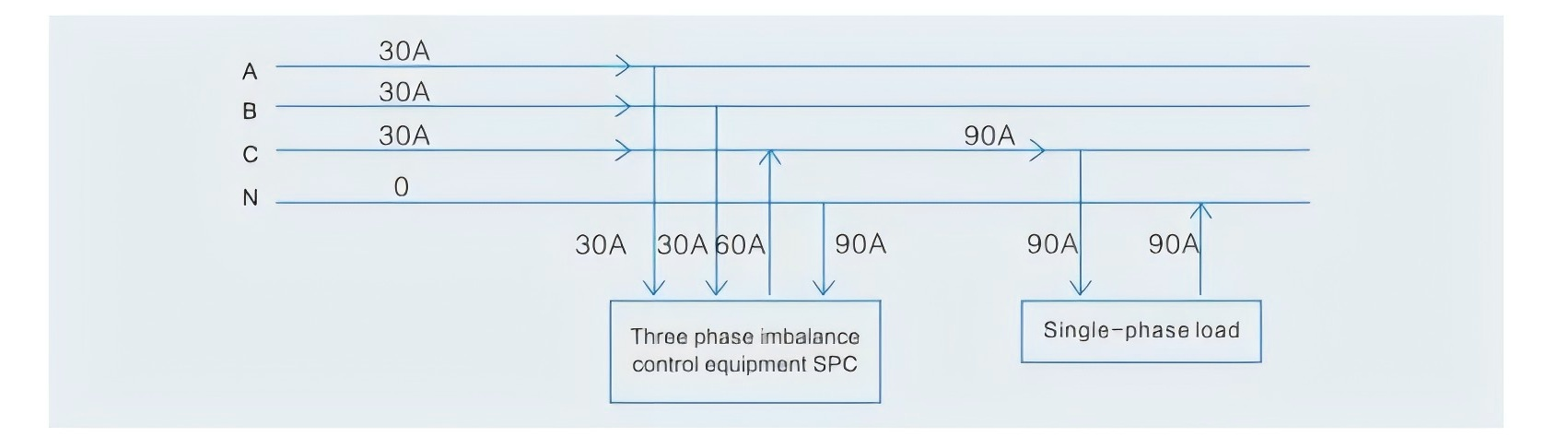

Through the example in the figure below, it can be seen that the load current of phase C is the highest.and there is no load on phase AB. At this time, if there is no SPC, the three-phase currents on the grid side are A0, B0, and C90, which are directly sent from the substation to the load side. Now an SPC devicehas been added to achieve three-phase current balance on the grid side. The device absorbs 30Acurrent from phase A and 30A current from phase B. Through the AC-DC-AC transformation of thecurrent, the excess energy of phases A and B is supplied to the C-phase load with high energy demand.In this way, the grid side senses changes in three-phase current, and phase A outputs more than 30A:B-phase multi output 30A: The output of phase C is 60A less, achieving the goal of evenly balancing thethree-phase current transmitted to the transformer over this distance.
Function Introduction of BY96-SPC/140kvar-0.8/3L-W
Prevent Central Line Overload & Fire Hazards with Intelligent Load Balancing
- The BY96-SPC dynamically redistributes phase currents in real-time, eliminating overload risks caused by unbalanced loads. This reduces line heating, prevents insulation aging, and minimizes fire hazards from central line burnout. Integrated thermal monitoring ensures compliance with industrial safety standards, ideal for manufacturing plants and high-power facilities.
Neutral-to-Ground Voltage Stabilization for Weak Current Systems
- By correcting zero-sequence currents, the device suppresses neutral-to-ground voltage surges (up to 80% reduction), protecting sensitive equipment like PLCs, IoT controllers, and medical devices from damage due to voltage spikes. This is critical for data centers and laboratories relying on low-voltage precision systems.
Voltage Imbalance Compensation to Eliminate False Alarms
- Proprietary algorithms detect and neutralize voltage imbalances (≤1% deviation), preventing false triggers in voltage-sensitive equipment such as relays and sensors. This enhances operational continuity in sectors like renewable energy grids and automated production lines.
Transformer Efficiency Optimization via Single-Phase Overcurrent Suppression
-
The device limits single-phase overcurrents by redistributing reactive power, reducing transformer losses by up to 15% and extending lifespan. This supports energy-efficient transformer operation in commercial complexes and utility substations.

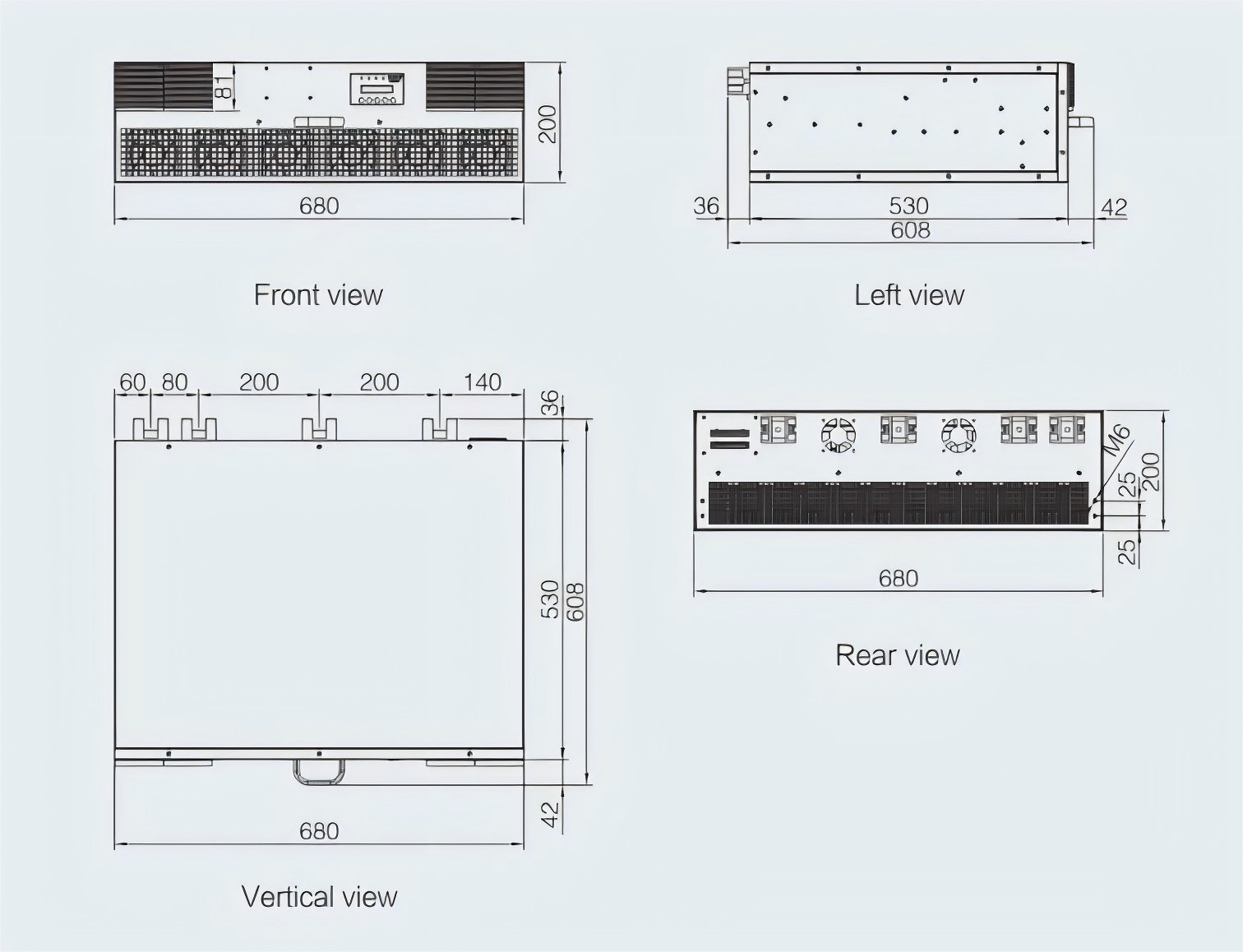

BY96-SPC/140kvar-0.8/3L-W Size Information
| Model | Capacity | Size |
| BY96-SPC/140kvar-0.8/3L-W | 140kvar | 680×530×200 |
Application Scenarios of BY96-SPC/140kvar-0.8/3L-W Series Three-Phase Unbalance Correction Device

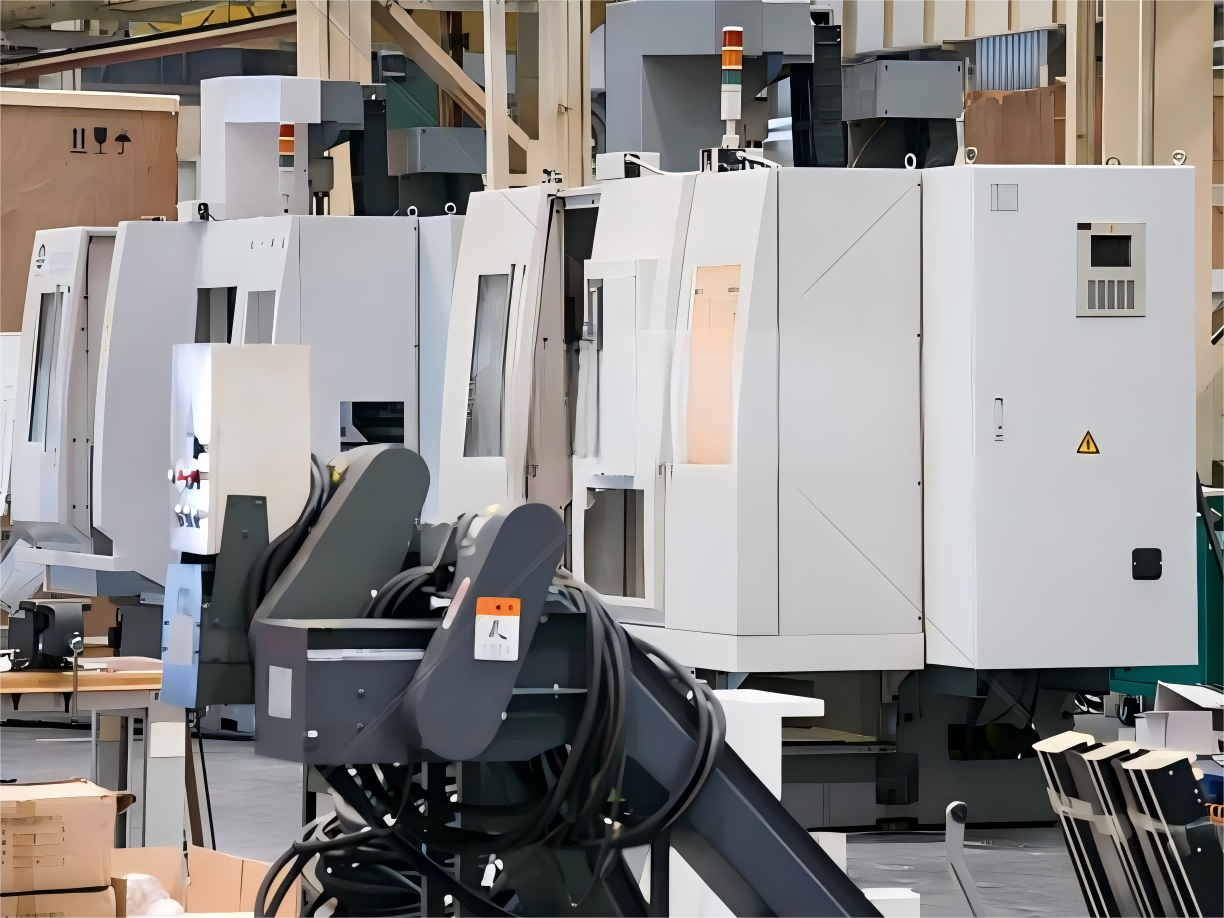

Industrial Manufacturing Plants：The BY96-SPC device is critical in industrial plants where heavy machinery like CNC machines, induction motors, and variable frequency drives generate harmonic distortions and three-phase imbalances, leading to energy waste, equipment overheating, and costly downtime. This high-voltage correction system automatically balances phase currents in real time, reducing neutral line overload and preventing transformer overheating while stabilizing voltage levels within ±5% tolerance. It suppresses harmonics (up to 30kvar capacity) from nonlinear loads, improving power factor compliance with IEEE standards and cutting line losses by 15% to support industrial sustainability goals. Ideal for factories requiring three-phase imbalance solutions, industrial harmonic filters, or high-voltage reactive power compensation systems, it ensures operational reliability and energy efficiency.
Renewable Energy Integration (Solar/Wind Farms)：In solar farms and wind turbine installations, intermittent energy generation from inverters often destabilizes grid-connected power quality by injecting harmonics and creating phase imbalances. The BY96-SPC device enhances grid stability by correcting voltage fluctuations (300–480V input range) and balancing three-phase currents for seamless grid synchronization. It neutralizes high-frequency harmonics from inverters, maintaining Total Harmonic Distortion (THD) below 0.2% to meet strict grid compliance standards. Additionally, its reactive power compensation optimizes power factor to 0.8, minimizing utility penalties and maximizing energy export efficiency. This makes it a vital solution for solar farm voltage stabilizers, wind turbine harmonic suppression, and reactive power compensation for renewables.
Commercial High-Rise Buildings & Data Centers：Commercial high-rises and data centers face power quality challenges from high-density IT loads, HVAC systems, and elevator operations, which cause phase imbalances and harmonic pollution. The BY96-SPC device distributes electrical loads evenly across phases to prevent overloading, extending equipment lifespan through RS-485 communication for real-time monitoring. It protects sensitive IT infrastructure like servers and UPS systems from harmonic-induced voltage sags or swells, ensuring 99.9% uptime for critical operations. With IP54-rated protection and built-in overload/short-circuit safeguards, it aligns with data center redundancy requirements and addresses needs for data center power quality optimization, commercial building phase balancers, and harmonic filters for HVAC systems.
