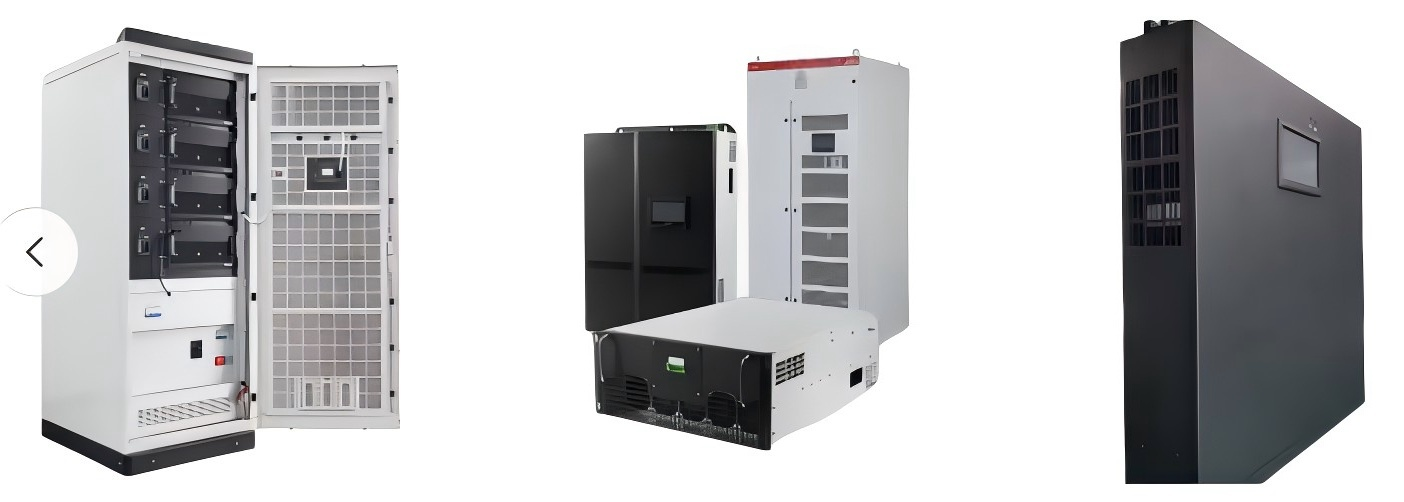

BY95-ASVGC Hybrid Dynamic Filtering Compensation Device Standard Quality Reactive Power Compensation Device Industries Electrical Products Used in Electric Power System 400V

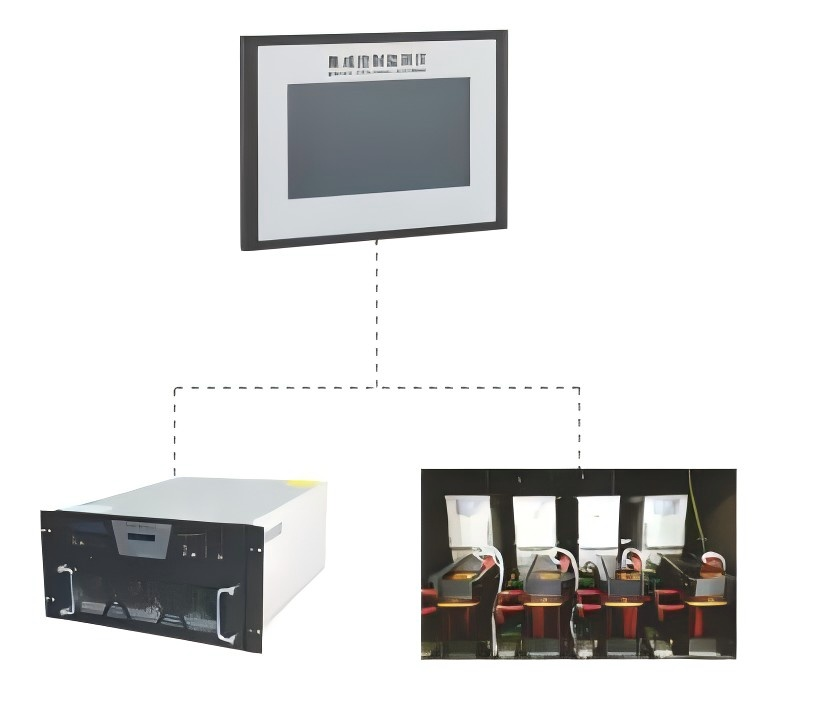

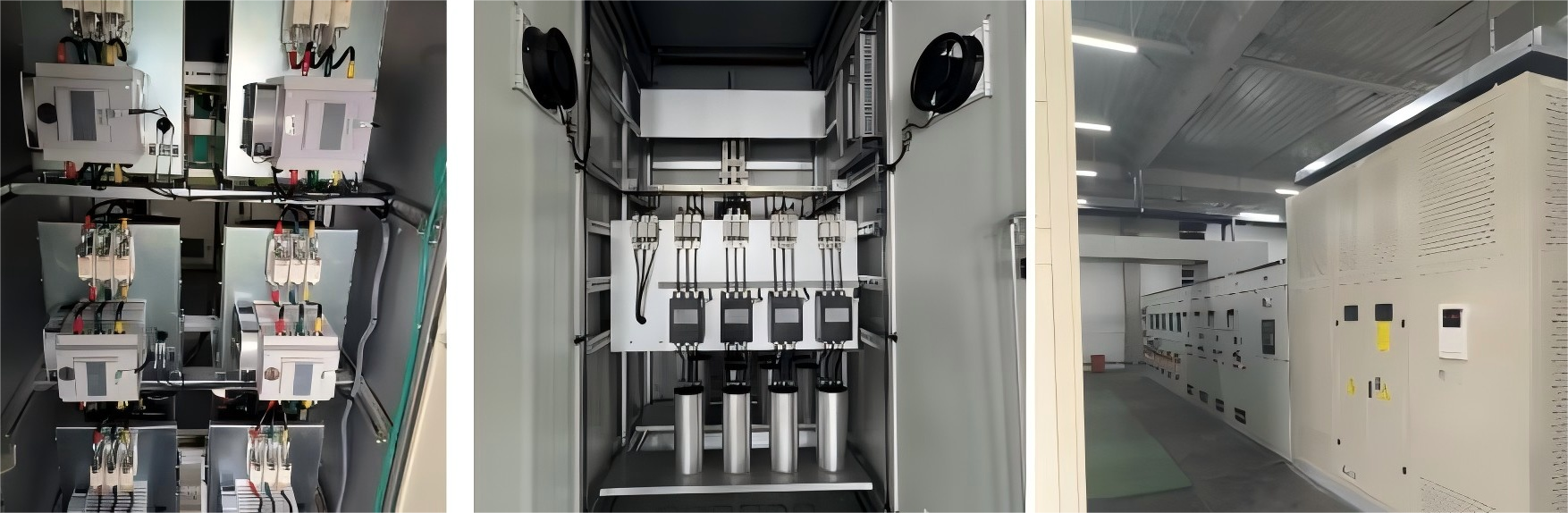

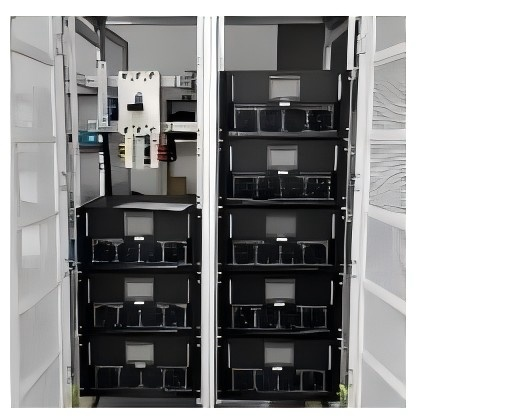

Structure of BY95-ASVGC Hybrid Dynamic Compensation Device

• Manages operating modes and configuration parameters for both LC and SVG systems
• Real-time visualization of electrical parameters: active/reactive power, compensation before/after, waveform graphs
• Monitors SVG-LC state transitions and system interactions
• Equipped with 18 configurable I/O channels for flexible SVG-LC topological combinations

• Instantaneous reactive power response (<5ms)
• Compensates both over/under reactive conditions
• Achieves unity power factor (0.99+) with zero-crossing switching
• Handles rapid load variations (500%/s dynamic response)

• Provides base reactive power compensation
• Optimized for steady-state load conditions
• Compensates harmonic currents up to 25th order
• Offers modular capacity expansion (100kVar per step)

Main Technical Datas of BY95-ASVGC  Hybrid Dynamic Filtering Compensation Device

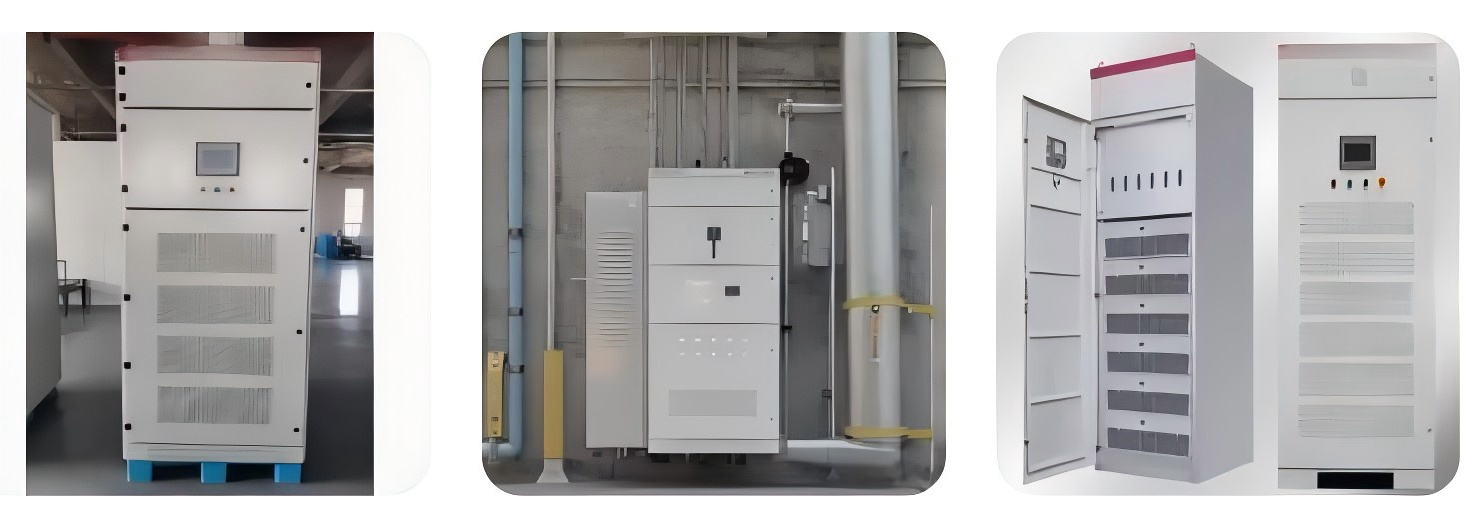

Introduction of BY95-ASVGC  Hybrid Dynamic Filtering Compensation Device

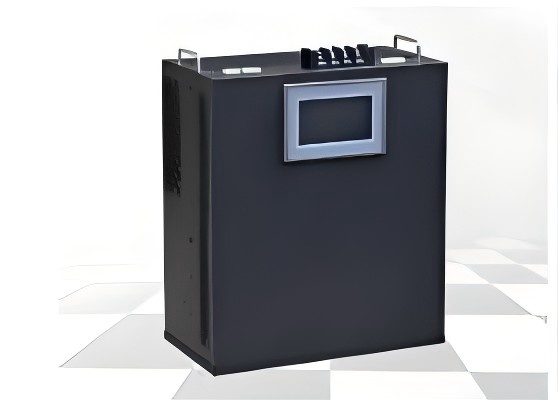

Key Features of BY95-ASVGC  Hybrid Dynamic Filtering Compensation Device

1.The device adopts advanced hybrid dynamic filtering technology, integrating active filtering and passive filtering, effectively controlling harmonics, and providing accurate reactive power compensation, effectively suppressing harmonic distortion, improving power quality, and ensuring stable operation of the power system. It is an ideal solution for harmonic control in 400V power systems.

2. BY95-ASVGC is equipped with an intelligent full control system that continuously monitors power parameters and dynamically adjusts compensation to optimize reactive power. This real-time control improves power factor, reduces power loss, and significantly improves power quality, ensuring reliable performance in a variety of industrial applications.

3. This hybrid dynamic filter compensation device is designed for high efficiency and combines the advantages of static VAR generator and active filter. It can not only compensate reactive power, but also suppress harmonics, thereby reducing energy consumption, reducing equipment heating, and extending the service life of equipment in 400V power grid.

4. The device integrates multiple functions to simultaneously solve multiple power quality problems, including harmonics, reactive power fluctuations, and three-phase unbalance. This comprehensive solution simplifies system design, minimizes installation complexity, and provides a cost-effective way to improve overall power system reliability.

5.BY95 - ASVGC is designed for harsh industrial environments with a rugged structure and advanced protection mechanisms. It ensures stable operation under harsh conditions, provides long-term reliability and extremely low maintenance requirements, and is ideal for critical power applications that require continuous performance.

6. The device adopts a user-friendly design, which is easy to install and maintain, reducing downtime and operating costs. Its intuitive interface and modular structure enable rapid deployment and convenient upgrades, while being compatible with standard 400V power systems, ensuring seamless integration into existing power systems.

Working  Principle of BY95-ASVGC  Hybrid Dynamic Filtering Compensation Device

1. Hybrid dynamic filtering technology
The core functionality of the device combines the functions of an active power filter (APF) and a static VAR generator (SVG). The APF continuously monitors the real-time current waveform to identify harmonic components (2nd to 51st) generated by non-linear loads such as inverters. It uses an advanced FFT-based algorithm to generate offset harmonic currents to eliminate distortion, thereby reducing total harmonic distortion (THD) by up to 95%. At the same time, the SVG module dynamically injects or absorbs reactive power to stabilize voltage levels and maintain a power factor ≥0.98, thereby eliminating reactive power fluctuations and grid instability.

2. Intelligent full control system
BY95-ASVGC is equipped with a DSP-based controller that analyzes key parameters (voltage, current, power factor) in real time. The system uses an adaptive control strategy to optimize the compensation ratio between active and passive components. For example, during transient loads (such as motor starting), the SVG can quickly output reactive power within a few milliseconds, while the APF can suppress harmonics caused by surges. This synergy ensures dynamic balancing of all phases and corrects three-phase imbalance problems by adjusting the compensation current of a specific phase.

3. Multifunctional integration
The device serves as a unified solution for a variety of power quality issues:
• Harmonic Mitigation: Actively eliminates harmonic currents to protect equipment from overheating and premature failure.
• Reactive power optimization: Continuously adjusts capacitive/inductive reactive power to minimize energy losses and increase grid efficiency.
• Voltage stabilization: Mitigates voltage sags/swells caused by fluctuating loads by regulating reactive power flow.
• Three-phase balance correction: Uses phasor analysis to detect phase differences and apply targeted compensation, reducing neutral current by up to 80%.

4. Adaptive compensation mechanism
BY95-ASVGC uses a self-adjusting algorithm to adapt to different load profiles. For example, in industrial environments with cyclic loads such as welding machines, the system dynamically switches between pre-programmed compensation modes such as harmonic mitigation priority and reactive power optimization. This flexibility ensures optimal performance in a variety of applications, from data centers equipped with high-frequency UPS systems to manufacturing plants with heavy inductive loads.

5. Enhanced reliability and protection
The device is built with rugged components including:
• Overcurrent/overvoltage protection: Immediate shutdown in fault conditions to prevent equipment damage.
• Thermal management: Intelligent cooling system maintains operational stability even in extreme temperatures.
• Redundant control architecture: Dual-core processors ensure uninterrupted operation even if one control module fails.

6. Grid compatibility and energy saving
By reducing harmonic pollution and optimizing reactive power, BY95-ASVGC achieves:
• Reduced energy costs: Reducing line losses can save 5-15% on electricity bills.
• Extend equipment life: Reducing thermal stress on transformers and capacitors can extend their service life by 30-50%.
• Grid compliance: Ensure compliance with international standards (such as IEEE 519) for harmonic limits and power factor requirements.
