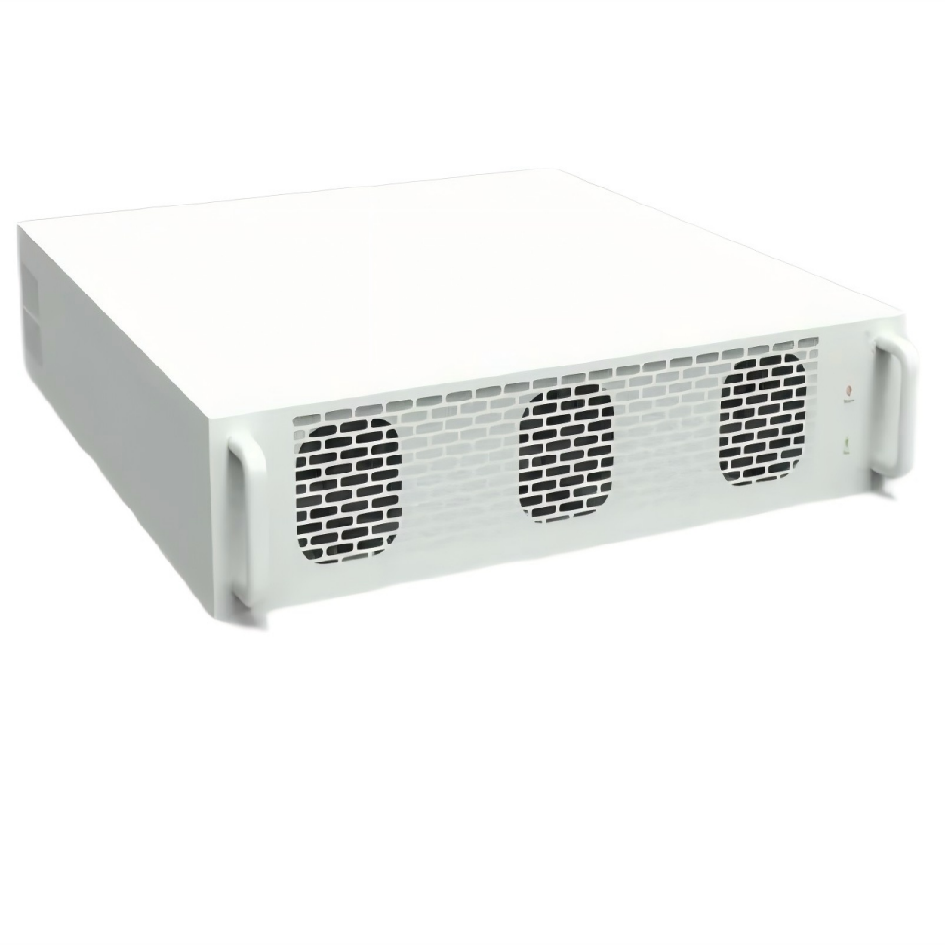

BY92-SVG Static reactive power generator(small)
Product Introduction
Baoyu BY92-SVG series is a disruptive innovation in the field of power quality management. This ultra-thin and ultra-light generator is designed to meet the challenges of reactive power management in a compact and efficient manner. BY92-SVG is only 88mm thick and weighs less than 15kg. It is a small but powerful device with unparalleled performance.
BY92-SVG is a multi-functional solution that supports plug-in replacement, multi-machine parallel operation or SVG+ capacitor parallel operation. This flexibility allows seamless integration into existing power systems, making it ideal for a variety of applications. Whether for industrial, commercial or residential use, the BY92-SVG provides reliable, efficient power quality management.
One of the main advantages of BY92-SVG is its compact size and ease of installation and maintenance. Its small footprint means it can be easily integrated into existing power infrastructure without major modifications. This not only saves space but also reduces installation time and costs, making it a cost-effective power quality management solution.
BY92-SVG is a high-performance device that delivers excellent results. Its static reactive power generation capability ensures stable and efficient power distribution, helping to improve overall system efficiency and reliability. This is particularly important in environments where power quality is critical, such as industrial environments or sensitive electronic equipment.
Baoyu BY92-SVG series is a revolutionary small static var generator that provides unparalleled performance in a compact and efficient package. Its innovative design, versatile features and high performance make it ideal for power quality management in a variety of applications. With the BY92-SVG, users get reliable, efficient and cost-effective power management solutions to meet the needs of modern power systems.
Main features
Lightweight --single module 15kg, can be replaced by one person;Thin --2U height, high power density,saving installation space;Plug and replace -- on-site maintenance supports plug and unplug without the need to remove screws.
Compensation method -- simultaneous compensation of reactive/unbalanced/N line current, with multiplefunctions for one machine;
Parallel operation mode -- multiple machines in parallel support network side CT sampling, and supportparallel operation with intelligent capacitors;Debugging method -- supports near-end WiFi communication, facilitating on-site debugging of columnmounted devices;
Remote scheduling --supports remote scheduling of reactive power output.
Advanced software and hardware technology:Double frequency sampling control -- high current control accuracy and stability;Two point reacive power calculation -- greatly improving the response speed of reactive power compensation;Resonant harmonic suppression -- effectively reducing the distortion rate of output current;Closed loop temperature control -- precise temperature control and load limiting at high temperatures.
without capacity waste;
Resonant damping filter -- balancing the power consumption and stability of the filter.
General parameters
Project |
Parameter |
|
Module |
Module specifications |
SVG-30kvar |
Module volume |
400×425×88mm |
|
Overall weight |
16kg |
|
Technical |
Rated grid voltage |
400V |
Grid voltage range |
±20% |
|
Rated grid frequency |
50Hz |
|
Grid frequency range |
±5Hz |
|
switching frequency |
≥20kHz |
|
Module noise |
<60dB |
|
Overall loss |
<3% |
|
Environmental |
Storage temperature |
-25℃~+55℃ |
Storage humidity |
5%~90%RH |
|
working temperature |
-10℃~+40℃ |
|
Communication |
RS485 communication |
Support |
GPRS backend communication( optional) |
Support |
|
WIFI near end communication( optional) |
Support |
|
Introduction to Principles
Note:
1.External dimensions: The chassis is 440 x 425x 88mm,The maximum shape is 500 x 482 x 88mm;
2.Material: Aluminum zinc coated plate;
3.Color: The front panel is matte black, and the box is coated withZluminum zine in its natural color;
4.Protection level: IP20:
5.Equipment weight: 16kg;
6. There are three sets of installation holes, namely:
6 M4 threaded holes on the leftright panel, 2 M6 threaded holeson the rear plate and 12 M4 threaded holes on the upper/lowerplate;
7.There are three conventional installation options, namely:
Option 1: Fix the leftright panel and rear panel simultaneously (rack mounted);
Option 2: Leftright board+guide rail fixation (plug-in box type);
Option 3: Both side panels are fixed simultaneously (vertical cabinet type).
