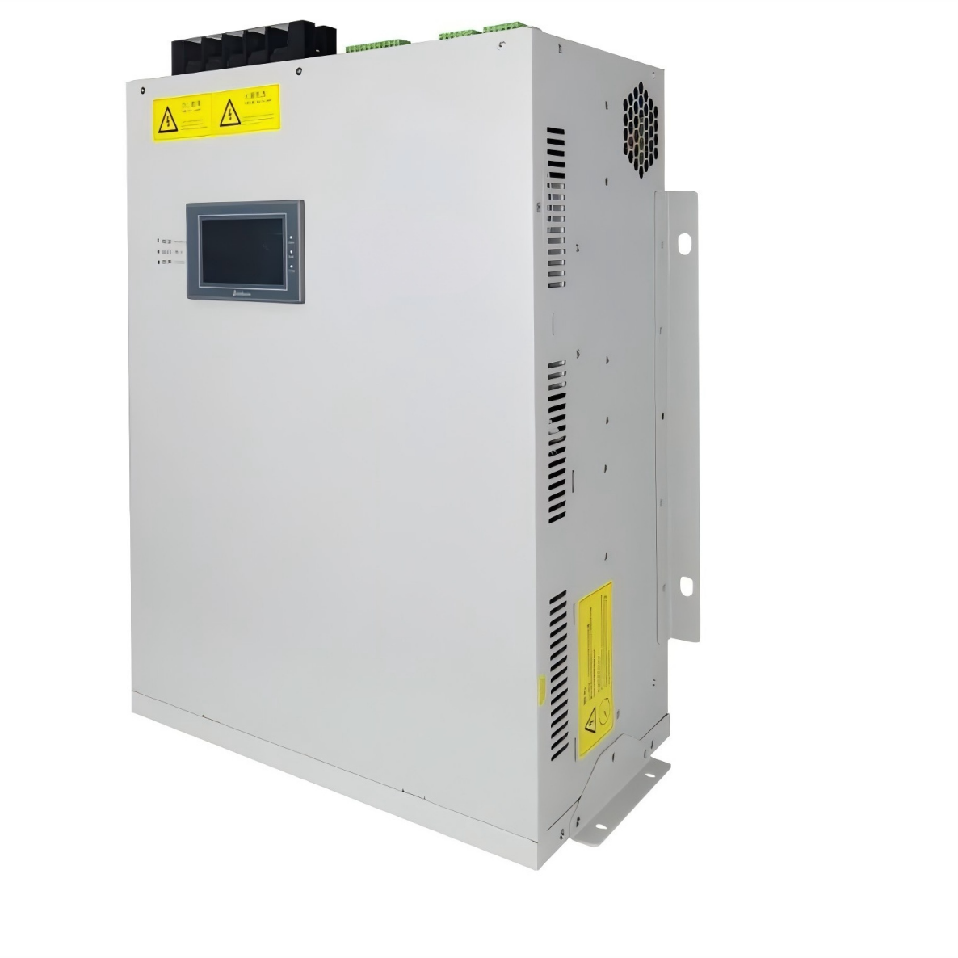

BY92-SVG Static reactive power generator

The BY92-SVG static var generator uses the principle of power electronics to separate the reactive power inthe circuit through algorithms, and emits inductive or capacitive currents that are opposite to them, achieving-1-~+1 level compensation. At the same time, BYSVG can also control 2-13 harmonics, achieving intelligentpower quality control.

product details

Product Introduction

The BY92-SVG Static Var Generator is a cutting-edge solution that utilizes power electronics technology to effectively manage reactive power in circuits. This innovative device uses an advanced algorithm to emit inductive or capacitive current to offset the reactive power in the circuit, thereby achieving a high level of compensation from -1 to +1. In addition, BY92-SVG also has the ability to manage harmonics from the 2nd to the 13th order to achieve intelligent power quality control.

This state-of-the-art static var generator plays a vital role in improving power quality within electrical systems. By effectively managing reactive power, voltage and current waveforms remain stable, thereby minimizing voltage fluctuations and improving the overall efficiency of the system. In addition, BY92-SVG helps reduce power losses and improve grid reliability, making it an indispensable component for industrial and utility companies looking to optimize their power infrastructure.

One of the main features of BY92-SVG is the ability to provide dynamic reactive power compensation. This means that the unit can respond quickly to fluctuations in the power system, ensuring that reactive power requirements are continuously met. As a result, BY92-SVG helps maintain a power factor close to 1, which is critical to maximizing power utilization and reducing the burden on the distribution grid.

The BY92-SVG Static Var Generator provides comprehensive harmonic control to reduce undesirable harmonics within the electrical system. By regulating the 2-13th harmonic, the device effectively reduces harmonic distortion, which would otherwise lead to equipment failure and increased energy consumption. This advanced feature ensures that power quality remains within acceptable limits, protecting the integrity of sensitive equipment and improving overall operational efficiency.

BY92-SVG Static Var Generator is a key solution for achieving optimal power quality and efficiency within power systems. With its advanced reactive power compensation and harmonic control capabilities, this innovative device enables industry and utilities to maintain stable voltage levels, minimize power losses, and increase the reliability of their power infrastructure. As the demand for high-quality power continues to grow, BY92-SVG is a key enabler in ensuring the seamless operation of modern power grids.

Significance of reactive power compensation

The motor and other loads emit inductive current, generating inductive reactive power, and the current phase lags behind the voltage
Capacitive load emits capacitive current, generates capacitive reactive power, and the current phase leads the voltage
SVG emits inductive reactive power, which is offset by capacitive reactive power, and the voltage and current are in phase

SVG Centralized Compensation Capacity Selection Query Table

Transformer capacity /KVA	Industry current distortion rate
Transformer capacity /KVA	Subways,tunnels,high-speed trains,airports15%	Communication, commercial construction, metallurgy, banking 20%	Medical industry 25%	Automobile manufacturing and shipbuilding 30%	Chemical, Petroleum35%	Metallurgical industry 40%
200	50A	50A	100A	100A	100A	100A
250	50A	50A	100A	100A	150A	150A
315	100A	100A	150A	150A	150A	200A
400	100A	100A	150A	200A	200A	250A
500	100A	150A	200A	200A	250A	300A
630	150A	200A	250A	300A	350A	400A
800	200A	250A	300A	350A	450A	500A
1000	200A	300A	400A	450A	550A	600A
1250	300A	350A	450A	550A	650A	750A
1600	350A	500A	600A	700A	850A	850A
2000	450A	600A	750A	900A	1050A	1200A
2500	550A	750A	900A	1500A	1300A	1500A
