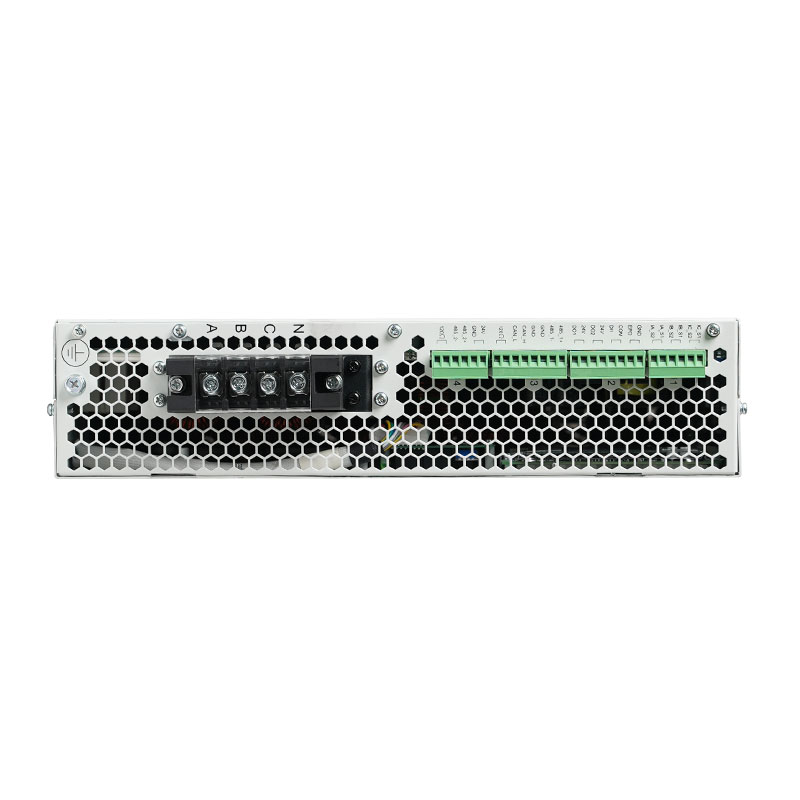

BY92-SVG STATIC REACTIVE POWER GENERATOR
Product information

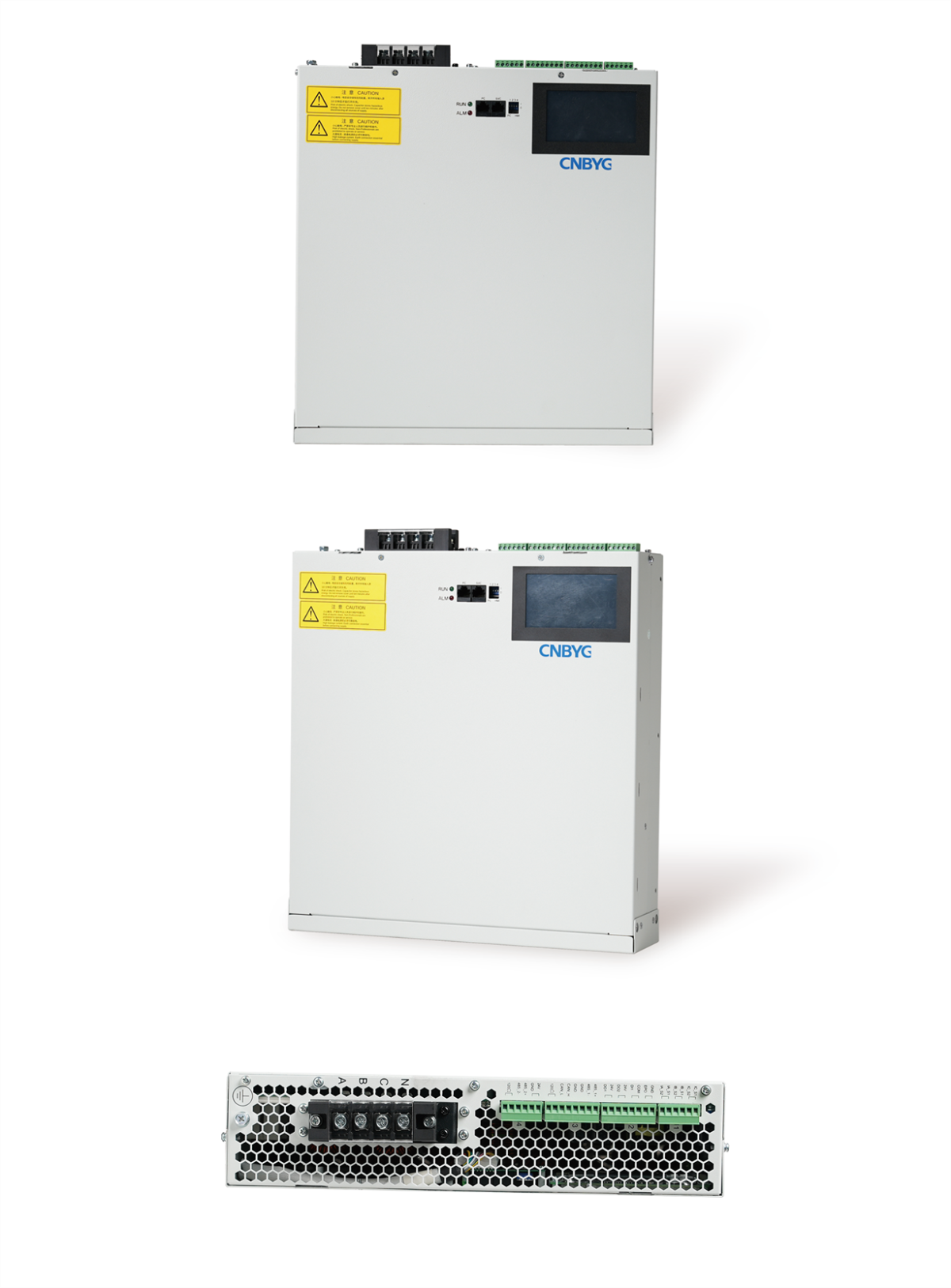

BY92-SVG
STATIC REACTIVE POWER GENERATOR
Product details
The BY92-SVG static var generator uses the principle of power electronics to separate the reactive power in the circuit throuah alaorithms, and emits inductive or capacitive currents that are opposite to them, achieving -1~+1 level compensation.At the same time, BYSVG can also control 2-13 harmonics,achieving intelligent power quality control.
Reduce users'own electricity expenses
Ensure that the power factor meets the requirements of the power supply department and avoid fines for power requlation fees
Reduce losses and valtage fluctuations
Improve the actual utilization rate of power generation equipment and power supply transformers
Save users the capacity of substation equipment and switchgear,thereby saving construction costs
Ensure the normal and effective operation of power equipment
Product details
MODEL MEANING
SIGNIFICANCE OF REACTIVE
POWER COMPENSATION
The motor and other loads emit inductive current, generating inductive reactive power,and the current phase lags behind the voltage
SVG emits capacitive reactive power, which is offset by inductive reactive power, and the voltage and current are in phase
Capacitive load emits capacitive current,generates capacitive reactive power, and the current phase leads the voltage
SVG emits inductive reactive power, which is offset by capacitive reactive power, and the voltage and current are in phase
SVG CENTRALIZED COMPENSATION
CAPACITY SELECTION OUERY TABLE
GENERAL PARAMETERS
GENERAL PARAMETER TABLE FOR W/N/H/B/T TYPE PRODUCTS
PRODUCT SPECIFICATIONS
Note:1.W-type is specifically designed for 660V to 850V power grids;
The N-type can be suitable for various installation situations: centralized installation of N-type indoor cabinets, B-type wall mounted installation, etc., with small and flexible volume.
2. The T-type outdoor type has a protection level of up to lP65 and can be directly installed in various harsh working environments, providing users with more choices.
3.The order of size listing is: long x deep x High.
MODULE SIZE
TYPE N
TYPE-W(600V-800V DEDICATED)
TYPE-B
TYPE-T
OUTDOOR-CABINET
After Sales
ABOUT INSTALLATION
It is recommended to have a professional electrician perform the installation when there is a power outage, which can avoid electric shock caused by improper operation and product damage caused by improper wiring (product damage caused by incorrect wiring is not a quality issue and cannot be returned or compensated);
REGARDING ORDERING
1. Before placing an order, please consult whether the product is suitable to avoid unnecessary trouble
2. Some models are unconventional and cannot be stocked. Please contact customer service to confirm the delivery time before placing an order
ABOUT DIMENSIONS
The product dimensions are measured using a vernier caliper and tape measure. Due to differences in tool sand manual measurement methods, there may be normal range errors in the results, which is a nomal phe.nomenon and not a problem with workmanship or quality.
DELIVERY
The warehouse will arrange the shipping route based on the size, quantity, and weight of the products. By
default, the shipment will be sent to the destination city via logistics and self pickup is required. If you need
to specify the logistics, please contact customer service for a note.
