BY92-SVG/70 kvar-0.4/4L-N Series Static Var Generator Power Quality System Power Factor Correction Power Quality Management Static Var Generator

Model Meaning

Main Datas of BY92-SVG/70 kvar-0.4/4L-N Series Static VAR Generator

Product Description of BY92-SVG/70 kvar-0.4/4L-N Series Static VAR Generator

The BY92-SVG/70 kvar-0.4/4L-N Series Static Var Generator (SVG), engineered by Baoyu Holdings Ltd., is a state-of-the-art solution for optimizing electric power distribution networks and enhancing power quality across industrial and commercial facilities. Designed for 3-phase power systems, this low-voltage product (0.4 kV) dynamically addresses reactive power compensation, mitigates harmonics problems, and stabilizes AC electricity grids to ensure reliable voltage support and stable voltage levels. By leveraging Static Var Compensation (SVC) technology, it effectively resolves over voltage in power systems, minimizes loss voltage, and balances reactive loads, making it indispensable for modern electrical power grids.

As a compensating device in electrical engineering, the BY92-SVG excels in reactive energy management, improving grid power factor and reducing energy waste caused by power factor reactive power imbalances. Its integrated harmonic filter reactor actively suppresses harmonic distortions, safeguarding electrical equipment from damage while ensuring compliance with basic electrical power system standards. The system’s real-time power quality analysis capabilities enable proactive electric power quality improvement, addressing issues like var reactive power fluctuations and harmonics problems in distribution power networks.Ideal for SVG in electrical infrastructure, this static var generator offers rapid response to reactive power demands, optimizing power factor in electrical systems and enhancing power to grid efficiency. It serves as a generator of energy compensation, stabilizing the three phase voltage imbalances and supporting electrical power grids with voltage support during peak loads or renewable energy integration. Applications span manufacturing plants, data centers, and renewable energy facilities requiring var in electrical engineering solutions for stable voltage and power quality service excellence.

With a modular design and 70 kvar capacity, the BY92-SVG series adapts seamlessly to diverse distribution power needs, from low voltage products to large-scale electrical equipment protection. Its adaptive algorithms ensure precise reactive power compensation, reducing operational costs and extending the lifespan of basic electrical power system components. By addressing over voltage in power systems and loss voltage challenges, it guarantees compliance with global energy standards while boosting grid power factor performance.Trust Baoyu Holdings’ expertise in power quality management to elevate your facility’s efficiency, reduce downtime, and achieve seamless power to grid integration. The BY92-SVG series is your ultimate partner in mastering electric power distribution challenges and delivering stable voltage for mission-critical operations.

Main Advantages of BY92-SVG/70 kvar-0.4/4L-N Series Static VAR Generator

• Fast dynamic response and continuous reactive power compensation ensure optimal power factor correction, thereby enhancing grid stability.

• Real-time harmonic suppression up to 50th order minimizes distortion and improves the accuracy of power quality analysis.

• The compact design reduces reactor and capacitor components, lowering installation costs and space requirements compared to conventional SVC systems.

• Advanced PWM and multi-level conversion technologies significantly reduce harmonic currents, thereby significantly improving power quality.

• Wide operating range (0.4kV) supports flexible integration into industrial power grids and solves three-phase imbalance and voltage fluctuation problems.

• The intelligent DSP-based control system can achieve real-time adaptive reactive power regulation to adapt to dynamic load changes.

• High-efficiency power factor correction (up to 0.99) reduces line losses and maximizes active power transfer capability.

• Modular architecture enables seamless expansion of large applications such as wind farms, steel mills, and electric vehicle charging stations.

• Powerful overload protection and resonance prevention functions ensure reliable power quality management under extreme grid conditions.

• Comprehensive energy monitoring and IEC-compliant reporting simplifies compliance with global power quality standards.

• Low noise operation with EMI filtered output to minimize electromagnetic interference in sensitive environments.

• Active voltage stabilization and flicker mitigation can improve equipment life and production efficiency.

Working Principle of BY92-SVG/70 kvar-0.4/4L-N Series Static VAR Generator

Dynamic reactive power compensation and power factor correction

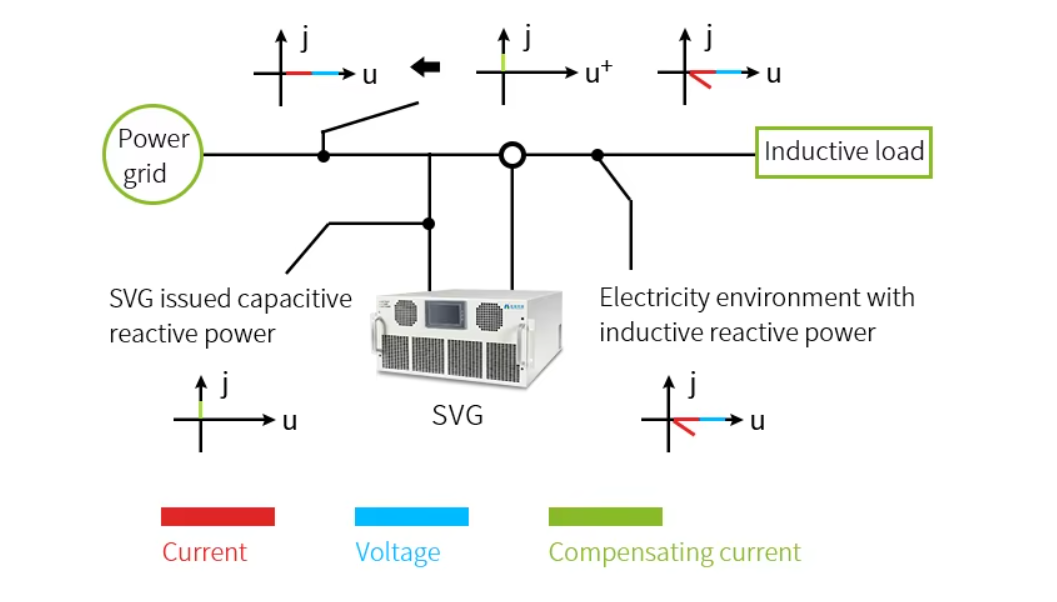

The BY92-SVG/70 kvar-0.4/4L-N series static VAR generator uses advanced IGBT-based voltage source converter (VSC) technology to dynamically inject or absorb reactive power into the grid, ensuring real-time power factor correction (PFC). The system continuously monitors grid parameters through embedded sensors, detects phase imbalance and reactive power shortage, and immediately generates counteracting current to offset the lagging/leading power factor. This reactive power compensation mechanism stabilizes voltage fluctuations, reduces transmission losses, and maintains a power factor close to unity (up to 0.99) across the industrial load range. The integrated DSP control algorithm optimizes the switching frequency using PWM modulation, allowing it to seamlessly adapt to rapidly changing loads (e.g. motors, arc furnaces). Unlike traditional capacitor banks, this static VAR generator eliminates the risk of resonance and achieves sub-cycle response time, resulting in excellent grid stability and energy efficiency.
Harmonic suppression and three-phase imbalance relief
Designed for precision harmonic filtering, BY92-SVG uses a multi-stage H-bridge topology and FFT-based harmonic analysis to identify harmonic distortion up to the 50th harmonic. By injecting anti-phase harmonic currents, it can actively offset the THD (total harmonic distortion) caused by non-linear loads such as inverters and LED lighting. At the same time, its adaptive phase balancing algorithm redistributes reactive power among the three phases, solving voltage asymmetry and neutral overload problems in real time. This dual-effect solution not only complies with the IEEE-519 standard, but also prevents equipment from overheating, reduces downtime and extends machine life. The system's EMI filtered output and low impedance design further suppress high-frequency noise, making it ideal for sensitive environments such as data centers and hospitals.
Intelligent power quality monitoring and optimization
BY92-SVG integrates a comprehensive power quality management system with real-time data collection and cloud-based analysis capabilities. Its onboard metering module continuously tracks more than 20 parameters, including voltage sag/swell, flicker, and unbalance rate, while generating audit reports that comply with the IEC 61000-4-30 standard. Machine learning algorithms correlate load patterns with grid disturbances, enabling predictive maintenance and automatic adjustments to prevent power quality degradation. For example, during transient overloads, static VAR generators prioritize reactive power allocation to critical circuits to ensure uninterrupted operation. Users can access dashboards through the HMI or SCADA to visualize key performance indicators (KPIs) such as energy savings (loss reduction of 15-30%) and harmonic suppression efficiency (>95%). This proactive approach transforms raw grid data into actionable insights in line with global smart grid sustainable energy management initiatives.

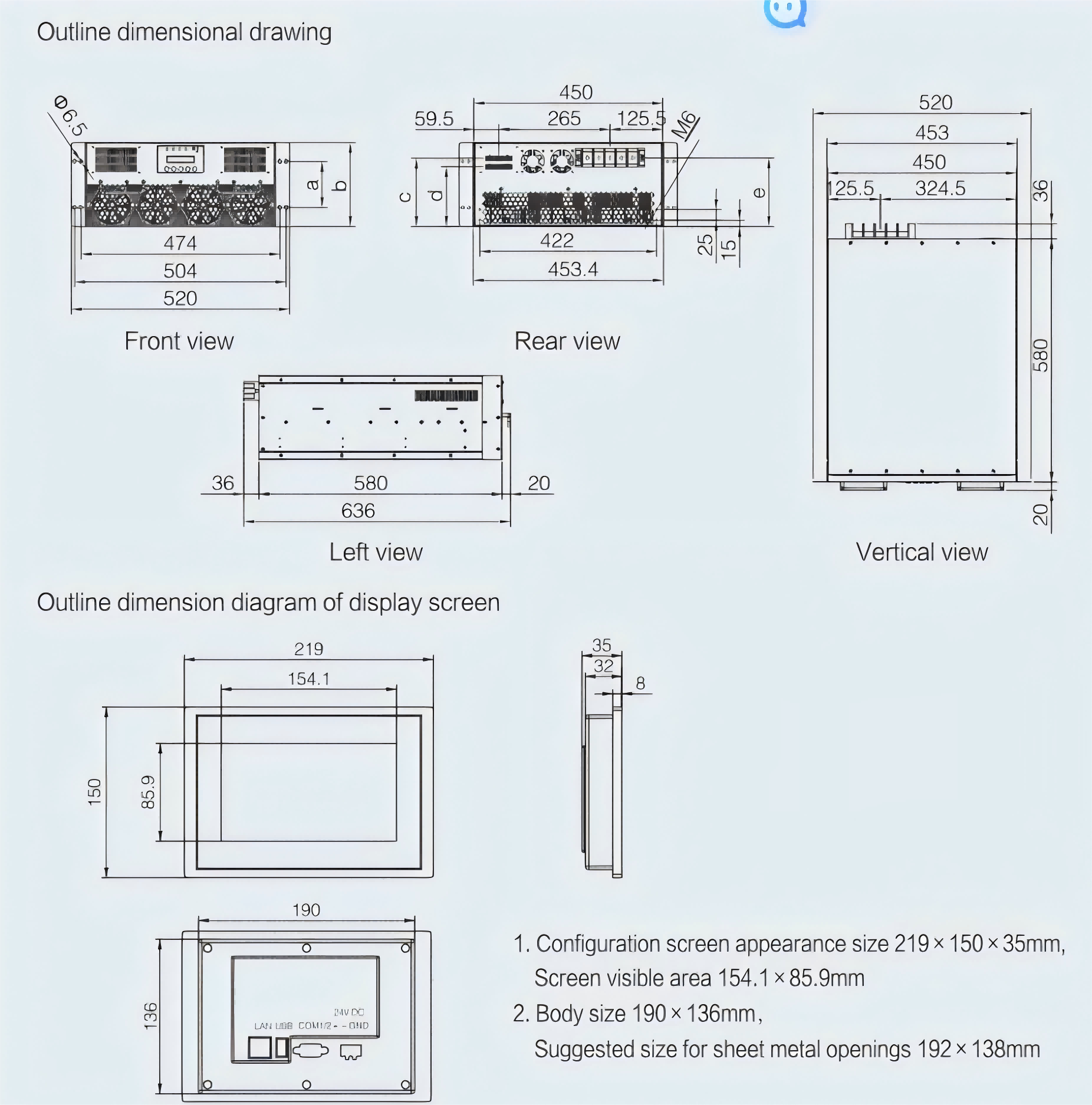

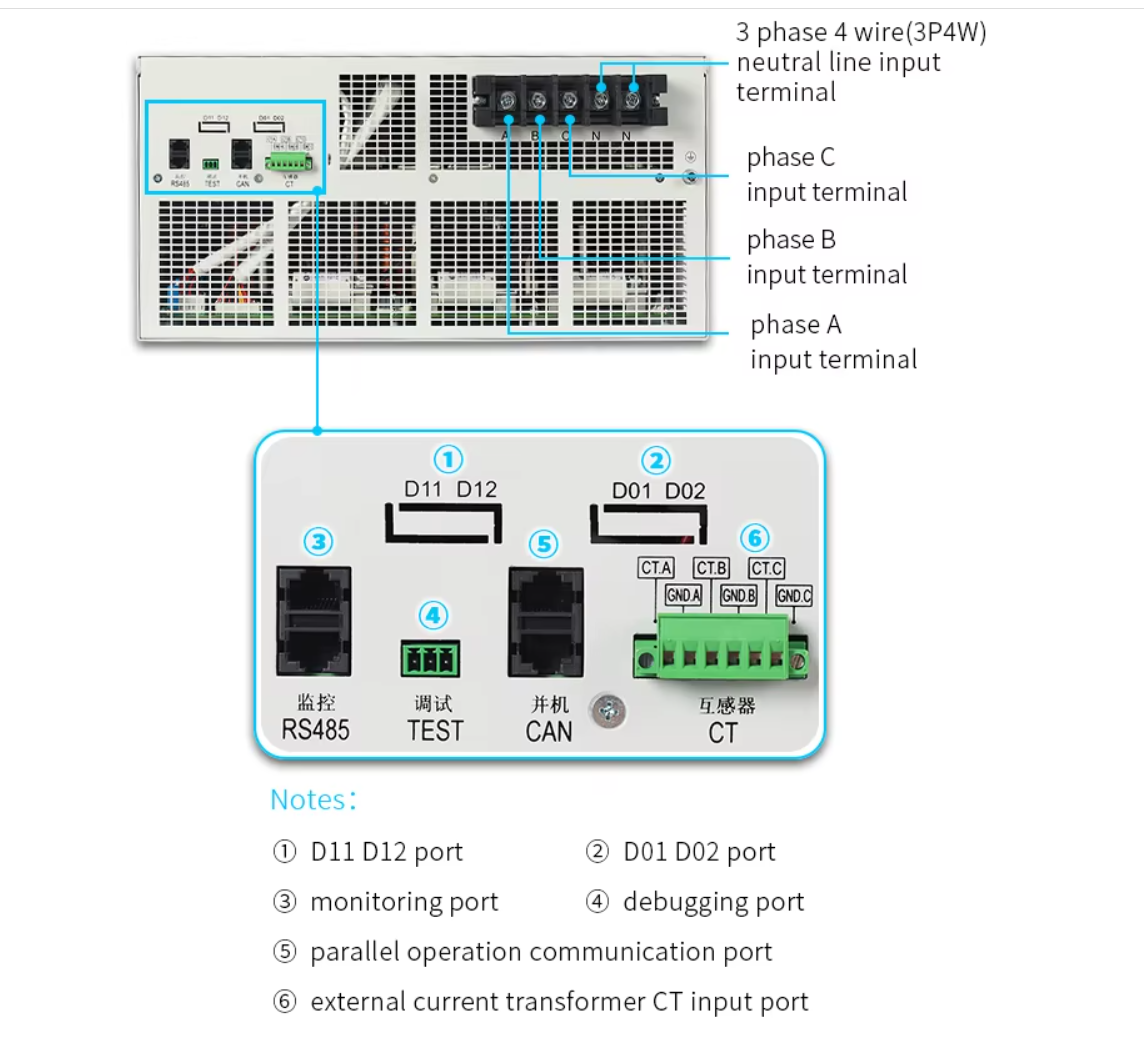

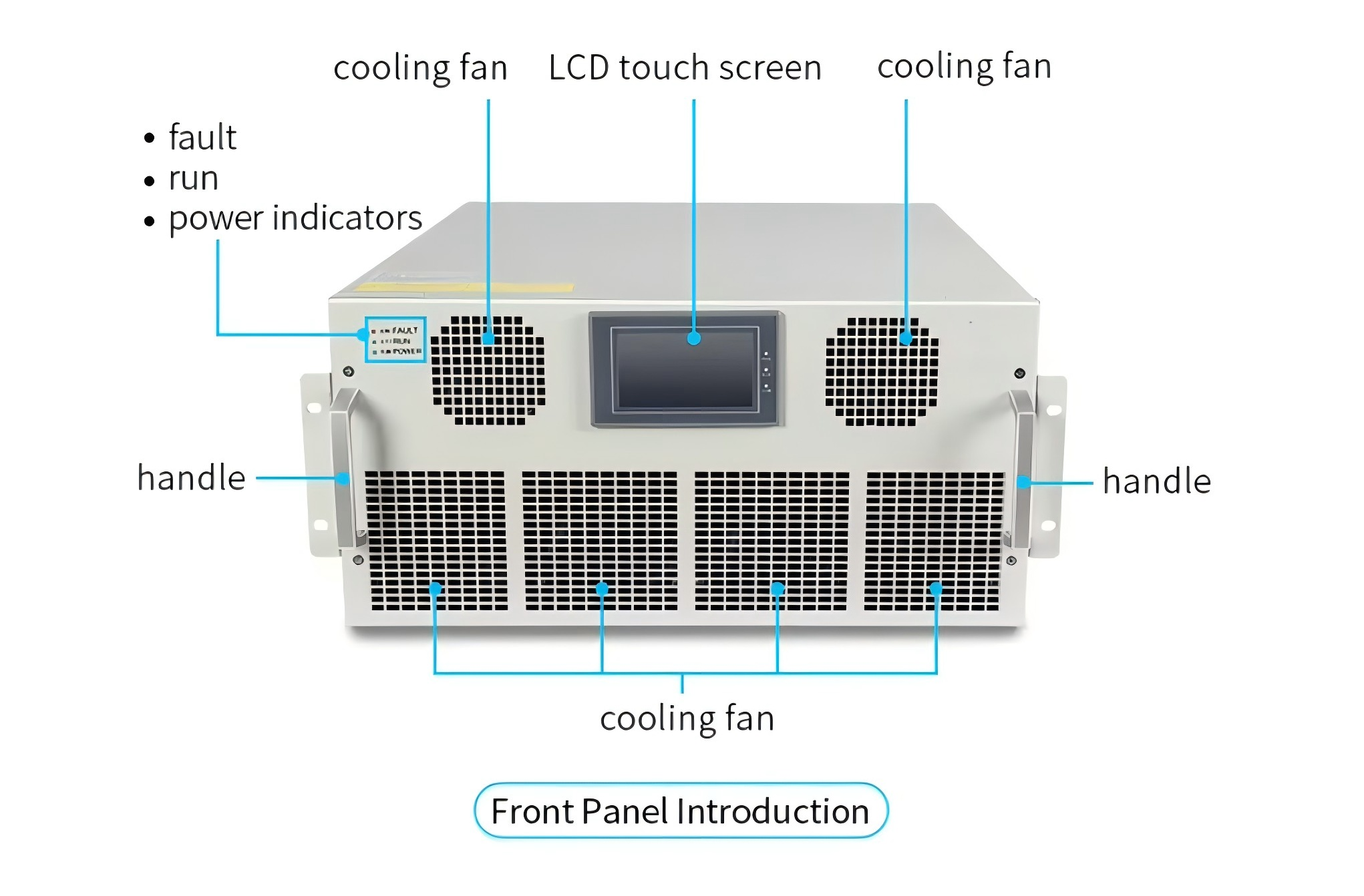

 Size of BY92-SVG/70kvar-0.4/4L-N Series Static VAR Generator
