BY92-SVG/30kvar-0.4/4L-N High-Efficiency Low Voltage Static Var Generator for Reactive Power

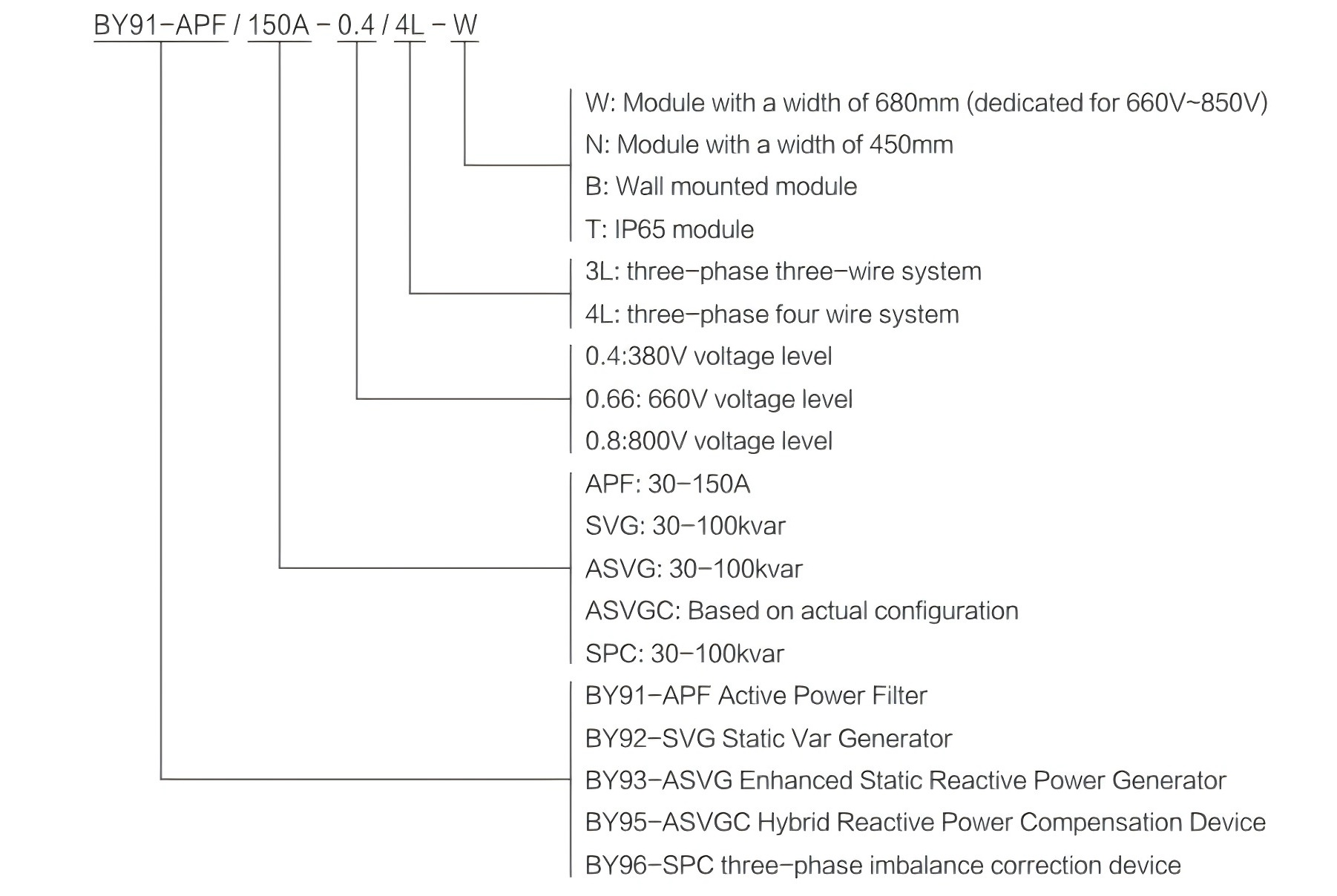

Model Meaning

Overview of BY92-SVG/30kvar-0.4/4L-N Static Var Generator

The BY92-SVG/30kvar-0.4/4L-N High-Efficiency Low Voltage Static Var Generator (SVG) is a cutting-edge solution designed to optimize reactive power compensation and enhance power quality electrical engineering in low-voltage distribution systems. As a cabinet-static reactive power generator, this advanced device dynamically adjusts var reactive power to maintain grid stability, reduce energy losses, and improve energy saving efficiency. Leveraging smart controlalgorithms and real-time monitoring, the SVG ensures rapid dynamic compensation with a response time of less than 10ms, effectively addressing voltage fluctuations and harmonics in electrical systems. Its three-phase distribution line compatibility enables precise three-phase balance regulation, mitigating issues like load imbalances and harmonic distortions (e.g., 5th, 7th harmonics) through harmonic mitigation technology . Built with military-grade control chips and a modular design, this static var compensator offers unparalleled reliability and scalability, making it ideal for industrial facilities, renewable energy plants, and commercial complexes seeking to comply with stringent power quality and voltage quality standards .
Engineered for low-voltage electrical networks (0.4kV), the BY92-SVG excels in reactive energy compensation by delivering continuous reactive power in power system adjustments without stepwise delays, outperforming traditional SVCs . Its intelligent control system integrates three-phase technical services to monitor and optimize 3-phase phase-to-phase voltagestability, ensuring minimal reactive energy waste and maximizing energy-saving benefits. The device also features real-time diagnostics and adaptive filtering to prevent resonance risks, even in high-impedance grids 16. Compatible with solar farms, wind turbines, and heavy machinery, this static reactive power generator supports hybrid configurations with capacitors or SVCs, enabling tailored reactive power devices solutions for diverse applications . As a power quality expert, the BY92-SVG not only enhances grid efficiency but also extends equipment lifespan by reducing thermal stress from harmonics in power systems. Trusted by global industries, it represents the pinnacle of electrical engineering innovation, delivering a power quality system that combines precision, durability, and sustainability.

Features of BY92-SVG/30kvar-0.4/4L-N Static Var Generator

• Ultra-low power consumption:The efficiency is increased to 99%, saving about 2 kWh of electricity per hour compared to conventional models in the industry.Silicon carbide semiconductor switches have lower on-resistance and faster switching speeds, which reduces losses during the switching process and improves the efficiency of the entire module. The efficiency of active filter products on the market is currently about 97%. Kede Technology has overcome technical difficulties through full silicon carbide switch technology and reasonable component selection and design, and has taken the lead in achieving a 2% increase in overall machine efficiency.Energy consumption is reduced by 70%, saving 2 kWh of electricity per hour. A SVG with a capacity of 100 kVar runs for one year.
  The maximum amount that can be saved is 2*24*365=17520 kWh.
• The filtering performance is more refined and accurate:The harmonic compensation rate is increased to 97%, which means higher compensation accuracy and better compensation effect. The GRT-APFL model achieves a 97% harmonic compensation rate through higher switching frequency and control algorithm.The compensation rate of each harmonic can be set and the phase angle can be adjusted to achieve flexible and accurate compensation.
• High-density modular design:The internal structure of the module is more concise, reducing the weight and volume of the whole machine.Cabinets and modules take up less space.
• Silicon carbide power semiconductor devices have a thinner drift zone：High temperature resistance, and high thermal conductivity, which lowers the requirements for the cooling system of high-power modules. Higher switching frequencies make the size of peripheral electronic components such as inductors smaller, thereby reducing the overall size of the module. In addition, the thermal conductivity of silicon carbide semiconductor switches is more than three times that of silicon semiconductor switches, with stronger heat dissipation capabilities, reducing the requirements for the product's cooling system. Greater output power and stronger heat dissipation characteristics make the product lighter and smaller, suitable for more scenarios.100kvar rack type micro power static var generator Svg
• Power density increased by 60%:Improve cabinet power density, save investment cost and installation space. A single cabinet can accommodate 8 modules. The capacity of a single cabinet is increased to 160%.1200A, single cabinet capacity, can reduce the number of cabinets in multi-module parallel system.16 modules are controlled by a single controller, which enables integrated control of more modules and reduces solution costs.

 Fundamental Principle of BY92-SVG/30kvar-0.4/4L-N Static Var Generator

1.Dynamic reactive power compensation
BY92-SVG uses active current separation technology to detect and isolate harmonics and reactive components in real time29. By generating anti-phase inductive or capacitive currents, the device can achieve seamless compensation in the -1 to +1 power factor range, ensuring efficient energy utilization and compliance with grid requirements15.
2. Harmonic suppression and three-phase balance adjustment
In addition to reactive power compensation, the SVG can also reduce 2nd to 13th harmonics to address harmonic pollution caused by non-linear loads such as inverters and arc furnaces16. It integrates a three-phase unbalanced control system that detects unbalanced current and dynamically adjusts capacitive/inductive output to optimize load sharing, reduce neutral current and improve transformer efficiency47.
3. High efficiency and energy saving
The SVG uses H-bridge cascade topology and vector control technology to minimize switching losses and achieve an operating efficiency of over 98%. Compared with traditional SVC, it has a faster response speed (<5ms), a wider compensation range, and a smaller footprint, thereby reducing operating costs and improving system reliability.
4. Intelligent control and real-time monitoring
BY92-SVG is equipped with a dual closed-loop control system (DC voltage and AC current) to ensure stable DC bus voltage and adapt to grid fluctuations. Its intelligent control interface can monitor power parameters such as voltage, current, harmonics, etc. in real time, and supports remote configuration through the IoT platform, thereby achieving proactive maintenance and energy management.

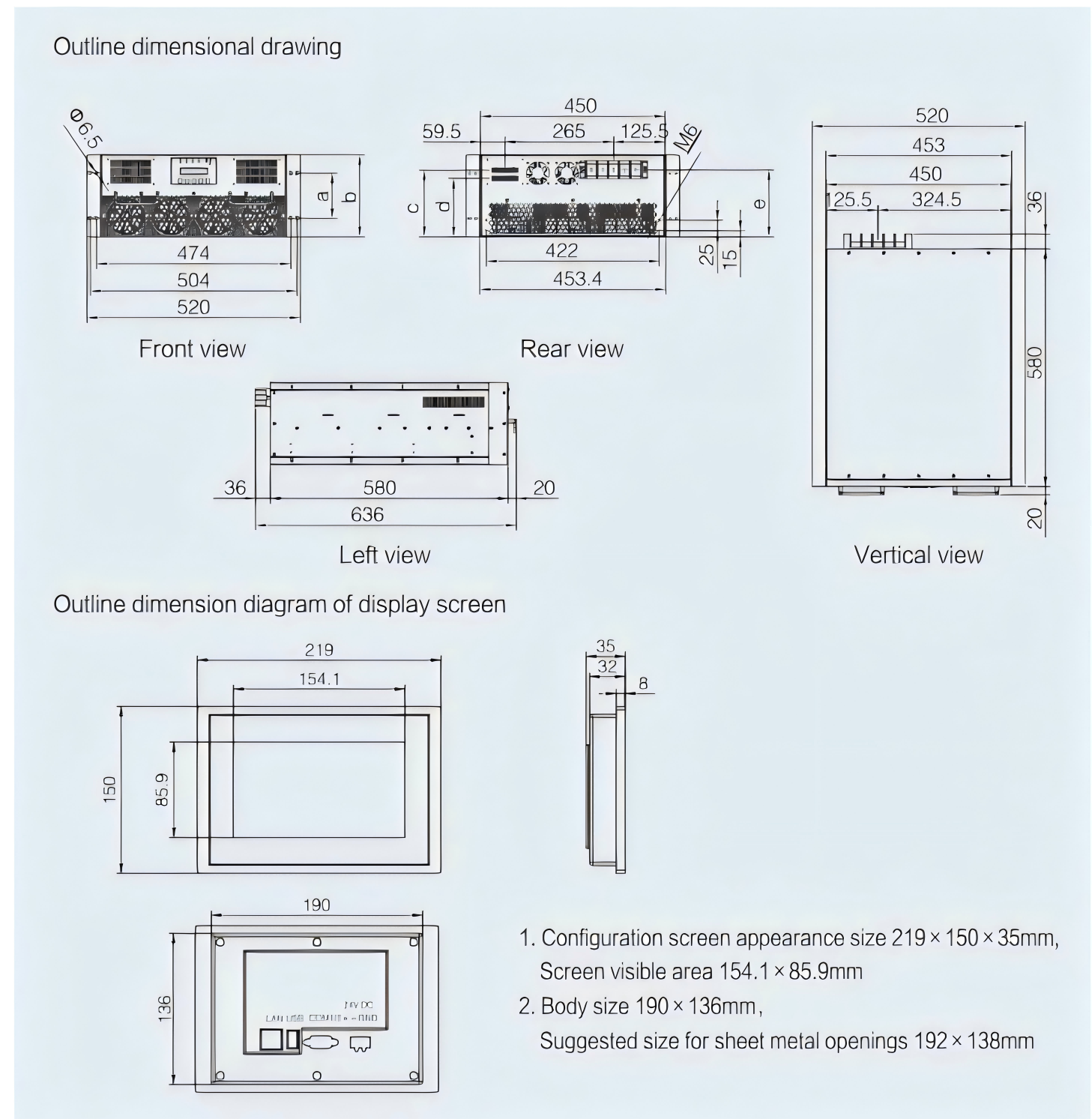

BY92-SVG/30kvar-0.4/4L-N Static Var Generator Size Information
