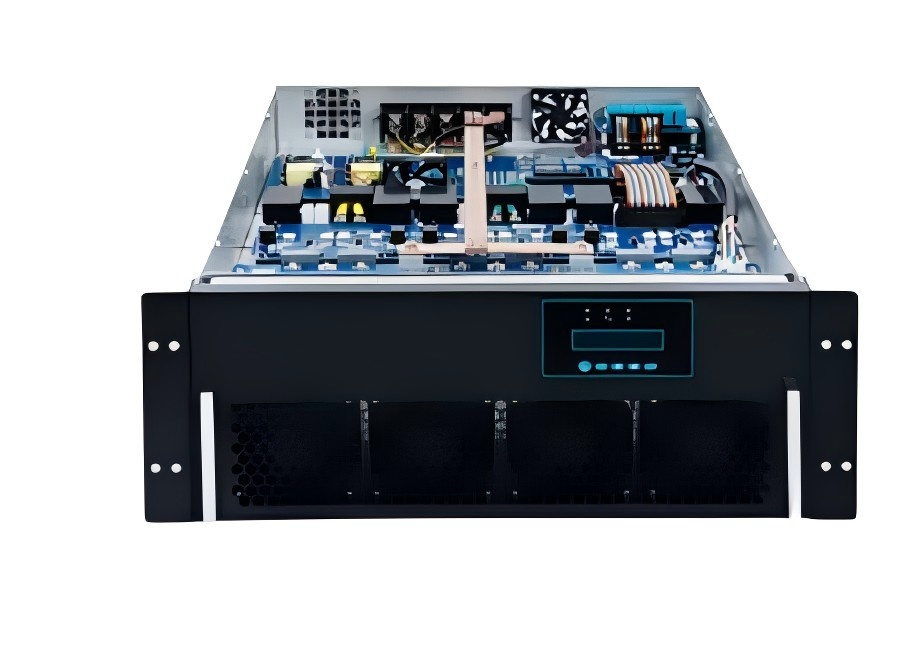

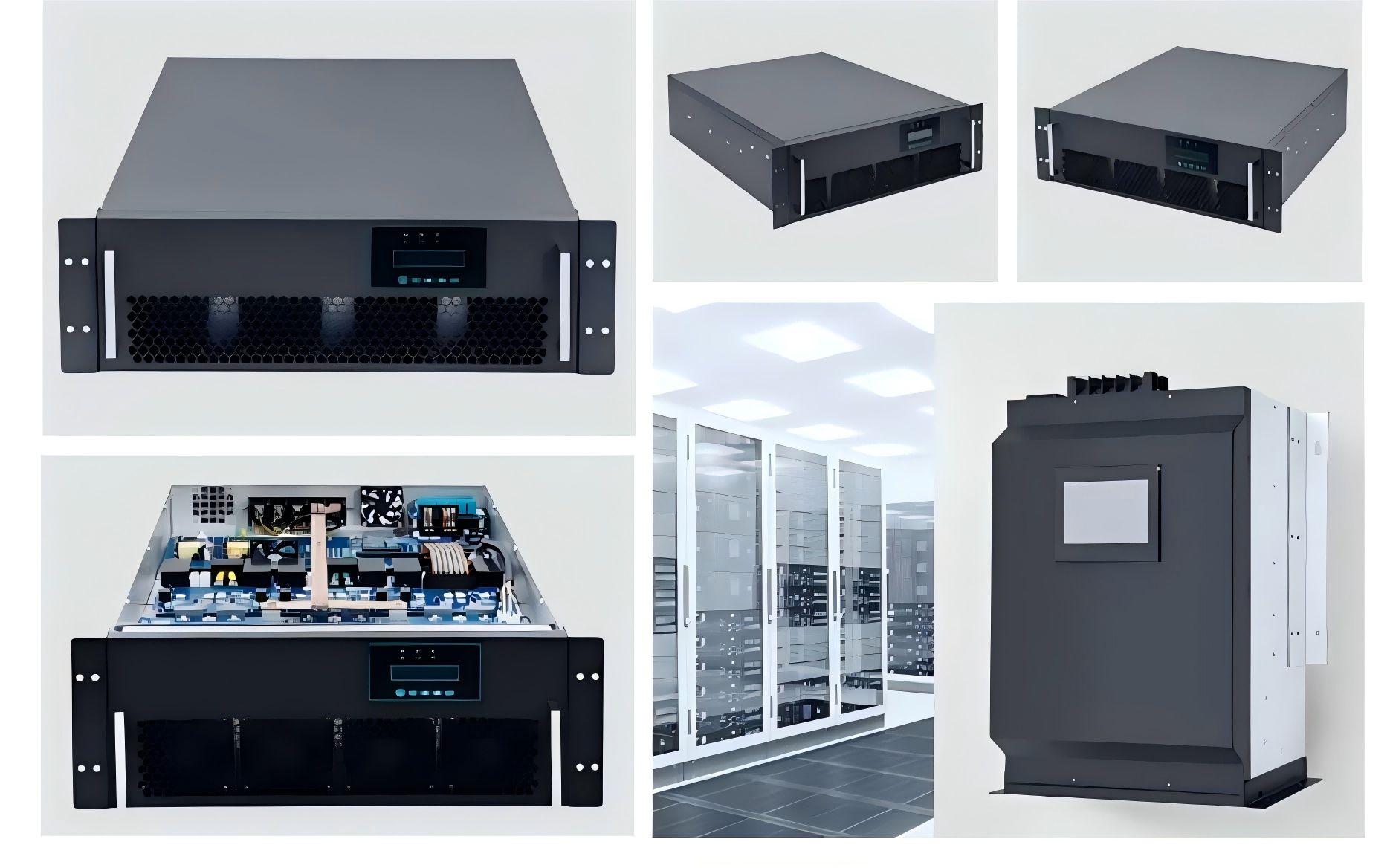

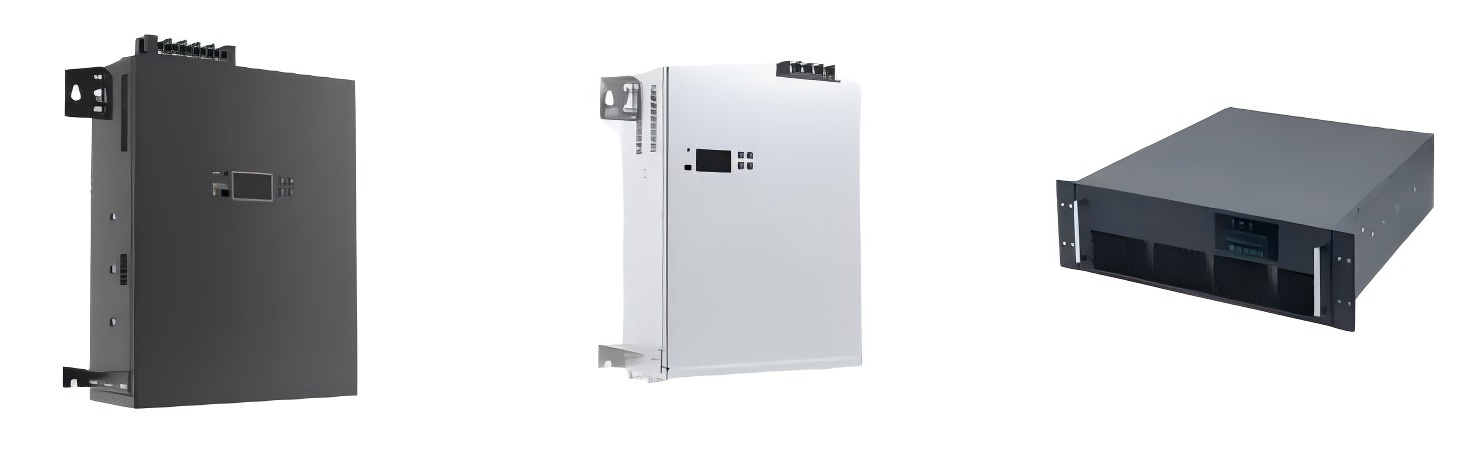

BY92-SVG/120kvar-0.66/3L-W Series Static Var Generator High Quality 100Kvar Static Var Generator Switchgear Automatic Indoor Industrial Reactive Power Compensation with SVG Low Voltage

Model Meaning

Main Datas of BY92-SVG/120kvar-0.66/3L-W Series Static VAR Generator

Product Overview of BY92-SVG/120kvar-0.66/3L-W Series Static VAR Generator

The BY92 - SVG/120kvar - 0.66/3L - W is a game - changing solution in the realm of Electric Power Distribution. As a Variable Impedance Type Static Var Generator, it represents the pinnacle of innovation among Types Of Static Var Compensators, offering unmatched Reactive Power Compensation capabilities. Manufactured by Baoyu Holdings, a distinguished Static Var Compensator Manufacturer, this Svg Static Var Generator competes head - to - head with industry giants like Abb Static Var Compensator in terms of performance and reliability.
In Three Phase Three Wire systems, this high - quality Var Generator continuously monitors the Voltage Between 3 Phases and 3 Phase Current To Power. By doing so, it enables precise Static Power Factor Correction, effectively reducing power losses and combating Voltage Sag In Power Quality. As an integral part of the Static Var Compensation System, it provides essential Voltage Support, ensuring the stable operation of Distribution Line Equipment and other electrical devices. Whether for large - scale industrial setups or smaller commercial applications, its ability to optimize reactive power compensation makes it a must - have for enhancing overall power efficiency in Electrical Power System 3 and various Power Quality Projects.

The BY92 - SVG series also shines brightly in the area of Harmonic Discovery and suppression. Specifically designed for low - voltage applications, it serves as a reliable shield for Electronic Low Voltage and Electrical Low Voltage equipment, protecting them from the harmful impacts of harmonics. This makes it an ideal choice for upgrading and maintaining the integrity of New Power Systems. With its intelligent, automatic operation, the generator adapts seamlessly to changing load conditions, ensuring consistent power quality.
As a key Reactive Compensation Equipment, it plays a crucial role in the Basic Of Electrical Power System, facilitating effective Electrical Compensation. Whether integrated into hybrid power setups similar to Hybrid Var Generators or traditional electrical grids, the BY92 - SVG series stands as a testament to advanced engineering, offering a comprehensive solution for improving power factor, managing reactive energy compensation, and ensuring reliable electrical performance across diverse applications.

Product Advantages of  BY92-SVG/120kvar-0.66/3L-W  Series Static VAR Generator

Excellent reactive power compensation: BY92 - SVG/120kvar - 0.66/3L - W series static reactive power generator provides excellent reactive power compensation performance. It can accurately detect and analyze reactive power in the power system and quickly inject or absorb the right amount of reactive power. This precise compensation function can effectively improve the power factor, reduce power loss, and improve power efficiency in industrial and commercial applications.

Efficient harmonic control: This SVG uses advanced technology and performs well in harmonic control. It can accurately identify and suppress various harmonics in the power grid, protecting electrical equipment from damage caused by harmonic distortion. By reducing harmonics, it significantly improves the overall power quality, ensuring a stable and reliable power supply for connected devices.

 Intelligent automatic operation: BY92 series inverters have intelligent automatic operation function, which can continuously monitor power parameters in real time. It can automatically adjust reactive power output according to the changing load conditions to ensure the best power factor correction. This intelligent function can reduce manual intervention, save labor costs, and ensure the continuous and stable operation of the power system.

Reliable voltage support: This high-quality static VAR generator provides reliable voltage support. By compensating for reactive power fluctuations, it effectively stabilizes the grid voltage level and prevents voltage sags and swells. Stable voltage ensures the normal operation of sensitive electrical equipment and improves the reliability of the entire power system.

 Compact and suitable for indoor installation: BY92-SVG adopts indoor switchgear design, compact structure and space saving. Its indoor-friendly design makes it easy to install in various industrial and commercial environments without occupying large outdoor space. Despite its small size, it still provides powerful reactive power compensation capability and excellent power quality improvement capability.

High performance and long life: BY92-SVG/120kvar series adopts top-grade materials and advanced manufacturing technology to ensure high performance and long life. It can withstand harsh industrial environments and continuous operation, thus reducing maintenance frequency and cost. Its reliable performance makes it a reliable choice for long-term reactive power compensation and power quality improvement.

Working Principle of BY92-SVG/120kvar-0.66/3L-W  Series Static VAR Generator

BY92 - SVG/120kvar - 0.66/3L - W series static VAR generator adopts advanced working principle, which is designed to improve the power quality. Firstly, it uses high-precision sensors to continuously monitor electrical parameters such as voltage, current and power factor in the three-phase power system. This real-time data acquisition is essential to identify the actual status of reactive power in the power grid.Based on the monitoring data, the internal control system analyzes the reactive power demand. If the power factor is not ideal due to excessive inductive or capacitive reactive power, the SVG decides whether to inject or absorb reactive power. It acts as a variable impedance device, adjusting its own impedance to provide the appropriate amount of reactive power compensation. For example, when the inductive load causes the power factor to lag, it injects capacitive reactive power to improve the power factor, thereby reducing power losses and improving transmission and distribution efficiency.In terms of harmonic control, SVG is equipped with advanced algorithms to detect harmonic components in current. After detecting harmonics, it generates compensating currents with opposite phases to the harmonics. These compensating currents are then injected into the grid, effectively offsetting harmonic distortion. This process protects electrical equipment from stress caused by harmonics, extending its service life, while improving the overall power quality of the system.The BY92 series’ intelligent automatic operation is another key aspect of its working principle. It continuously evaluates load conditions and power system status. As the load changes, the SVG automatically adjusts its reactive power output in real time. This dynamic adjustment ensures that the power factor remains optimal and the voltage level remains stable, providing reliable voltage support for connected equipment. Through these coordinated operations, the BY92 - SVG/120kvar - 0.66/3L - W series is able to effectively perform reactive power compensation, harmonic suppression, and maintain excellent power quality in low-voltage industrial and commercial power systems.

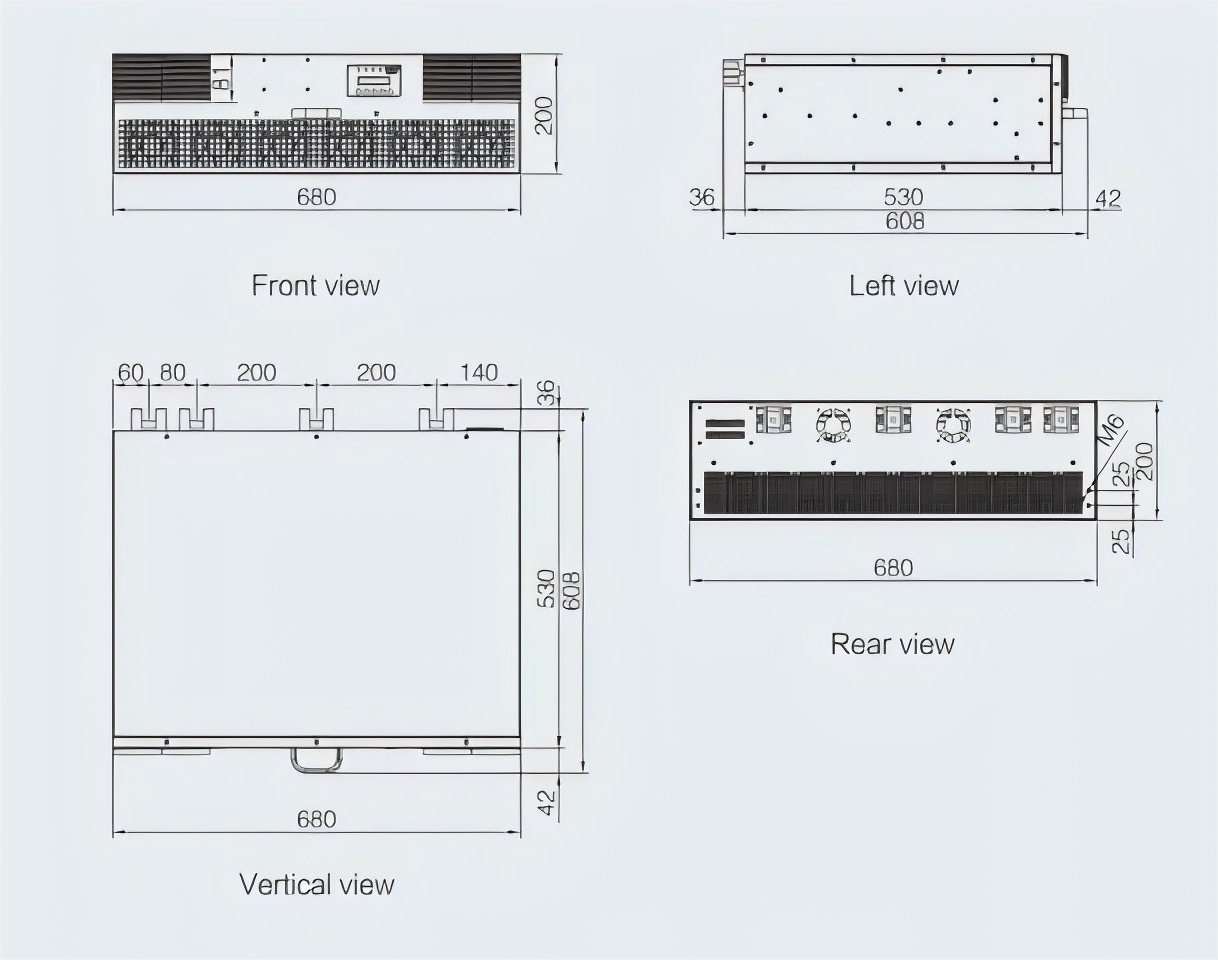

 Size Informations of  BY92-SVG/120kvar-0.66/3L-W Series Static VAR Generator
