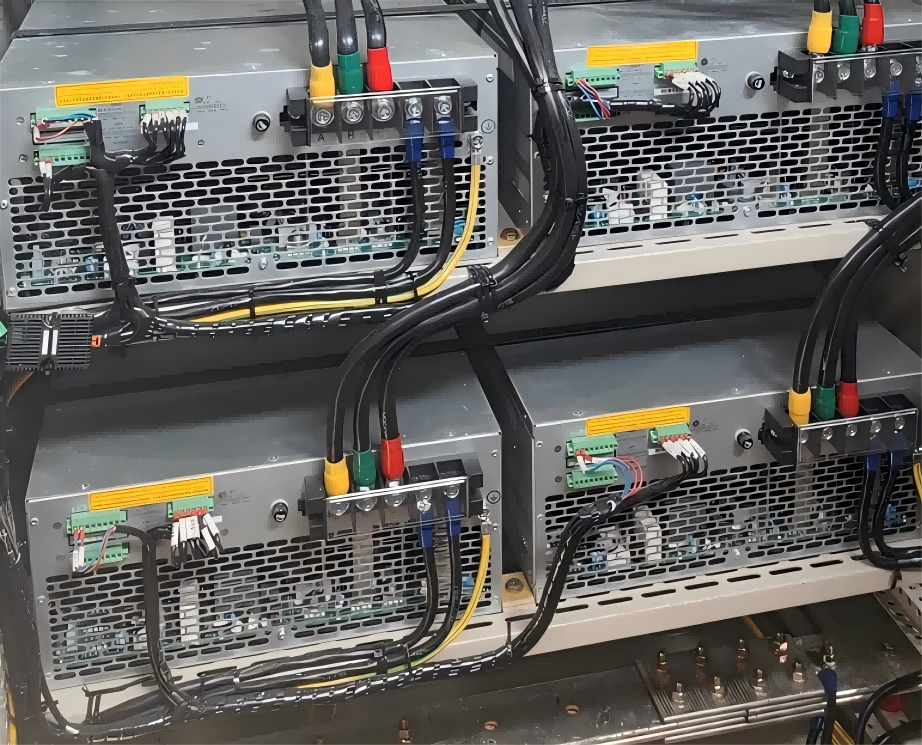

BY92-SVG/100 kvar-0.4/4L-N Series Static Var Generator Three Phase Three Wire Static Var Electricity Saving Device SVG Static Var Generator Power Solutions for Harmonic
Model Meaning
Main Datas of BY92-SVG/70 kvar-0.4/4L-N Series Static VAR Generator
| Model | BY92-SVG/100kvar-0.4/4L-N |
| Max neutral wire current | 100KVar |
| Nominal voltage | AC400V(-20%~+20%) |
| Rated frequency | 50Hz±5% |
| Network | Three-phase three-wire/three-phase four-wire |
| Response time | <10ms |
| Reactive power compensation rate | >95% |
| Machine efficiency | >97% |
| Switching frequency | 12.8kHz |
| Feature selection | Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options |
| Numbers in parallel | No limitation. A single centralized monitoring module can be equipped with up to 8 power modules |
| Communication methods | Two-channel RS485 communication interface (support GPRS/WIFIwireless communication) |
| Altitude w ithout derating | <2000m |
| Temperature | -20~+50°C |
| Humidity | <90% RH,The average monthly minimum temperature is 25 without condensation on the surface |
| Protection function |
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc |
| Noise | <65dB |
| Installation | wall hanging |
| Into the way of line | Top entry |
| Protection grade | IP20 |
Product Overview of BY92-SVG/100 kvar-0.4/4L-N Series Static VAR Generator
The BY92 - SVG/100 kvar - 0.4/4L - N Series Static Var Generator is a game - changer in Electric Power Distribution, setting new standards for Power Quality. As a Variable Impedance Type Static Var Generator, it stands out among various Types Of Static Var Compensators, delivering exceptional Reactive Power Compensation. Manufactured by Baoyu Holdings, a leading Static Var Compensator Manufacturer, this SVG rivals renowned products like Abb Static Var Compensator in terms of reliability and performance. Ideal for a wide range of Power Quality Projects, it's a cornerstone for upgrading Electrical Power System 3 and driving the development of New Power Systems.
This advanced SVG excels in maintaining optimal power balance. By continuously monitoring the Voltage Between 3 Phases and 3 Phase Current To Power in Three Phase Three Wire systems, it enables precise Static Power Factor Correction. Part of a comprehensive Static Var Compensation System, it effectively reduces power losses, combats Voltage Sag In Power Quality, and provides crucial Voltage Support. Whether integrated into large - scale industrial setups or smaller commercial applications, this Reactive Compensation
Equipment ensures efficient power utilization, making it a must - have for enhancing the overall efficiency of electrical systems.
The BY92 - SVG series also shines in Harmonic Discovery and suppression. Designed to protect Electrical Low Voltage and Electronic Low Voltage equipment, it safeguards Distribution Line Equipment from the adverse effects of harmonics. By suppressing harmonics, it not only extends the lifespan of connected devices but also improves the reliability of the entire electrical system. A perfect fit for both existing and new electrical setups, this SVG plays a vital role in improving power quality, making it an essential component for any electrical project aiming for stable and efficient operation.
Product Functions of BY92-SVG/100 kvar-0.4/4L-N Series Static VAR Generator
Accurate reactive power compensation: BY92 - SVG/100 kvar - 0.4/4L - N series static VAR generator has accurate reactive power compensation capability. It can quickly detect and analyze reactive power in a three-phase three-wire system and inject or absorb the appropriate amount of reactive power. This effectively improves the power factor, reduces power loss, and improves the overall efficiency of the power system, ensuring optimal use of electrical energy.
Powerful harmonic control capability: This SVG device uses advanced technology and is a powerful solution for harmonic control. It can accurately identify and suppress various harmonics in the power grid. By reducing harmonic distortion, it protects electrical equipment from premature aging and failure, and improves power quality, providing cleaner and more stable power for connected devices.
Dynamic Power Factor Correction: The BY92 series has a dynamic power factor correction function, which can continuously monitor the power factor in real time. When the power factor deviates from the optimal value, it will adjust the reactive power output in time. Whether in industrial, commercial or residential applications, it can ensure that the power factor remains at an ideal level, thereby minimizing electricity costs and improving the reliability of the power system.
Static voltage regulation: Static VAR generator plays a vital role in stabilizing voltage regulation. It helps maintain the stability of grid voltage by compensating for reactive power fluctuations. It prevents voltage sags and swells, protects sensitive electrical equipment from damage caused by voltage instability, and ensures the normal operation of various electrical equipment in different situations.
Enhanced power system capacity: The BY92-SVG series improves the capacity of the power system through efficient reactive power compensation and harmonic suppression. It reduces the burden on transformers and transmission lines, enabling them to handle more active power. This not only improves the overall performance of the power system, but also integrates more power loads without overloading the infrastructure.
Intelligent monitoring: The device has intelligent monitoring functions, which continuously collects and analyzes electrical parameter data such as reactive power, harmonic content, power factor, etc. Its user-friendly interface allows operators to easily monitor operating status and adjust settings. In addition, it provides fault diagnosis and alarm functions to ensure timely response to potential problems and ensure reliable operation of the SVG device.
Working Steps of BY92-SVG/100 kvar-0.4/4L-N Series Static VAR Generator
Initial electrical parameter monitoring
Once the BY92 - SVG/100 kvar - 0.4/4L - N series static VAR generator is started, it begins to continuously monitor the electrical parameters in the three-phase, three-wire system. The device's built-in high-precision sensors detect current, voltage, and power factor in real time. By closely tracking these parameters, it can quickly identify any signs of abnormal reactive power or harmonic distortion, which is critical to maintaining good power quality. This initial monitoring step is the foundation for subsequent operation of the device and helps ensure stable electrical system performance.
Reactive power and harmonic analysis
Once the electrical data is collected, SVG uses advanced algorithms to analyze the reactive power and harmonic components in the system. It distinguishes between fundamental and harmonic frequencies, accurately calculating the reactive power that needs to be compensated and the specific harmonics that need to be suppressed. For example, it can accurately determine whether the system is leading or lagging reactive power and identify the main harmonic orders, such as the 5th, 7th, or 11th harmonics. This in-depth analysis enables the device to develop effective compensation and governance strategies.
Reactive power compensation decision
The BY92 series makes reactive power compensation decisions based on the analysis results. If the power factor is lower than the optimal level due to excessive reactive power, the device will decide whether to inject capacitive reactive power or inductive reactive power. In systems with lagging power factor (dominated by inductive loads), the device injects capacitive reactive power to offset the inductive component, thereby improving the power factor. The decision-making process is dynamic and adjusts in real time according to the changing electrical conditions in the three-phase three-wire system, ensuring efficient use of electrical energy and reducing power losses.
Harmonic suppression implementation
When it comes to harmonic control, BY92 - SVG is able to take immediate action. It is able to generate compensating currents that are opposite in phase to the detected harmonics. These compensating currents are injected into the grid, effectively canceling out harmful harmonics. For example, if there is significant fifth harmonic distortion, the device will generate a compensating current with the same amplitude but opposite in phase to the fifth harmonic current in the grid. In this way, it is able to reduce harmonic distortion, protect electrical equipment from harmonic damage, and improve the overall power quality of the system.
Voltage regulation and system capacity optimization
SVG also helps with voltage regulation while compensating for reactive power and suppressing harmonics. By stabilizing the reactive power flow, it helps maintain stable grid voltage levels and prevents voltage sags and swells. In addition, through efficient reactive power compensation and harmonic suppression, the device reduces the burden on transformers and transmission lines, allowing them to handle more active power, thereby increasing the overall capacity of the power system. It can integrate more power loads without overloading the infrastructure, ensuring the reliable operation of the power system.
Continuous monitoring and adjustment
The operation of BY92-SVG is not a one-time process, but a continuous cycle. After implementing reactive power compensation and harmonic suppression measures, the device continuously monitors electrical parameters. If system conditions change, such as a sudden increase in load or a change in power factor, the device will repeat the analysis and compensation process. This continuous monitoring and adjustment mechanism ensures that the device can adapt to the dynamic electrical environment and always maintain the best power quality, effective reactive power compensation and reliable harmonic control in a three-phase three-wire system.
Size Informations of BY92-SVG/100 kvar-0.4/4L-N Series Static VAR Generator
| Model | Size |
| BY92-SVG/70kvar-0.4/4L-N | 450×580×250 |
Applications of BY92-SVG/100 kvar-0.4/4L-N Series Static VAR Generator
Commercial buildings
Commercial buildings, including shopping malls, office buildings and hotels, are equipped with a large number of electrical appliances and systems, ranging from lighting equipment and air conditioners to elevators and data centers. These different loads cause electrical parameters to fluctuate, resulting in low power factor and harmonic pollution. The BY92-SVG series products are designed to solve these problems. For example, in large shopping malls, the large number of fluorescent lamps and variable-speed air-conditioning compressors can cause power factor lag and harmonic generation. SVG continuously monitors the electrical parameters of the three-phase three-wire system in the building. When it detects a drop in power factor, it promptly injects capacitive reactive power for correction, ensuring more efficient use of electrical energy. In terms of harmonic control, SVG can identify and suppress harmonics generated by electrical equipment, protecting sensitive equipment such as servers in the building's data center from potential damage caused by harmonic interference. SVG stabilizes voltage levels through reactive power compensation, and can also protect lighting and other electrical systems from voltage sags and swells, providing a comfortable and reliable environment for building occupants. In addition, SVG's intelligent monitoring function enables facility managers to easily monitor power quality and make adjustments as needed, thereby optimizing the performance of the building's electrical system and reducing maintenance costs.
Industrial facilities
In industrial manufacturing facilities, a variety of heavy machinery and equipment, such as large motors, welding machines, and induction furnaces, are in operation. These devices usually bring significant reactive power and harmonic distortion to the power system. BY92 - SVG/100 kvar - 0.4/4L - N series static var generators (SVG) play an important role in this regard. Large motors consume a lot of reactive power when starting, causing the power factor to drop and potentially causing a voltage sag across the facility's power grid. The SVG quickly detects these changes through its initial electrical parameter monitoring function. It then analyzes the reactive power and harmonic components to identify specific harmonic orders generated by the equipment, such as the 5th and 7th harmonics generated by the inverter. Based on this analysis, the SVG decides to inject the right amount of capacitive reactive power to balance the inductive load of the motor, effectively improving the power factor. At the same time, it also generates compensating currents to suppress harmonics, thereby reducing harmonic distortion in the system. This not only ensures the smooth operation of industrial machinery and prevents premature wear due to stress caused by harmonics, but also improves the capacity of the entire power system. After installing SVG, the facility can consolidate more electrical loads without overloading transformers and transmission lines, thereby increasing production efficiency and significantly saving electricity costs through improved power quality and reduced power losses.
Transmission and distribution network
In transmission and distribution networks, maintaining stable voltage levels and high-quality electricity is essential for reliable power supply to end users. The BY92-SVG series plays a vital role in improving the performance of these networks. Transmission of electricity over long distances often results in severe reactive power losses and voltage drops. Installed at key nodes of the grid, such as substations, SVG continuously monitors the electrical parameters of the three-phase, three-wire system. When it detects low voltage on the transmission line due to excessive reactive power, it injects reactive power to boost the voltage, ensuring that power is delivered to the user at the appropriate level. In addition, SVG suppresses harmonics that may be introduced into the grid from various sources, such as industrial loads connected to the grid. By reducing harmonic distortion, it improves transmission and distribution efficiency, minimizes power losses, and enhances the total capacity of the grid. This enables the grid to cope with growing power demand and promote the integration of renewable energy sources, which often bring their own challenges in terms of reactive power and harmonics. SVG's continuous monitoring and regulation capabilities ensure that the transmission and distribution network can adapt to changing load conditions and maintain optimal power quality, providing a stable and reliable power supply to communities and industries.
