BY92 Series Low Voltage Wall-Mounted Static Var Generator SVG 690V
Main technical parameters
| Type | Series 690V |
| Max neutral w ire current | 120KVar |
| Nominal voltage | AC690V(-20%~+20%) |
| Rated frequency | 50Hz±5% |
| Network | Three-phase three-wire/three-phase four-wire |
| Response time | <10ms |
| Reactive power compensation rate | >95% |
| Machine efficiency | >97% |
| Switching frequency | 12.8kHz |
| Feature selection | Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options |
| Numbers in parallel | No limitation. A single centralized monitoring module can be equipped with up to 8 power modules |
| Communication methods | Two-channel RS485 communication interface (support GPRS/WIFIwireless communication) |
| Altitude w ithout derating | <2000m |
| Temperature | -20~+50°C |
| Humidity | <90% RH,The average monthly minimum temperature is 25 without condensation on the surface |
| Protection function |
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc |
| Noise | <65dB |
| Installation | wall hanging |
| Into the way of line | Top entry |
| Protection grade | IP20 |
SVG Fundamental Principle
Why use a Static Var Generator
- Improving Power Quality: The SVG system thus improves power quality either by compensating for reactive power in the system, thus reducing voltage fluctuation and harmonics, or by contributing to the stability of the power network.
- Rapid Dynamic Response: Unlike conventional reactive power compensating devices like capacitors and inductors, SVG possesses a faster dynamic response that allows it to change output in real time when there is a load change or disturbance in the grid.
- Space & Cost Saving: The other relative compact design of the SVG appears to be flexible in installation, thereby eliminating the necessity of traditional devices for reactive power and no longer needing to save up its related infrastructural cost.
- Improving System Efficiency: SVG proper management of the reactive power will definitely improve the total efficiency of the entire power system as well as decrease energy losses.

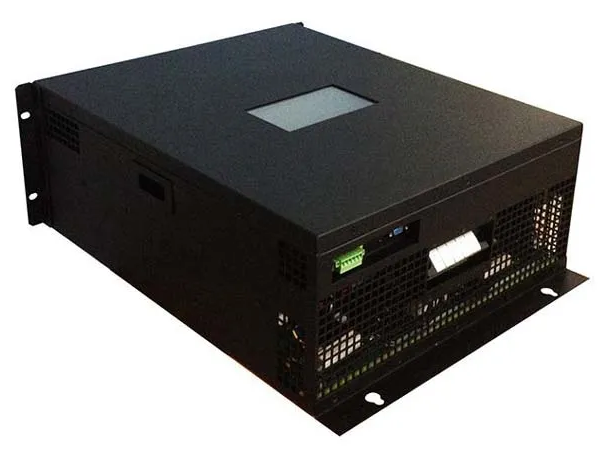

Product Dimensions
External Dimensions:
- Standard: 440 x 425 x 88 mm
- Maximum: 500 x 482 x 88 mm
Material:
- Aluminum zinc coated sheet
Color:
- Front panel: Matte black
- Enclosure: Natural hue of aluminum zinc coating
Protection Level:
- IP20 (indicating defense against solid objects larger than 12.5 mm, but no safeguard against water)
Weight:
- 16 kg
Mounting Holes:
- 6 pieces of M4 threaded holes on the left/right side panels
- 2 pieces of M6 threaded holes on the rear panel
- 12 pieces of M4 threaded holes on the top/bottom panels

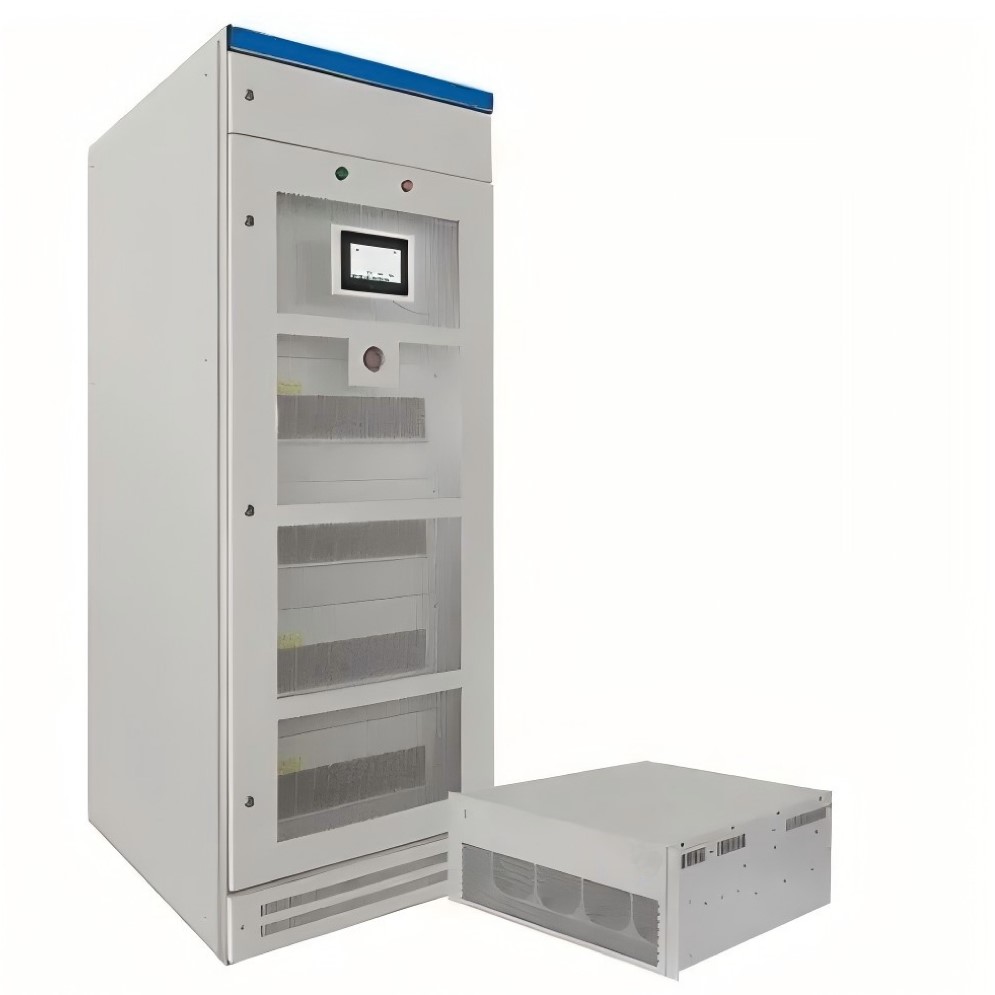

Installation Options
- Option 1:Secure the left/right side panels and rear panel simultaneously (Rack mounted)
- Option 2:Left/right side panel + guide rail attachment (Plug-in box configuration)
- Option 3：Both side panels are secured simultaneously (Vertical cabinet configuration)
Neat wiring helps to reduce electromagnetic interference and stabilize the equipment. Good cable management helps with the maintenance and troubleshooting process by reducing repair times, improving heat dissipation efficiency, preventing equipment damage due to overheating, and ultimately increasing the life expectancy of the equipment.
Lightweight and slim design: The slim structure makes it easy for installation and transportation, especially in environments where space is restricted, effectively saving installation space. Lightweight also helps reduce costs for transport.

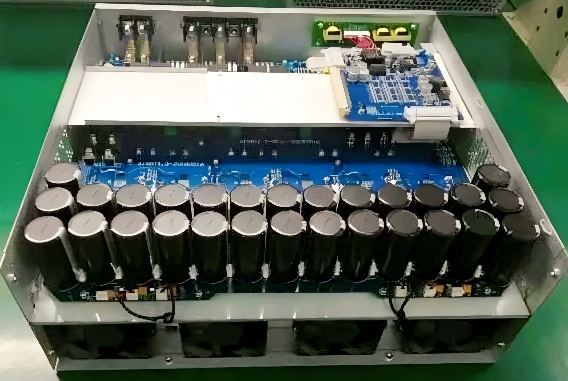

Compact internal structure: Greatly saving equipment footprint and making it very suitable for the operation in space constraint environments. Improves overall efficiency of the device, since the closer component distance reduces the energy loss and signal delay associated with longer distances.

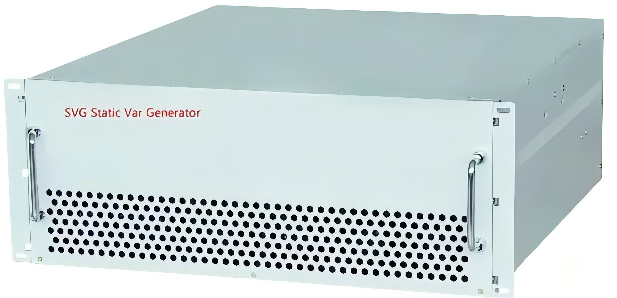

products display
In the industrial field, Static VAR generators are of immense help. They improve production efficiency by stabilizing voltage and energy loss. Quick reactive power provision to help equipment start smoothly is also provided by these generators. They also increase the reliability of the power system and stabilize industrial production, thereby giving a solid foundation to enterprises.
The static reactive power generator is one reactive power source that helps maintain voltage levels and stabilize the system. Such equipment responds quickly to the adjustments in loading, which lessens the amount of reactive power flowing along transmission lines, hence decreasing transmission losses and improving transmission efficiency.

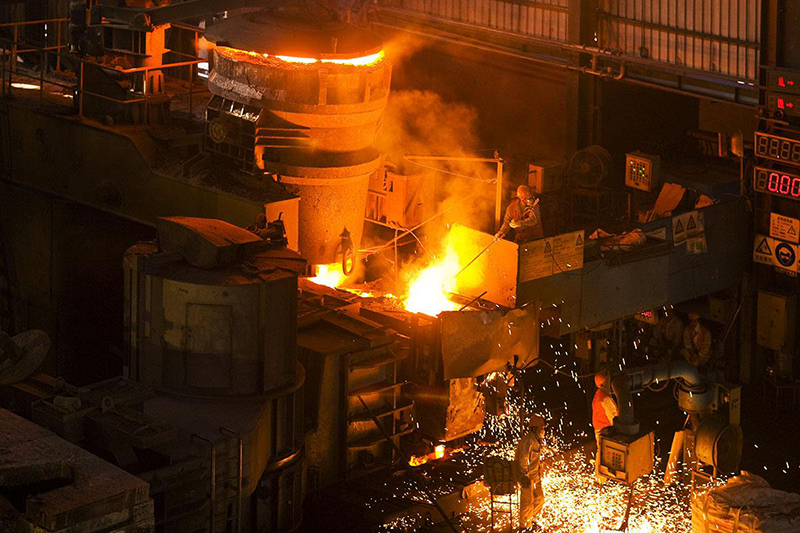

static reactive power generator is also very important in the smelting industry. The smelting process usually experiences great variations in the load on the equipment, responding quickly to these alterations and keeping stable voltage levels prevents the major problems of equipment failure or interruption of production due to voltage fluctuations
Reserve Workshop
Baoyu Holdings Limited is one of China's famous manufacturers of low-voltage static var generators (SVG). In line with the highest quality control standards, our storage is neat, organized and every single detail is put in order. Temperature and humidity are closely monitored and maintained at optimal levels, creating a favorable environment for the long-term storage of SVG units. The configuration of the workshop has ensured that a considerable number of SVG units can be stored and segregated, thus allowing timely and efficient processing of orders.
Production workshop
Our manufacturing plant organizes itself meticulously around cutting-edge machines that ensure effective operation at every stage of production. The workflows in the workshop are crafted with precision to enhance production efficiency and maintain quality control standards. Regularly scheduled maintenance on all equipment is done to ensure the best operational efficiency. The production closely adheres to standard operating protocols at every step of the process to make sure every unit meets our high quality standards. A clean and organized environment is maintained in the workshop.
