BY89F/250 Series Intelligent Capacitor – High-Performance Power Factor Correction & Energy Efficiency
Specifications Overview
| Project | Parameters | |
| Type | BY89F/250-10+5 | |
| Compensation method | Three-phase compensation | |
| Capacity of each group of capacitors（total capacity）（kvar） | 10+5（15） | |
| Working Environment | Temperature Conditions | |
| Relative Moisture Conditions | 20%~90% at 40℃ | |
| Attitude | ≤2000m | |
| Power Supply for Operation | specified voltage | AC250V |
| Voltage Discrepancy | ±20% | |
| Operating Frequency | 50±1.5Hz | |
| Power Dissipation | ≤3VA | |
| Measurement Exactness | Voltage and Current | 0.5% |
| Power | 1.0% | |
| Energy factor | ±0.01 | |
| Temperature | ±1℃ | |
| Time for Safety Mechanism | Time of Blocking | 5~60s |
| Capacitor cutting time | 1s | |
| Reactive power compensation | Maximum Quantity of Linked Capacitors | 31units with controller |
| 12units without controller | ||
| Electrical Safety Standards | Insulation Resistance of Main Circuit | Test voltage 2500V(1min) |
| Protection circuit continuity | All earthing components are required to have a secure electrical connection with the grounding screw | |
| Security protection | The device’s casing, any metal components that could be energized, and the metal base of electrical elements that require grounding should be reliably electrically connected to the grounding screw | |
| Protection level | IP30 | |
| Sampling and control circuit protection | The current circuit for built-in sampling control in the device utilizes dedicated wiring components, with a reliable ground connection at one end | |
Model meaning

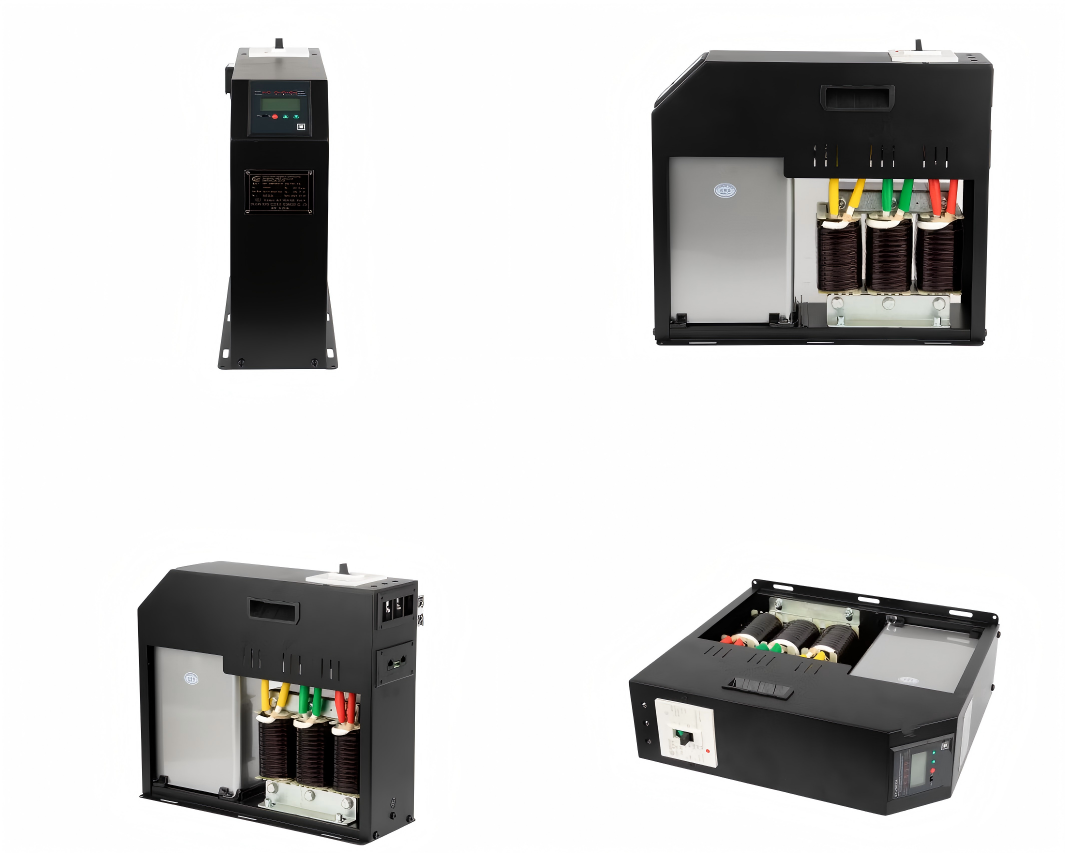

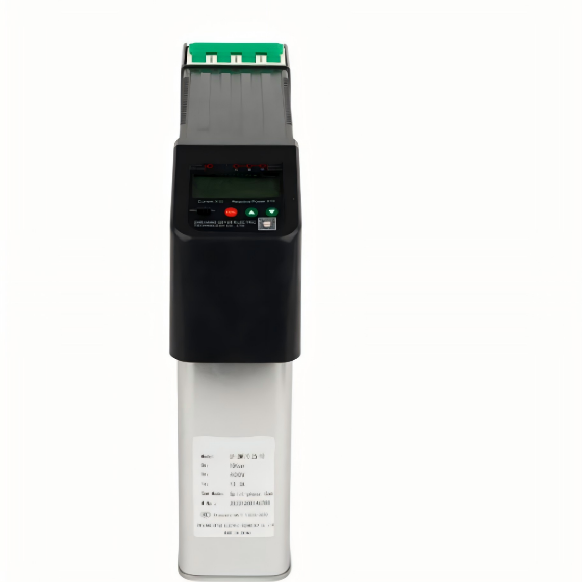

BY89F/250 Series Capacitor Introduction
The BY89F/250 series intelligent low-voltage power capacitors are advanced self-healing capacitors that utilize cutting-edge technologies such as DSP hardware and software, sensing technology, network technology, and electrical manufacturing techniques. These innovations enable precise phase-controlled zero-crossing switching of the capacitors.
This product features two operational modes: self-control and external control, and employs a three-phase split compensation method. It is equipped with protection functions for three-phase over-current, under-voltage, over-voltage, and temperature, as well as measurement capabilities for current, voltage, active power, reactive power, power factor, and frequency. This represents a significant advancement in low-voltage reactive power automatic compensation technology and can be integrated with low-voltage distribution automation systems for comprehensive management.
The BY89F/250 series capacitors can be flexibly applied in various low-voltage reactive power compensation scenarios, transforming the structural approach of existing compensation devices. They offer high automation, low power consumption, stable and reliable performance, user-friendliness, extended service life, and excellent cost-effectiveness.Our products are the result of in-depth research in the field of power transmission and distribution, boasting complete independent intellectual property rights and protection under national patents. The BY89F/250 series has successfully passed quality inspections and testing at the reactive power compensation device testing center of the power industry.
Core Features
1.Intelligent Power Factor Correction
- Auto-Adjustment based on reactive power demand.
- Zero-Crossing Switching reduces inrush current and extends capacitor lifespan.
2.Advanced Protection Mechanisms
- Overvoltage/Undervoltage Lockout prevents grid instability.
- Self-Healing Film Technology minimizes capacitor failure risks.
3.Smart Monitoring & Control
- Integrated Microprocessor enables real-time diagnostics and fault alerts.
- Modular Design supports centralized capacitor banks or standalone operation.

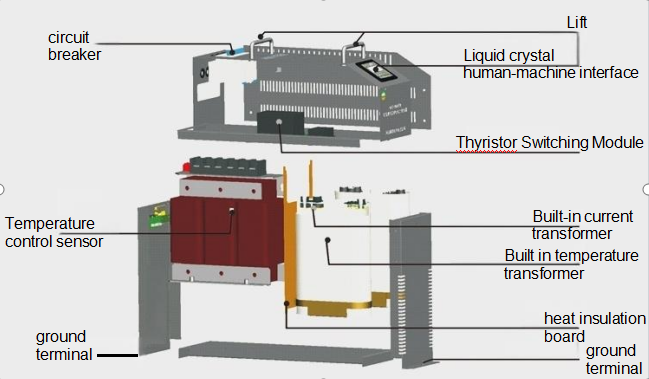

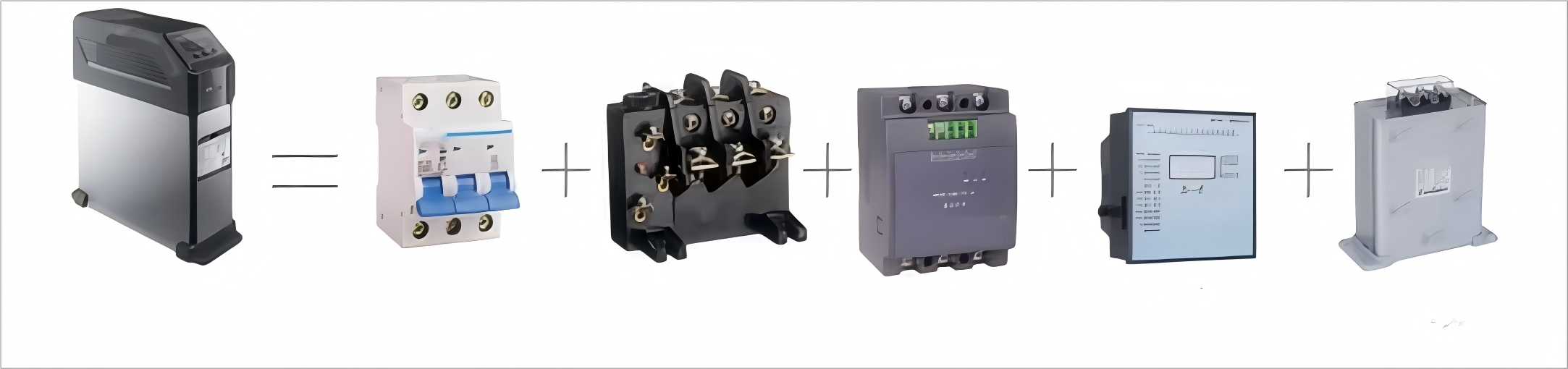

Capacitor structure:
Product size
| Type | L | L1 | H | W | S |
| BY89F/250-10+5 | 385mm | 365mm | 290mm | 50mm | 50mm |
Product advantages

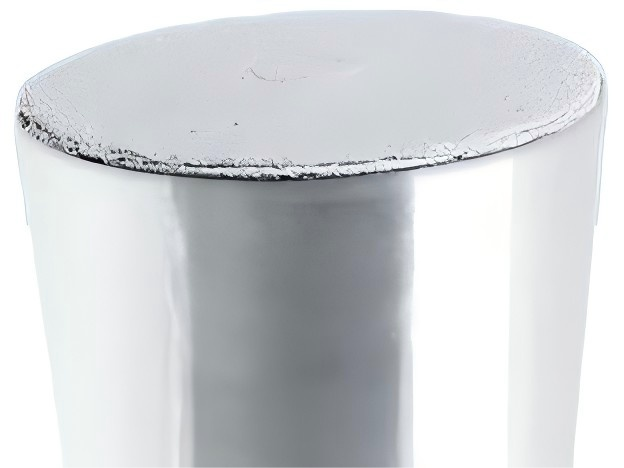

Intelligent capacitors utilize metallized polypropylene film as the dielectric and exhibit the self-healing phenomenon, having high dielectric strength, low dielectric losses, good heat resistance, and environmental protection. These properties help the capacitor return to normal operation soon after a local fault in high voltages and high-temperature operating conditions with less power loss and meeting environmental demands, hence greatly extending its life and improving energy efficiency.
Terminal blocks facilitate convenient and fast cable connections by designing specific features that lessen the chances of bad contact and increase safety in the system. The terminal blocks are also easy to de-assemble and replace, thus reducing maintenance time and able to accommodate various cable specifications, thus opening flexible options for connection to meet a variety of applications. These benefits have placed terminal blocks in a critical position with regard to smart capacitors and other electrical equipment.

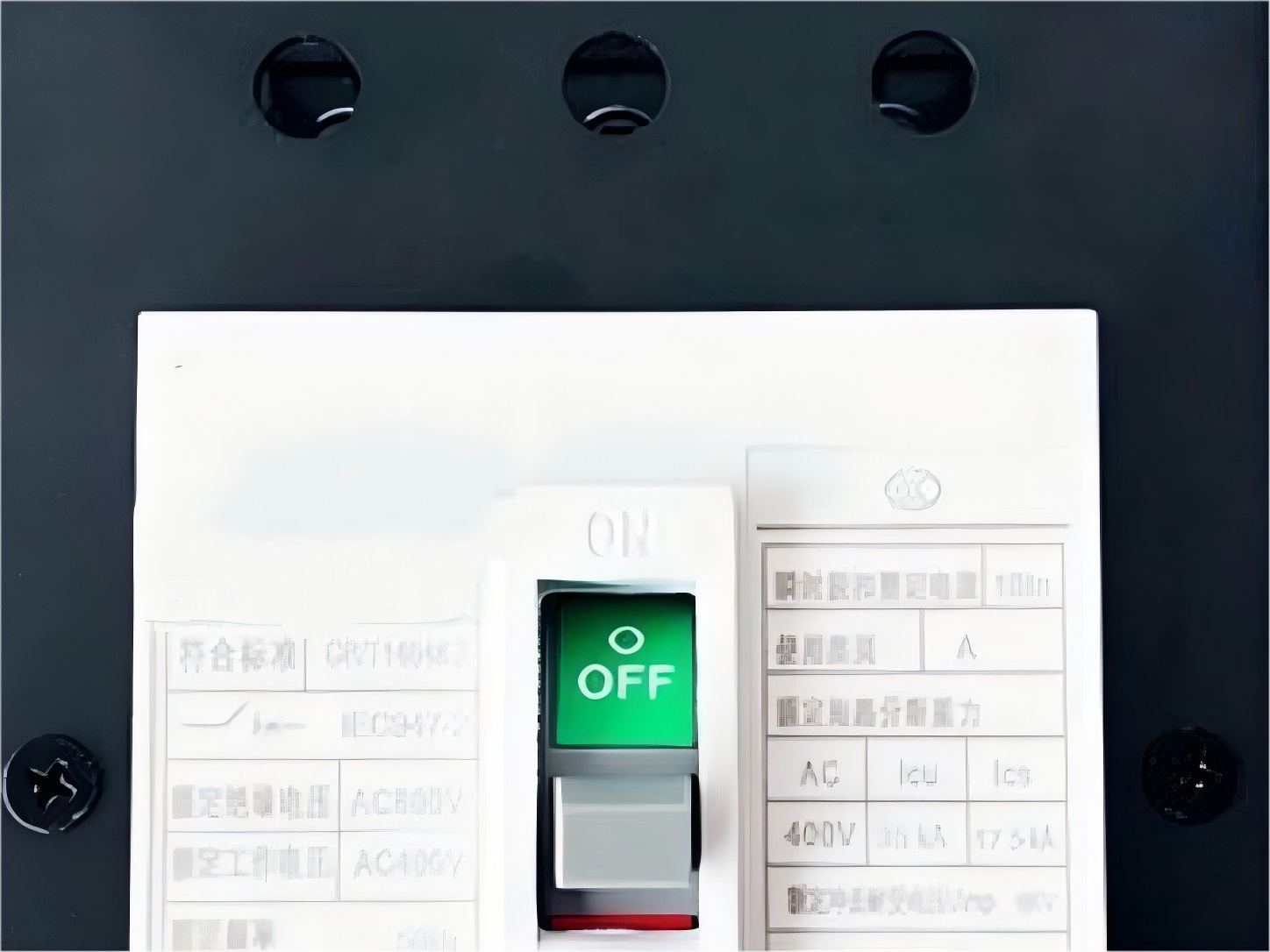

Molded case circuit breakers are lightweight and corrosion-resistant and possess excellent insulation properties, ensuring stable operation in moist or corrosive environments to protect the equipment. In addition, the plastic case is flexible in design and can be customized in different shapes and sizes according to requirements. Further, it is cheaper compared to metal cases, which cuts down the manufacturing and maintenance costs of the overall equipment. All these merits have allowed the present trend of utilizing molded case circuit breakers in modern power systems.
Application of capacitors
