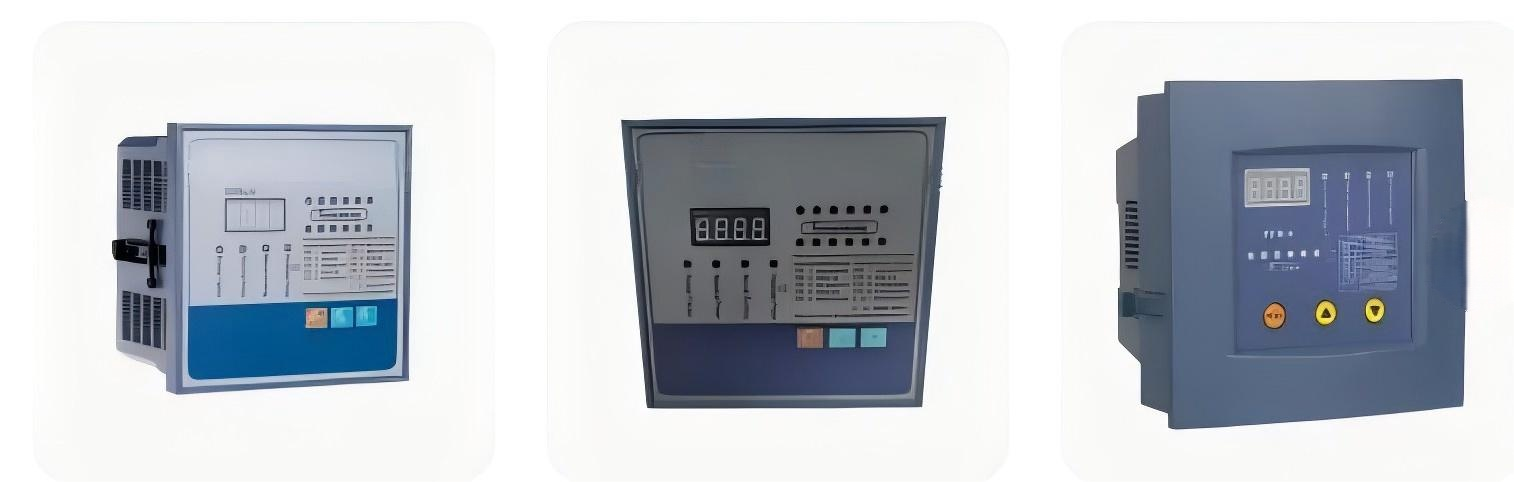

BY83JF Series Intelligent Capacitor Controller 450V 80A Three-Phase Switch Low-Voltage Composite Capacitor Compensation Switching Device 80A Current
Main Technical Parameters of Intelligent Capacitor Controller
| Model | BY83JF | |
| Compensation Method | Mixed Supplementation | |
| Working Environment | Temperature | -40℃~+55℃ |
| Relative Moisture | 20%~90% at 40℃ | |
| Atmospheric Pressure | 79.5~106.0kpa | |
| Operation Power Supply | Working Voltage | AC 50Hz,450V±20% |
| Function Consumption | <30VA | |
| Measurement Discripancy | Voltage | Level 0.5 |
| Current | Level 0.5 | |
| Power Factor | Level 1.0 | |
| Reactive Power | Level 1.0 | |
| Power Factor | ±0.01 | |
| Control accuracy | Power Factor | ±0.01 |
| Reactive Power | ±120% of Minimum Capacitor Capacity | |
| Mechanical Specification | Overall Dimensions(W×H×D) | 120×120×95mm |
| Opening Size(W×H) | 113×113mm | |
Overview of Intelligent Capacitor Controller
Functions of Intelligent Capacitor Controller
1. Advanced intelligent control to achieve optimal reactive power compensation
The BY83JF series intelligent capacitor controller integrates cutting-edge algorithms to dynamically manage reactive power and ensure accurate switching of capacitors for power factor correction. By monitoring voltage, current and power parameters in real time, the controller automatically adjusts the compensation level to meet load demand, thereby reducing energy loss and improving grid efficiency. The controller supports automatic and manual modes and is ideal for industrial and commercial applications, providing flexibility for system optimization. Keywords: intelligent capacitor controller, reactive power compensation, power factor correction.
2. Three-phase voltage balance and harmonic suppression
The BY83JF controller is designed to solve three-phase voltage imbalance and harmonic distortion problems, using advanced filtering technology to suppress low-order harmonics (5th, 7th) caused by non-linear loads such as inverters and rectifiers. By balancing phase currents and stabilizing voltage levels, the controller minimizes equipment stress, improves power quality, and extends the life of connected equipment. It is ideal for factories, data centers, and medical institutions that require stable power supply. Keywords: three-phase voltage imbalance, harmonic suppression, power quality improvement.
3. Low voltage composite switch zero cross technology
The device uses a low-voltage composite switching mechanism to ensure that the capacitor is seamlessly connected and disconnected without generating surge current or voltage spikes. Zero-crossing technology ensures safe, arc-free operation, reduces mechanical wear and improves reliability. The device is compatible with 450V systems and supports 80A rated current, suitable for high-load environments such as manufacturing plants and distribution networks. Keywords: low-voltage composite capacitor, zero-crossing switch, surge current protection.
4. Fast dynamic response to instantaneous load changes
With a response time of less than 1 second, the BY83JF controller quickly adapts to load fluctuations, ensuring optimal compensation is continuously provided. It uses a predictive algorithm to predict reactive power demand, preventing overcompensation and voltage instability. This feature is critical for transient load applications such as elevators, HVAC systems, and renewable energy grids, which require real-time adjustments. Keywords: fast dynamic response, transient reactive power, predictive algorithm.
5. Comprehensive protection and self-diagnosis functions
BY83JF is equipped with multi-level protection mechanisms, including overvoltage, undervoltage, overcurrent and thermal protection, to protect the capacitor bank and its connected equipment from grid anomalies. Built-in sensors monitor internal temperature and operating status, and trigger alarms and automatic shutdowns to prevent equipment damage. Its self-diagnosis function can quickly identify faults and simplify maintenance processes. Keywords: overcurrent protection, thermal protection, self-diagnosis.
6. Energy efficiency and remote monitoring integration
The BY83JF controller optimizes energy utilization by maintaining a power factor above 0.95, thereby reducing electricity costs and carbon footprint. It supports RS485 communication (MODBUS-RTU protocol) to enable remote parameter adjustment and integration with SCADA or smart grid systems. This connection enables centralized management, real-time performance tracking and predictive maintenance, ideal for large-scale distributed networks. Keywords: Energy efficiency, remote monitoring, SCADA integration.
Working Principle of Intelligent Capacitor Controller
The core working principle of the BY83JF series is to dynamically manage reactive power flow to maintain optimal power factor levels and stabilize voltage. The following is a detailed breakdown of its functions:
1. Real-time monitoring and analysis
The controller is equipped with high-precision sensors and a microprocessor-based control unit that continuously monitors key electrical parameters such as voltage, current, power factor and harmonic distortion. By analyzing these data points in real time, the controller can calculate reactive power demand and identify imbalance or harmonic problems within the system.
2. Intelligent capacitor switching
The device uses a composite switching technology that integrates a thyristor (SCR) for zero voltage switching and a magnetic latching relay for low power conduction. This hybrid design ensures:
- Zero inrush current: The thyristor switches on the capacitor connection only when the voltage crosses zero, eliminating inrush current and mechanical stress on the components.
- Low power consumption: Once the capacitor is engaged, the relay takes over the load, reducing energy losses compared to traditional thyristor-only solutions.
3. Adaptive control algorithm
The BY83JF series uses advanced algorithms to determine the optimal timing and sequence for capacitor bank switching. It is able to automatically adjust the compensation level based on load changes, ensuring seamless adaptation to dynamic loads, such as those in manufacturing plants, data centers, or renewable energy systems. This dynamic response minimizes voltage fluctuations and improves overall grid stability.
4. Comprehensive protection functions
Built-in protection measures include overvoltage/undervoltage protection, thermal monitoring and fault detection. These features not only protect the capacitor bank, but also prevent voltage instability or harmonic interference from damaging connected equipment.
5. Communication and integration
Through RS-485 or Modbus connectivity, the controller can be integrated into a smart grid system or SCADA network for remote monitoring, configuration, and diagnostic capabilities. This enables facility managers to optimize energy usage and perform predictive maintenance efficiently.
Wiring Method of Intelligent Capacitor Controller

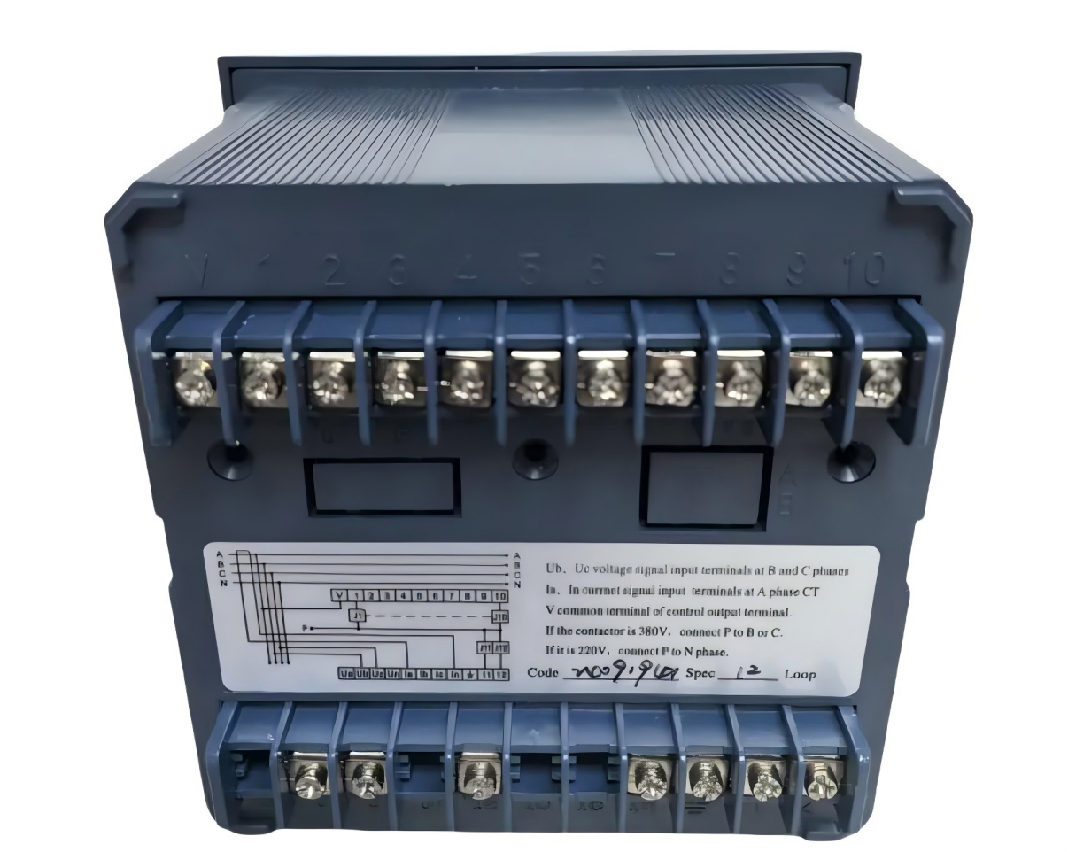

The electrical schematic for the rear panel must be consulted during the installation of the controller since it indicates how the wiring must be done. The wiring method is as follows:
UA, UB, and UC are for connection to the three-phase voltages A, B, and C, respectively, while UN is for connection to the neutral line;
La+, La-, Lb+, Lb-, Lc+, and Lc- are for connection to the three-phase currents A, B, and C;
A and B are for the RS485 communication interface, which can be connected to the communication port of a low-voltage intelligent capacitor.
Note: When all smart capacitors are canceling capacitors, only Lb+ and Lb- are eligible to be connected to the B-phase current line.
Applications of Intelligent Capacitor Controller
Commercial buildings and data centers
In commercial environments such as shopping malls, offices and data centers, the BY83JF series effectively addresses the dual challenges of three-phase imbalance and harmonic pollution caused by LED lighting, UPS systems and HVAC equipment. For example, large shopping malls with multiple floors of retail space often experience uneven load distribution on each phase, resulting in increased neutral current and transformer overheating. The BY83JF's phase compensation function balances the reactive power of the three phases, thereby reducing the neutral current by 40-60% and improving transformer efficiency.Data centers are particularly reliant on the controller to maintain a stable power supply to server racks and cooling systems. UPS units in these facilities generate significant 3rd, 5th, and 7th harmonics that can distort the voltage waveform and cause equipment failures.The BY83JF’s adaptive harmonic filtering feature dynamically adjusts the capacitor bank to suppress these harmonics, ensuring that THD (total harmonic distortion) remains below 5%, a key requirement for IT infrastructure. Its low-voltage compound switching technology also reduces the risk of capacitor failure due to voltage transients, a common problem in high-power density data centers.In addition, the controller's energy management capabilities allow facility managers to monitor real-time power factor, voltage levels, and energy consumption through a built-in LCD interface or remote RS-485 connection. For example, at a five-star hotel, this data-driven approach helped reduce monthly energy costs by 18% by optimizing capacitor usage during peak hours. The BY83JF series combines intelligent controllers with power quality optimization to ensure seamless operation in energy-intensive commercial spaces while meeting strict regulatory requirements.
Renewable energy integration and microgrids
As solar and wind installations expand, the BY83JF series plays a key role in stabilizing power output and improving grid connections. In photovoltaic (PV) systems, the controller compensates for reactive power fluctuations caused by varying solar irradiance, ensuring a consistent power factor at the grid connection point. For example, a 10 MW solar farm with distributed inverters often suffers from phase imbalance due to mismatched panel output. The BY83JF's dynamic three-phase switching function balances reactive power across all phases, reducing grid-side harmonic distortion and improving compliance with utility interconnection standards.In microgrids where multiple distributed energy resources (DER) coexist, BY83JF acts as a grid-forming controller, managing power flows between solar arrays, energy storage systems, and loads. Its adaptive control algorithm adjusts capacitor banks in real time to offset voltage sags and swells caused by sudden load changes, which is critical for off-grid communities that rely on renewable energy. For example, rural microgrids powered by wind turbines and batteries use BY83JF to maintain voltage stability during gusty winds, prevent equipment damage, and ensure uninterrupted power supply.The controller's low-voltage composite design also improves the safety of renewable energy applications by minimizing arcing during capacitor switching, a dangerous factor in high humidity or dusty environments common in solar farms. The BY83JF series combines reactive power compensation with smart grid functions to enable efficient integration of renewable energy, reduce wind curtailment losses by 10-15%, and extend the life of inverters and batteries. This makes it an ideal solution for utility-scale projects and residential solar + energy storage systems.
Industrial Manufacturing Facilities
The BY83JF series smart capacitor controller is the cornerstone for optimizing power quality in industrial environments, where complex mechanical equipment and nonlinear loads often lead to inefficiencies. In manufacturing plants, equipment such as motors, variable frequency drives (VFDs), and welders generate large amounts of reactive power and harmonic distortion, which can cause voltage instability and increase energy costs. The controller meets these challenges by dynamically managing reactive power compensation through its 450V 80A three-phase switching mechanism. By maintaining a high power factor (typically ≥0.95), it can reduce utility company fines while reducing line losses by up to 30%.The key to its industrial appeal is the combination of intelligent capacitor control and advanced harmonic mitigation technology. The device uses a microcontroller to analyze real-time data from current and voltage sensors, enabling precise switching of capacitor banks to offset the 5th, 7th and 11th harmonic distortion common in industrial power grids. In steel mills using induction furnaces, for example, the BY83JF ensures stable voltage levels and protects capacitors from harmonic overheating, extending equipment life by 20-30%. Its low-voltage compound switching technology eliminates arcing and inrush currents, which is critical for sensitive machinery such as CNC lathes and robotic arms that require uninterruptible power.In addition, the controller’s smart diagnostics provide actionable insights, such as capacitor degradation alerts and load imbalance reports, simplifying predictive maintenance. On automotive assembly lines, this feature can identify potential failures before they occur, reducing downtime and meeting Industry 4.0’s need for predictive analytics. The BY83JF series combines reactive power optimization with harmonic mitigation, enabling manufacturers to meet IEEE 519 standards while saving 15-20% in energy expenses annually.
