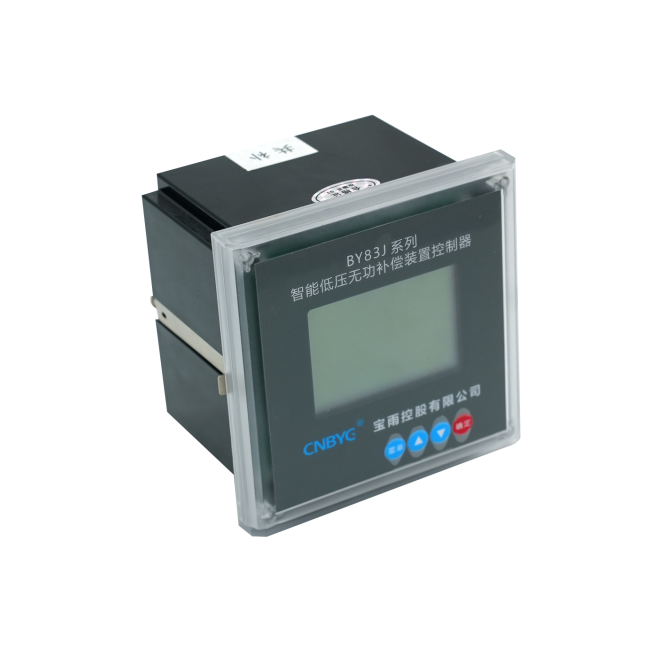

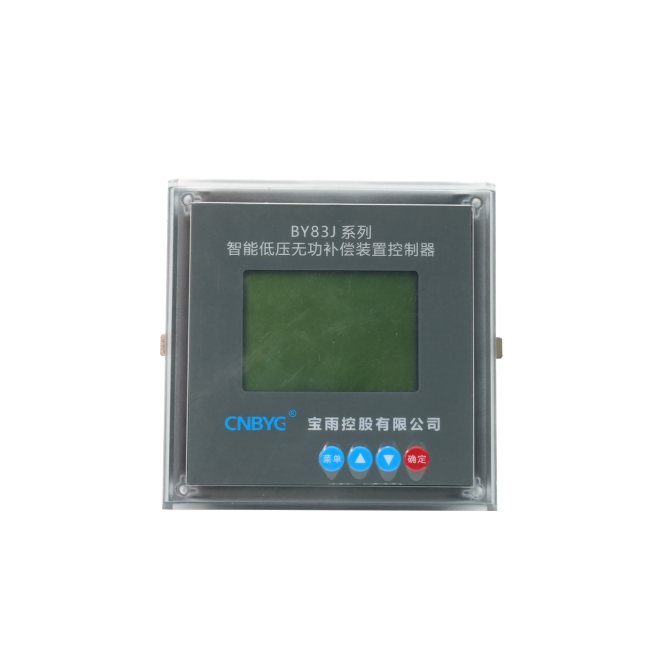

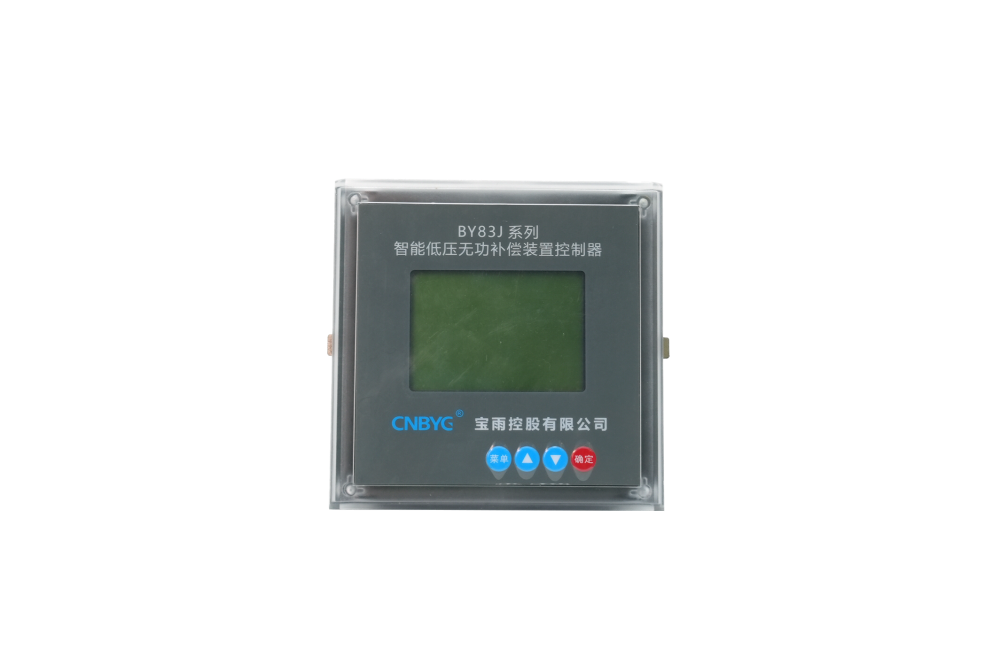

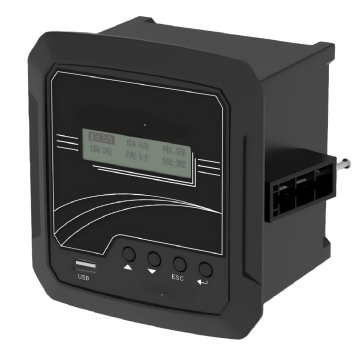

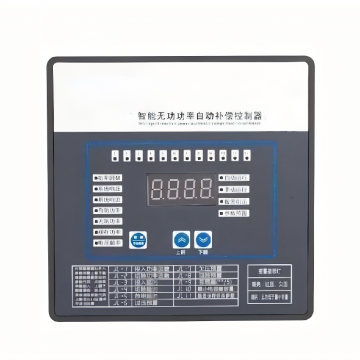

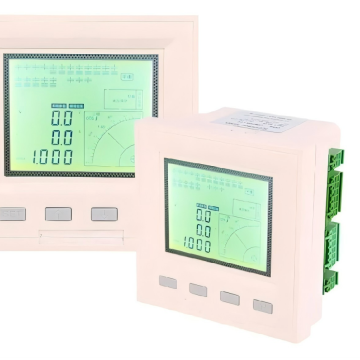

BY83 SERIES INTELLIGENT CAPACITOR CONTROLLER
Product information
BY83
SERIES INTELLIGENT CAPACITOR
CONTROLLER
Product details
The BY83 series inteligent capacitor controller has full functionality, flexible installation, Chinese menu display, and convenient operation. lt can be used in conjunction with the BY81 series intelligent capacitors，BY82 series harmonic resistant intelligent capacitors, BY86 series controlled inteligent capacitors, and BY89 series intelligent capacitors with molded case circuit breakers produced by our company. Using this product can replace the existing low-voltage reactive power compensation cabinet with one volmeter, one voltage measurement conversion switch, one power factor meter, three ammeters, one low-voltage reactive power individual compensation control backup, and all capacitor status indicator lights, making it extremely simple and saving a lot of wiring.
Setting functions
CT ratio setting Protection setting Delay time setting Power factor setting
CT ratio setting Protection setting Delay time setting Power factor setting
Control function
Automatic and manual control;
Automatic switching control based on controlled physical quantities (reactive power, reactive current, power factor, time period);
Capacitors with the same capacity are controlled by cyclic switching, while capacitors with diferent capacities are controlled by reactive power deficiency selection;
Before switching the capacitor, predict the distribution reactive power and voltage changes generated by switching. lf reverse operation is expected after switching, no switching control will be performed.
Automatic and manual control;
Automatic switching control based on controlled physical quantities (reactive power, reactive current, power factor, time period);
Capacitors with the same capacity are controlled by cyclic switching, while capacitors with diferent capacities are controlled by reactive power deficiency selection;
Before switching the capacitor, predict the distribution reactive power and voltage changes generated by switching. lf reverse operation is expected after switching, no switching control will be performed.
Measurement function
Distribution three-phase voltage, current, and power factor;
Distribution of three-phase active and reactive power.
Distribution three-phase voltage, current, and power factor;
Distribution of three-phase active and reactive power.
Signal function
Number and capacity of intelligent point capacitors in the system;
Capacitor operation and shutdown signal;
Product or peripheral fault signal.
Number and capacity of intelligent point capacitors in the system;
Capacitor operation and shutdown signal;
Product or peripheral fault signal.
Protection function
Overvoltage, undervoltage, and voltage loss protection;
Overvoltage acceleration protection;
Switching vibration protection.
Overvoltage, undervoltage, and voltage loss protection;
Overvoltage acceleration protection;
Switching vibration protection.
Product details

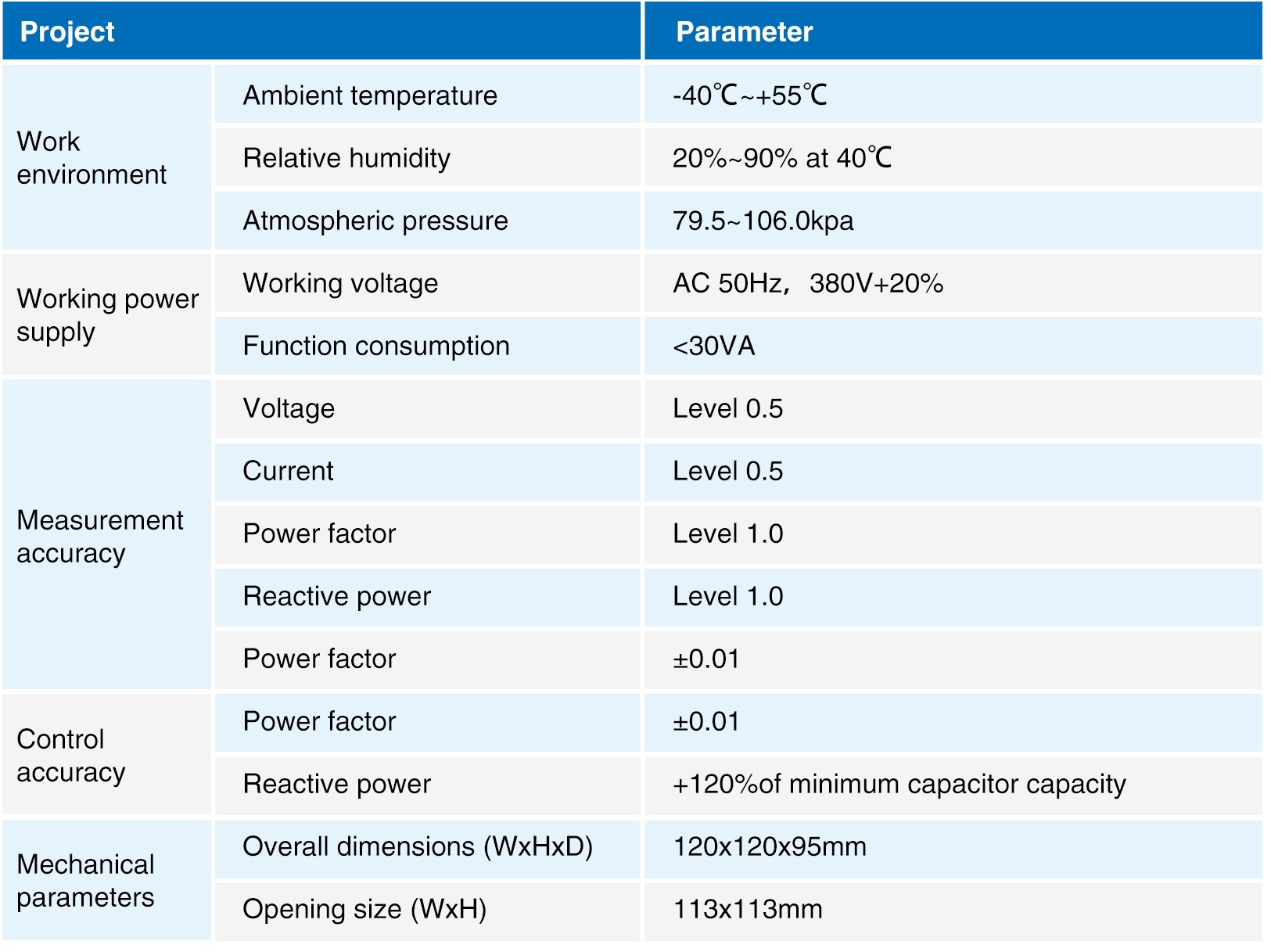

TECHNICAL INDICATORS OF THE PRODUCT
WIRING DIAGRAM
The electrical wiring terminals of the controller are defined as shown in the fiqure:

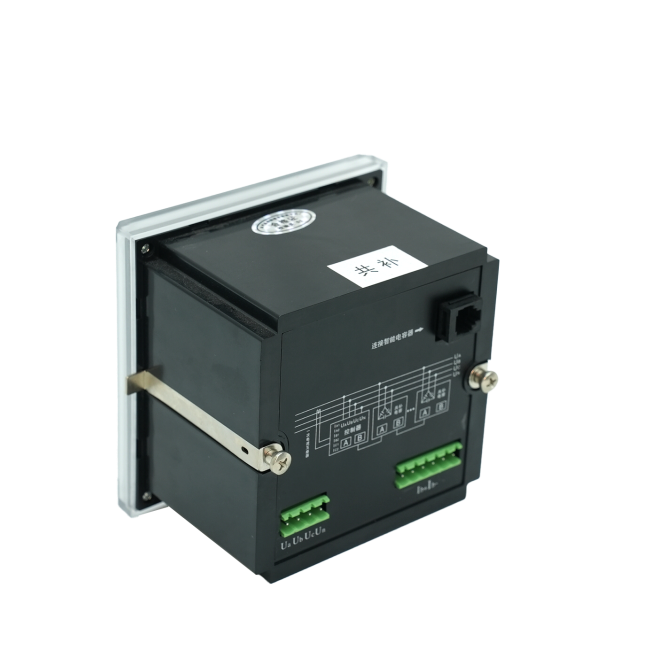

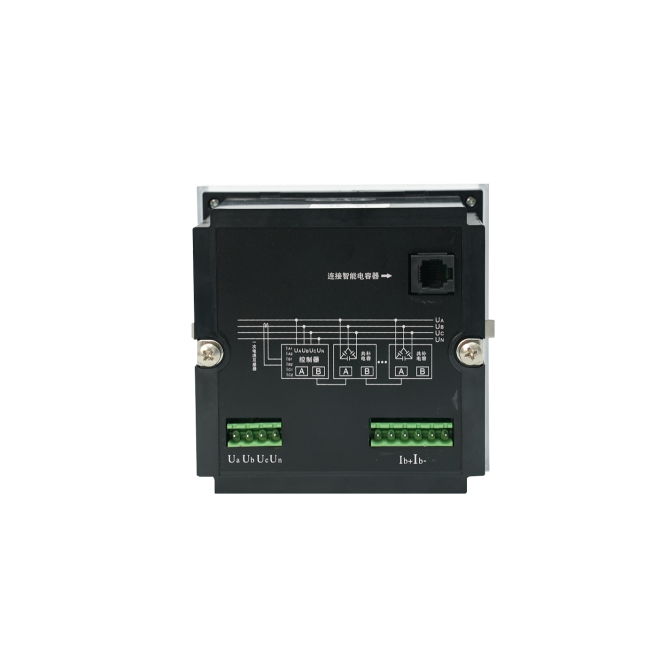

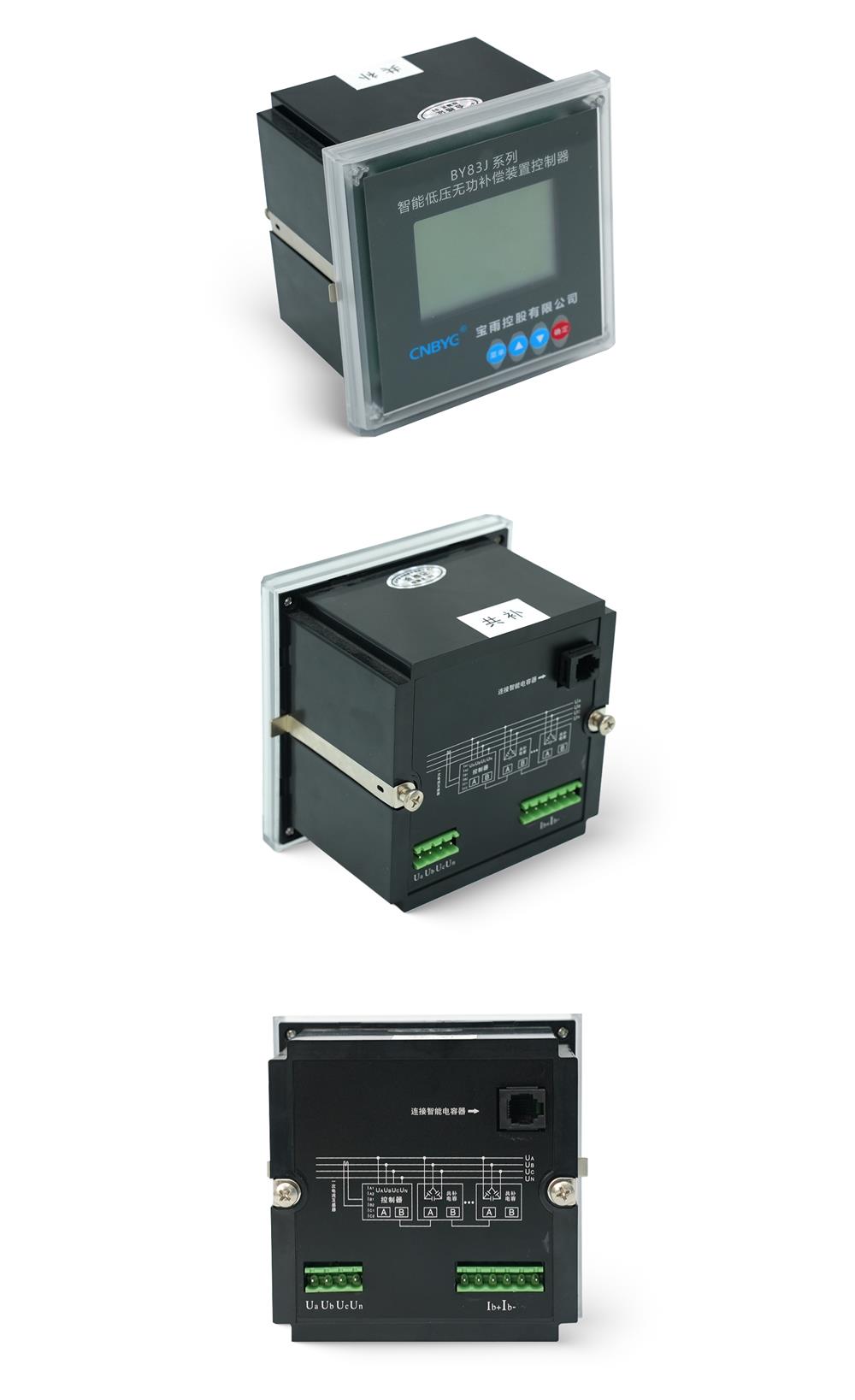

When instaling the controller, refer to the electrical schematic diagram of the rear panel for wiring
The specific wiring method is:
UA, UB, and UC are connected to A, B, and C three-phase voltages respectively, while UN is connected to the neutralline:
La+, la -, lb+, lb -, lc+, and lc - are connected to A, B, and C three-phase currents respectively;
A. B is an RS485 communication interface, which can be connected to the communication port of a low-voltage intelligent capacitor.
Note: When all smart capacitors are co compensating capacitors, only lb+and lb - can be connected to the B-phase current line.

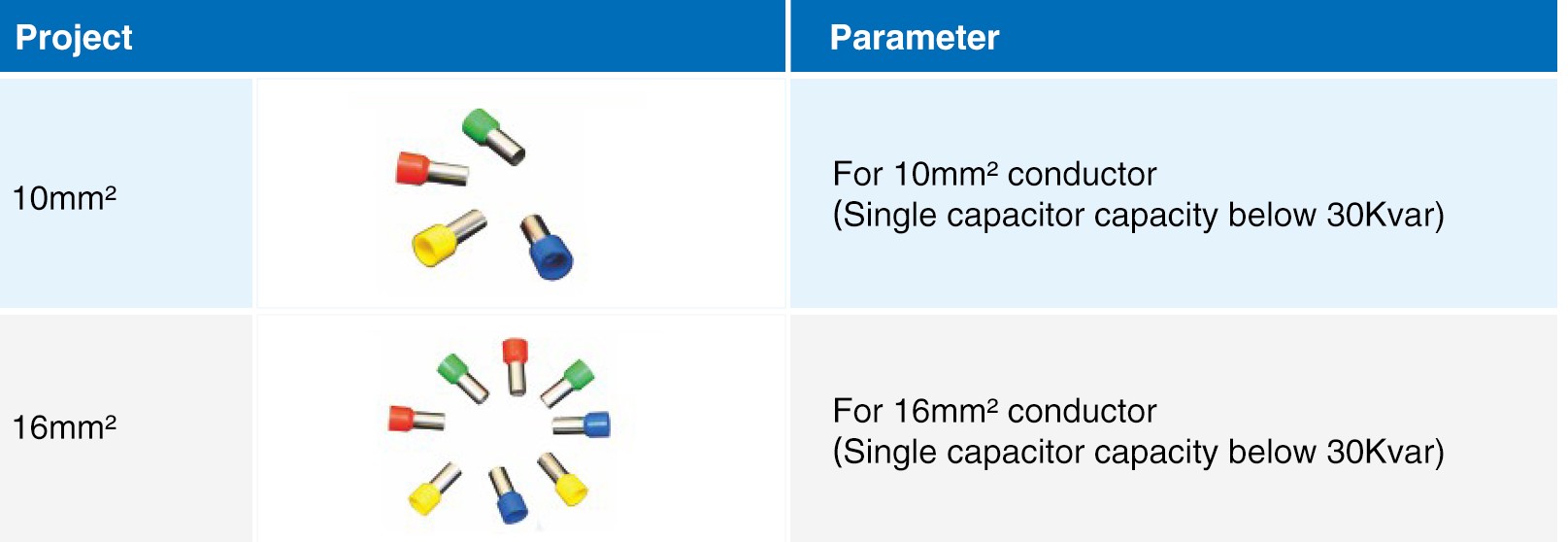

INSTRUCTIONS FOR USING WIRING TERMINALS
INSTRUCTIONS FOR USING RS485 COMMUNICATION CABLE
