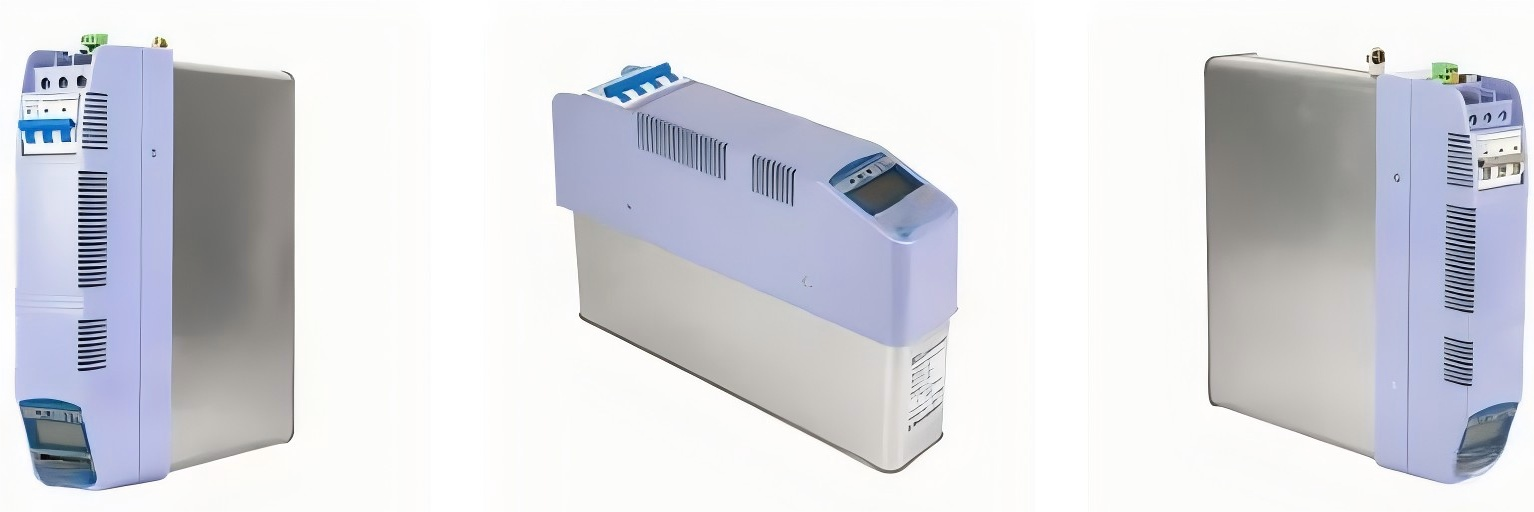

BY81JS/450-30+30Series Intelligent Capacitor Low Voltage Power Capacitor Compensation Device Power Capacitor Three Phase Compensation 450V

Model Meaning

Main Parameters of BY81JS/450 - 30 + 30 Series Intelligent Capacitor

Overview of BY81JS/450 - 30 + 30 Series Intelligent Capacitor

The BY81JS/450-30+30 Series Intelligent Capacitor is a cutting-edge low-voltage capacitorsolution engineered to optimize power quality and stabilize 3-phase electrical powerdistribution in industrial and commercial settings. Designed for capacitor compensation in low-voltage electrical systems, this 3-phase capacitor integrates a 450V reactive power compensation module with intelligent power factor correction to minimize capacitor power consumption and enhance energy efficiency. Its modular capacitor compensation systemenables seamless 3-phase 3-phase automatic compensation, addressing voltage imbalances and harmonics in power networks. Equipped with harmonic suppression capacitor banks and anti-harmonic technology, it effectively mitigates power quality harmonics, safeguarding sensitive electrical equipment from disturbances caused by harmonic capacitor interference. The compact intelligent capacitor bank features overload protection capacitor units and temperature-adaptive capacitor control, ensuring reliable operation under varying load conditions. With an RS485 communication interface, this power system capacitor supports real-time monitoring and integration into smart grid architectures, making it ideal for 3-phase electrical systems requiring precise voltage on 3 phase regulation.

The BY81JS/450-30+30 Series excels as a high-efficiency energy-saving capacitor device, delivering robust 3-phase electric voltage stabilization for 3-phase low voltage applications. Its phase capacitor design ensures balanced 3-phase electric load distribution, reducing losses in 3-phase power capacitors while improving overall electrical power reliability. The power capacitor 3 phase configuration leverages smart capacitor technology to dynamically adjust reactive power, aligning with 3 phases of power demands and enhancing power on capacitorresponsiveness. Built for durability, the low-voltage electrical unit incorporates harmonic mitigation mechanisms to suppress power quality harmonics, extending the lifespan of connected electrical equipment. The temperature-adaptive capacitor control system prevents overheating, even in high-demand environments, while the modular capacitor compensation system allows flexible scalability for evolving power system capacitors needs. Compatible with 3-phase electrical systems up to 450V, this capacitor power solution reduces capacitor power consumption by up to 30%, aligning with global energy efficiency standards. The inclusion of an RS485 communication interface enables seamless data exchange for remote diagnostics, ensuring proactive maintenance and optimal electric capacitor performance. Trusted for capacitor compensation in manufacturing, renewable energy, and infrastructure projects, this 3-phase power capacitor sets a benchmark in low-voltage capacitor innovation.

Working Principle of the BY81JS/450 - 30 + 30 Series Intelligent Capacitor

MCU intelligent measurement and control part
All electronic components in the intelligent measurement and control components are of wide temperatureand industrial qrade, which can adapt to harsh environments with large temperature changes and severeelectromagnetic interference. They can work continuously and reliably for a long time, with a high degreeof intelligence and stable control performance.

Zero crossing switching synchronous switch technology based on mechanical contacts

The company has summarized the characteristics and drawbacks of mechanical contactors, contactless thyristors, and composite switches, and combined years of development and practical operation experience.independently developed a new generation that uses microelectronic software and hardware technologyto effectively control the contacts of mechanical electromaanetic relays: implement synchronous switchinatechnology for zero crossing and switching low-voltage power capacitors based on mechanical contacts,When the AC current at both ends of the contact is zero, it closes, and when the contact is closed, it openswhen the AC voltage at both ends is zero. Avoid the impact of inrush current generated during capacitorinput on system voltage. Reduce equipment losses and improve the service life of capacitors.Low voltage power capacitors

The low-voltage power capacitor

In the product adopts a self-healing low-voltage parallel compensation capacitor, and the capacitor uses a qradually thickened zinc aluminum metalized polypropylene film as the dielectric, which has extremely high stability and reliability. in capacitors of the same brand, the larger asingle capacitor, the longer its core components and thicker its diameter. The lenath of the component leadsto an increase in resistance loss, while the thickness of the component leads to a larger surface conductivelayer area and an increase in temperature diference between the inside and outside of the component,making it easier for the conductive layer to detach from the electrode plate. Therefore, using a single largecapacity capacitor in parallel is not as reliable as using a small capacity capacitor, and the number ofswitchina stages of the capacitor can also be effectively increased, At the same time, the capacitor is equipped with a temperature sensor, which reflects the internal heating degree of the capacitor in situationssuch as overvoltage, harmonic, leakage current, and hiah environmental temperature, achieving overtemperature protectior

Product Features of BY81JS/450 - 30 + 30 Series Intelligent Capacitor

1.The perfect combination of measurement and control technology with synchronous switches has beenachieved, controling the movement speed of the switching switch, eliminating bounce, improving lifespantracking and correcting the closing phase angle, and achieving a switching lifespan of milions of timesCompared with existing inteligent power capacitors of the same type, it has many advantages such ashigh reliability, low fault, low power consumption, and long service life.

2.Closing without inrush current, achieving zero voltage switching and zero current switching of capacitorssynchronous switching completely avoiding switching overvoltage, no overvoltage breakdown, no arcpulling and reignition.

3.Compensate in the most appropriate way, with complete control functions and high-end power analyzelfunctions. it has complete functions and good performance, and can also be confiqured with variousperipherals to meet different customer needs.

4.The product has complete measurement and protection functions, with special protections such astemperature inside the control room, harmonic content in the power grid, phase failure, and three-phaseimbalance.

5.The product can be used with multiple building blocks, and when used, the main machine is automaticallygenerated, while the rest are slave machines, forming a reactive power automatic control system.Individual faults wil automatically exit from the slave machine, without affecting the operation of othelmachines.

6.The host automatically exits due to a malfunction, generating a new host and forming a newsystem for operation, with a high level of inteligence. The individual capacitor displays the product'soperating conditions and electrical circuit conditions, and the human-machine dialogue is concise andintuitive.

Terminal Diagram of BY81JS/450 - 30 + 30 Series Intelligent Capacitor

 Product Dimension Information
