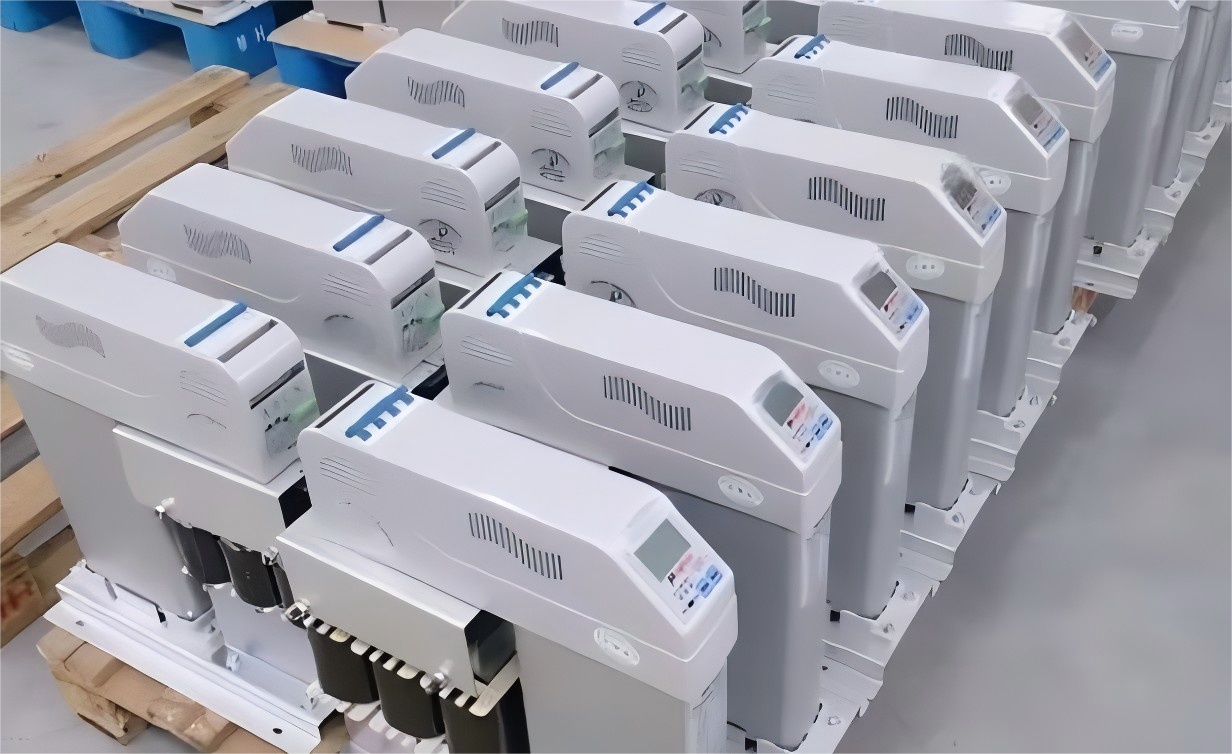

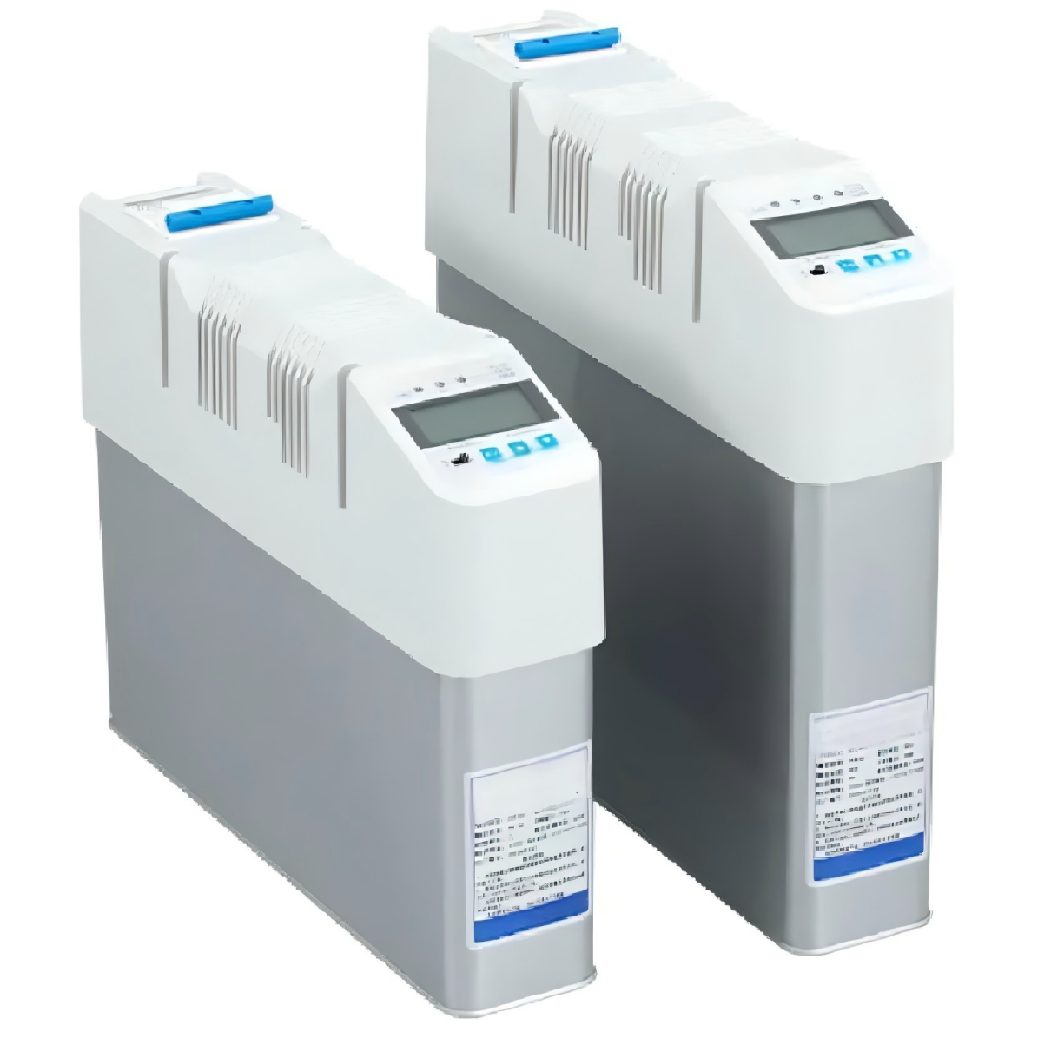

BY81JS/450-20+20 Series Intelligent Capacitor Smart Capacitor with Controlleors Power Distribution Equipment

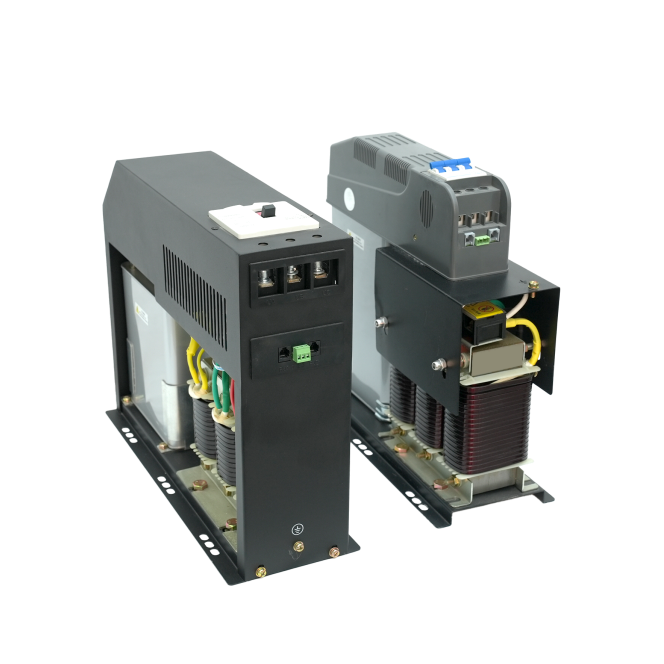

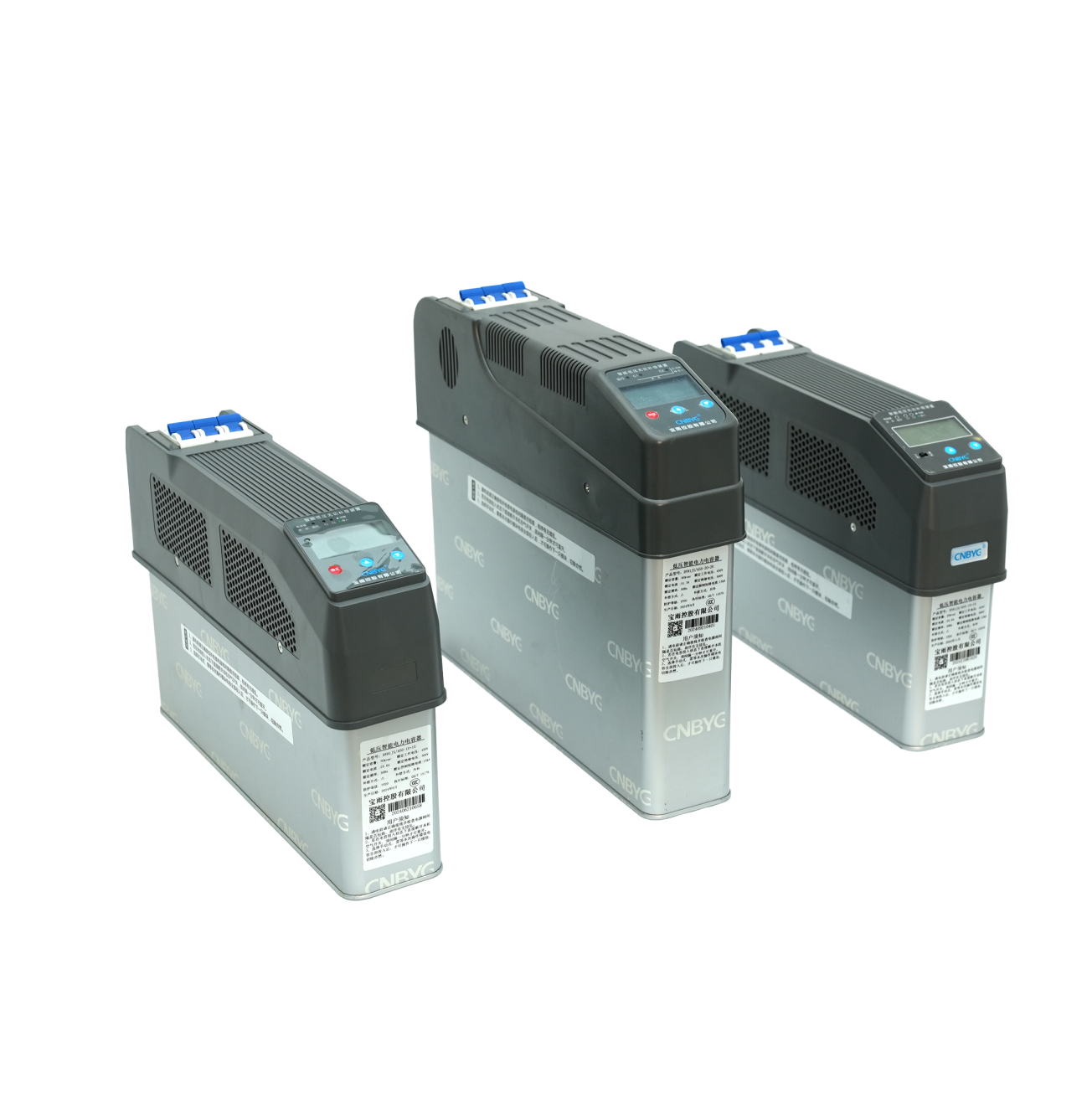

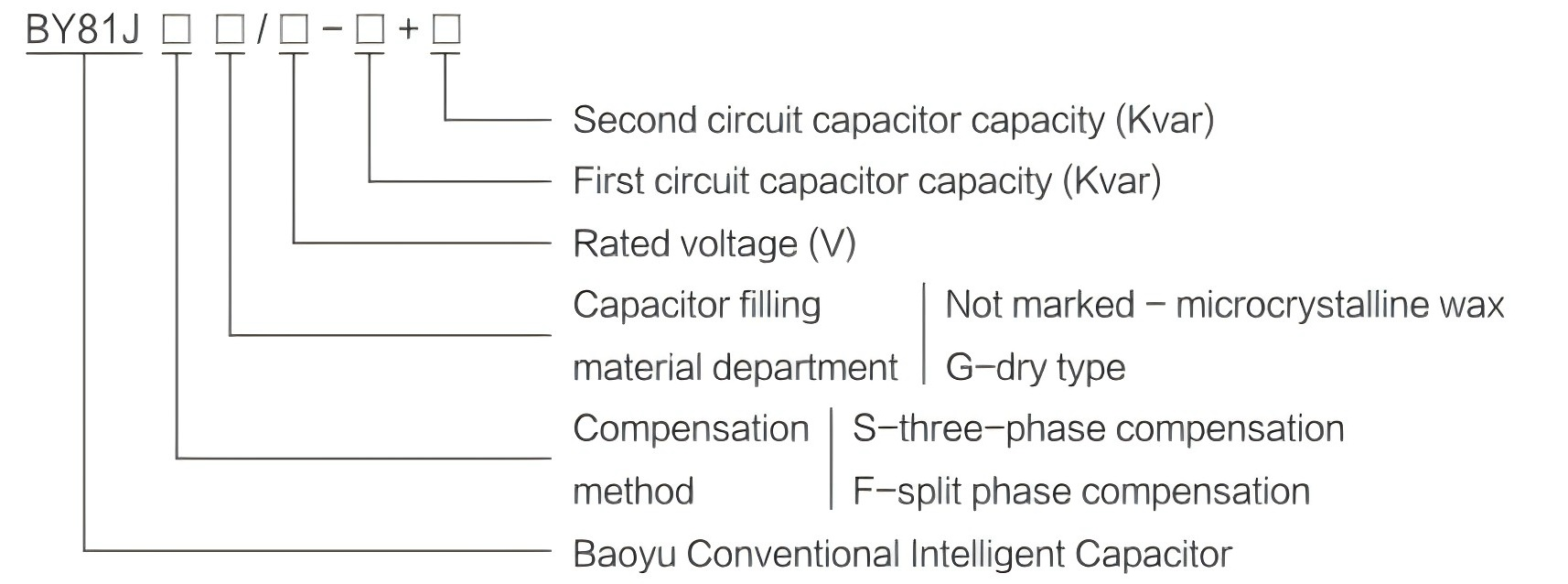

Model Meaning

Main Datas of BY81JS/450-20+20 Series Smart Capacitor

Introduction of BY81JS/450-20+20 Series Smart Capacitor

The BY81JS/450-20+20 Series redefines low-voltage power capacitor compensation systemswith its adaptive three-phase electric control architecture, engineered for industries demanding ultra-stable electrical power quality. Unlike conventional solutions, this 3-phase power capacitor leverages AI-driven predictive algorithms to preemptively detect reactive power deficits and harmonic distortions (up to 50th order) in low-voltage electrical networks (450V max). Its self-healing metallized film capacitors are encased in flame-retardant, humidity-resistant epoxy, ensuring 100,000+ operational cycles even in corrosive environments like chemical plants or offshore wind farms. The integrated DSP controller synchronizes with 3-phase voltage sensors to dynamically balance loads, achieving <2% 3-phase imbalance and reducing neutral line currents by 85%. Compatible with low-voltage equipment such as CNC machines and data center UPS systems, it cuts energy losses by 35% through real-time power factor correction (PF ≥0.99), while its IoT-embedded Modbus-TCP interface enables seamless integration with SCADA systems for granular low-voltage power analytics.
Certified Performance for Critical Applications
Certified to UL 810, IEC 60831-1, and ANSI/IEEE 18, the BY81JS/450-20+20 Series excels in low-voltage device deployments where electrical equipment longevity and low power electricityefficiency are paramount. Its asymmetric forced-air cooling system, featuring aerodynamically optimized vents and dual ball-bearing fans, maintains internal temperatures below 65°C under full harmonic load—critical for preventing thermal runaway in high-density 3-phase power voltageenvironments like semiconductor fabs. The corrosion-proof aluminum alloy chassis (IP55-rated) and tool-less terminal clamps simplify installation in low-voltage electrical panels, reducing setup time by 50%.
For renewable energy applications, this electric capacitor neutralizes inverter-induced 3-phase power fluctuations in solar/wind farms, stabilizing grids to IEEE 1547-2018 standards. Case studies in the Dubai Metro Expansion Project demonstrated a 28% reduction in harmonic-related downtime, while Amazon’s data center deployment achieved 99.97% electrical power qualityuptime. The capacitor low voltage design also incorporates arc-fault detection and automatic bypass, ensuring fail-safe operation in mission-critical three-phase electric systems.

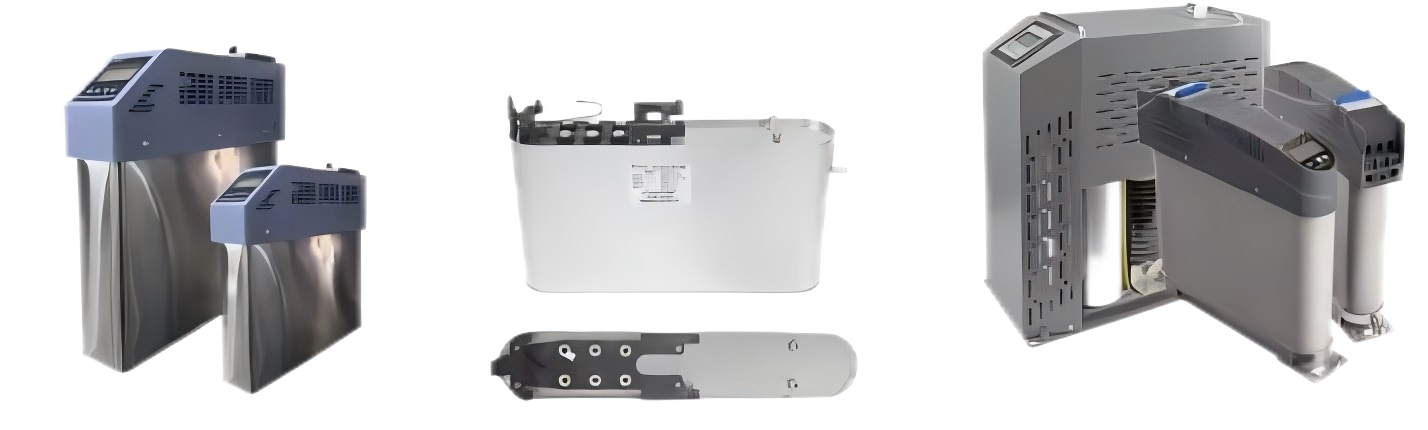

Main Features of the BY81JS/450-20+20 Series Smart Capacitor

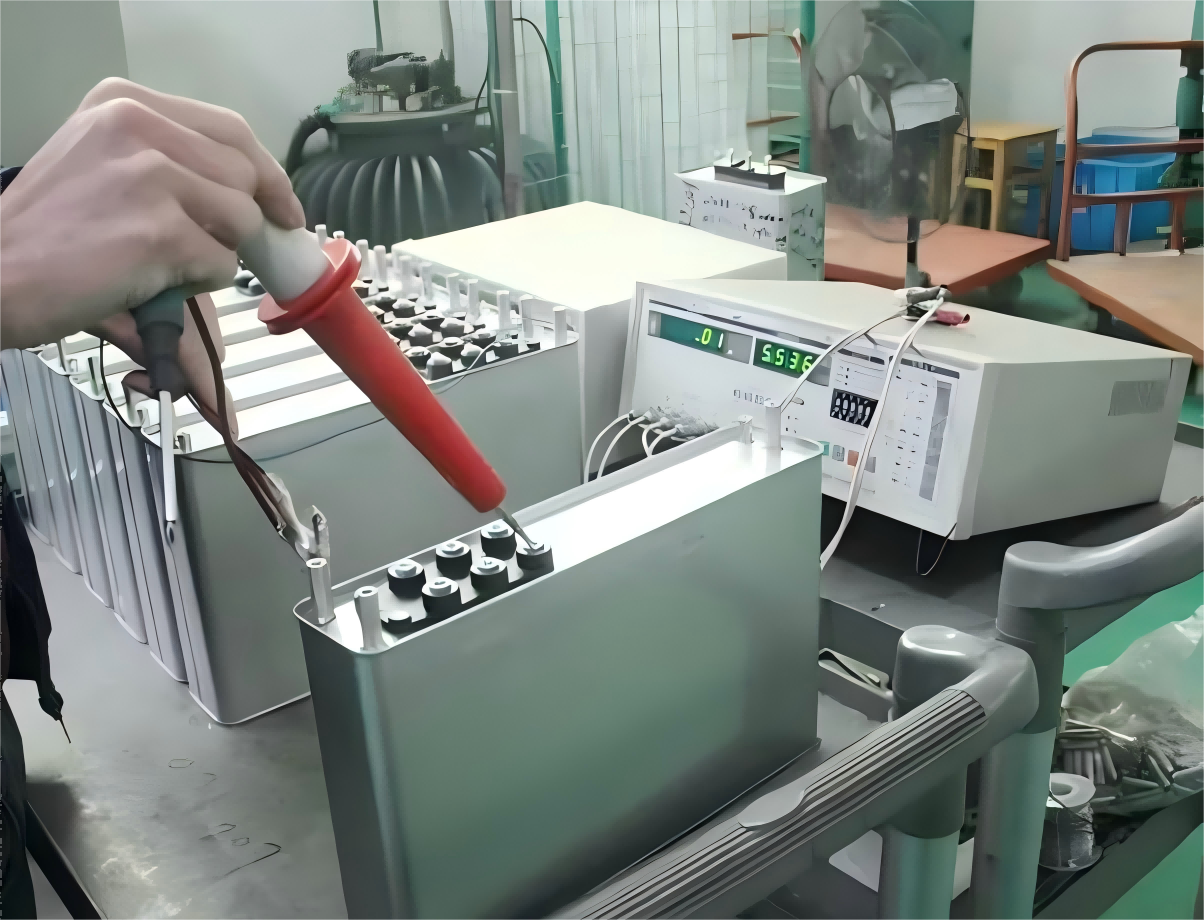

1.Self-healing metallized polypropylene film technology
The capacitors use high-density metallized polypropylene film with self-healing properties to ensure long-term stability and reduce energy losses in low-voltage power capacitor compensation systems. This material minimizes the risk of dielectric breakdown and extends service life even under high harmonic stress, making it ideal for harmonic mitigation and voltage stabilization.
2. Modular terminal design, flexible three-phase
Featuring corrosion-resistant copper alloy terminals, the modular design can be seamlessly integrated into a three-phase smart capacitor configuration. This optimizes reactive power compensation and dynamically corrects three-phase imbalance, reducing line losses in industrial power grids by up to 30%.
3. Real-time monitoring of DSP control
The capacitor integrates a high-speed DSP controller that can accurately detect harmonics, voltage fluctuations and phase imbalance. Its algorithm dynamically adjusts the capacitive reactance to optimize power factor correction and suppress harmonic amplification, complying with power automation standards .
4. Wide voltage tolerance (up to 450A)
The capacitors are designed for low-voltage distribution networks and can operate reliably under extreme voltage fluctuations (up to ±20% of the rated voltage). This ensures stable performance of the capacitors in voltage sag/swell environments, thereby enhancing the resilience of the grid.
5. IoT communication interface
The device is equipped with RS-485 and wireless connectivity, enabling remote monitoring and integration into smart grid systems. This capability facilitates real-time data sharing for predictive maintenance and power quality management, thereby reducing downtime by 25%.
6. Active harmonic suppression
A combination of passive filtering (via tuned reactors) and active control logic suppresses harmonics up to the 50th order. This dual approach minimizes harmonic distortion (THDi <5%) and prevents the risk of resonance in shunt capacitor configurations, protecting connected equipment .
7. Zero transition dynamic compensation
The capacitor uses zero transition switching technology to achieve instantaneous reactive power compensation without voltage spikes. This technology complies with GB/T 25839-2010 standard, can reduce instantaneous losses by 40%, and improve energy efficiency under high load conditions.
8. Strong environmental adaptability
The capacitors can withstand harsh environments, including temperatures from -25°C to +55°C and humidity up to 95%, ensuring reliability

Applicatiopns of BY81JS/450-20+20 Series Smart Capacitor

1. Industrial Manufacturing Facilities
This series of products is optimized for low-voltage power capacitor compensation systems to solve harmonic distortion and three-phase imbalance problems in heavy machinery operations (such as steel mills, automobile factories). Its three-phase smart capacitor design can dynamically correct reactive power gaps, ensure stable voltage levels (±1%), and reduce energy waste by up to 35%. It is very suitable for reducing harmonics in environments equipped with variable frequency drives (VFDs) and arc furnaces.

2. Renewable energy integration (solar/wind farms)
Ensure grid stability by compensating for reactive power fluctuations caused by intermittent generation. DSP-controlled smart capacitors suppress harmonics in inverters and rectifiers, keeping THDi below 3% in power quality-sensitive grids. Its wide voltage withstand capability (450A) prevents overloads during peak generation cycles, in compliance with the standard for the integration of distributed energy resources.

3. Commercial complex and medical infrastructure
Deploy smart shunt capacitors to eliminate voltage sags/swells in critical facilities such as hospitals and data centers. IoT-enabled interfaces monitor three-phase power systems in real time, automatically balancing loads to protect sensitive medical imaging equipment and servers. Reduce energy costs by 20% with power factor correction while complying  electromagnetic compatibility (EMC) standards.

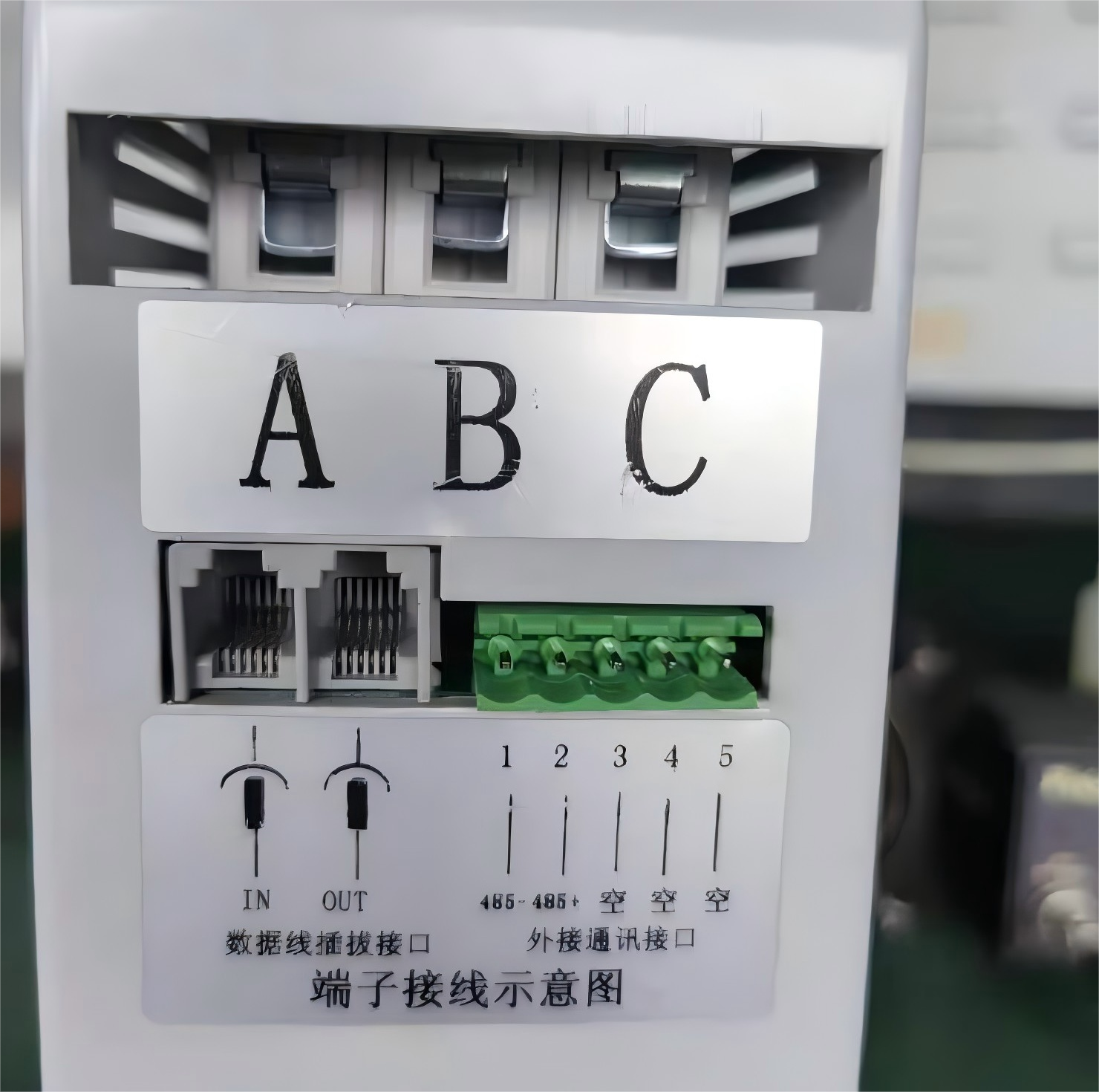

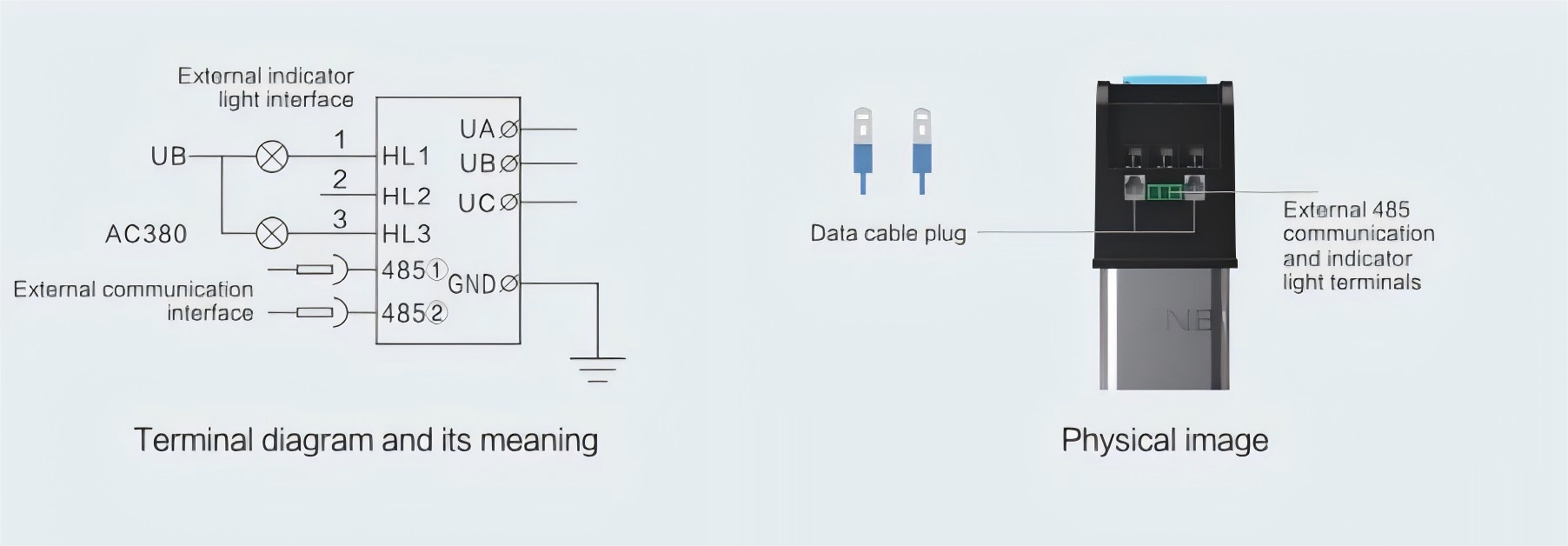

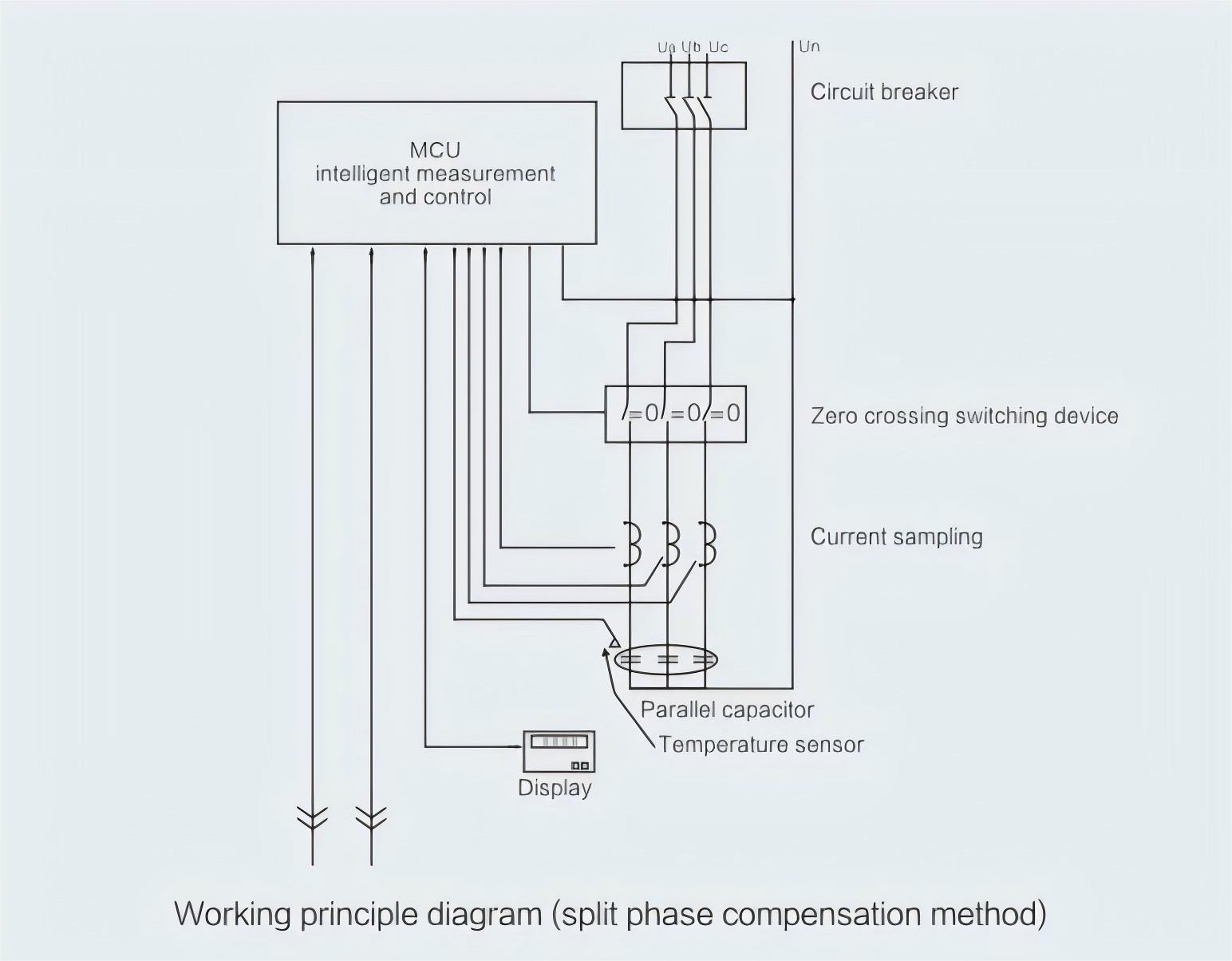

Terminal Diagram of BY81JS/450-20+20 Series Smart Capacitor

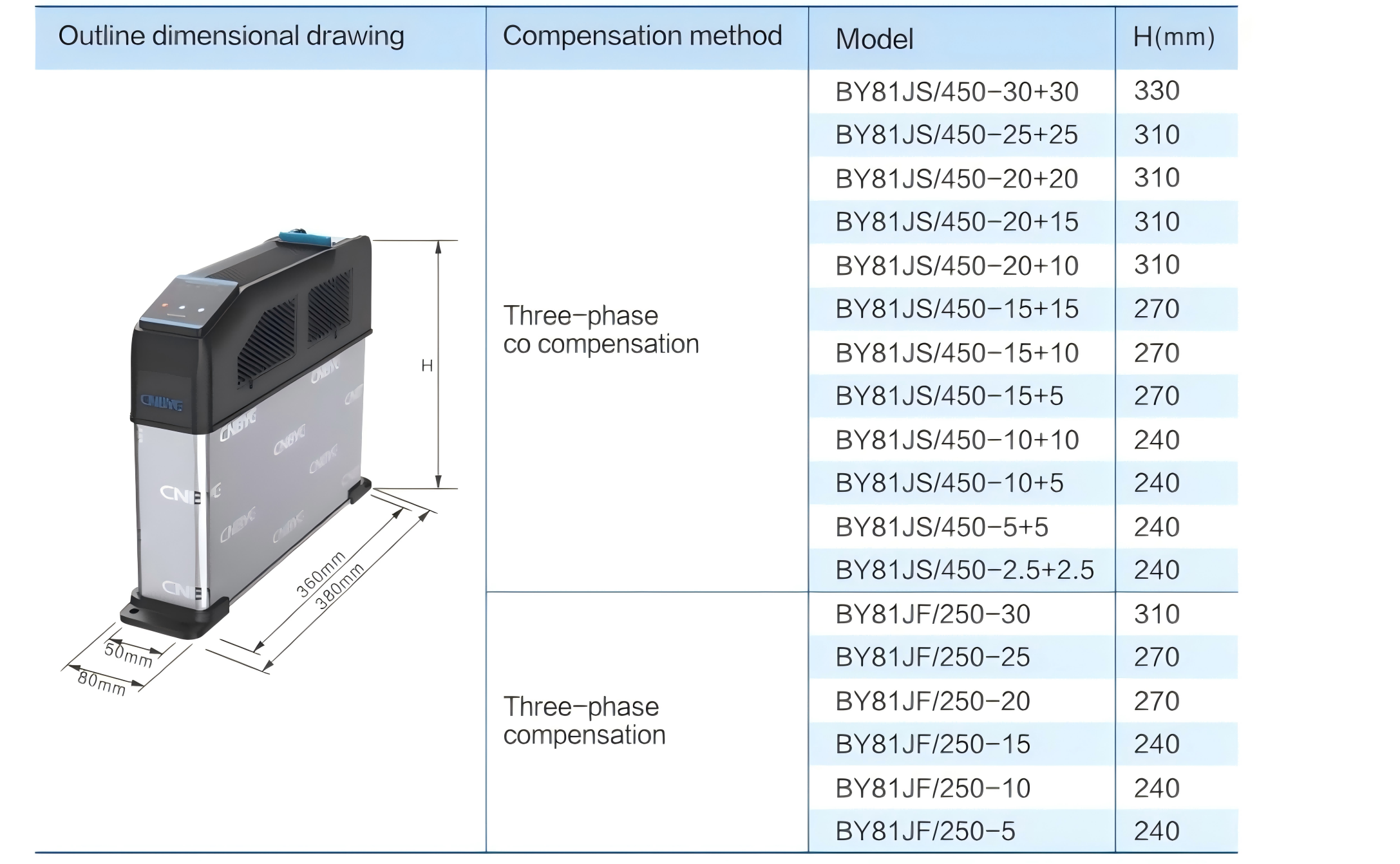

 Product Size Information
