BY81JS/450-20+10 Series Intelligent Capacitor Power Factor Correction Intelligent Low Voltge 30kvar Power Capacitor 3 Phase Power Capacitor

Model Meaning

Main Specifications of BY81JS/450-20+10 Series  Intelligent Capacitor

Overview of BY81JS/450-20+10 Series  Intelligent Capacitor

The BY81JS/450 - 20 + 10 Series Intelligent Capacitor stands as a pinnacle of innovation in the realm of power capacitors. Engineered by leading power factor correction capacitor manufacturers, this high - performance device is a cornerstone for power distribution systems. As an ac capacitor and power capacitor, it specializes in reactive power compensation, a critical function for enhancing the power factor in three - phase systems. Its advanced design allows it to function as a robust three - phase imbalance correction device, effectively rectifying three - phase imbalance issues that often plague power grids. With the ability to handle high currents as a high - current capacitor and store substantial energy as a high - energy capacitor, it ensures reliable operation even under heavy industrial loads. Integrated into the capacitor bank within the capacitor system, it actively filters out harmonics as a harmonic capacitor, safeguarding other three - phase devices from harmonic distortion and improving the overall power grid system's energy efficiency.

In diverse applications, from factories seeking factory energy savings to power providers on the UK power grid, the BY81JS/450 - 20 + 10 Series Intelligent Capacitor proves indispensable. It adapts seamlessly to various power source solutions, operating stably under low - power voltage and low - voltage current conditions, making it a versatile low - voltage device. As a 3 - phase power factor correction capacitor, it precisely adjusts reactive power to optimize the performance of three - phase devices in ac power 3 - phase systems. Its ac line filter capacitor functionality further protects against electrical disturbances, ensuring a stable 3 - phase service. With a remarkable life of capacitor, it minimizes maintenance costs while delivering consistent power correction. Whether for large - scale industrial setups or intricate electrical networks, this intelligent capacitor offers unparalleled solution power for enhancing overall power quality and driving energy efficiency solutions.

Working Steps of the BY81JS/450-20+10 Series  Intelligent Capacitor

Initial parameter monitoring
The BY81JS/450 - 20 + 10 series smart capacitor starts operation by continuously monitoring real-time electrical parameters in the power grid. It is able to accurately measure key indicators such as power factor, reactive power, voltage and current. The initial monitoring stage is crucial because it provides the necessary data for subsequent operation. By closely monitoring these parameters, the smart capacitor is able to promptly identify any deviation from the ideal level, laying the foundation for effective reactive power compensation and overall improvement of power quality. Whether in a three-phase power system facing unbalanced problems or in a power grid plagued by harmonic pollution, this monitoring step is the first step to solving power problems. As an efficient smart capacitor, it can ensure that the collected data is accurate and reliable, laying a solid foundation for improving the performance of power capacitors in the power grid.

Data analysis and decision making
After collecting real-time parameters, the intelligent control system inside the capacitor performs a comprehensive data analysis. It compares the measured values ​​with preset optimal standards for power factor, reactive power, and other related parameters. Based on the in-depth analysis, the system determines whether reactive power compensation is required, and if so, calculates the precise amount of compensation required. In the case of three-phase imbalance, the system also evaluates the difference in reactive power distribution between the three phases. This data-driven decision-making process ensures that the capacitor takes the most appropriate action to resolve power quality issues, whether it is low power factor, excessive reactive power, or three-phase imbalance. By utilizing advanced algorithms, smart capacitors can make accurate decisions, acting as an effective three-phase imbalance correction device to restore balance to the power system.

Reactive power compensation input
When analysis confirms that reactive power compensation is required, the BY81JS/450 - 20 + 10 series smart capacitor will start its compensation mechanism. It will inject or withdraw the calculated reactive power into or out of the grid, precisely regulating the reactive power level. This action effectively improves the power factor, reduces power losses, and increases the efficiency of the power system. In industrial environments filled with a large number of inductive loads, excessive reactive power can lead to high energy consumption and degraded power quality, so this compensation process is critical. The ability of smart capacitors to perform precise reactive power compensation also helps minimize harmonic distortion, as proper power factor correction can alleviate problems related to harmonics. As a key component for improving power quality, this smart capacitor ensures that the power grid operates at peak efficiency by effectively managing reactive power and improving the performance of power capacitors.

Three-phase unbalance correction
In a three-phase power system, if data analysis finds an imbalance, the smart capacitor takes targeted corrective action. It redistributes reactive power among the three phases to balance the load. By properly adjusting the capacitance of each phase, it corrects the differences in current and voltage to restore harmony to the three-phase system. This three-phase imbalance correction not only improves the overall stability of the power system, but also relieves the stress on electrical equipment connected to the grid. As a result, the service life of motors, transformers and other equipment is extended, and the risk of equipment failure due to imbalance-related problems is significantly reduced. BY81JS/450 - 20 + 10 Series Smart Capacitor is a reliable three-phase imbalance correction device that ensures the smooth operation of three-phase power systems and improves the performance of three-phase capacitors.

 Harmonic suppression and mitigation
The BY81JS/450-20+10 series intelligent capacitors are designed with an anti-harmonic function and play a key role in harmonic control. During operation, they can filter out unwanted harmonic currents in the power grid. By absorbing or blocking these harmonics, it can reduce harmonic distortion, thereby avoiding various problems such as overheating of electrical equipment, interference with communication systems, and degradation of power quality. The capacitor's ability to suppress harmonics is further enhanced by its intelligent control system, which continuously monitors and adjusts its operation to adapt to the changing harmonic conditions in the power grid. As an effective anti-harmonic capacitor, it can protect the power system from the harmful effects of harmonics, ensure stable operation of electrical equipment, and improve the overall power quality.

Continuous monitoring and adaptive adjustment
The smart capacitor maintains stable operation even after initial compensation and corrective measures. It continuously monitors electrical parameters in real time. When the grid power load fluctuates, such as the startup or shutdown of large power equipment, the capacitor quickly detects these changes. Based on the new data, it adaptively adjusts operation to ensure that the power factor remains optimal, the three-phase balance remains stable, and the harmonic level is controlled. This continuous monitoring and adaptive adjustment mechanism ensures the long-term stable operation of the power system and the continuous improvement of power quality. The BY81JS/450-20+10 series smart capacitors can adapt to changing conditions, making them an indispensable and important tool in power quality management, ensuring that the power grid always operates smoothly and efficiently.

Key Features of BY81JS/450-20+10 Series  Intelligent Capacitor

1. Advanced Intelligent Control :Our BY81JS/450-20+10 series of intelligent capacitors adopt advanced intelligent control technology, which can accurately monitor real-time parameters such as power factor, reactive power and voltage of the power grid. By analyzing this data, reactive power is automatically and accurately compensated to ensure that the power factor is maintained at an optimal level. This effectively improves the efficiency of the power system and reduces the power loss caused by low power factor, which is crucial for the harmonic governance of the power grid. Whether it is an industrial plant with complex power loads or a commercial building with changing power demand, it can provide stable and reliable reactive compensation.

2. High-quality capacitor design :This series of intelligent capacitors uses high-quality capacitor components and has excellent performance. These capacitors have high capacitance stability and can effectively withstand grid voltage fluctuations and transient overvoltages. They also have anti-harmonic performance, which is very suitable for applications that need to pay attention to harmonic pollution. The high-quality design not only ensures the long-term stable operation of the capacitor, but also helps to correct three-phase imbalance. In a three-phase power system, it can balance the reactive power distribution between the three phases, thereby improving the overall power quality of the system.

3. Zero surge and low voltage drop: The built-in advanced switching technology can achieve zero surge current when the capacitor is closed. This significantly reduces the impact on the power grid during the switching process and protects other electrical equipment from damage by surge current. At the same time, the low voltage drop design ensures that the voltage loss during the operation of the capacitor is minimized. This helps to maintain the stability of the grid voltage level, which is especially important for sensitive electrical equipment. By reducing voltage fluctuations, it can improve the operating stability and service life of electrical equipment and contribute to the improvement of overall power quality.

4. Modular and compact structure :BY81JS/450-20+10 series intelligent capacitors adopt modular and compact structures, which are easy to install and maintain. The modular design can easily expand or reduce the reactive compensation capacity according to actual needs. In the distribution system, if the load changes and the reactive compensation capacity needs to be increased, additional modules can be easily added. The compact size also saves a lot of installation space, and it can be flexibly installed in both small distribution boxes and large distribution cabinets, providing a convenient solution for power quality improvement projects.

5. Comprehensive protection functions: This series of intelligent capacitors has comprehensive protection functions, including overvoltage protection, undervoltage protection, overcurrent protection and overtemperature protection. When abnormal conditions occur in the power grid, such as voltage surges, dips or overcurrent, the protection system will act quickly to cut off the capacitor and protect it from damage. The overtemperature protection function ensures that the capacitor operates within a safe temperature range and prolongs its service life. These protection functions enhance the reliability of the capacitor in the power grid and contribute to the stable operation of the entire power system.

6. Good compatibility and adaptability :BY81JS/450-20+10 series intelligent capacitors have good compatibility with various power systems. It can be seamlessly integrated into existing power distribution systems, whether industrial, commercial or residential power grids. It is able to adapt to different power load characteristics, such as resistive, inductive or capacitive loads. In industrial plants with a large number of inductive motors, it can effectively compensate for reactive power; in commercial buildings with complex power loads composed of lighting, air conditioning and other equipment, it can also play an excellent role in improving power quality, making it an ideal choice for customers around the world seeking power quality improvement solutions.

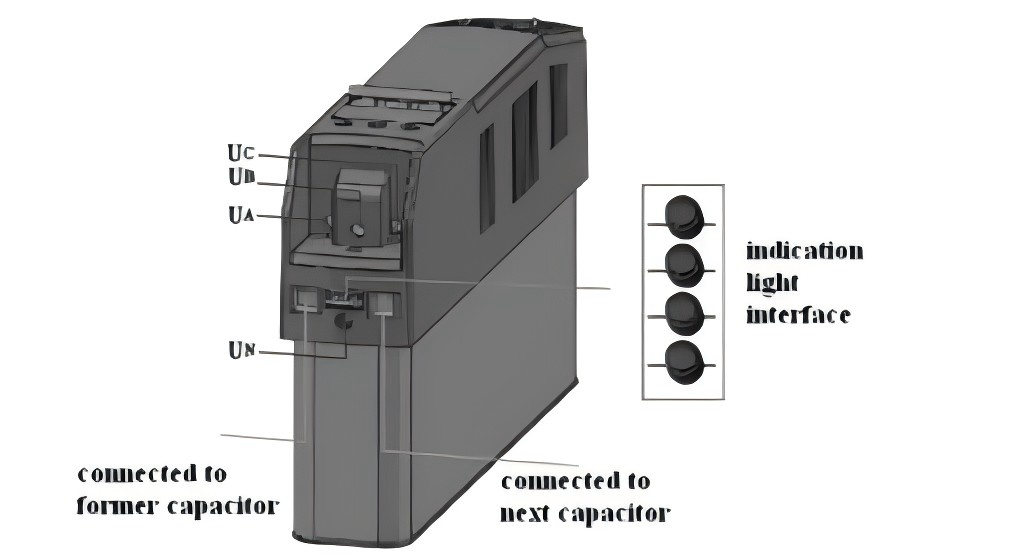

Terminal Diagram of BY81JS/450-20+10 Series  Intelligent Capacitor

 Product Size Information
