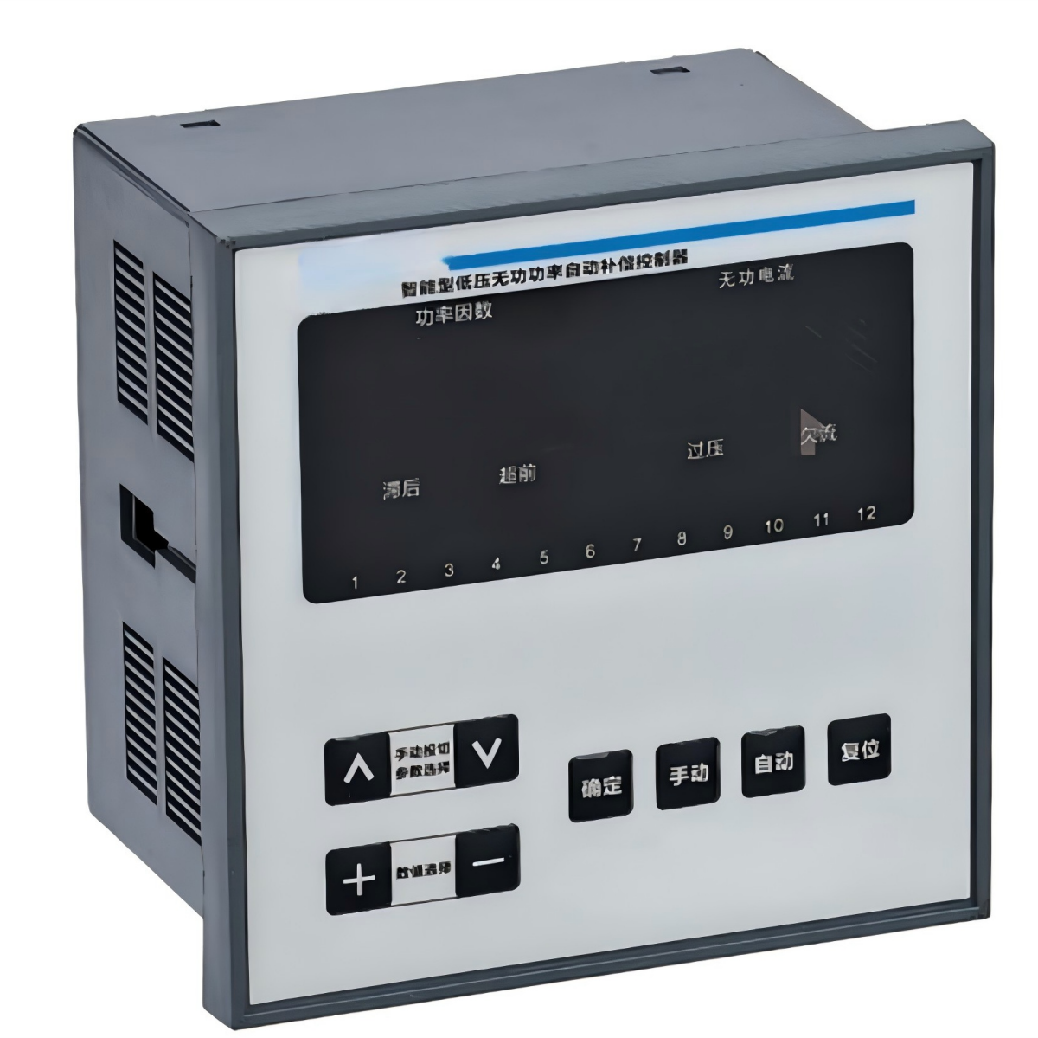

BY75 Series reactive power compensation controller
Product Introduction
Main technical parameters
Project |
Parameter |
Supply voltage |
AC 220V/380V ±20% |
Sampling voltage |
AC 220V/380V±20% |
Power frequency |
50Hz±5% |
Sampling current |
0~5A |
Maximum power consumption of the |
14W(Depending on the power of the controlled |
Control output contact |
24 Channels, Each DC12V × 30mA |
Hole size |
138×138mm |
Project |
Parameter |
Voltage |
±0.5% |
Current |
±0.5% |
Active Power |
±1.0% |
Reactive Power |
±1.0% |
Frequency |
±0.5% |
Power Factor |
±1.0% |
Project |
Parameter |
||
Control sensitivity |
30mA |
||
Target COSΦ(1) |
0.85~1.00 |
Step 0.01 |
Factory preset 1.00 |
Target COSΦ(2) |
0.00~0.60 |
Step0.01 |
Factory preset 1.00 |
Threshold coefficient |
0.5~1.2 |
Step 0.1 |
Factory preset 1.00 |
Switching delay(1) |
00s~600s |
Step 1/0.02 |
Factory preset 0s |
Switching delay(2) |
00s~300s |
Step1 |
Factory preset 8s |
Overvoltage protection |
230V-280V |
Step 1V |
Factory preset 240V |
Undervoltage protection |
210V-180V |
Step 1V |
Factory preset 190V |
Harmonic voltage exceeding limit |
00.0%~25.0% |
Step0.5% |
Factory preset 00.0% |
Harmonic current exceeding limit |
00.0%~100.0% |
Step 0.5% |
Factory preset 00.0% |
