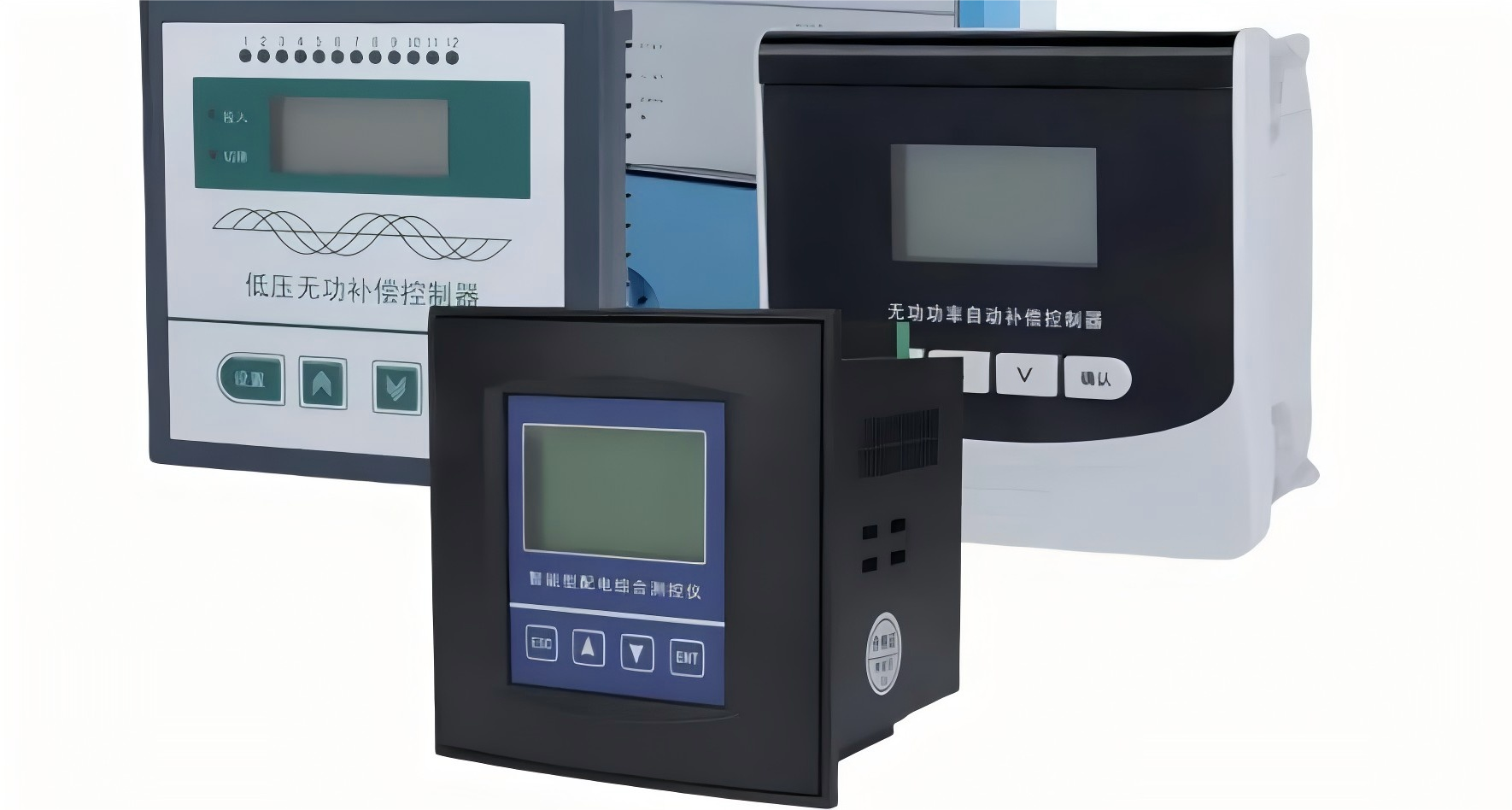

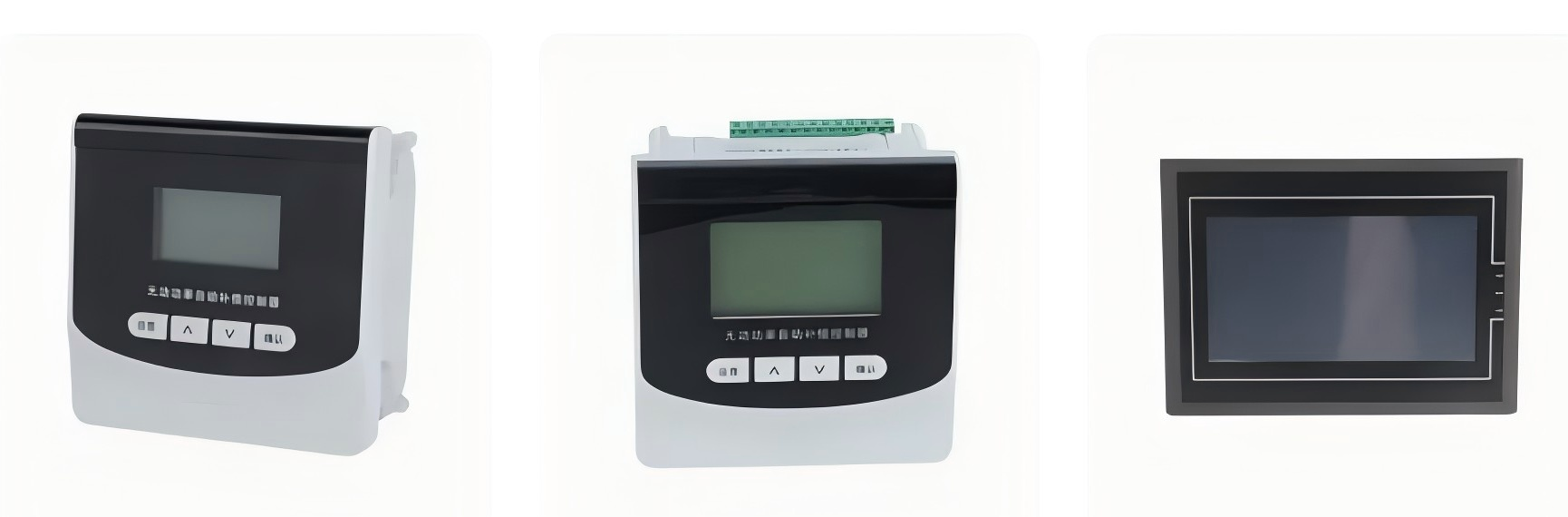

BY75 Series Reactive Power Compensation Controller Low Voltage Distribution Automatic Reactive Power Compensation Controller 400V

Application of BY75 Series Intelligent Reactive Power Compensation Controller

Industrial Manufacturing

In the field of industrial manufacturing, a large number of inductive loads such as motors, transformers, and welding machines are in operation. These devices consume a large amount of reactive power during operation, resulting in a low power factor. For example, in steel mills, rolling mills and large motors require a large starting current, resulting in a large amount of reactive power in the system. A low power factor will not only increase line losses, but may also cause voltage drops, affecting the normal operation of equipment.BY75 series reactive power compensation controller can accurately monitor the reactive power demand in industrial power grids, and inject appropriate reactive power into the system in a timely manner by automatically controlling the switching of capacitor banks, effectively improving the power factor. It can usually increase the power factor from a lower level (such as around 0.7) to above 0.95. This can not only reduce line losses by about 20%-30%, saving a lot of electricity bills, but also stabilize the voltage and ensure the stable operation of industrial equipment. In addition, in industries with high harmonic loads such as chemical plants, the controller also has a certain harmonic adaptability to ensure that the reactive power compensation function is not affected by harmonics and maintain the stability of the power grid.

Smart buildings and commercial facilities

Smart buildings and commercial facilities are equipped with a large number of electrical devices, including air conditioning systems, elevators, lighting systems, and various office equipment. These devices have different load characteristics, and their collective operation often causes complex power quality issues. For example, the startup of high-power air conditioning compressors in commercial buildings will generate inrush current and reactive power impact, while the lighting system may introduce harmonics due to the use of a large number of electronic ballasts.BY75 series reactive power compensation controller can be well integrated into the building power management system. For air conditioning systems, it can detect the reactive power changes during the startup and operation of the compressor in real time and make corresponding compensation to reduce the impact on the power grid. For lighting systems, in addition to compensating reactive power, it can also cooperate with harmonic filtering equipment to reduce the impact of harmonics on the power grid. In addition, in smart buildings, the controller can be connected to the building automation system to achieve the optimized operation of the building power system through data analysis and intelligent control. This not only improves the power factor of the building and reduces electricity bills, but also extends the service life of electrical equipment in the building and improves the comfort and reliability of the building power supply environm

Grid and power supply

In the field of power grid and power supply, it is very important to maintain good power quality. Long-distance transmission lines and distribution networks often face problems such as reactive power imbalance and voltage fluctuation. For example, in rural power grids, due to the relatively long distance between the power source and the load center, the load distribution is relatively dispersed, the reactive power demand at the end of the line is large, and the voltage is prone to drop.BY75 series reactive power compensation controller plays an important role in reactive power optimization of power grid. At the substation level, it can cooperate with the power grid monitoring system to monitor the reactive power and voltage of the entire substation area in real time, and dynamically adjust the reactive power compensation equipment according to the set parameters to ensure that the grid voltage is always within the normal range (usually controlled within ±5% of the rated voltage). In the distribution network, especially the low-voltage distribution network with a voltage level of 400V, the controller can be installed in the distribution box or near the large-capacity load. By accurately compensating for reactive power, reducing reactive power flow in the distribution network, improving the transmission efficiency of active power, and alleviating the overload problem of distribution transformers, it helps to improve the overall reliability and stability of the power grid, reduce power outages caused by power quality problems, and improve the power supply quality of users.

Storage Workshop

Production workshop

Workshop Vedio

 Baoyu Holding Co., Ltd

Baoyu Holding Co., Ltd. was founded in 2015 and is located in Wenzhou City, Zhejiang Province. The location is excellent and the transportation is convenient. We have very rich industry experience and is a trusted supplier. The company has advanced production equipment and skilled front-line employees. Our company is mainly engaged in the production and sales of power quality products，such as active power filters, static var generators, intelligent capacitors, power capacitors, reactive power compensators, composite switches, capacitor contactors, thyristor switches, reactors. Our company knows that the development of the company depends on the innovation and quality of the products. Therefore, our products have strict quality control from the procurement of raw materials to the sale of finished products. The company has established a quality management system that meets the requirements of the international quality management system. The company continuously releases the original innovations according to the market and customer needs, and always maintains the novelty and innovation of the products. The company wants the customer's thoughts and urgency. Solving problems for customers and meeting customer needs is our eternal pursuit! Our company's products are sold worldwide. The company has won the unanimous recognition of consumers with satisfactory product quality and perfect after-sales service. We have a professional R & D team. We can accept O E M and O D M.We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.

Our storage facility utilizes precision climate control, automated 3D warehousing (which increases capacity by 200%), and integrated safety systems (including fire suppression, anti-static protocols, and monthly audits) to maintain zero oxidation and ensure product integrity. In addition, our cleanroom manufacturing facility features a combination of natural and LED lighting, optimized workflows, and cross-trained technicians to enhance efficiency. Automated quality control systems and ISO-certified processes ensure compliance with dimensional and electrical standards, while AI-driven analytics and stringent protocols help achieve near-zero defects. By integrating advanced automation, tailored solutions, and steadfast reliability, Baoyu provides durable, mission-critical power systems, reinforcing our status as the preferred global partner for industries that require precision and innovation.
