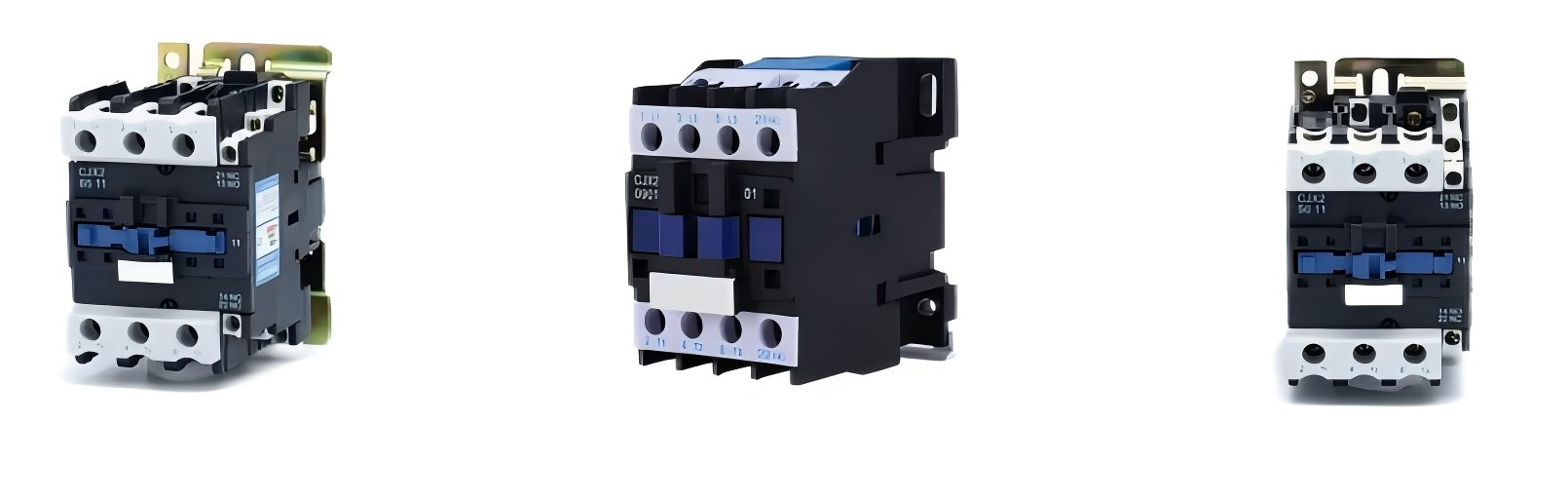

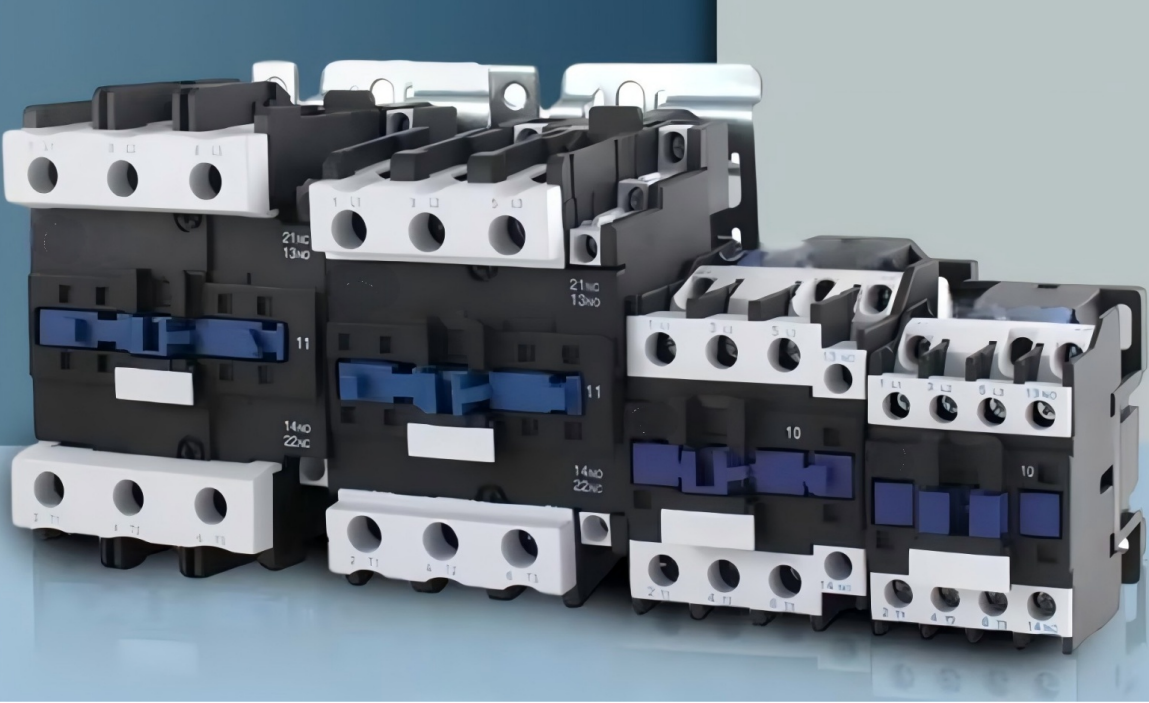

BY CJ19-95 Series AC Contactor Factory Direct Sales 380V Rated Voltage Electricity Switching Capacitor Contactor
Main Specifications of CJ19-95 Contactor
| Product modle name | CJ19-95 | |
| Electrical life(10000 cycles） | 10 | |
| Rated Voltage | 220V | |
| Rated current le (380V)A | 63 | |
| Controllable capacitor capacity(kvar | 22 | |
| Rated insulation voltage (V) | 500 | |
| Surge suppression capability | 20le | |
| Action conditions | Actuation:(85%~110%Us;Release:(20%-75%)Us | |
| Coil power (VA) start/hold | 200/20 | |
| Auxiliary contact control capacity | AC-15 360VA;DC-3 33W | |
| Weight (kg) | 1.5 | |
Product Overview of CJ19-95 Contactor
The BY CI19-95 Series AC Contactor (380V Rated Voltage) is a high-performance Alternating Current Contactor designed to optimize Power Quality and Voltage Quality in industrial and commercial electrical systems. Engineered for Switching Capacitor Contactor applications, this three-phase device ensures efficient Reactive Power Compensation and Dynamic Reactive Compensation, effectively mitigating harmonics and stabilizing grid performance. Its robust construction supports seamless integration with Power Quality and Motor Analyzer tools, enabling precise monitoring of Power Quality and Harmonics while enhancing Power Quality and Distribution networks. With a focus on durability and precision, this AC Magnetic Contactor features advanced Contactor Components, including silver-alloy contacts and an electromagnetic coil, ensuring reliable AC Contactor Working performance even in demanding environments.
Advanced Engineering for Industrial Demands.The BY CI19-95 Series combines cutting-edge technology with cost-efficiency. Its Contactor Latching Circuit ensures secure operation during capacitor switching, while the Contactor Economizer design minimizes energy loss, aligning with global energy conservation standards. Rated for Contactor Voltage up to 380V AC, this 3 Phase Contactor excels in applications requiring high-current handling, such as motor control and capacitor bank management. The contactor’s modular architecture simplifies maintenance, reducing Contactor for AC Unit Cost over its lifecycle. With a competitive AC Contactor Cost and 3 Phase Contactor Price, it outperforms traditional solutions in both reliability and total ownership value. Additionally, its compatibility with smart grid protocols ensures real-time diagnostics, addressing issues like Power Quality and Distribution imbalances proactively.
Cost-Effective Solution for Modern Power Systems.Ideal for industries prioritizing Power Quality and Voltage Quality, the BY CI19-95 Series delivers unmatched value. Its corrosion-resistant Contactor Components and IP65-rated enclosure ensure longevity in harsh conditions, from manufacturing plants to renewable energy installations. By optimizing Dynamic Reactive Compensation, it reduces grid stress and operational costs, making it a strategic choice for facilities managing high harmonic loads. For businesses seeking a balance between performance and affordability, this Switching Capacitor Contactor offers a compelling AC Magnetic Contactor Price without compromising on safety or efficiency. Whether upgrading existing systems or deploying new infrastructure, the BY CI19-95 Series stands as a cornerstone for Reactive Power Compensation, circuit protection, and sustainable energy management.
Main Advantages of CJ19 - 95 Contactor
High reliability for harsh industrial environments
Designed to operate seamlessly in harsh conditions, the BY CI19-95 series has a temperature range of -40°C to +80°C and humidity tolerance of up to 95% at 25°C. Its rugged design ensures stable performance in industries such as power systems, manufacturing and oil/gas, and is ideal for three-phase contactor applications that require uninterruptible power switching.
Advanced protection mechanism enhances security
This AC380V contactor has overload protection, overheat protection and short-circuit protection functions to protect the safety of circuits and connected devices. Its insulation meets the 3KV withstand voltage standard, which can reduce the risk of electrical failure in high-power capacitor switching scenarios.
Excellent electrical performance and efficiency
Designed for three-phase AC systems, the contactor supports power transmission of 400kVA and above with minimal energy loss. Its low harmonic distortion (<5%) and high power factor (>0.99) comply with IEC 61000-3-2 standards, optimizing energy efficiency in applications such as harmonic suppression and reactive power compensation.
Sturdy construction, durable
The contactor features H-class insulation and corrosion-resistant materials, and performs well in environments exposed to dust, moisture, or chemical vapors. Its IP55/65/67 protection rating ensures its reliability in outdoor or industrial environments such as substations and data centers.
Intelligent control and real-time monitoring functions
This industrial contactor integrates real-time temperature monitoring and automatic fault diagnosis functions, supports remote communication (such as RS485, Modbus), and can be seamlessly integrated into the smart grid. Users can view operating status and historical data to perform predictive maintenance.
Low maintenance and cost-effective solution
The modular design simplifies installation and reduces downtime. With an efficiency of up to 99% and a rated current capacity of more than 20A, the system can minimize energy waste and operating costs compared to traditional diesel drive systems, in line with the global trend of energy conservation and carbon reduction.
Working Conditions of CJ19 - 95 Contactor
Surrounding air temperature
- Applicable temperature range: -5℃ to +40℃
- The 24-hour average temperature must be kept at or below +35°C.
Altitude:
- The installation altitude shall not exceed 2000 meters.
Weather conditions
- When the temperature reaches a maximum of +40°C, the relative humidity must not surpass 50%. At lower temperatures, higher humidity levels are acceptable, allowing up to 90% relative humidity at 20°C. It is essential to implement special measures to address potential condensation resulting from temperature fluctuations.
Installation conditions:
- The mounting surface must not be tilted more than +5° or -5° from the vertical.
Shock and Tremor
- The product should be installed in an environment without significant shaking, shock and vibration to ensure optimal performance and extend service life.
Working Principle of CJ19 - 95 Contactor
1. Electromagnetic activation system
The contactor uses an electromagnetic coil powered by a 380V AC power supply to generate a magnetic field to drive the armature movement. When the coil is energized, the armature closes the silver alloy contacts, allowing current to flow through the three-phase circuit. This mechanism ensures fast and accurate switching of capacitive loads (such as power capacitors) in applications such as reactive power compensation and harmonic suppression.
2. Arc extinguishing and contact protection
The contactor is equipped with a ceramic arc chute and high-quality silver contacts to minimize arcing during circuit breaking. The arc chute effectively dissipates heat and extinguishes the arc, thereby reducing erosion and extending the electrical life of the contacts. This design complies with advanced intelligent circuit protection principles to ensure safe switching of high-current capacitive loads such as capacitor banks. 14
3. Capacitor switching and power factor optimization
The contactor is designed for capacitor switching applications to manage the connection and disconnection of power capacitors in three-phase AC systems. By controlling the capacitor bank, it dynamically compensates for reactive power, improves power factor (>0.99) and reduces harmonic distortion (<5%) in accordance with IEC 61000-3-2 standard 25. This process improves energy efficiency and stabilizes grid performance.
4. Three-phase load balancing
Three-phase contactors ensure balanced current distribution across all phases, solving the three-phase imbalance problem common in industrial power grids. Their low-resistance contacts and optimized magnetic circuit design minimize voltage drop and heat loss, supporting stable operation of systems that require uninterruptible power switching14.
5. Integrated intelligent control
Advanced models are equipped with real-time monitoring sensors and microprocessor-based control modules. These components detect parameters such as coil voltage, contact temperature and load current, enabling automatic fault diagnosis and overload protection. The contactors can be connected to smart grid systems via Modbus/RS485 communications for remote control and predictive maintenance15.
6. Environmental adaptability
Designed for harsh industrial environments, the contactor's IP65-rated housing is dust, moisture and chemical resistant. Its H-class insulation (up to 180°C) and corrosion-resistant components ensure reliable performance in applications such as substations, data centers and renewable energy systems.
Appearance and installation dimensions of CJ19 - 95 Contactor
| Modle | Amax | Bmax | Cmax | Remarks |
| CJ19-95 | 135 | 87 | 158 | In addition to screw installation, the contactor can also be installed on a 35mm or 75mm mounting rail. |
It is the details that demonstrate the quality
Silver alloy contacts: excellent conductivity and arc resistance
BY CJ19-95 series AC contactors feature silver alloy contacts, ensuring superior conductivity and long-term durability in demanding applications. Silver alloys, such as silver tungsten (AgW), are known for their low contact resistance and resistance to arc erosion, which is critical in capacitor switching scenarios where surge currents frequently occur. These contacts minimize energy losses during operation and maintain stable performance even under repetitive switching cycles, such as in reactive power compensation systems or harmonic mitigation solutions.In capacitor switching applications, silver alloy contacts effectively suppress arcing during circuit interruption, a common challenge when disconnecting large capacitors (e.g. 22kvar systems). This reduces contact wear and extends the electrical life of the contactor by up to 30% compared to traditional copper-cadmium alloys, as verified by the IEC 60947-4-1 standard. In addition, the alloy’s high thermal conductivity ensures rapid heat dissipation, preventing overheating in environments with ambient temperatures up to 40°C, such as industrial switchboards or solar farm control cabinets.
Slider design: simplified installation, modular flexibility
The BY CJ19-95 series’ slide-on design allows for seamless 35mm DIN rail mounting, which is essential for modern modular electrical systems. This design eliminates the need for complex screw-on processes, allowing technicians to install the contactor into a control panel in seconds. The slide-on mechanism is compatible with both vertical and horizontal mounting orientations, making it suitable for space-constrained environments such as commercial building distribution boxes or renewable energy inverters.For industrial applications that require frequent maintenance, the slider’s tool-free removal feature simplifies component replacement. The design also incorporates anti-vibration reinforcement to ensure stable operation in high-vibration environments such as manufacturing plants or wind turbine control systems. In addition, the slider’s insulated terminal covers prevent accidental contact with live parts, improving safety and meeting UL and CE safety certifications for commercial and industrial installations.
High-performance copper coils: energy efficiency and reliability
The BY CJ19-95 series uses copper coils designed for optimal electromagnetic performance and energy efficiency. The low resistivity of copper ensures minimal power loss during coil excitation, reducing operating costs in systems that require continuous capacitor switching, such as three-phase power correction or voltage stabilization networks. The coils are rated for a voltage range of 0.85–1.1Un and maintain reliable operation even in the presence of grid fluctuations, preventing burnout in low voltage situations .In renewable energy applications, the copper coil’s moisture resistance (up to 90% RH) and wide temperature range (-5°C to 40°C) ensures consistent performance in harsh outdoor environments such as solar farms or offshore wind installations. The coil’s design also incorporates noise suppression technology, which reduces audible hum by 50% compared to aluminum coils, which is critical for commercial buildings where noise control is important.
