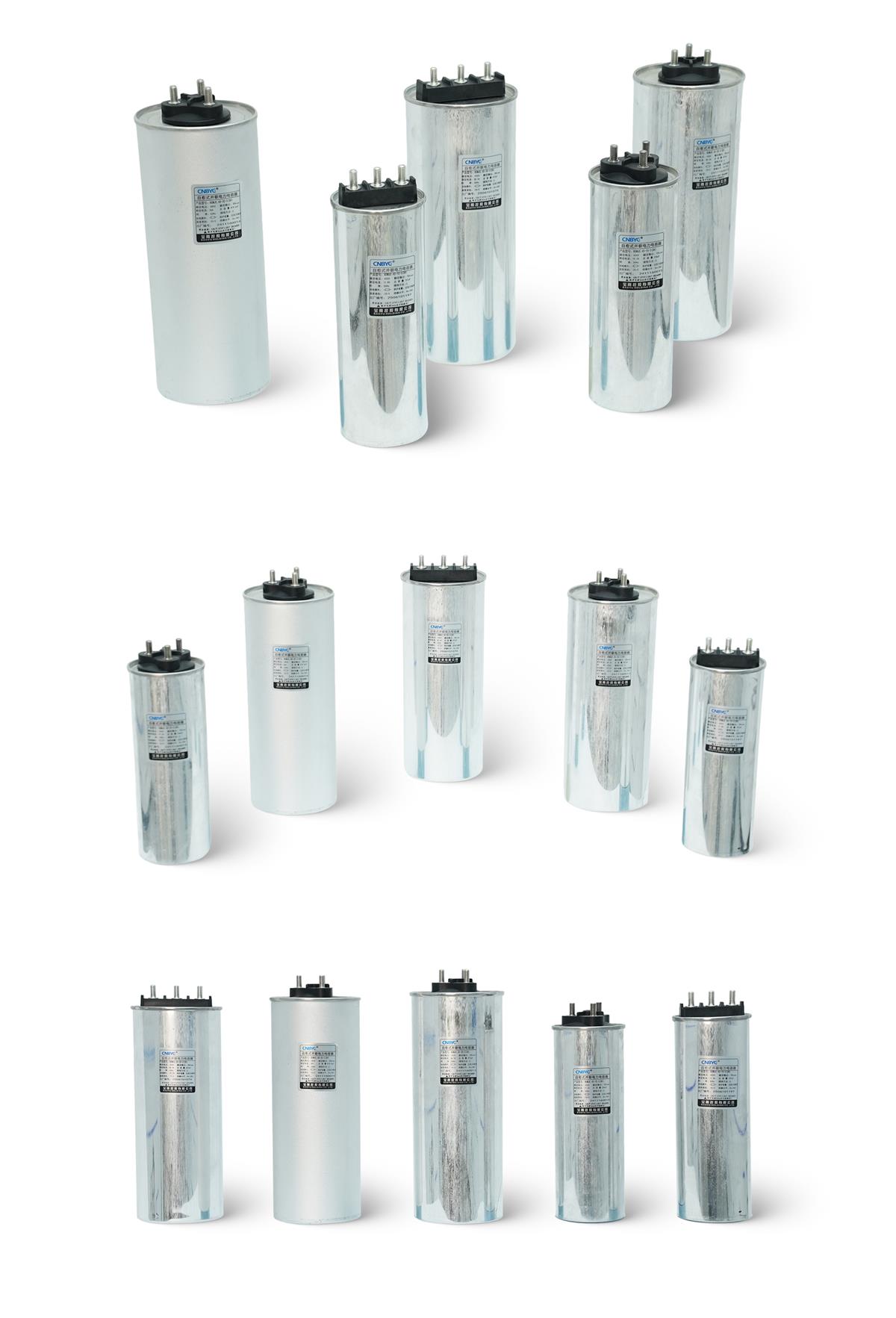

BSMJ(cylinder) Series cylindrical capacitors
Product information
BSMJ(cylinder)
Series cylindrical capacitors
Product details
The BSMJ(cylinder) series cylindrical capacitors are suitable for power frequency AC power systems with a nominalvoltage of 1000V and below, to improve power factor, reduce reacive power loss, and improve voltagequality.
The high-quality oxidation treated aluminum material shell has a circular design, convenient installation,and small duty cycle.
The unique design ensures that the product can adapt to high ambient temperatures and places withsignificant system voltage fluctuations.
Install discharge resistor and safety device inside. When the internal pressure of the capacitor increasesAor a malfunction occurs, the safety device can automatically disconnect it from the power supply to preventaccidents from expanding.
Product details

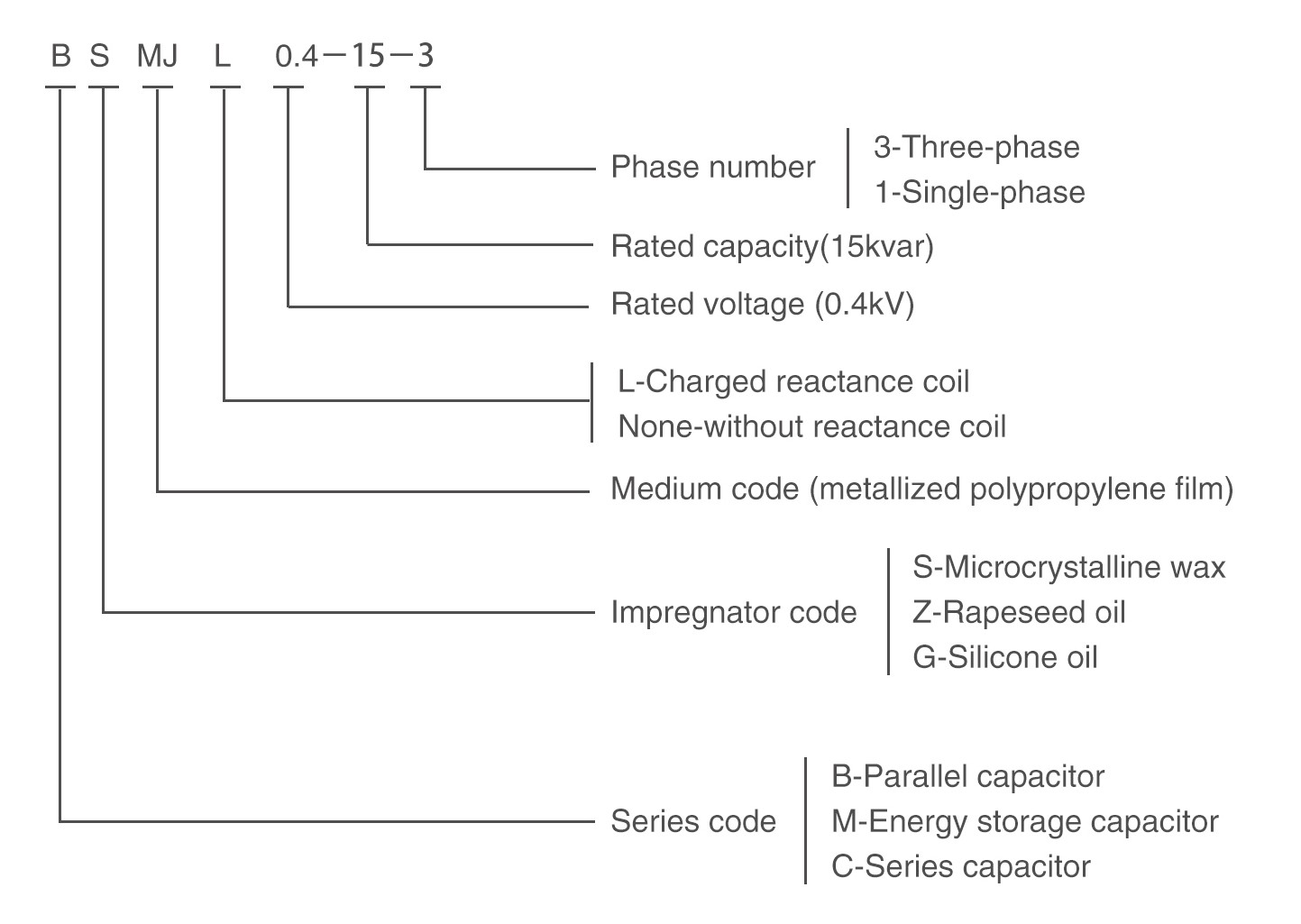

MODEL MEANING

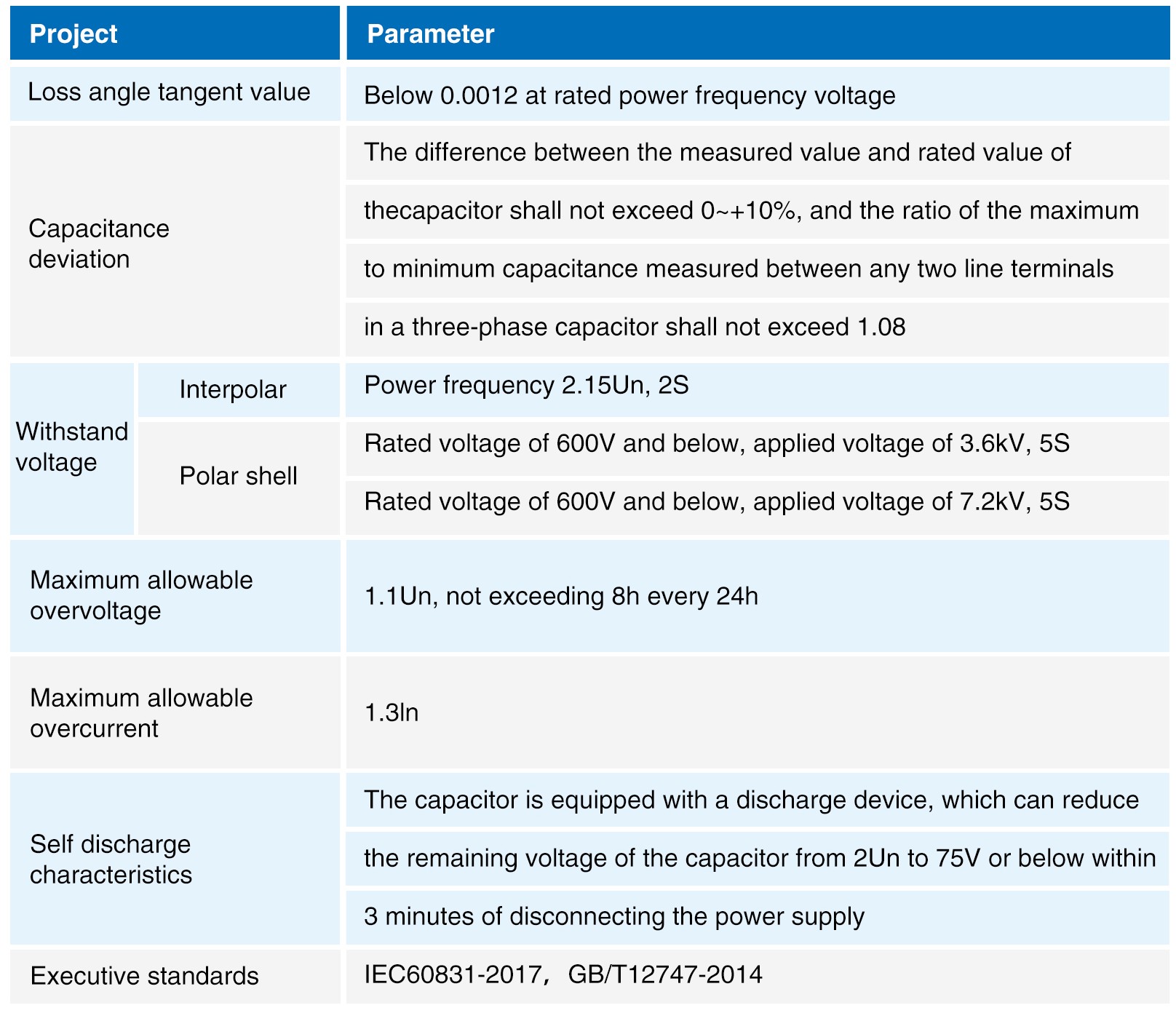

MAIN TECHNICAL PARAMETERS

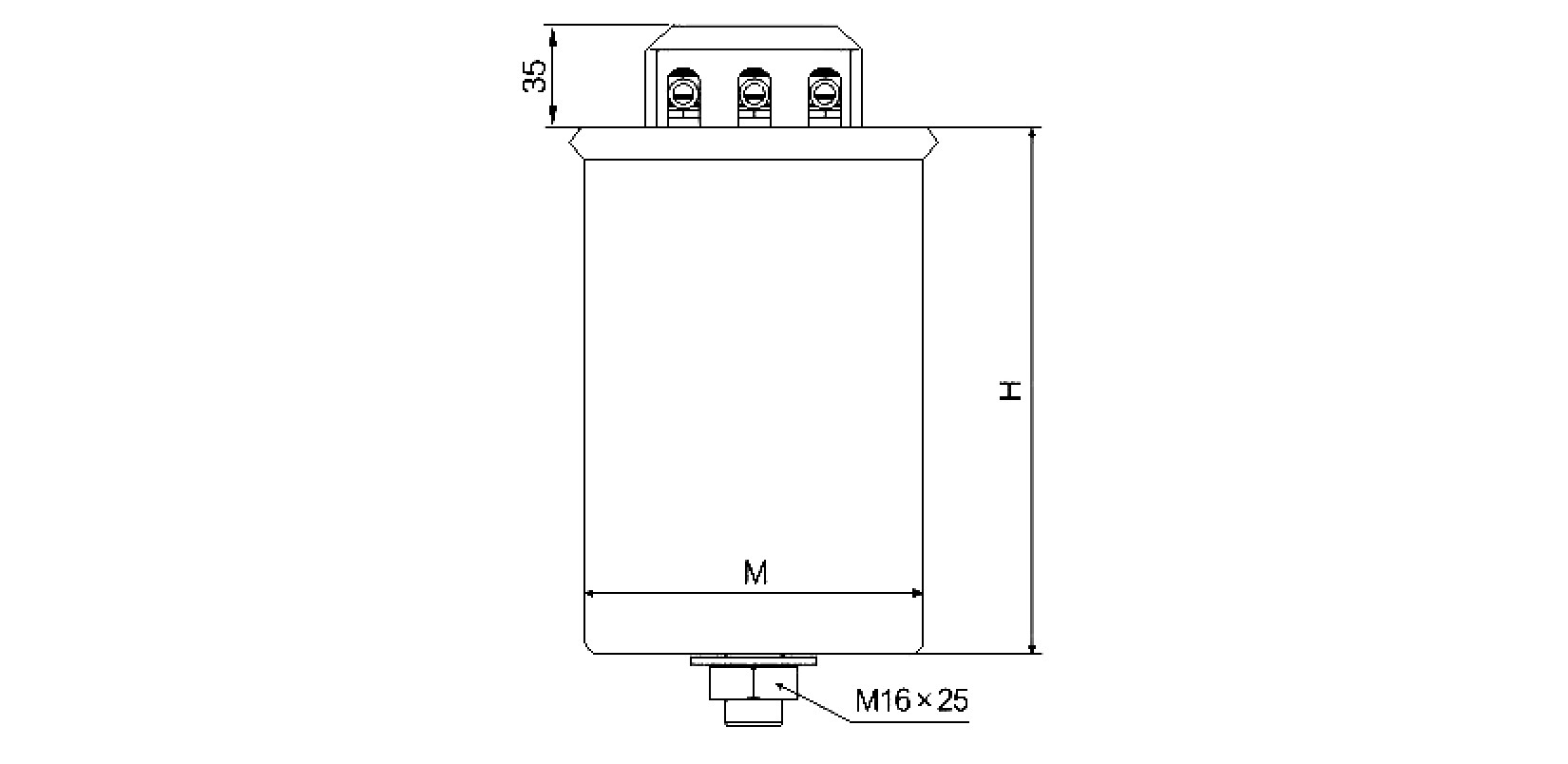

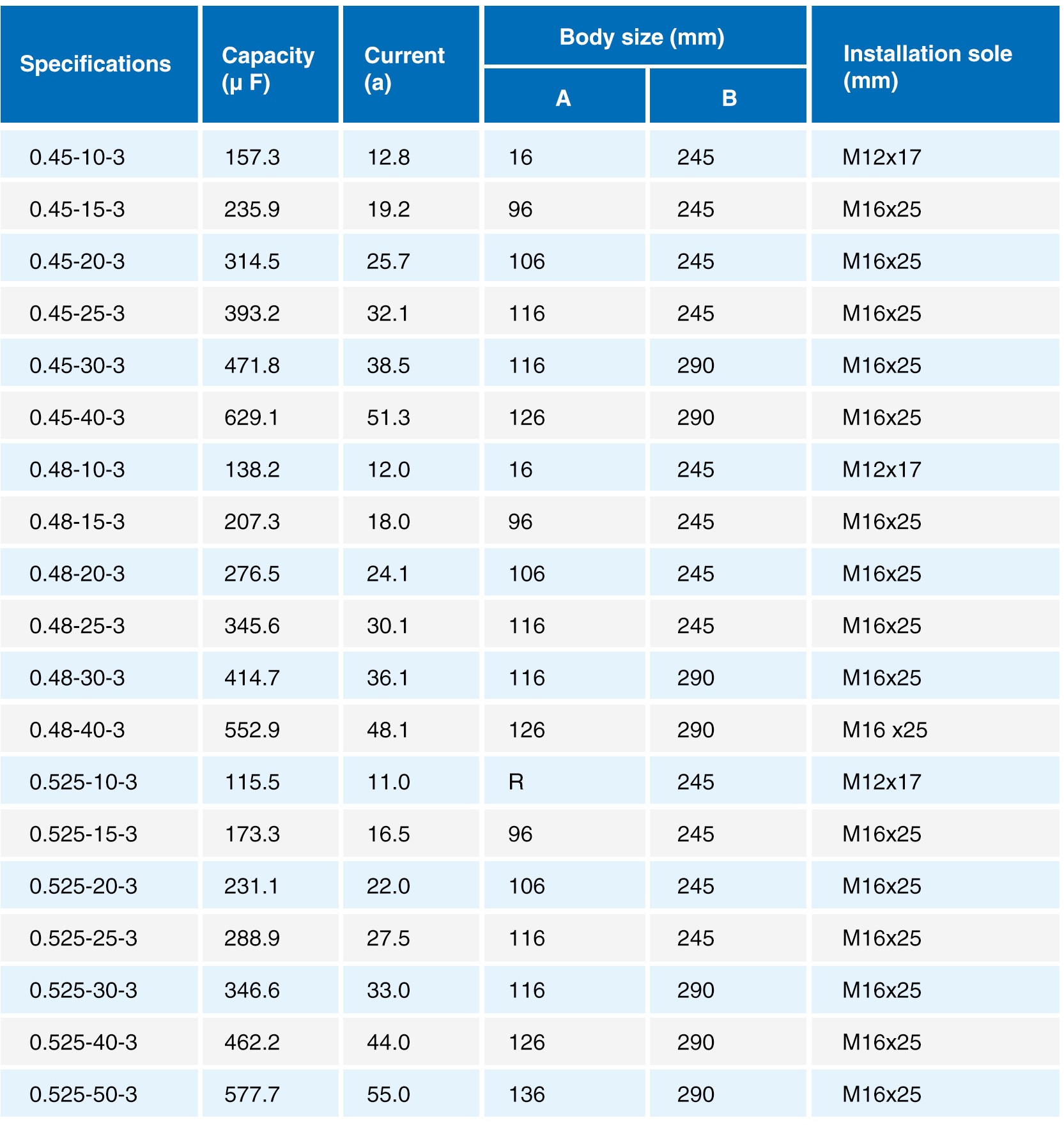

Main specifications and external dimensions
Note:The external installation dimensions of single-phase products are the same as those of three-phase products of the same specification.
Our company can customize other specifications of products for users. lfyou have special
requirements, please negotiate and place an order.
INSTRUCTIONS
Instructions for Use
Transport in original factory packaging; handle carefully.
Store in dry, non - corrosive gas indoor environment.
User acceptance inspection
Check nameplate model matches purchased product before use.
Capacity test: Conduct as per 4.2, using instruments with ≤2% relative error.
Withstand voltage test: Apply 75% of the voltage specified in 4.3.
Installation and operation
Install indoors, for use below 2000m altitude.
Ambient temperature -25~+50℃, humidity ＜85%; low-temperature version (-40~+50℃) available
on request.
Installation site: avoid direct sunlight, rain, excessive dust and severe vibration; spacing ＞30mm;
ensure good ventilation and heat dissipation in high summer temperatures.
Before installation, consider voltage rise after capacitor input to prevent long-term operation under
overvoltage; check voltage waveform and network characteristics; take measures to limit harmonics
if harmonic sources exist.
When paralleled with induction motor, capacitor current ＜90% of motor no-load current.
Use flexible copper wires for line and grounding terminals, ensure good contact; check terminals
regularly to prevent damage.
Interval between disconnection and reconnection ＞3min (self-discharge time) to avoid overvoltage
damage.
Ordering instructions
Users must provide product rated voltage, rated capacitance, number of phases, and other parameters.
Users should try their best to provide some characteristics of the place of use.
