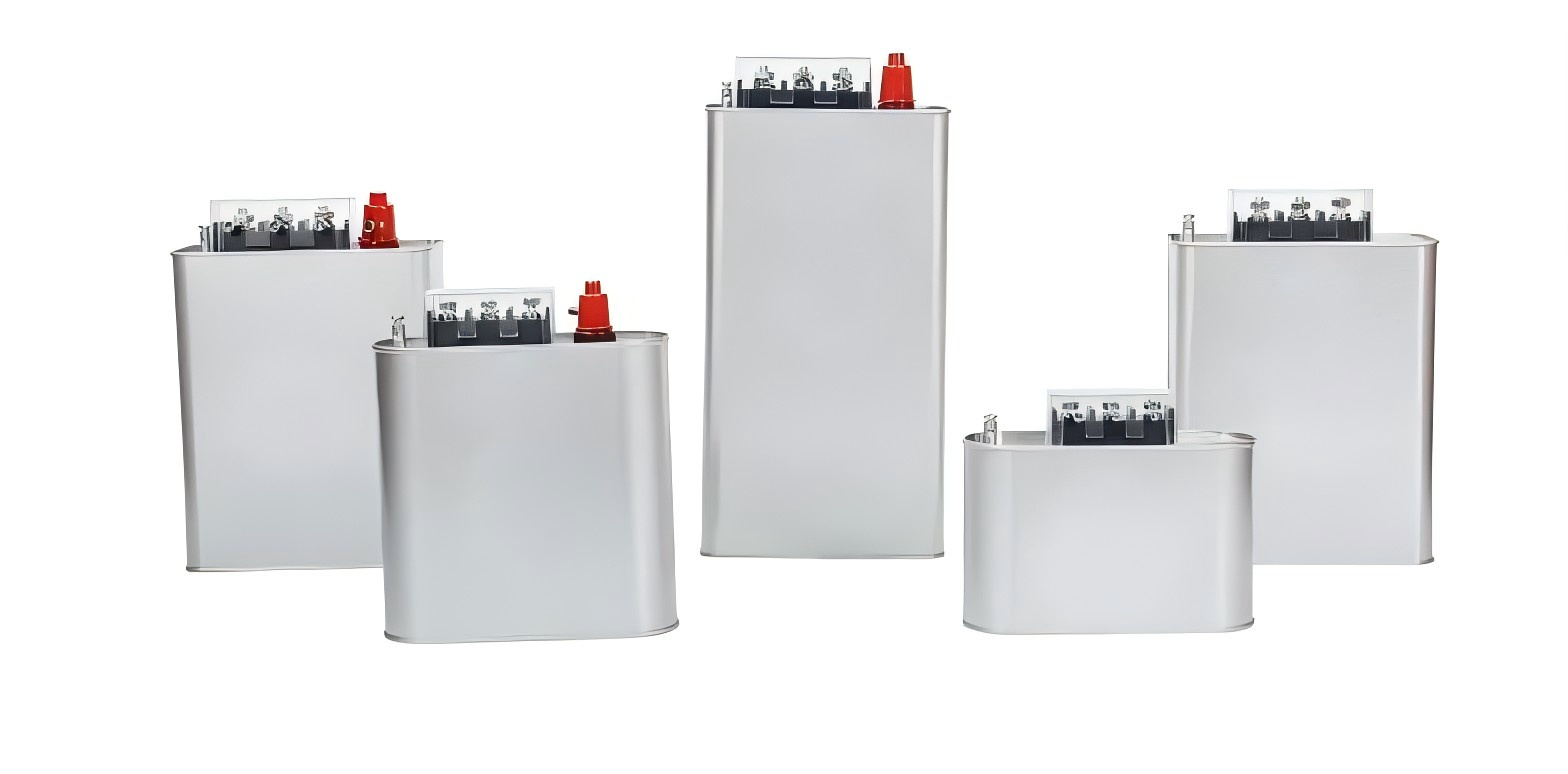

BSMJ0.45-6-3 3 phase Self-healing Low Voltage Power Shunt Capacitor Bank Three Phase Capacitor
Model Meaning
Main Parameters of BSMJ 0.45-6-3 Series Self-Healing Shunt Power Capacitor
| Model | BSMJ 0.45-6-3 Series Self-Healing Shunt Power Capacitor |
| Working Temperature | -25℃~+50℃ |
| Working Moisture | Not Exceed 85% |
| Altitude | Not Exceed 2000m |
| Working Voltage | 450V AC |
| Rated Capacity | 1-100kvar |
| Capacity Tolerance Degree | -5~+10% |
| The Tangent Value of Loss Angle | At working power frequency voltage, tg δ≤0.1% at 20℃ |
| AC Withstand Voltage | 2.15 Times the working voltage between poles for 10 seconds,and 3kV between poles for 10 seconds |
| Maximum Allowable Overvoltage | 1.1 Times Rated Voltage |
| Maximum Allowable Overcurrent | 1.30 Times Rated Current |
| Self Discharge Characteristics | Add √2 Un DC voltage to the capacitor, disconnect the power supply for 3 minutes, and the remaining voltage decreases by 75V or less |
| Compliant With Standards | GB12747-2017、IEC60831-2014 |
Product Introduction of BSMJ 0.45 - 6 - 3 Series Self-Healing Shunt Power Capacitor

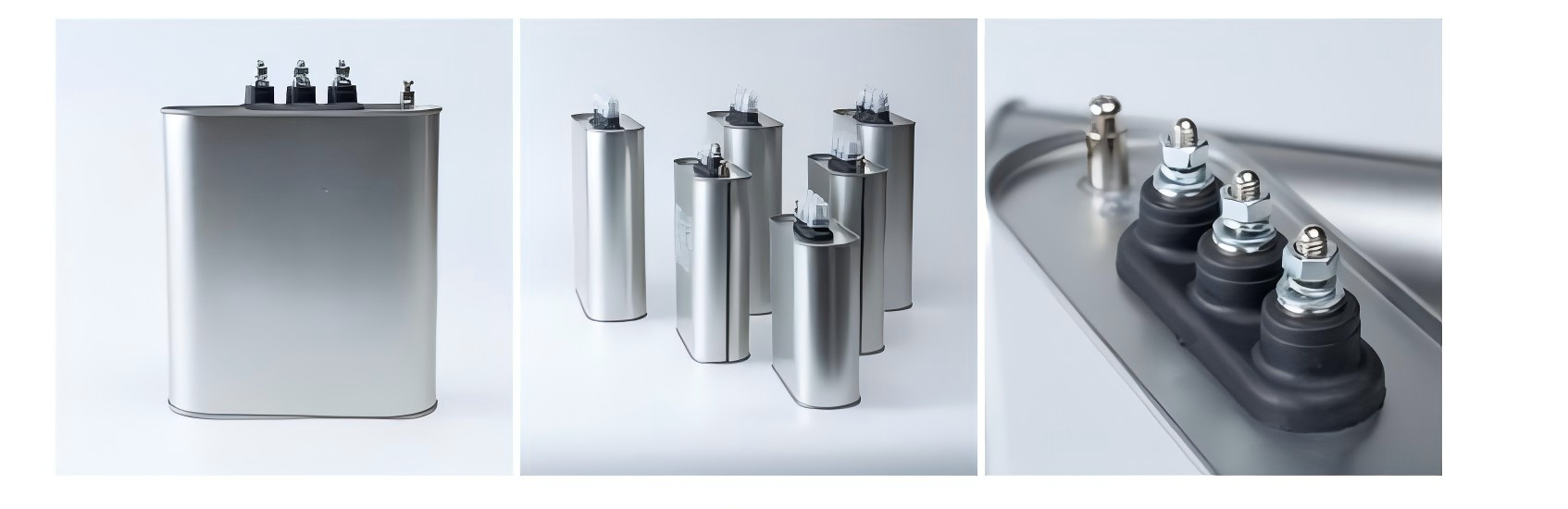

Structural Features of BSMJ 0.45 - 6 - 3 Series Self-Healing Shunt Power Capacitor
- Structural Features: Small size, light weight, and easy installation
- It uses high-quality metallized polypropylene film as the dielectric, and its unique structural design reduces the volume and weight of the capacitor to only 1/4 and 1/5 of the old product, respectively. It features low loss, less heat generation, and low temperature rise.
- By adopting a new spray-gold process and a unique thickened edge technology for the metallized film, the capacitor's ability to withstand surge currents is greatly enhanced. Its performance is stable, and the service life is significantly extended. The capacitor's own power consumption is reduced, with the actual value being lower than 0.08%. It generates less heat, has a low temperature rise, and offers excellent energy-saving effects. It also has excellent self-healing performance.
- In the event of partial dielectric breakdown, it can quickly self-heal and return to normal operation, greatly improving reliability and safety. It is equipped with a built-in discharge resistor and a fuse device, ensuring safe and reliable use.
- Oil-free and environmentally friendly: It uses microcrystalline wax as the impregnating agent, which is solid at room temperature and has a dropping point higher than 70°C. During use, it does not leak oil, avoiding environmental pollution. It not only has the structural characteristics of a dry-type capacitor but also the advantages of an impregnated capacitor. In addition, its unique impregnation process makes the capacitor operation more reliable.
-
Corrosion-resistant, anti-counterfeit casing, attractive and durable:
The painted iron casing undergoes special double anti-corrosion treatment, significantly improving its resistance to corrosion. The unique anti-counterfeit design is refined and aesthetically pleasing.
Product size information
| Model | Rated voltage(kv) | Rated capacity(kvar) | Total electrical capacity(μ F) | Rated current(A) | Boundary dimension LxW xH(mm) |
| BSMJ 0.45-5-3 Series | 0.45 | 6 | 94 | 7.7 | 170×60×105 |
The Materials Used in a Product Determine its Quality.
The BSMJ line of low-volt shunt caps has high-grade cases. They use a tin-plated sand iron coat. This coat gives great rust fight. It lets the caps keep their form & work. Even in tough spots with wet & rust risk. The case's tough build boosts shock fight to keep the parts safe. It guards them from hits & shakes found in work areas. This tough feel is key for long work life & long use of the caps. The high seal of the case also keeps the caps safe from dirt and wet, which can hurt how well they work. By blocking these bad things from getting in, the BSMJ caps work well all the time. This cuts down the chance of breaks. All in all, the mix of rust fight, shock guard, & good seal makes the BSMJ caps a top pick for settings that need safe & long-last power aid.
The BSMJ line also has safe & bomb-proof traits that up their trust in hard jobs. Each cap comes with in-built flow stops & keep-safe parts that are key for safe use. If stress goes up or a fault happens, the keep-safe part cuts the power to the cap fast. This quick act stops bad things from getting worse, keeping both the gear & space safe. By adding these safe steps, the BSMJ caps not only make use more safe but also ease minds of users. They know they are safe from sudden breaks.
The dust lid for the BSMJ caps is made from top poly (PC) stuff, with heat & cast steps. This clear lid guards from dust & trash but lets you see the parts inside. Its arc-fight trait makes sure it can deal with sparks, making use safer. The strong build of the dust lid not just keeps the cap clean but also adds to the long life & trust of the unit, making it key for the best work in many work spots.
Common Use Scenarios
Electric power construction New energy system Industrial system
Storage Workshop
Production workshop
Workshop Vedio
