Picking the right components for your electronic projects can really make a difference when it comes to performance and efficiency. And one key component you shouldn’t overlook is the High Power Capacitor. These guys are super important when you're dealing with circuits that need quick bursts of energy—think rapid charging and discharging. They’re like the energy reservoirs that keep things running smoothly in high-demand situations. As tech keeps getting better and our gadgets need to be more powerful and reliable, choosing the right High Power Capacitor is more important than ever.
In this guide, I’ve put together ten practical tips to help you pick the right High Power Capacitors for your projects. Whether you’re working on renewable energy setups, electric vehicles, or other industrial stuff, knowing what to look for in thesE Capacitors will help you get better performance and more dependable results. Honestly, with so many options out there, it can feel a bit overwhelming at first. But don’t worry—armed with the right info, you’ll be making smart choices that fit your project perfectly.
Understanding High Power Capacitors and Their Applications
High power capacitorsplay a vital role in various applications, ranging from industrial machinery to renewable Energy Systems. These components are designed tostore and release energy quickly, making them ideal for tasks that require rapid power bursts, such as in motor start-up or power conditioning. By understanding their functions and characteristics, engineers can effectively integrate high power capacitors into their projects, ensuring optimal performance and reliability.
One of the key applications of high power capacitors is in smoothing power supply in electronic devices. In power systems, these capacitors help to minimize voltage fluctuations, enhancing system stability and efficiency. Additionally, they are essential in energy storage systems, where they store excessive energy generated during peak production times for use during periods of high demand. Recognizing the diverse applications of high power capacitors is crucial for selecting the right components that meet the specific requirements of your project, ultimately contributing to the success and sustainability of the system.
Key Specifications to Consider When Selecting High Power Capacitors
When selecting high power capacitors for your projects, several key specifications must be considered to ensure that the components meet the demands of your application. First and foremost, the voltage rating is crucial. You should select a capacitor with a voltage rating that comfortably exceeds the maximum voltage expected in your circuit to ensure reliability and prevent breakdown. Additionally, pay attention to the capacitance value, which determines the capacitor’s ability to store energy. Depending on your needs, you may require a capacitor with a specific capacitance range, so understanding the requirements of your circuit is important.
Moreover, the equivalent series resistance (ESR) is a vital specification that influences the efficiency of power delivery in high power applications. Low ESR is preferred as it reduces power losses during operation. Furthermore, the ripple current rating should not be overlooked, as it defines the maximum AC current the capacitor can handle without overheating. Checking the temperature rating is also essential, as capacitors are sensitive to thermal conditions, and prolonged exposure to high temperatures can impair their performance. By carefully evaluating these specifications, you can ensure that the high power capacitors you choose will effectively support your project’s requirements.
Power Capacitors Selection: Key Specifications
Evaluating Voltage Ratings for High Power Capacitors
When selecting high power capacitors for your projects, evaluating voltage ratings is a critical aspect that can significantly impact performance and safety. High power capacitors must operate consistently at or below their rated voltage to prevent breakdown and failure. Industry standards, such as those outlined in the IEC 60384, suggest that the voltage ratings for capacitors should be based on the maximum expected voltage of the application along with an additional safety margin, typically around 20%.
One essential tip when choosing capacitors is to consider the capacitor's voltage derating, especially if the application involves voltage spikes or fluctuations. Operating a capacitor far below its maximum rated voltage can enhance its lifespan and reliability. For instance, a recent study published in the International Journal of Electronics & Electrical Engineering noted that capacitors that are consistently operated at 50% of their rated voltage can last significantly longer than those subjected to their full ratings.
It is also advisable to take into account the ambient temperature and potential thermal effects on voltage ratings. Capacitors rated for high temperatures tend to have alterable voltage ratings based on operating conditions, with ratings typically decreasing as temperatures rise. According to the IEEE standards on capacitors, the voltage rating can diminish up to 10% per 10°C increase in temperature. Therefore, understanding these dynamics is crucial for ensuring that your high power capacitor selections align with both the electrical demands and environmental conditions of your projects.
Assessing Capacitance Values for Project Requirements
When selecting high power capacitors for your projects, understanding capacitance values is critical. Capacitance, measured in farads, quantifies a capacitor's ability to store electrical energy. For applications requiring high power, such as in power electronics or renewable energy systems, it's essential to assess the voltage rating and the equivalent series resistance (ESR) along with capacitance. According to market analyses, the demand for capacitors in high-power applications is expected to grow at a CAGR of about 6.2% from 2023 to 2028, indicating a significant investment in this technology.
When evaluating capacitance values, consider your project's specific requirements. For instance, larger capacitance values are typically needed for applications that manage high energy spikes, such as pulse power systems. It's advisable to look for capacitors that exceed the required capacitance values to account for tolerances— typically, a margin of 10% or more is recommended.
Tip: Always consult technical datasheets for the exact specifications and testing conditions of the capacitors being considered. This ensures you are factoring in the effects of temperature and frequency on capacitance, which can dramatically affect performance in high-power situations. Additionally, be mindful of capacitor lifespan, as high ripple currents can lead to premature failure, especially in demanding applications.

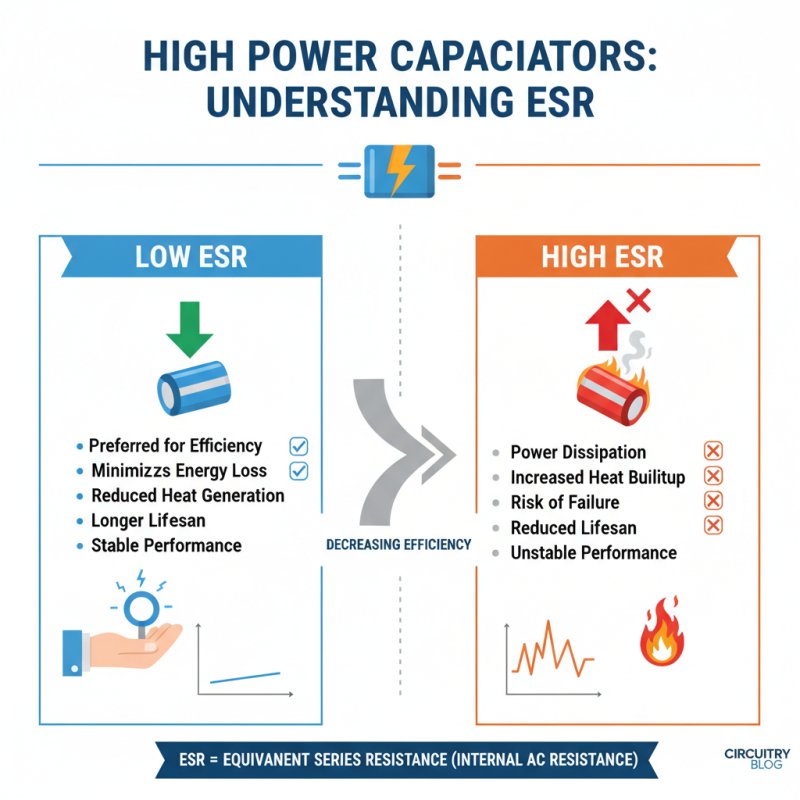

Analyzing Equivalent Series Resistance (ESR) in Capacitors
When selecting high power capacitors for your projects, it’s crucial to consider the Equivalent Series Resistance (ESR) of the capacitors. ESR indicates the internal resistance that a capacitor presents to an AC current, which can significantly affect its performance. A low ESR is generally preferred as it minimizes energy loss and heat generation, enhancing the overall efficiency of your circuit. High ESR can lead to power dissipations which may cause the capacitor to heat up, potentially leading to failure or reduced lifespan.
When evaluating capacitors for high power applications, a few essential tips come into play. Firstly, always check the specifications provided by the manufacturer regarding ESR values, especially when dealing with high-frequency applications. Lower ESR types can better handle ripple currents without significant voltage drops. Secondly, consider the application environment and ensure that the chosen capacitors can withstand the operational stresses related to temperature and voltage, which can influence ESR over time.
Further, not all projects require the absolute lowest ESR; sometimes, a balance between performance and cost needs to be struck. Determine the acceptable ESR range based on your circuit requirements. Lastly, closely analyze how ESR impacts the overall circuit performance, particularly in power supply designs where ripple current and transient response can heavily influence stability and efficiency. Properly assessing ESR alongside these tips will set the foundation for successful capacitor selection in your projects.
Comparing Capacitor Types: Ceramic, Electrolytic, and Film Options
When selecting high-power capacitors for your projects, understanding the different capacitor types available is crucial. Ceramic capacitors are known for their robust performance and ability to handle high frequencies. They come in various voltage ratings and capacitance values, making them suitable for decoupling and filtering applications. However, their capacitance can vary with temperature and voltage, so it’s important to choose the right type of ceramic capacitor based on your specific requirements.
Electrolytic capacitors, on the other hand, excel in energy storage applications due to their higher capacitance values. They are polarised components, meaning they must be installed in the correct orientation to function properly. While they are typically larger in size, they provide excellent performance in power supply circuits and smoothing applications. One consideration is that electrolytic capacitors tend to have a shorter lifespan compared to other types, particularly in high-temperature environments.
Film capacitors offer a unique combination of stability and low-loss characteristics. These capacitors are generally non-polarized and can handle a wide range of voltages. They are ideal for applications requiring precision, such as audio equipment and signal processing circuits. With their long lifespan and excellent performance at high frequencies, film capacitors can be a reliable choice for many projects, especially where reliability is paramount. Each type of capacitor has its advantages and trade-offs, so understanding their characteristics will help you make an informed decision for your specific needs.
10 Essential Tips for Choosing High Power Capacitors for Your Projects
| Capacitor Type | Typical Voltage Rating (V) | Capacitance Range (µF) | Temperature Range (°C) | Applications |
| Ceramic | 50 - 1000 | 1 - 10,000 | -55 to 125 | Filtering, Coupling |
| Electrolytic | 16 - 450 | 1 - 10,000,000 | -40 to 85 | Power Supply Filtering, Decoupling |
| Film | 50 - 1000 | 0.1 - 100,000 | -40 to 85 | Signal Filtering, High Voltage Applications |
| Tantalum | 6 - 50 | 0.1 - 4700 | -55 to 125 | High Frequency Applications |
Ensuring Thermal Management and Reliability in Capacitor Selection
When selecting high power capacitors for your projects, ensuring proper thermal management is crucial for maintaining performance and reliability. Capacitors can generate significant heat during operation, particularly in high-frequency or high-voltage applications. This heat can lead to a decrease in capacitance, increased leakage current, and, ultimately, reduced lifespan. Therefore, it is essential to consider the thermal characteristics of the capacitor, including its maximum operating temperature, thermal resistance, and the ability to dissipate heat effectively.
To manage heat effectively, one can employ various strategies such as improving airflow around the capacitors, using heatsinks, or choosing capacitors with higher thermal ratings. Additionally, the selection of appropriate mounting techniques can enhance thermal conduction away from the capacitors. It’s also important to assess the circuit design to minimize conditions that could result in excessive heat generation, such as oversizing capacitors or operating them far beyond their rated limits.
Reliability is another critical factor in capacitor selection. A capacitor with poor thermal management will likely face premature failure, especially in demanding environments. Therefore, selecting capacitors designed for high thermal stability can lead to improved reliability and extended operational life. Moreover, analyzing the expected duty cycles and ensuring the capacitors are rated for the application will help secure a dependable performance over time. By focusing on thermal management and reliability, you can ensure your high power projects function effectively and endure the demands placed on them.

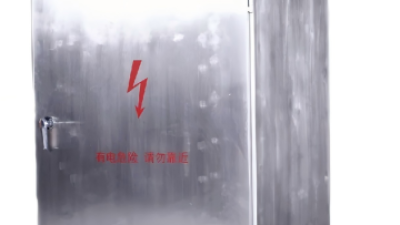

Enhancing Energy Efficiency: A Comprehensive Analysis of the BY96-SPC/30kvar-0.4/4L-T for Optimal Three-Phase Power Quality Improvement
The advancement of energy efficiency is critical for both industrial and commercial sectors, particularly in today's era where sustainable practices are paramount. The BY96-SPC device plays a pivotal role in enhancing three-phase power quality by addressing common issues associated with voltage imbalance and harmonic distortions. Operating within low voltage grids, this device employs advanced split-phase compensation techniques that dynamically adjust current loads across the three phases, thus correcting any imbalances and minimizing harmonic content to below 3% Total Harmonic Distortion (THD).
Equipped with intelligent control mechanisms and real-time monitoring capabilities, the BY96-SPC provides a comprehensive solution for balancing inductive and capacitive loads. This real-time analysis not only ensures optimal energy savings but also enhances the performance of sensitive electrical equipment that can be adversely affected by power quality issues. With an adaptive algorithm tailored for three-phase 4-wire networks, the device guarantees reliability while managing interference in challenging environments, making it an ideal choice for diverse applications in industrial operations, commercial facilities, and renewable energy systems.
FAQS
: When evaluating voltage ratings, it’s important to consider the maximum expected voltage of the application, the need for a safety margin (typically around 20%), voltage derating due to spikes or fluctuations, and the ambient temperature as it can affect voltage ratings.
Voltage derating is important because operating a capacitor well below its maximum rated voltage can significantly enhance its lifespan and reliability, helping to prevent breakdown and failure.
Ambient temperature can impact voltage ratings, as capacitors rated for high temperatures may have diminished ratings with rising temperatures. For instance, the voltage rating can reduce up to 10% for every 10°C increase in temperature.
Ceramic capacitors are known for their robust performance, ability to handle high frequencies, and availability in various voltage ratings and capacitance values. However, their capacitance can vary with temperature and voltage.
Electrolytic capacitors are excellent for energy storage due to higher capacitance values, but they are polarized and must be installed correctly. They also tend to have a shorter lifespan, especially in high-temperature environments.
Film capacitors offer stability, low-loss characteristics, and are generally non-polarized, making them suitable for a wide range of voltages. They are ideal for precision applications and can provide a long lifespan with excellent performance at high frequencies.
The choice of capacitor type can significantly affect circuit performance, reliability, and efficiency. Different capacitor types, such as ceramic, electrolytic, and film, have unique advantages and trade-offs that impact their suitability for various applications.
Understanding different capacitor types helps in making informed decisions tailored to specific project requirements, ensuring that the selected capacitors fulfill both performance and application needs properly.
Conclusion
Choosing the right high power capacitor for your projects involves a nuanced understanding of various specifications and applications. It’s essential to evaluate key parameters such as voltage ratings and capacitance values to ensure compatibility with your project requirements. Additionally, analyzing the equivalent series resistance (ESR) is crucial as it affects performance and efficiency.
Different types of capacitors, such as ceramic, electrolytic, and film options, each offer unique benefits suitable for specific applications. Furthermore, effective thermal management and reliability must be prioritized in the selection process, ensuring that the high power capacitor operates efficiently under varying conditions. By taking these factors into account, you can confidently select the most suitable high power capacitor for your needs.
