APF/SVG/SPC Cabinet & Module Series

The BY92-SVG static var generator uses the principle of power electronicsto separate the reactive power in the circuit throuah alaorithms, and emitsinductive or capacitive currents that are opposite to them, achieving -1~+1 levelcompensation.At the same time, BYSVG can also control 2-13 harmonics,achieving intelligent power quality control.

Power Solution for modern Power Distribution Systems! The BY91 Series Active Harmonic Filter (APF) is a cutting-edge Active Harmonic Filter Design engineered to eliminate harmonics, correct power factor, and stabilize voltage fluctuations in industrial and commercial Electric Power Distribution networks. Utilizing IGBT-based power conversion and adaptive current control algorithms, it dynamically suppresses 2nd–50th order harmonics with >97% efficacy, reducing THDi to <5% and ensuring compliance with global Power Quality standards. Unlike Passive Harmonic Filters, which risk resonance and fixed-band compensation, our Shunt Active Power Filter offers real-time response, resonance damping, and multi-functionality—addressing harmonics, reactive power, and load imbalance in a single Power Tech Solutions platform.

The BY92 - SVG/120kvar - 0.66/3L - W Series is a premium Static Var Generator designed for Electric Power Distribution, enhancing Power Quality in diverse systems. As a Variable Impedance Type SVG, it delivers exceptional Reactive Power Compensation, outperforming other Types Of Static Var Compensators. Manufactured by Baoyu Holdings, a leading Static Var Compensator Manufacturer, it matches the reliability of Abb Static Var Compensator.This high - quality Var Generator ensures optimal power balance in Three Phase Three Wire systems. By monitoring Voltage Between 3 Phases and 3 Phase Current To Power, it enables precise Static Power Factor Correction, reducing losses and mitigating Voltage Sag. As a key part of the Static Var Compensation System, it provides Voltage Support for Distribution Line Equipment.Specialized in Harmonic Discovery and suppression, the BY92 series protects Electronic Low Voltage and Electrical Low Voltage devices. Ideal for Power Quality Projects, it upgrades Electrical Power System 3 and supports New Power Systems. Its intelligent, automatic operation makes it perfect for industrial and commercial applications, ensuring efficient power usage and reliable performance.

The BY92 - SVG/100 kvar - 0.4/4L - N Series Static Var Generator revolutionizes Electric Power Distribution, optimizing Power Quality. As a top - tier Variable Impedance Type Static Var Generator, it offers superior Reactive Power Compensation, outperforming other Types Of Static Var Compensators. Developed by Baoyu Holdings, a leading manufacturer, it rivals products like Abb Static Var Compensator in reliability.This SVG monitors 3 - phase voltage and current in Three Phase Three Wire systems, enabling precise Static Power Factor Correction. It reduces power losses, combats Voltage Sag, and provides essential Voltage Support. Additionally, it excels in Harmonic Discovery and suppression, protecting Electrical Low Voltage equipment and enhancing Distribution Line Equipment reliability. Ideal for Power Quality Projects and various setups, the BY92 - SVG series is a must - have Reactive Compensation Equipment for boosting electrical system performance.

The BY96 - SPC/50kvar - 0.4/4L - B Series Three - Phase Unbalance Correction Device revolutionizes low voltage three - phase power distribution systems. It rapidly detects and corrects 3 phase voltage imbalance, optimizing three phase power distribution by intelligently redistributing loads. With state - of - the - art Pfc power electronics, this device acts as a superior Pfc generator, precisely regulating Pfc current, voltage, and power for significant powerfactor improvement. It conducts efficient reactive power compensation, ensuring optimal power factor correction in three phase and overall power systems. Additionally, it excels in harmonic compensation, eliminating power quality problems to enhance voltage quality and overall quality of electricity in low voltage power systems.

The BY96 - SPC/30kvar - 0.4/4L - B Series Three - Phase Unbalance Correction Device is a cutting - edge solution for low voltage three - phase power systems. As a highly efficient active balancer, it excels in three - phase imbalance correction, ensuring balanced three - phase voltage and stable 3 - phase power distribution. With advanced reactive power compensation capabilities, it effectively corrects reactive power, improving power factor across three - phase and overall power systems. The integrated Pfc generator precisely controls Pfc current, voltage, and power, enhancing powerfactor improvement. Additionally, it conducts harmonic compensation to address power quality problems, guaranteeing excellent voltage quality and overall power quality in low voltage power systems.

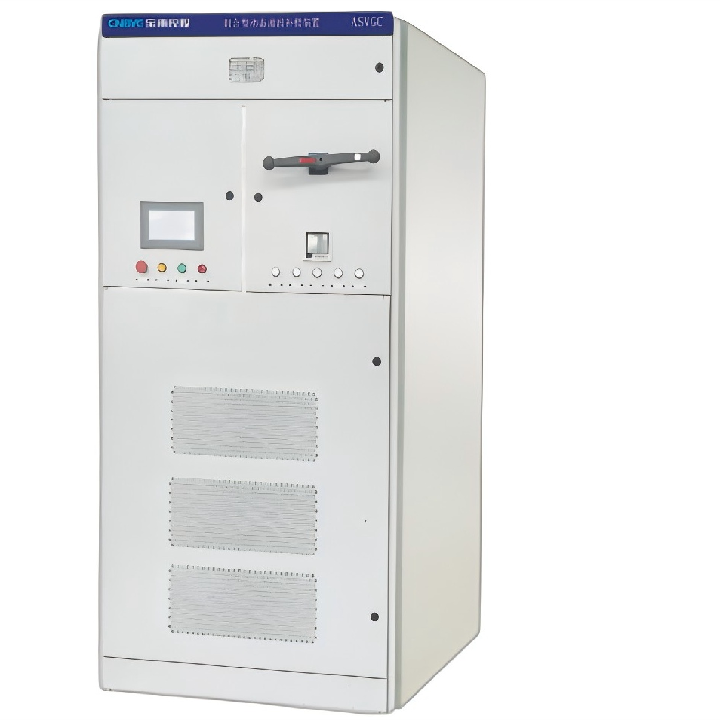

Introducing the BY96-ASVGC Low Voltage Hybrid Dynamic Reactive Power Compensation Device, a cutting-edge solution engineered by Baoyu Holdings Co., Ltd. to deliver unparalleled Hybrid Dynamic Filtering Compensation and Quality Power optimization. This advanced generator synchronization panel integrates seamlessly into 650V power distribution systems, addressing critical challenges like harmonics, reactive power imbalances, and voltage instability.Designed with Hybrid Harmonic Filter technology, the BY96-ASVGC combines passive and active filtering mechanisms to achieve up to 85% harmonic reduction, ensuring compliance . Its Hybrid Active Filter and Hybrid Power Filter configurations dynamically adapt to nonlinear loads, mitigating Harmonic Distortion Electrical and stabilizing Ac Voltage Low conditions. By integrating Static Var Generationand Static Var System In Power System capabilities, the device provides instantaneous reactive power support, improving power factor to 0.99+ and reducing energy losses.

Revolutionize your power system with the BY95-ASVGC, a cutting-edge solution designed to deliver seamless Hybrid Dynamic Filtering Compensation and Quality Power for industrial, commercial, and renewable energy applications. Engineered by Baoyu Holdings Co., Ltd., this compact device integrates Hybrid Harmonic Filter technology with Static Var Generation (SVG) and Hybrid Active Filter (APF) modules, addressing both harmonic distortion and reactive power inefficiencies in a single unit.
